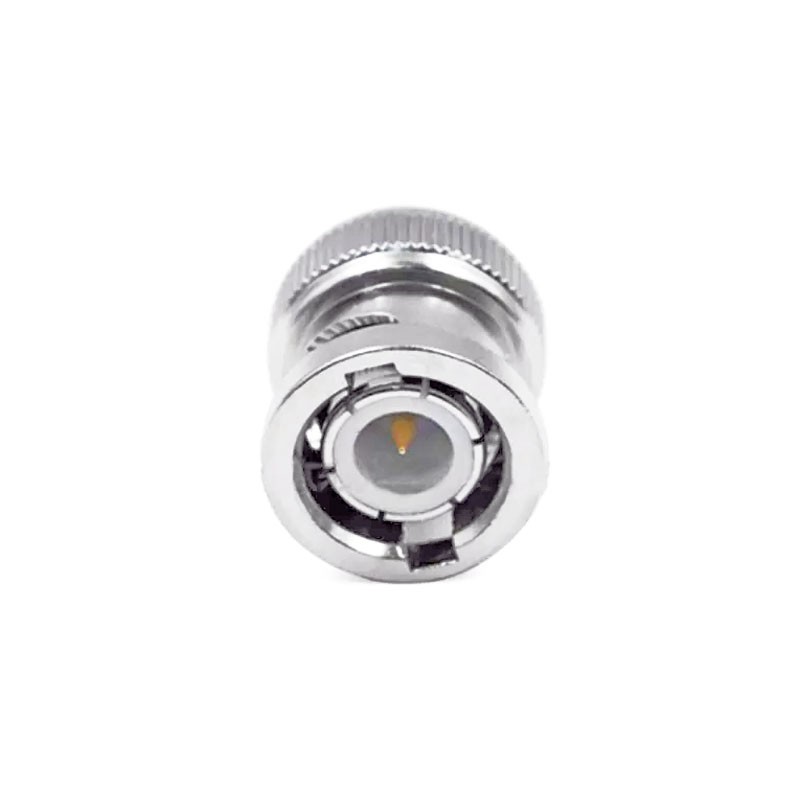

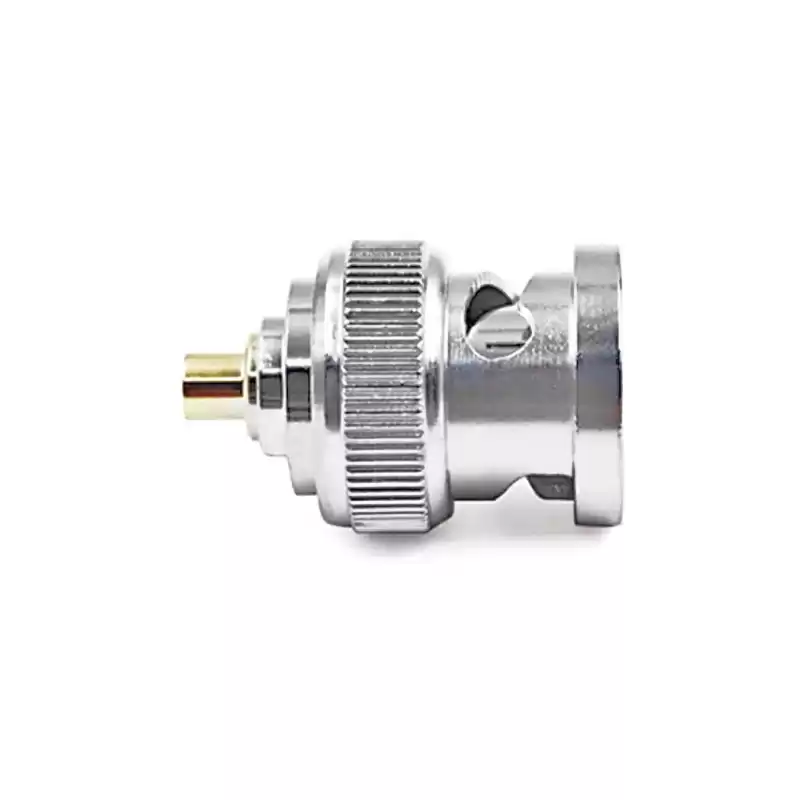

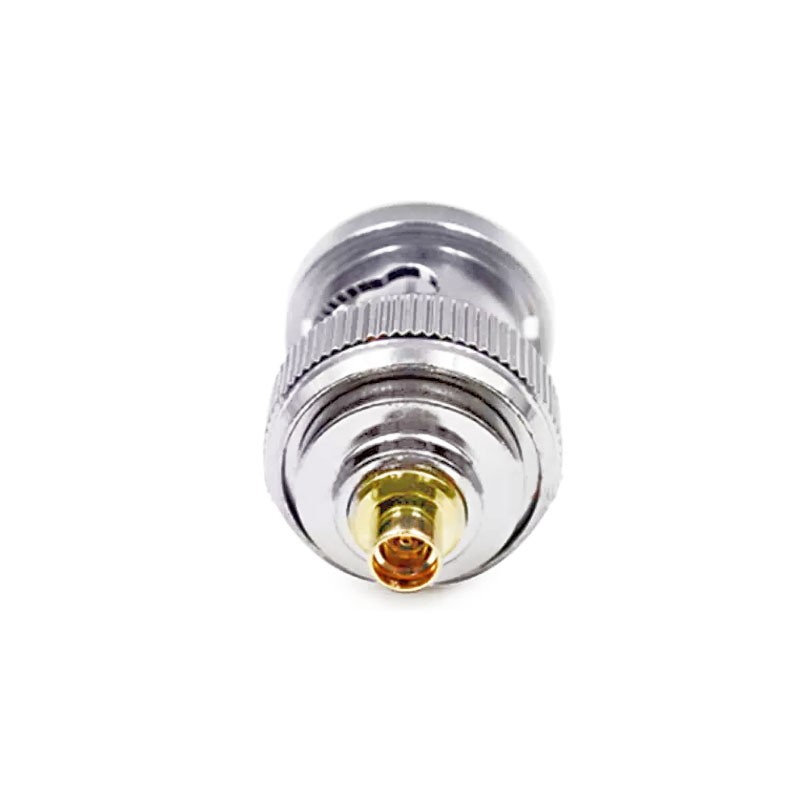

MMCX Jack Female to BNC Male RF Coaxial Connector Adapter
The MMCX Adapter has different MMCX to BNC adapter gender, that is a between series coaxial adapter, The MMCX to BNC adapters has jack to jack, jack to plug or plug to plug gender varieties. This MMCX jack to BNC male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
MMCX |
| Adapter Side 1 Style |
Jack |
| Adapter Side 2 Series |
BNC |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antenna Installations
- Laboratory Use
- Land Mobile Radio & Other Communication Systems
- General Purpose
- Cellular & Wi-Fi Systems
