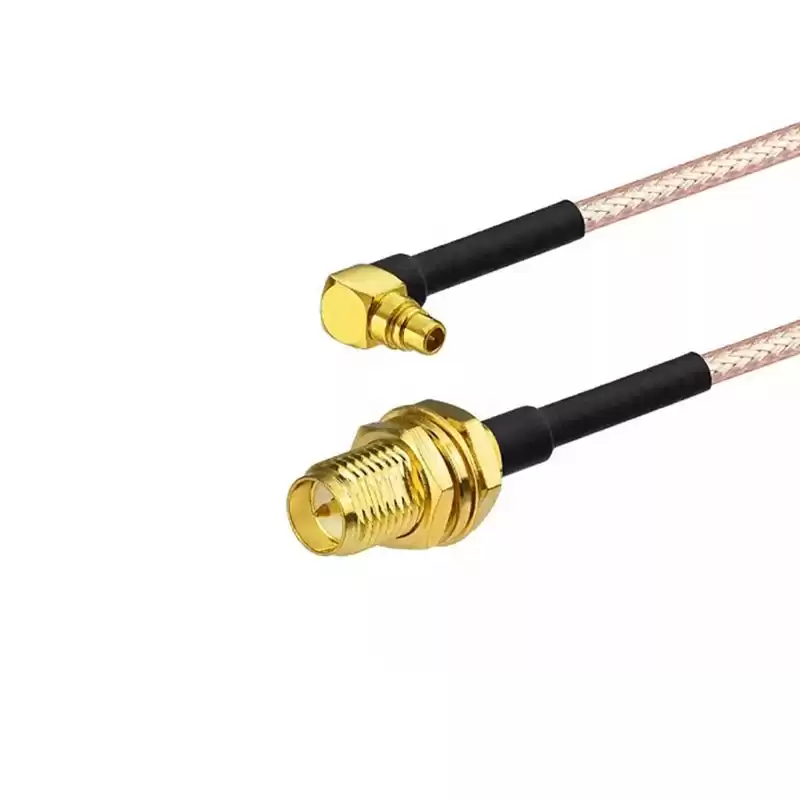

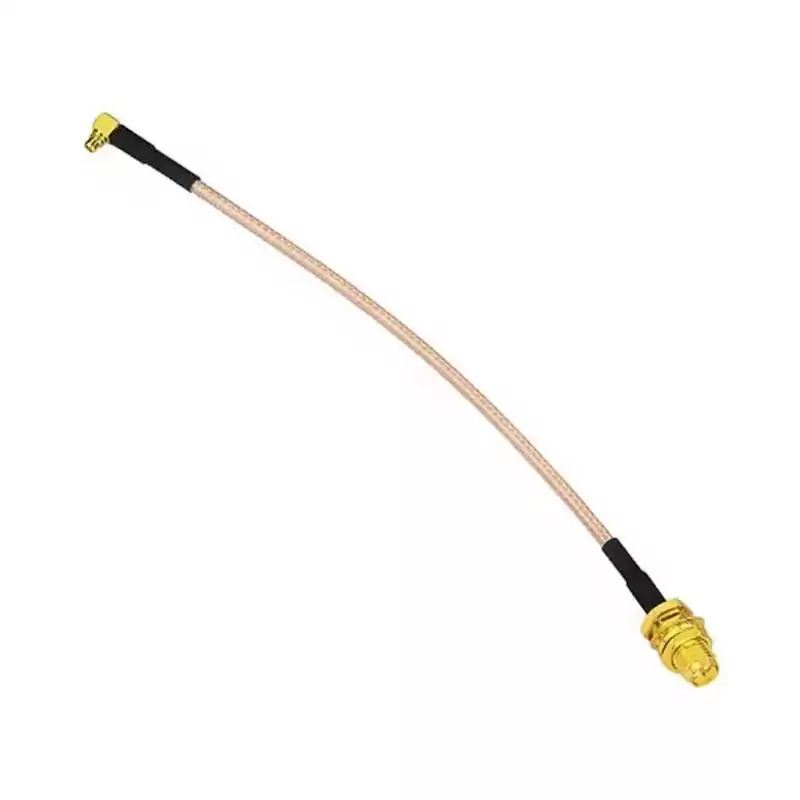

MMCX Right Angle Plug Male to Straight RP SMA Female Bulkhead RF Coaxial Connector Assembly with RG316 Cable
The MMCX cable assembly can use flexible or formable coaxial cable such as LMR100, RG174, RG178, RG188 or RG316 cable; the body of MMCX to SMA cable assembly is right angle or straight connectors which is plug to male, jack to female, jack to male or plug to female gender. This MMCX plug to RP SMA female cable assembly uses a 50ohm right angle MMCX for connector 1 and a 50ohm straight RP SMA for connector 2, Cable is 50ohm flexible cable type RG316.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
MMCX |
| Connector 1 Style |
RA Plug |
| Cable Type |
RG316 |
| Connector 2 Series |
SMA |
| Connector 2 Style |
Str Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
Brass |
| Body Finish |
Nickel/Ternary alloy |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Antennas
- Instrumentation
- Base Stations
- Broadband
- Telecommunications
