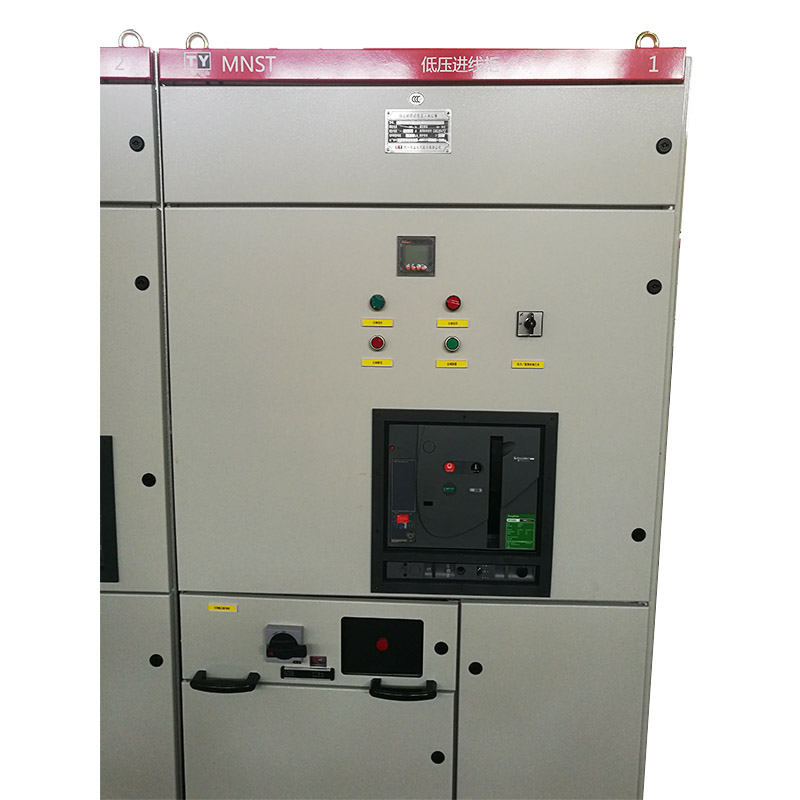

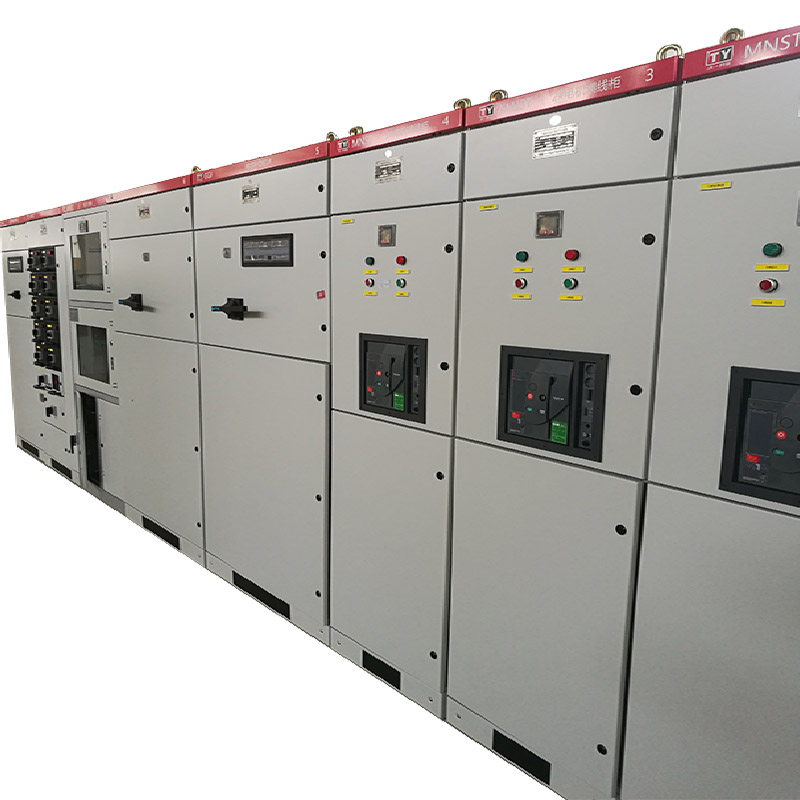

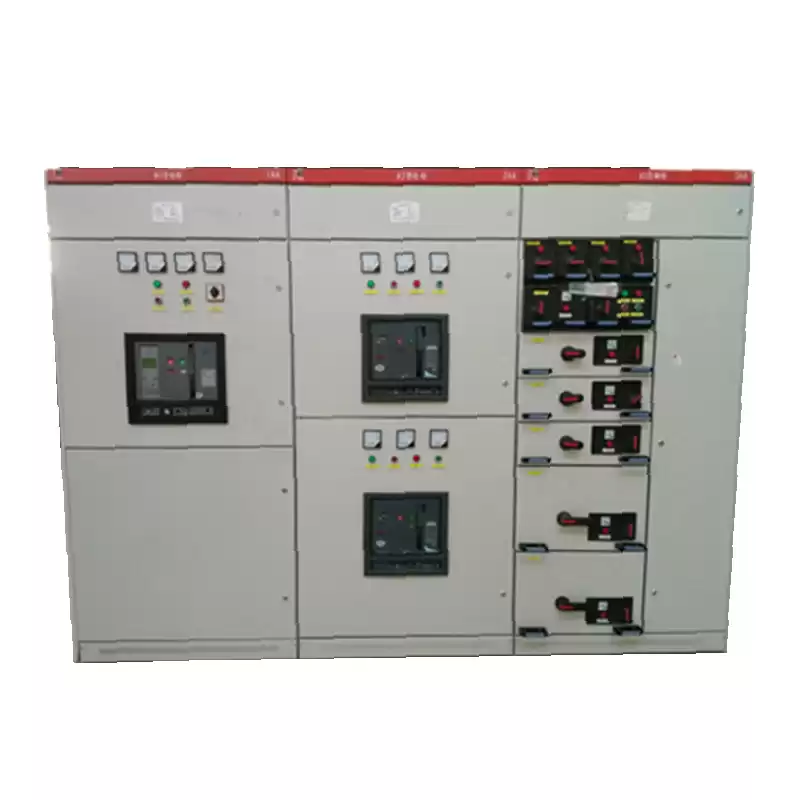

MNST Drawer-type enclosed low-voltage switchgear

MNST Drawer-type enclosed low-voltage switchgear,three-phase AC frequency 50/60 Hz, rated working voltage 380V (400), (660), rated current is 4000A and below.As a complete set of indoor low-voltage power distribution device and motor centralized control, no power compensation in power generation and power supply system.






1. The MNST Drawer-type enclosed low-voltage switchgear assembly form of the main frame is designed into two types, the fully assembled structure and partially welded construction (side frame and beam), for users to choose.

2. The functional rooms of the device are isolated from each other. The compartments are divided into functional unit compartments, bus compartment and cable compartment.The functions of each compartment are relatively independent.

3. The horizontal main bus is arranged in the form of flat arrangement behind the cabinet to enhance the electric power of the bus, which is the basic measure to make the main circuit of the device have high short-circuit strength.

4. The design of cable compartment makes it very convenient for the cable to go in and out.



NO.

Item

Data

1

Rated voltage of main CircuitV

AC 380 (400)、(660)

2

Rated voltage of auxiliary circuitV

AC 220380(400)
DC 110
220

3

Rated frequencyHz)

50/60

4

Rated insulation voltageV

660 (1000)

5

Rated currentA

Horizontal bus

< 6300

Vertical bus MCC

1250

6

Bus rated short-time withstand currentkA/1s

305080100

7

Bus rated peak withstand currentkA/0.1s

63 105 176220

8

Power frequency test voltageV/1min

Main circuit

2500

Auxiliary circuit

2000

9

Bus

Three-phase four-wire system

A. B. C. PE. N

Three-phase five-wire system

A. B. C. PE. N

10

IP grade

IP40



Q: Are you the Low voltage switchgear manufacturer or trader?

A: We are both manufacturer & trader. We have our own manufacturer named TIANYI TONGYI ELECTRIC CO.,LTD, who have 27 years experience in electric industry. It covers an totally area of 117,000 m2 with 300 employees, also is a qualified supplier of China National Nuclear Corporation(CNNC) and main supplier for State Grid & China Southern Power Grid.


Q: What is your after-sales service?

A: We always provide free online service and technical support within 24 hours. 18 months warranty for customers.


Q: What is your delivery time?

A: Normally 25~35days. It depends on the order quantity and season. We have very strong capacity to produce top quality products, please inquiry us if you have any questions.


Q: What is the quality warranty time?

A: We have quality certificate CCC, CQC, ISO9001, CE ... Meanwhile, we can provide 18 months warranty for our products. Free online service and technical support within 24 hours is always provided to our customers.


Q: Do you accept ODM and OEM?

A: Yes. We have professional R & D teams to update and develop the latest technology. We also can support ODM or OEM, please send us details drawing to discuss.


Q: What is your payment terms?

A: Generally there are two payment terms:

a) 30% advance payment via T/T as a deposit, balance 70% against the shipping documents

b) Irrevocable L/C at sight


Q: If I want to visit you, how to go?

A: Our factory is located in Luoyuan County, Fuzhou City. Details address is Songshan Area, Taiwan Investment Zone, Luoyuan County, Fuzhou City, Fujian Province,China.

a) The nearest airport is Fuzhou Airport, if you come by air, please arrive in Fuzhou Airport, it takes 1 hour from the airport to our factory

b) The nearest train station is Luoyuan Station, if you come by train, please arrive in Luoyuan Station, it takes only 5 minutes to our factory.

Anyway, please contact us in advance, we will send the car to the airport or train station to pick you up.Sincerely welcome you to come and visit us.


Q: Do you need agents?

A: Yes, we welcome you to be a partner. Welcome to contact us for more information.
