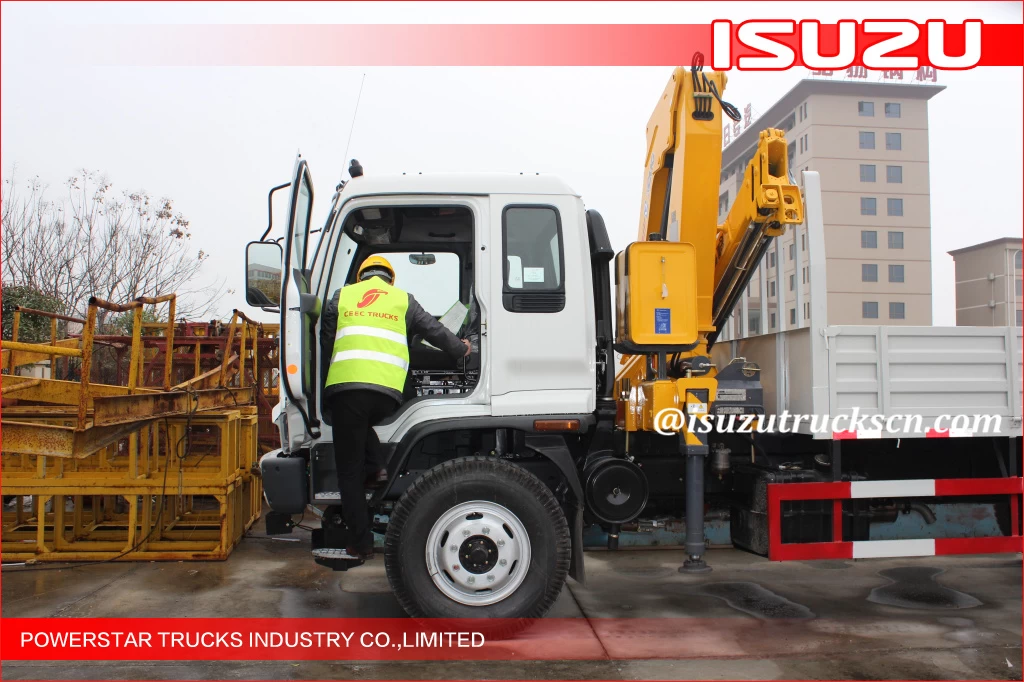

Mobile Isuzu 12T Knuckle Boom Truck Mounted Crane For Landscrape Jobs
Durable Mobile 12T Knuckle Boom Truck Mounted Crane For Landscrape Jobs
- Name: Folding boom crane, Folding boom truck crane, Knuckled boom crane, Knuckle boom truck mounted crane
- Max Lifting Capacity: 12 ton
- Max Lifting Moment: 30 t.m
- Max Oil Flow of Hydraulic System: 55 L/min
- Max. Lifting height: 13meters
- Brand: XCMG
- Crane Weight: 4130 kg
- Oil Tank Capacity: 160 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom crane SQ12ZK3Q is lifting capacity is 12tons, moment is 30T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ12ZK3Q
|
Unit
|
Max Lifting Moment
|
30
|
t.m
|
Max Lifting Capacity
|
12000
|
kg
|
Recommend Power Needed At Recommend Oil Flow
|
32
|
kw
|
Max Oil Flow of Hydraulic System
|
55
|
L/min
|
Rated Pressure Of Hydraulic System
|
30
|
MPa
|
Oil Tank Capacity
|
160
|
L
|
Rotation Angle
|
(360°)All Rotation
|
°
|
Crane Weight
|
4130
|
kg
|
Installation Space
|
1400
|
mm
|
Choice of Chassis
|
ISUZU
|
SQ12ZK3Q Lifting capability diagram
|
Working radius (m)
|
2.5
|
4.2
|
6.02
|
7.9
|
9.78
|
Lifting capacity (kg)
|
12000
|
6900
|
4560
|
3410
|
2650
|
