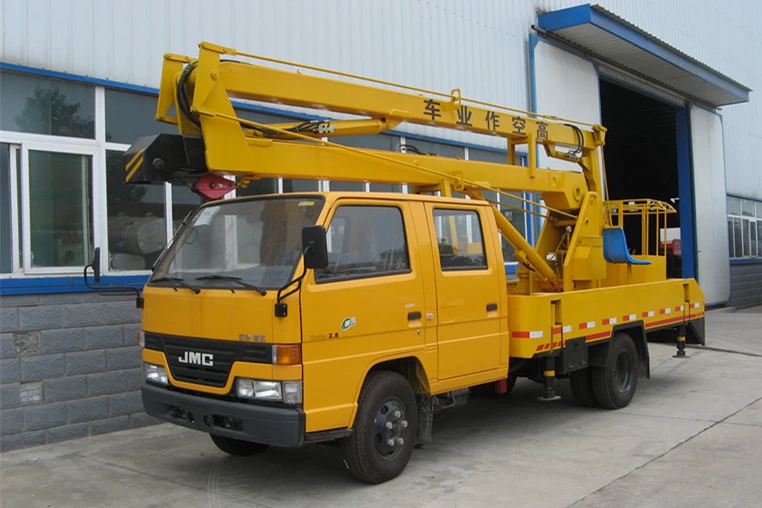

Mobile Man Lift Truck JMC
Function:
Mobile Man Lift Truck JMC (also called Articulated boom lift truck, aerial working platform, man lift truck, basket crane truck, bucket boom truck, aerial lift truck, boom lift, high platform truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- JMC chassis ensures perfect driving performance;
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Specification:
Similar Key Words: Truck mounted aerial working platform, china best aerial working truck manufacturer
| High working platform Truck JAC(16M) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
JMC |
| Overall Dimension |
7650 x 2100 x 3250 mm |
| GVW / Kerb Weight |
6,810 kg / 6,485 kg |
| Cab |
Cab Capacity |
2+3 persons allowed |
| Air Conditioner |
With air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
JMC engine, JX493ZLQ4 |
| Power |
109Ps (80KW) |
| Displacement |
2771 ml |
| Emission Standard |
Euro III |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
5-forward gears & 1 reverse |
| Wheelbase/No. of axle |
3360 mm / 2 |
| Tyre Specification |
7.00-16 or 7.00R16 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
95 km/h |
| Paint |
Metallic paint |
| Superstructure |
Cage Rated Capacity |
200 kg |
| Working Height |
16 m |
| Beam |
The beam is articulated & telescopic extension type, hydraulic actuated and controlled |
| Slewing |
Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. |
| Control |
Control both on the ground and remote control in cage |
| Safety Device |
Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
| Leveling System |
Hydraulic stabilizer to level the vehicle on uneven ground |
| Optional |
Insulated cage; Wireless remote control system |
