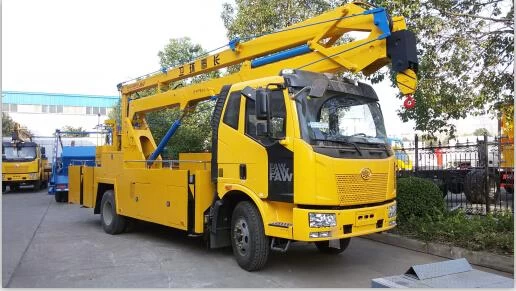

Mobile Man Lifter truck FAW

overhead working truck, articulated basket platform, bucket lift vehicle, hydraulic aerial cage, high platform truck, mobile man lift vehicle, mobile boom lifter vehicle, bucket boom truck, lifting platform truck



Mobile Man Lifter Truck FAW

Mobile Man Lifter Truck FAW

Function:

Mobile Man Lift Truck FAW(also called Aerial platform vehicle, truck mounted platform, aerial truck with basket, hydraulic man lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.



Features:

---- FAW chassis ensures perfect driving performance;
---- FAW engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Specification:

Similar Key Words:  Overhead working truck, bucket lift truck, lifting platform truck, bucket boom truck,mobile man lift truck,


 High working platform Truck SINOTRUK (20M)
General Vehicle Brand POWERSTAR
Chassis Brand FAW
Overall Dimension 9650 x 2500 x 3250 mm
GVW / Kerb Weight 16,000 kg / 12,485 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand FAW engine
Power 165~250Ps (162KW)
Displacement 4040~6060 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission  9-forward gears & 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 9.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 18~22 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

 Aerial working platform truck Isuzu boom lift vehicle
