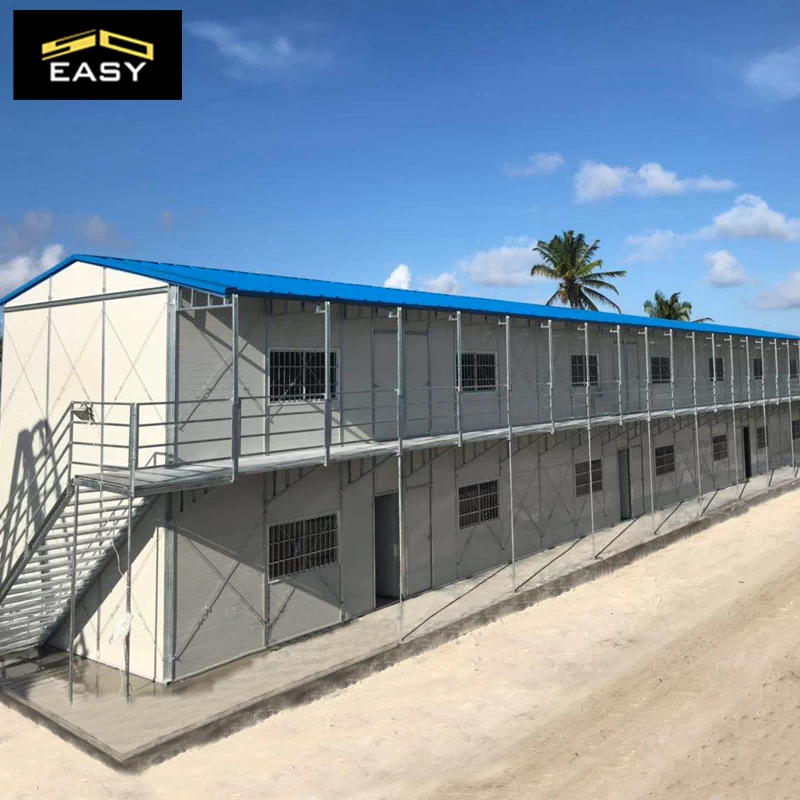

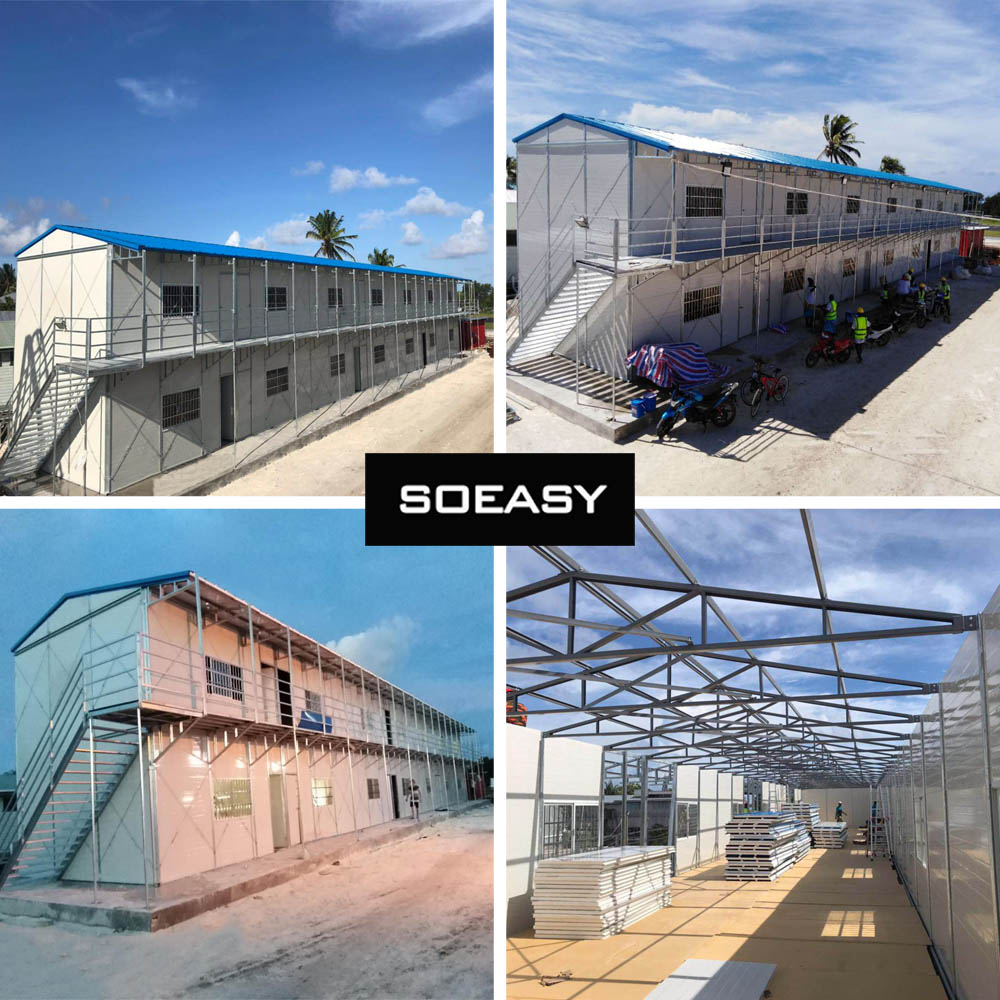

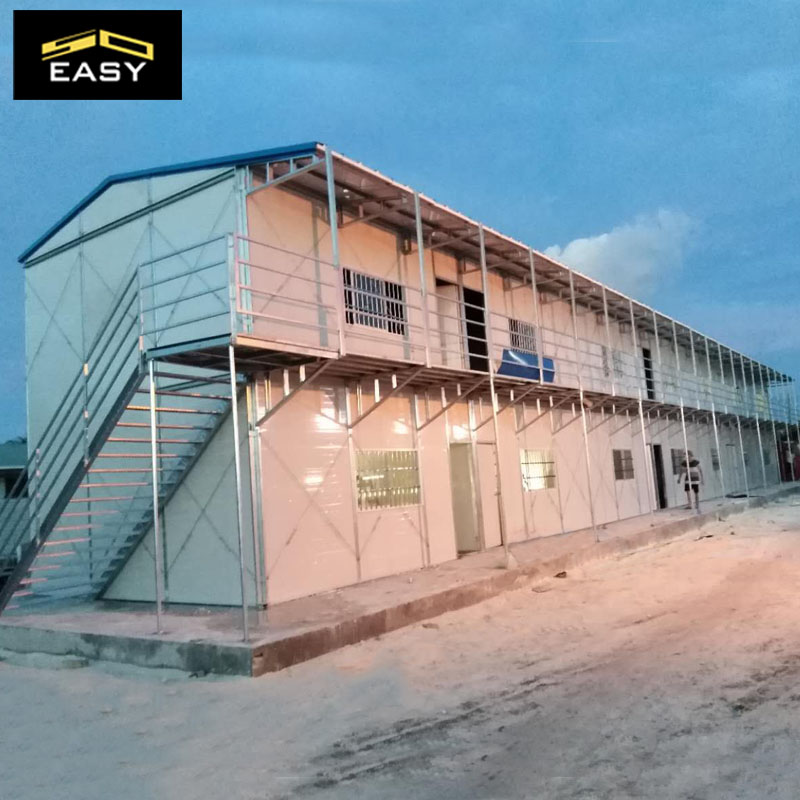

Mobile Prefabricated House for Site accommodation
K type prefab houses and K type prefab homes,they are the economic type modular house.

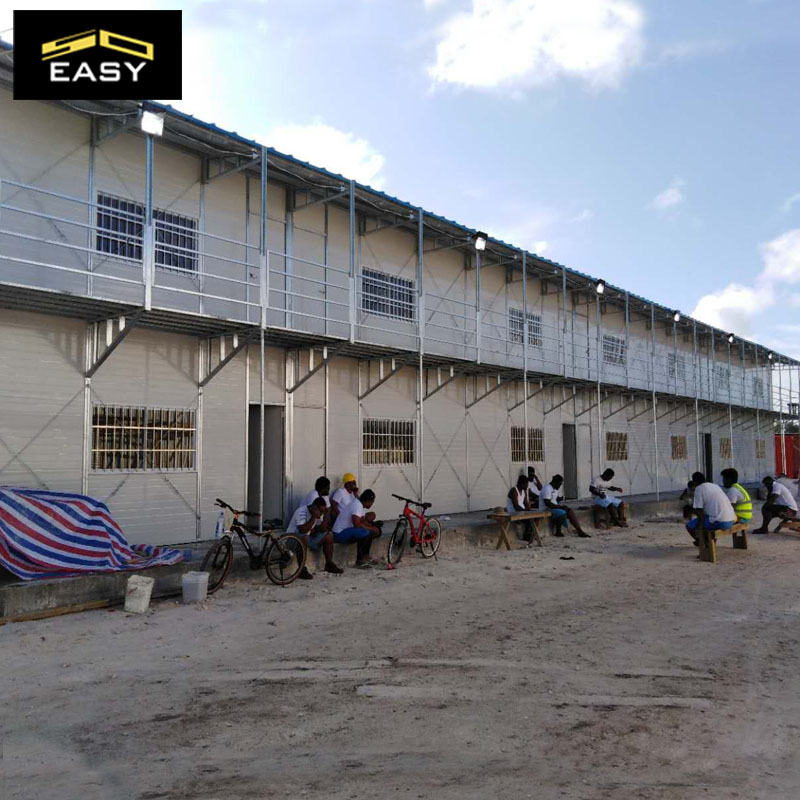

Because of the low cost price, convenient mobile and recyclable materials,this kind of house is widely used in construction site and labour camp.
It is suitable for accommodation,office,canteen,storage,bathroom,refugee house,affordable home etc.
About the
advantages of the prefabricated K house
Industry advantages
Compared with the civil building, easy construction,

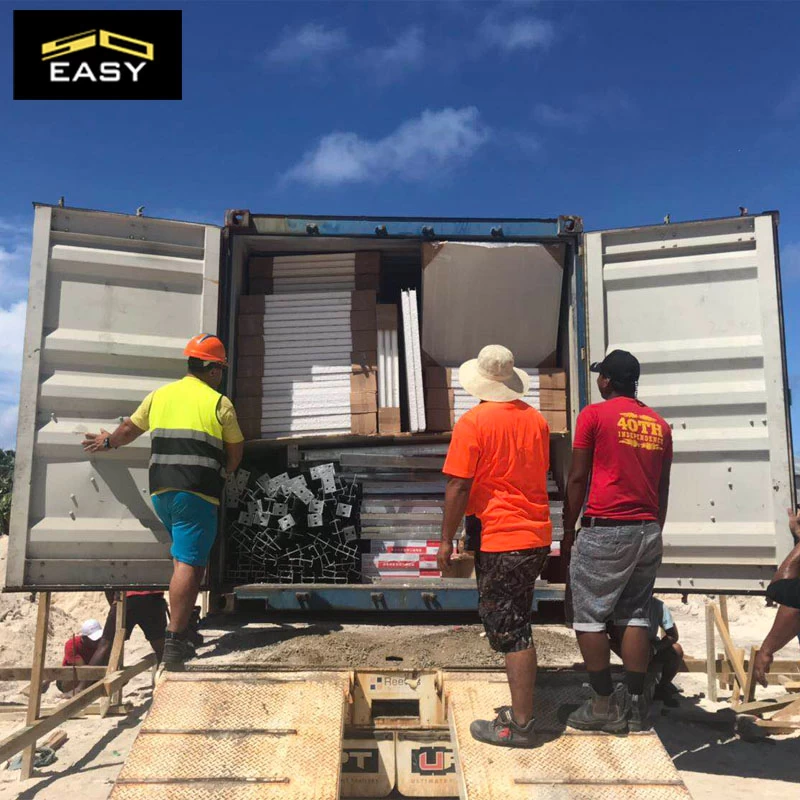

low cost, time-saving,labor saving and convenient transportation.
Reliable structure

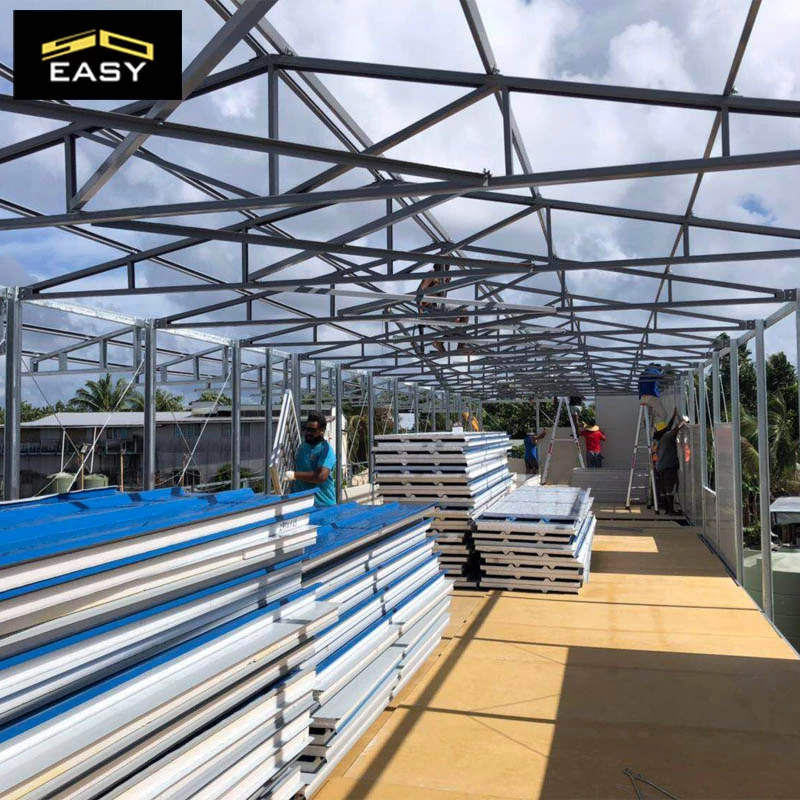

The main steel structure are made from “C" section steel.Assembly parts by bolts & nuts.
Technical advantages
recyclable materials,it can assemble and disassemble six times.Short installation period.6 works can install about 2002 a day.
Performance advantages
It has a good water proof, corrosion-resistance,
sound-insulating performance.
It cans resist heavy wind of 120km/h and 8 grade earthquakes.
|
Size
|
Length
|
18K (32.76m)
|
|
Width
|
3K (5.46m)
|
|
Height
|
6P (5.7m)
|
|
Total
area
|
201.47m2
|
|
Main
steel frame
|
Column
|
“C”
section steel
|
|
Beam
|
“C”
section steel
|
|
Panel
|
Roof
panel
|
50mm
EPS/IEPS/Rock wool/PU sandwich panel
|
|
Wall
panel
|
50mm
EPS/IEPS/Rock wool/PU sandwich panel
|
|
Accessories
|
Window
|
Aluminum
sliding window
|
|
Door
|
50/75/100mm
EPS/IEPS/ Rock wool/PU Sandwich panel door or steel door.
|
|
Calculation standard
|
nK*nK*nP（1k=1.82m，1P=0.95m，one
floor=3P）
|
|
Wind resistance
|
Grade 11 (wind speed≤120 km/h)
|
|
Earthquake
resistance
|
Grade
7
|
|
Snow
load capacity of roof
|
0.6kn/m2
|
|
Live
load capacity of roof
|
0.6kn/m2
|
|
Wall
permitted loading
|
0.6kn/m2
|
|
Heat
conductivity coefficient
|
0.35kcal/m2hc
|
|
Load
capacity of the roof
|
50kg/m2
|
|
Load
capacity of the second floor
|
180
kg/m2
|
|
Load
capacity of the second corridor
|
2.5kg/m2
|
If you have any questions, please contact us！
Email：siwenchen@chinawellcamp.com
