Mobile Small Concrete Batching Plant

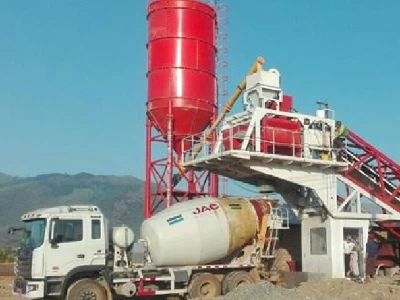

1. Mobile concrete batching plant:

Mobile Concrete Batching Plant completely mounted on a semi-trailer , except the cement silo and screw conveyor, all the air and water pipe are pre-piped, pre-wired and use quick-lug to connect the power, the series products including 3 models YHZS-35/50/75.

2. Main Features of Mobile concrete batching plant :

1. foundation free
2. compact structure design, can be install and disassemble fast
3. stand small footprint
4. can be move from site to site easily
5. low energy consumption
6. all function in and easy control.

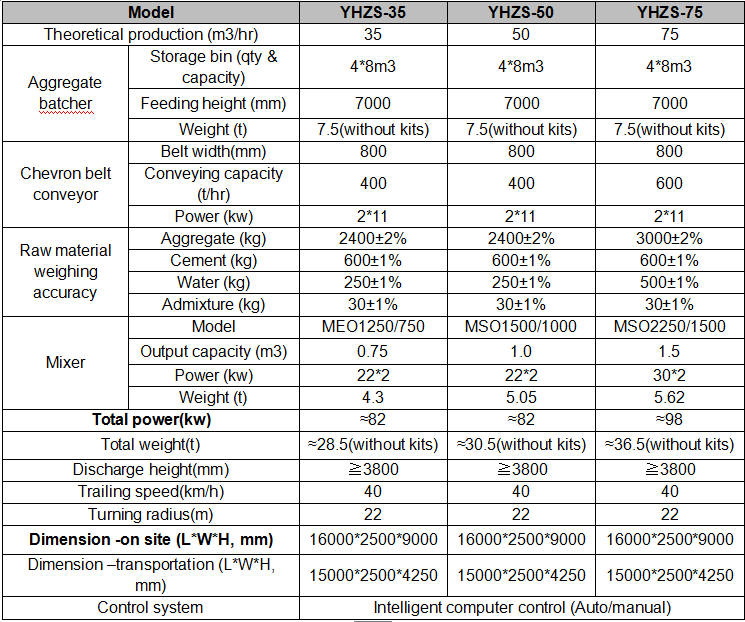

3. Main Technical Parameter of Semi-trailing concrete plants :

 Note: All above parameters are subject to  final products, the above total power exclude screw conveyor.

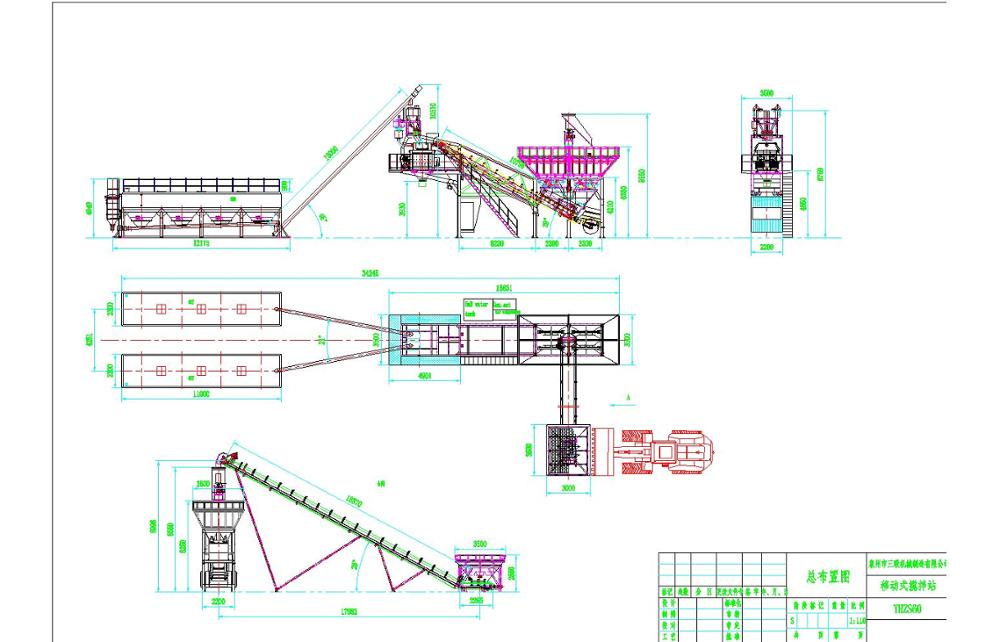

4.General layout drawing of Semi-trailing concrete plants:

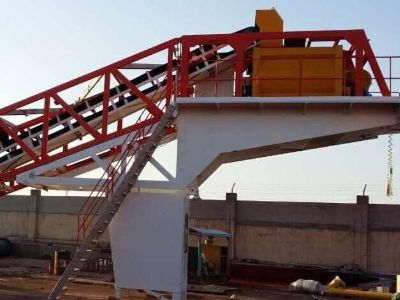

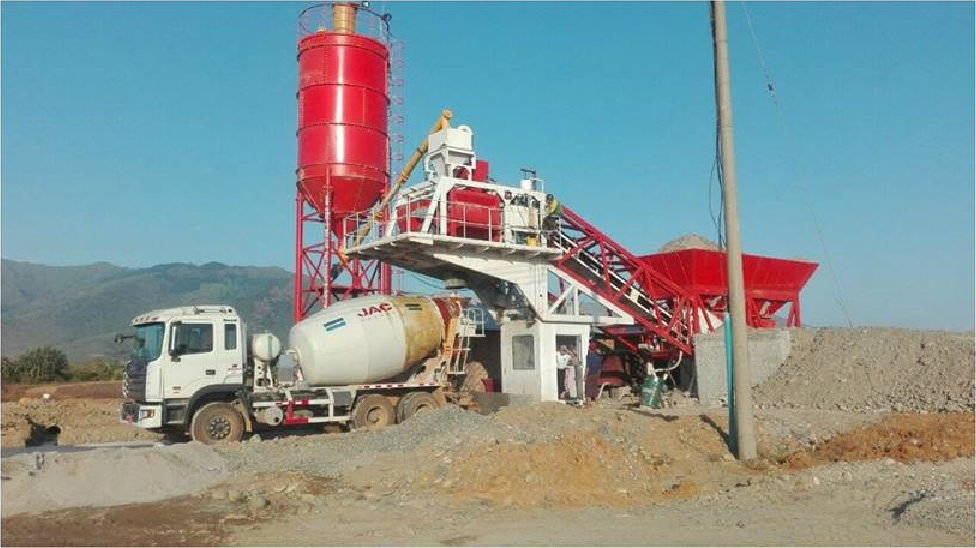

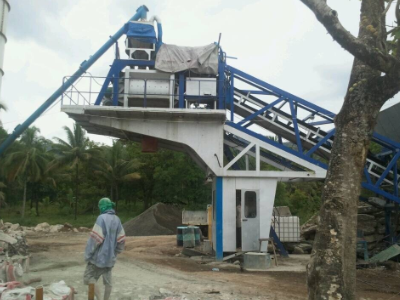

5. Application of Portable concrete batch plant:

Portable concrete batch Plant can be erected fast and no need to build the foundation work, and move easily with wheel chassis. very suit for small project, remote area project and ongoing project.

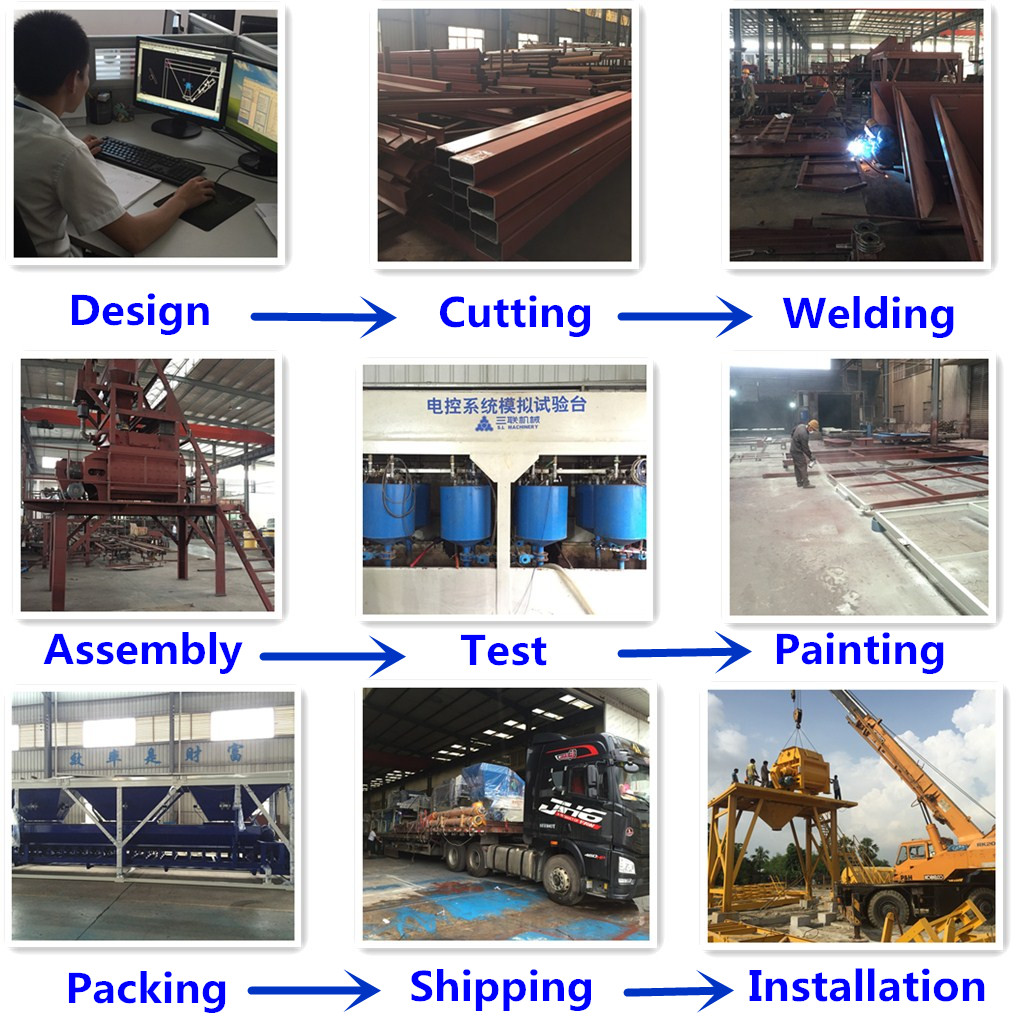

The following is the production process for HZS Series Ready mixed Concrete Batching Plants.
