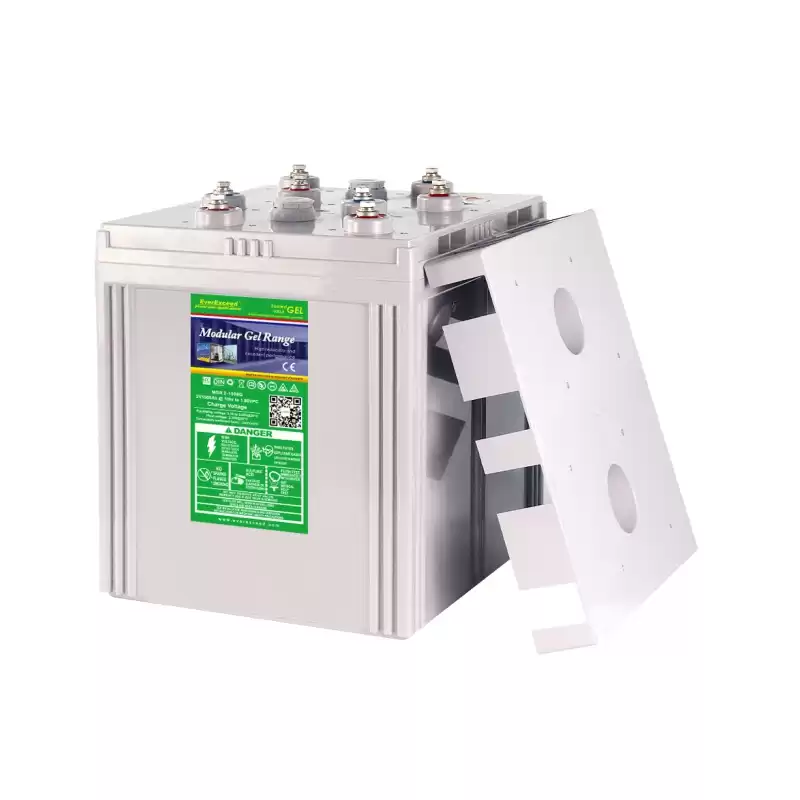

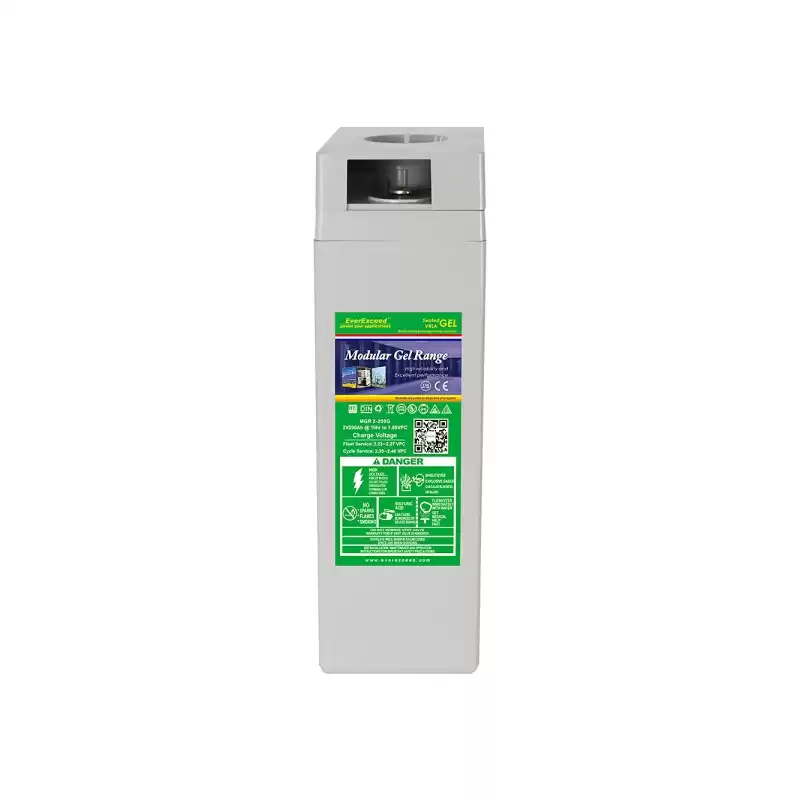

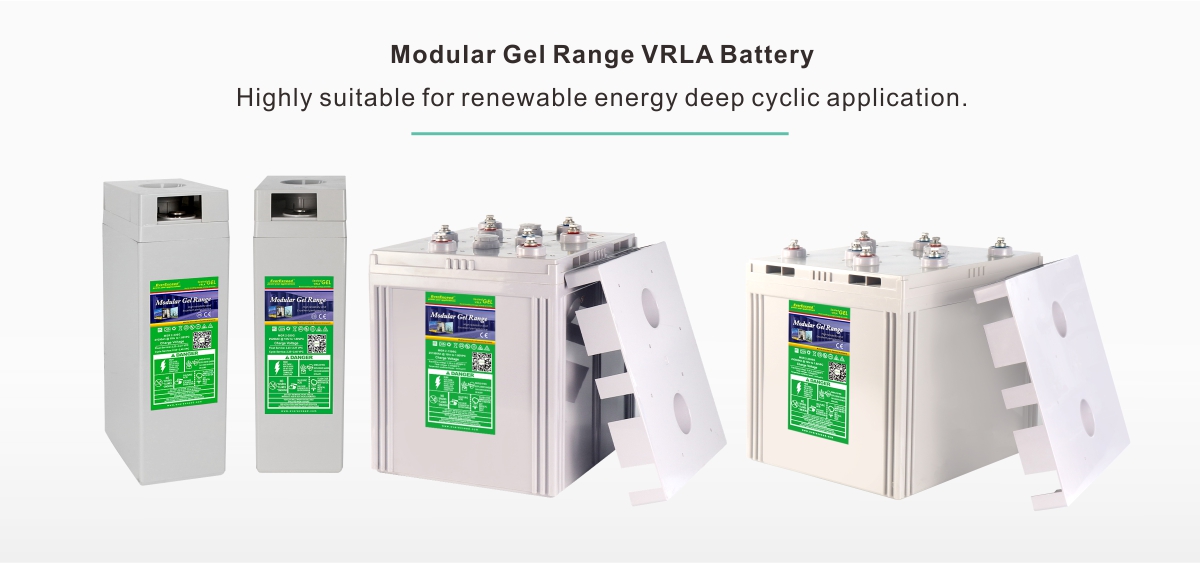

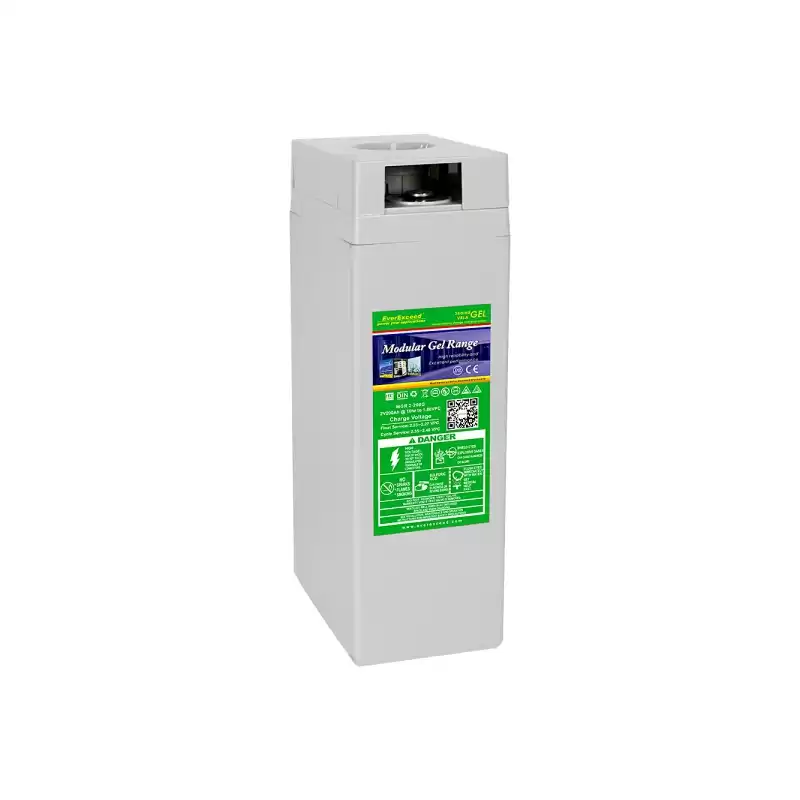

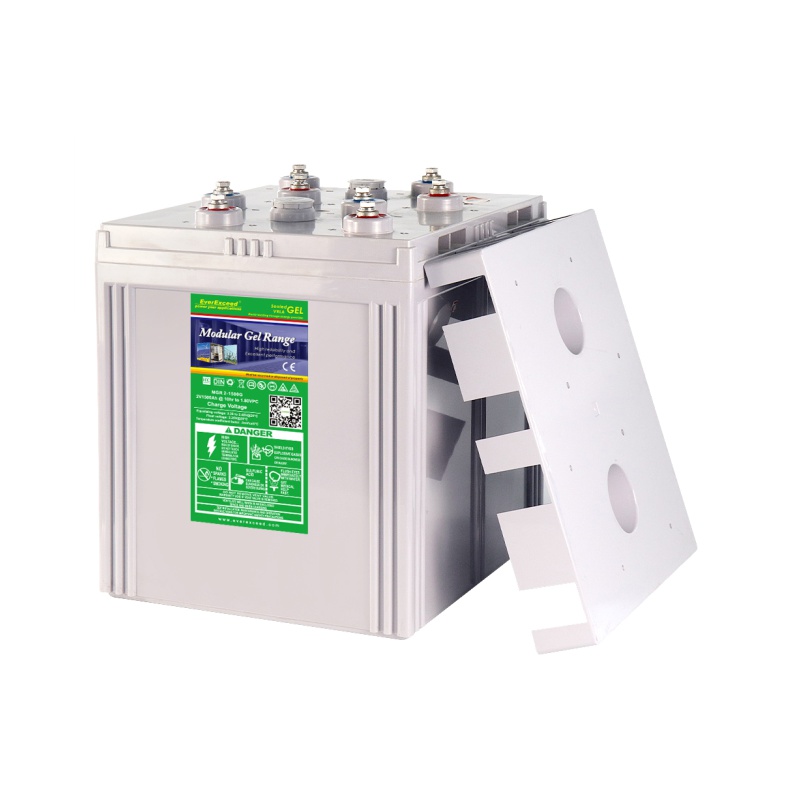

Modular Gel Range VRLA Battery

EverExceed modular gel range sealed, maintenance free, valve regulated lead acid batteries are designed for float service or deep cycle applications. EverExceed advanced gelled electrolyte technology ensures reliable performance, safety, outstanding battery life and value.


  • UsageCycling/ Float service;Photovoltaic/ Solar/ Wind energy;Telecommunications;Cathodic Protection;Emergency Lighting;Boats/ Marine/ navigation Aids;Switchgear;Cellular Radio;Control Systems;Engi
  • CertificatesUL1989; IEC61427;IEC60896; CE
  • OEM/ODM ServiceYes, customized
  • Rated capacity(Ah)100Ah-3000Ah
  • Rated voltage(V)2V
  • ModelMGR-G series
Facebook Twitter Pinterest LinkedIn 分享



Technical features:











Unique charging performance
Excellent anti corrosion ability
High safety
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection
Thick positive plate design and optimized high tin lead calcium plate alloy that ensure plate have excellent anti-corrosion ability. Micro porous fiber separator with the special design increase the high porosity and anti-corrosion and decrease the internal resistance
More than 250 quality control checks.
Each cell has a low pressure safety release venting
system.Flame Retardant material V-0 optiona










High capacity range
Long service life
 Unique performance against high temperature
100Ah to 3000Ah @C10 capacity making them suitable for variety of applications
Optimized Pb-Ca-Sn alloy ensures long life of 20+ years and corrosion resistance
Operate consistently even at high temperatures from -40°C  to +70°C










High reliability
Perfect for deep cycle applications
Assured quality
Advanced gelled electrolyte technology ensure reliable performance, outstanding battery life & performance

Modular Gel Range VRLA batteries are designed for float service or deep cycle (1000+ * 80%) applications

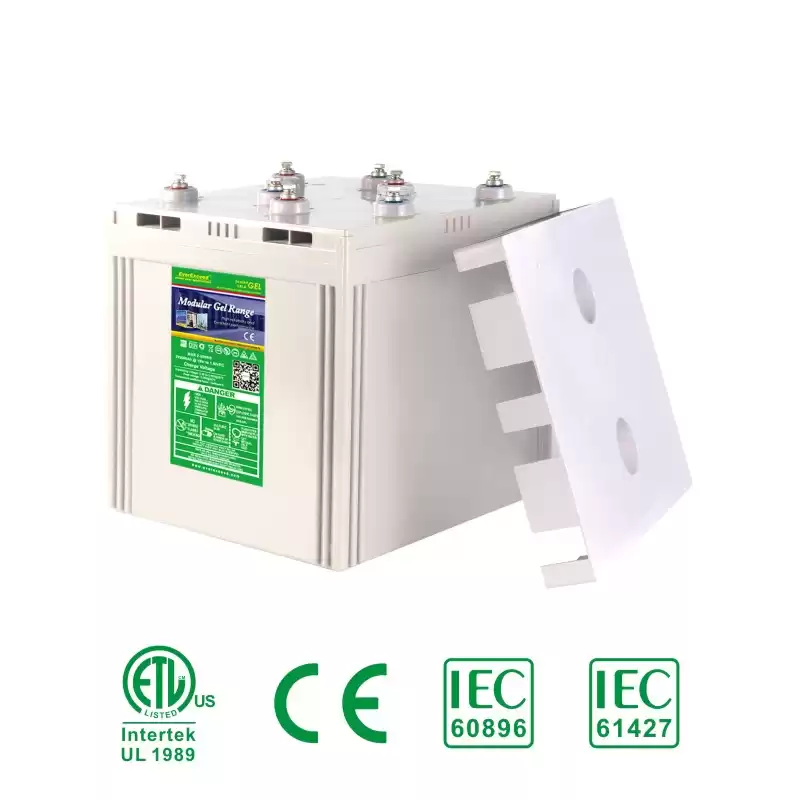

These industry leading rechargeable batteries are approved with UL1989, CE certificates & IEC60896 & IEC61427 test reports


Construction:


• Plates: calcium / tin lead alloy, optimized for high corrosion resistance.
• Separator: European leading microporous separator
• Standard Housing:Reinforced ABS (UL 94HB) container and cover
• Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.
• Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.
• Valves: Release gas in case of excess pressure and protects the cell against atmosphere.



Applications:

•   Cycling/ Float service；•   Photovoltaic/ Solar/ Wind energy；•   Telecommunications；•   Cathodic Protection；

•   Emergency Lighting；•   Boats/ Marine/ navigation Aids；•   Switchgear；•   Cellular Radio；•   Control Systems；•   Engine Starting；•   UPS System

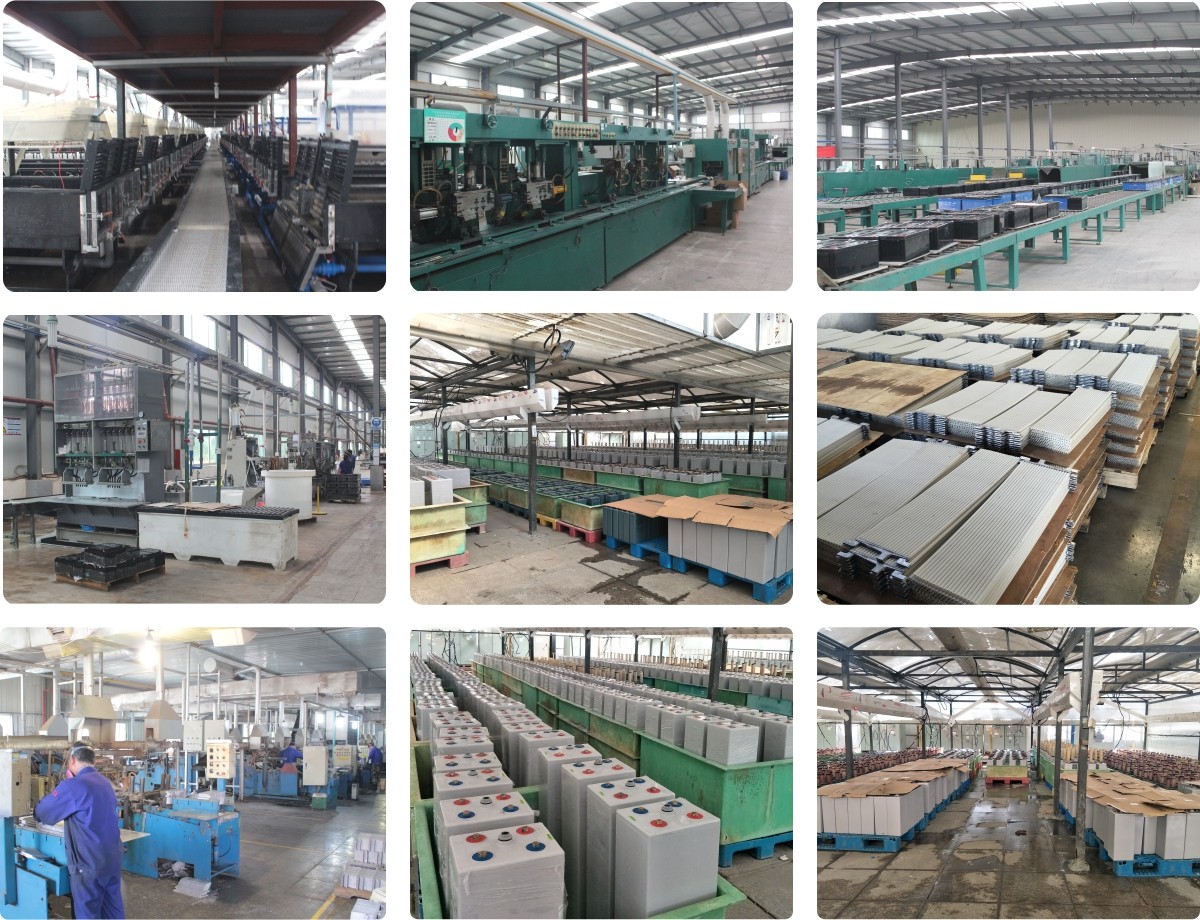

Factory:
