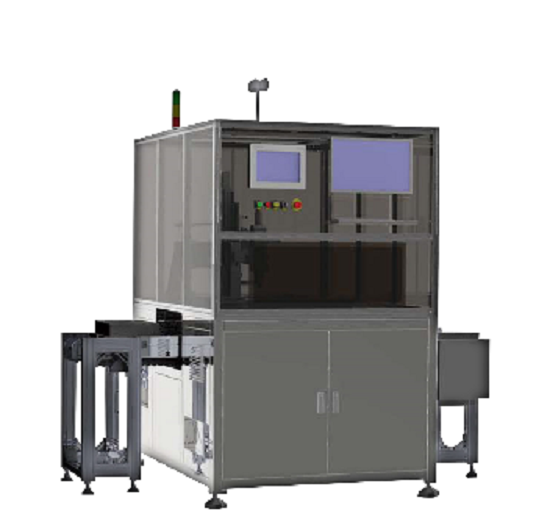

Module Laser Welding Equipment for Square Shell Battery
Products Description
This equipment is mainly used for the welding of soft package, square shell, cylindrical battery module and nickel piece. The module is positioned and pressed in the welding fixture to ensure the welding surface to fit together, the precise welding is realized by vision guiding and locating the welding seam. Can be customized according to the use of the design module loading and unloading mode, can be used as a single machine, can also be used with the automated production line supporting.
Performance Characteristics
1. Continuous optical fiber laser welding, high efficiency, good welding quality;
2. Special welding fixture ensures welding accuracy and quality;
3. Vision-guided positioning of welding seam to achieve accurate welding;
4. Real-time tracking and monitoring of welding path.
Technical Parameter
|
Model Number
|
TMAX-BJXC-LW01
|
Beat
|
60PPM
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
2.5KW
|
Pressure
|
0.5-0.7MPA
|
|
Nickel Sheet
|
±0.1mm
|
Precision
|
0.02mm(Repeat)
|
|
Speed
|
200mm/s
|
Dimensions
|
2600*1100*2000(mm)
|
