Mono Customized Segment TN LCD Display

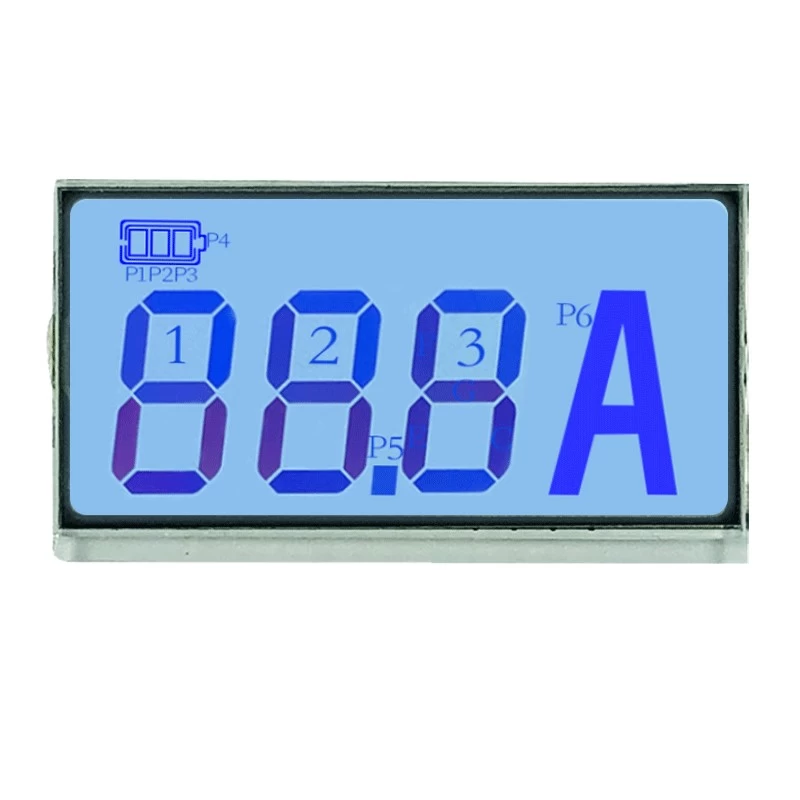

SCC0049-V01 is a Segment LCD Display.




LCD Type:                     TN Postitive Transflective

Number of Graphic:      Segment

Outline Dimension:       36.0×20.0×2.85

View area:                     33.0×15.5

View Direction:              6 o'clock

Connection:                  Zebra

Backlight:                      White LED



  • Display TypeTN
  • Outline Dimension (mm)36.0*20.0*2.85
  • View area33.0*15.5
  • Driver IC?
  • Backlight?
  • View Direction6
  • PIN11


Drawing



General Specification


Pin No. Symbol Level Description
1 VDD - Supply voltage for logic
2 VLCD - Supply voltage for LCD
3 VSS - Ground
4 DATA H/L Serial data input/output
5 /WR H/L Write clock input
6 /RD H/L Read clock input
7 /CS H/L Chip selection input
8 LED+ -- Backlight anode
9 LED- -- Backlight cathode
