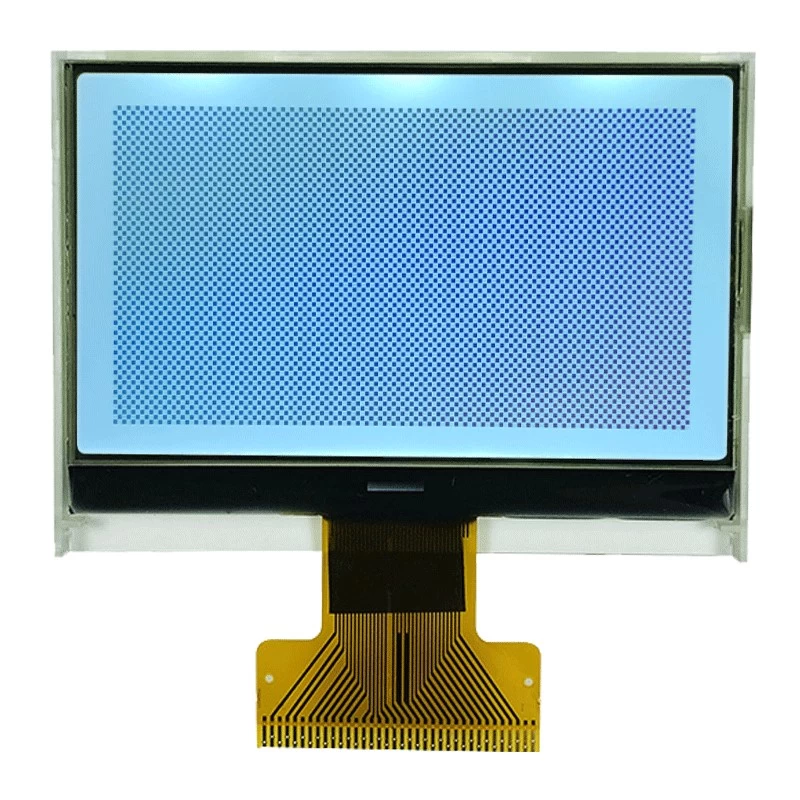

Mono LCD 12864 Graphic display with COG STN Y-G BL ST7565R IC 36 PIN

LCD Type:                     STN/Y-G/Positive/Transmissive/COG

Resolution:                   128×64

Outline Dimension:       71.00*51.80*8.5

Active Area:                  60.77*32.93

View area:                     65.50*38.00

Driver IC:                     ST7565R

View Direction:              6 o'clock

PIN:                                36

Backlight:                      White LED

  • Resolution128*64
  • Outline Dimension (mm)71.0*51.8*5.3
  • Viewing Area (mm)65.5*38.0
  • Interface-
  • Driver ICST7565R
  • BacklightWhite LED
  • PIN36
Facebook Twitter Pinterest LinkedIn 分享

SC12864032-V02 is a Graphic LCD Display with 128*64 resolution, it built in with ST7565R-G-1 IC, 36 PIN, 6 o'clock View direction.

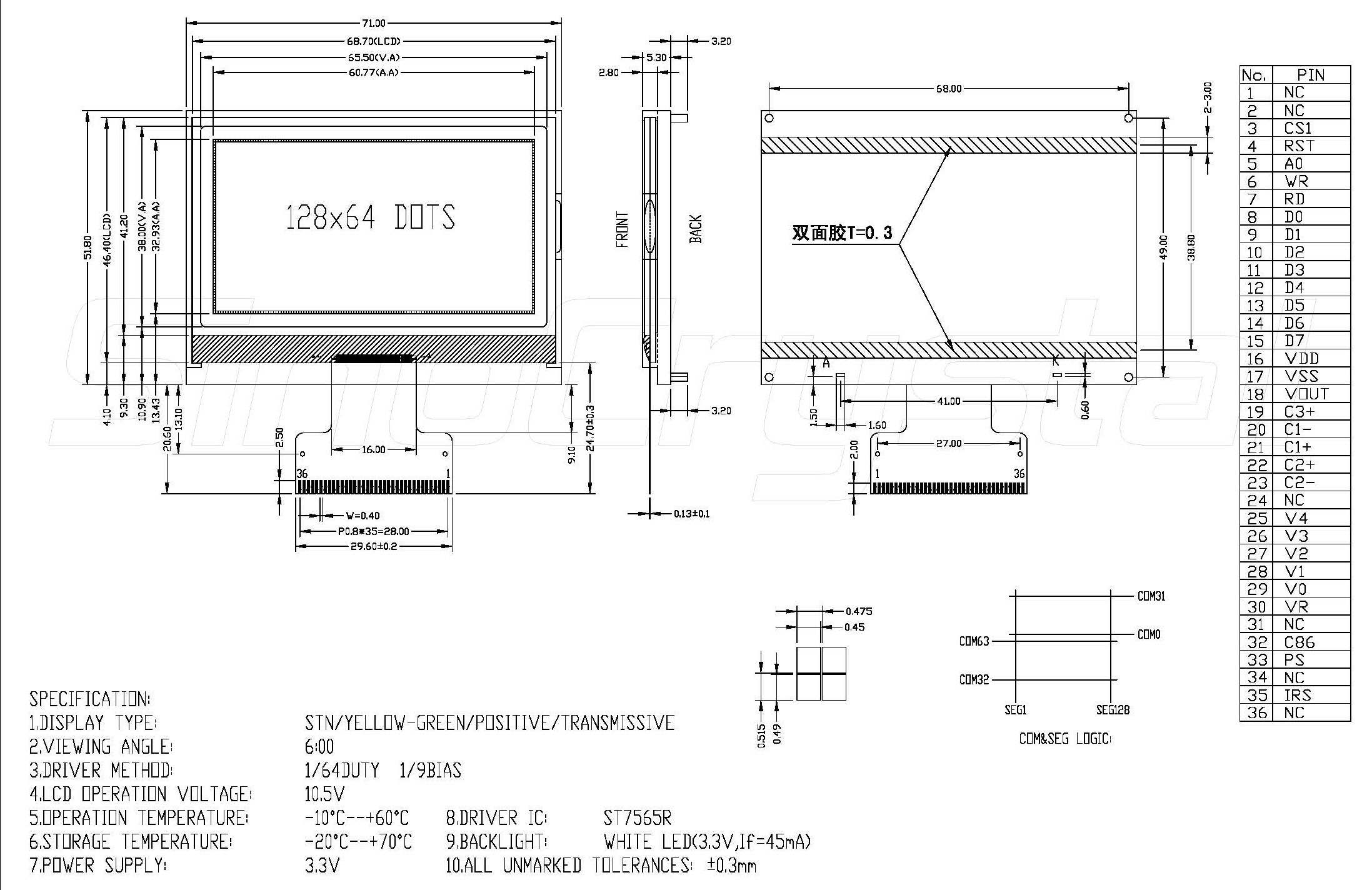

Drawing



General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 128×64 Mm
 MODULE DIMENSION 71.0×51.8×8.5 Mm
 VIEWING AREA 60.77×32.93 Mm
 DOT SIZE 0.45×0.49 Mm
 DOT PITCH 0.476×0.515
 Mm
 LCD TYPE STN/YELLOW-GREEN/POSITIVE/TRANSMISSIVE
 DUTY 1/64
 VIEWING DIRECTION 6 o'clock
 BACK LIGHT TYPE SIDE LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT TBD G



Interface Definition



NO SYMBOL LEVEL FUNCTION
1--2 NC - No used
3 CS1 H/L Chip select signal
4 RST H/L Chip reset signal
5 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
6 WR(R/W) H/L 8080 series: Write signal
6800 series: Read or Write signal
7 RD(E) H/L 8080 series: Read signal
6800 series: Enable signal
8--15

This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface (SPI-4) is selected (P/S = "L") : D7 : serial data input (SI) ;
D6 : the serial clock input (SCL).
D0 to D5 should be connected to VDD or floating.
16 VDD -- Supply voltage for logic
17 VSS -- Ground
18 VOUT -- Power for LCD
19 C3+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
20 C1- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
21 C1+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
22 C2+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
23 C2- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
24 NC - No used
25-29 V4-V0 -- This is a multi-level power supply for the liquid crystal drive.
30 VR -- Contrast adjustment input.
31 NC - No used
32 C86 H/L C86 = "H": 6800 Series MPU interface.
C86 = "L": 8080 Series MPU interface.
33 PS H/L P/S = "H": Parallel interface
P/S = "L": Serial interface
34 NC - No used
35 IRS H/L RS = "H": Use the internal resistors
IRS = "L": Do not use the internal resistors.
36 NC - No used
