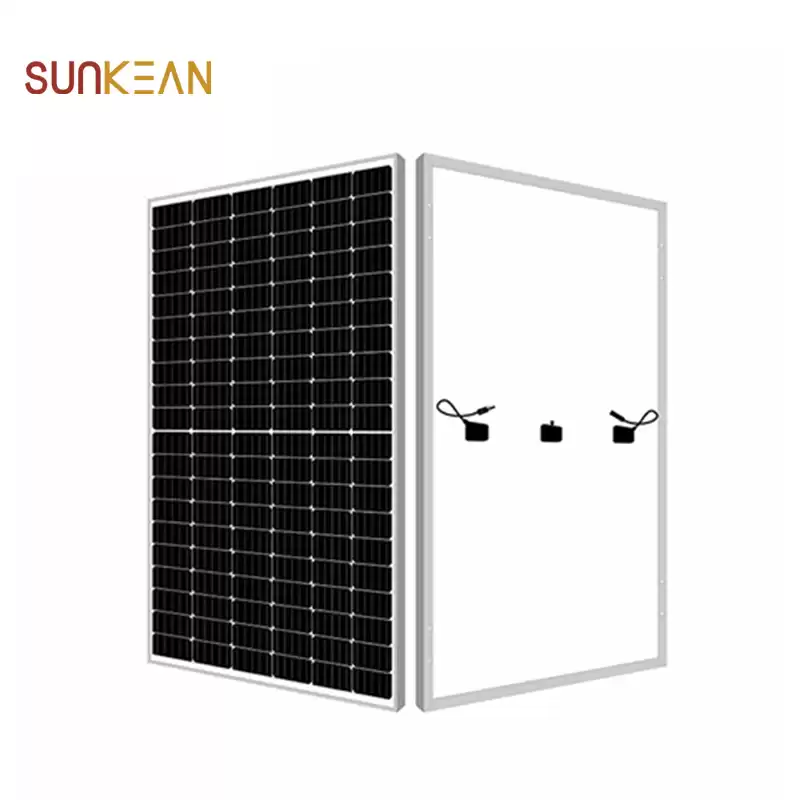

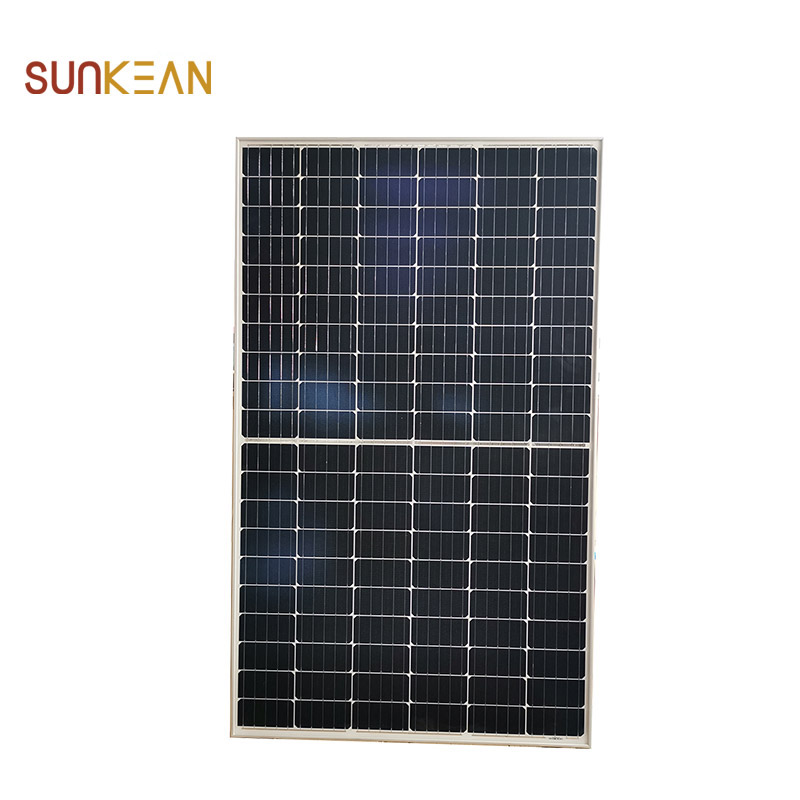

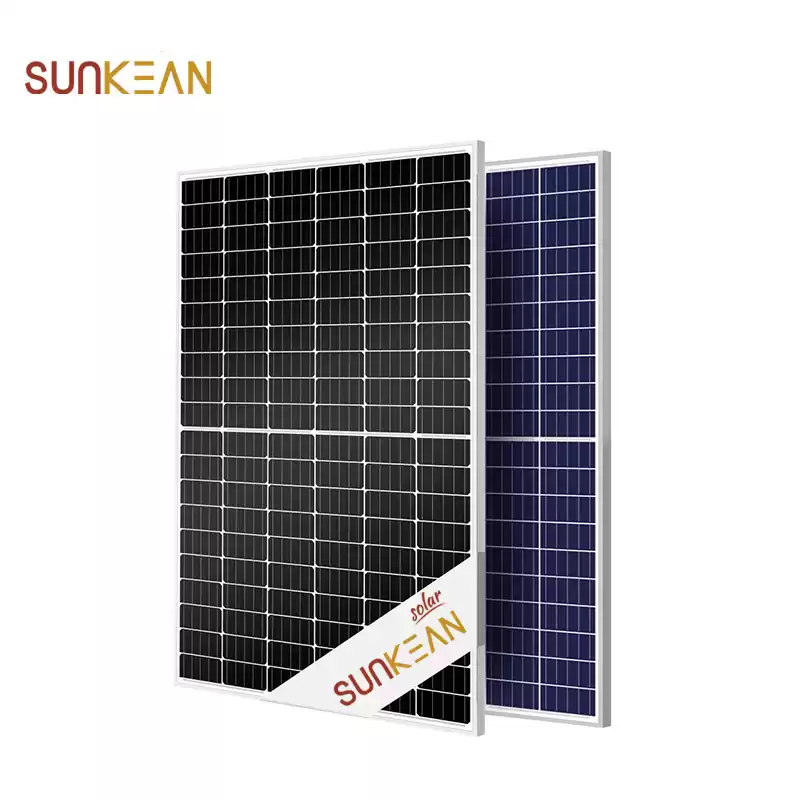

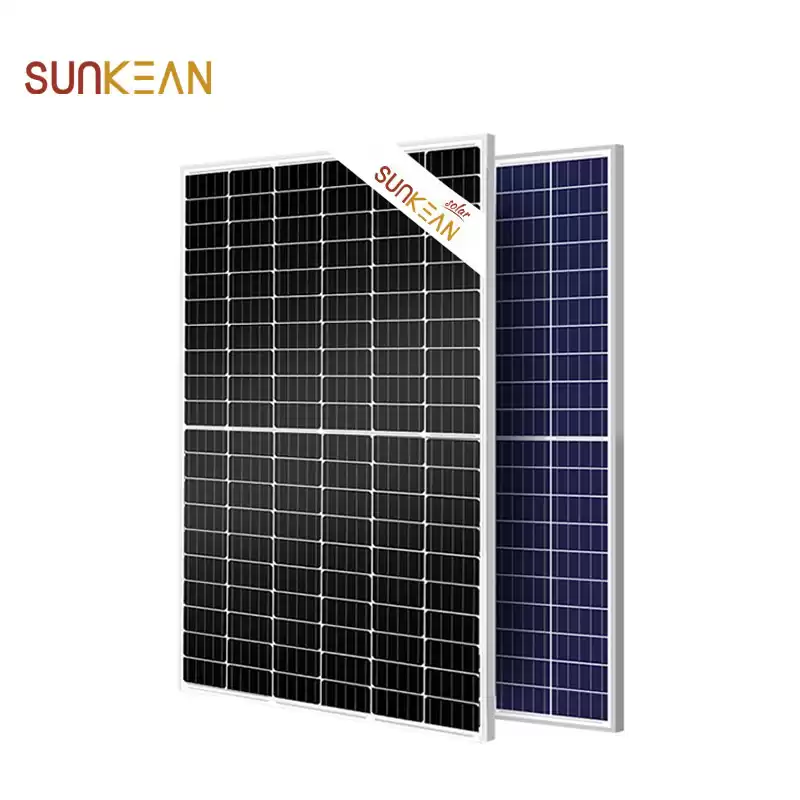

Mono Perc 120 Cell 325W Half Cell 158.75mm 325 Watt 5BB Solar
120 cells 5BB half cell mono perc solar panel 325w all with A Grade for on-grid & off-grid use for residential and public rooftop& ground mounting PV Power System.
Product Characteristics:
|
Mechanical Characteristics
|
|
Cell Type
|
Mono PERC 158.75x158.75mm
|
|
No.of Half-cells
|
120 (6x20)
|
|

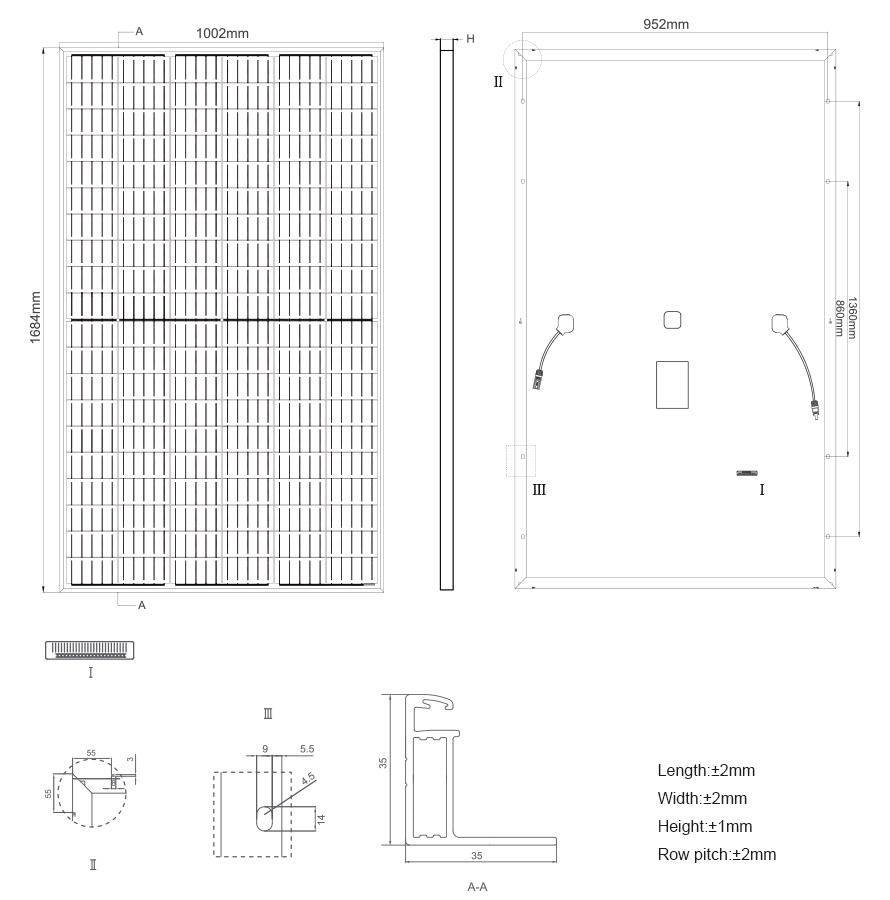

Dimensions
|
1684x 1002x35mm (66.30x39.45x1.38 inch)
|
|
Weight
|
19.0 kg (41.9 lbs)
|
|
Front Glass
|
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
|
|
Frame
|
Anodized Aluminium Alloy
|
|
Junction Box
|
IP67 Rated
|
|
Output Cables
|
TUV 1x4.0mm2, (+) 290mm,(-)145mm or Customized Length
|
Product Parameter:
Module Type
|
JKM325M-60H JKM325M-60H-V
|
JKM330M-60H JKM330M-60H-V
|
JKM335M-60H JKM335M-60H-V
|
JKM340M-60H JKM340M-60H-V
|
JKM345M-60H JKM345M-60H-V
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
Maximum Power (Pmax)
|
325Wp
|
242Wp
|
330Wp
|
246Wp
|
335Wp
|
250Wp
|
340Wp
|
253Wp
|
345Wp
|
257Wp
|
Maximum Power Voltage (Vmp)
|
33.6V
|
31.6V
|
33.8V
|
31.8V
|
34.0V
|
32.0V
|
34.2V
|
32.2V
|
34.4V
|
32.4V
|
Maximum Power Current (Imp)
|
9.68A
|
7.66A
|
9.77A
|
7.74A
|
9.87A
|
7.82A
|
9.96A
|
7.86A
|
10.04A
|
7.94A
|
Open-circuit Voltage (Voc)
|
41.1V
|
38.0V
|
41.3V
|
38.2V
|
41.5V
|
38.4V
|
41.7V
|
38.6V
|
41.9V
|
38.8V
|
Short-circuit Current (Isc)
|
10.20A
|
8.54A
|
10.31A
|
8.65A
|
10.36A
|
8.74A
|
10.55A
|
8.86A
|
10.64A
|
8.97A
|
Module Efficiency STC (%)
|
19.26%
|
19.56%
|
19.85%
|
20.15%
|
20.45%
|
Operating Temperature (°C)
|
-40°C~+85°C
|
Maximum System Voltage
|
1000/1500VDC (IEC)
|
Maximum Series Fuse Rating
|
20A
|
Power Tolerance
|
0~+3%
|
Temperature Coefficients of Pmax
|
-0.35%/°C
|
Temperature Coefficients of Voc
|
-0.29%/°C
|
Temperature Coefficients of Isc
|
0.048%/°C
|
Nominal Operating Cell Temperature (NOCT)
|
45±2°C
|

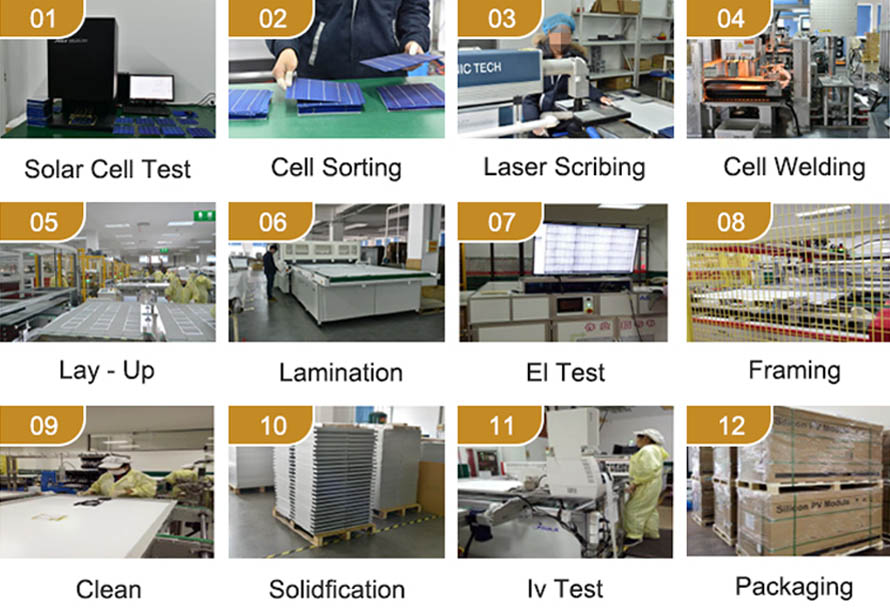

Solar panel production process:

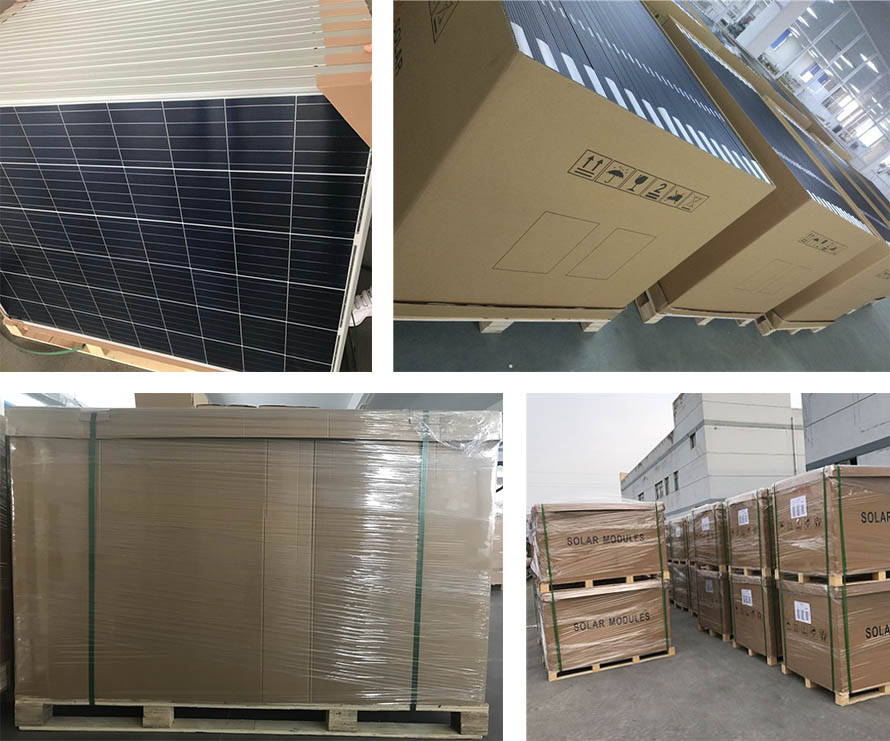

Packing & Delivery:

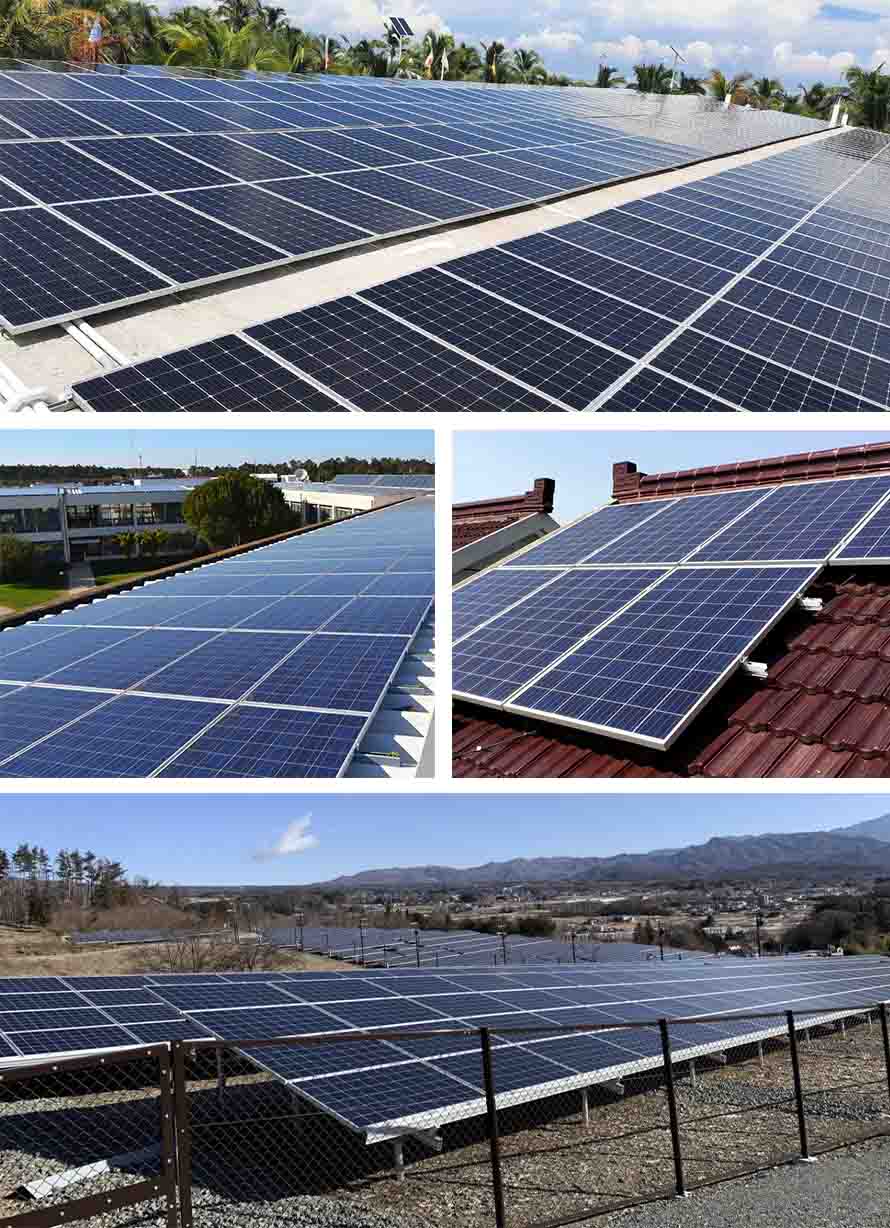

Application Scenario:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover Mono perc solar panel,house solar power system, home solar panel , PV connectors, 100 watt solar panel, photovoltaic inverter etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
