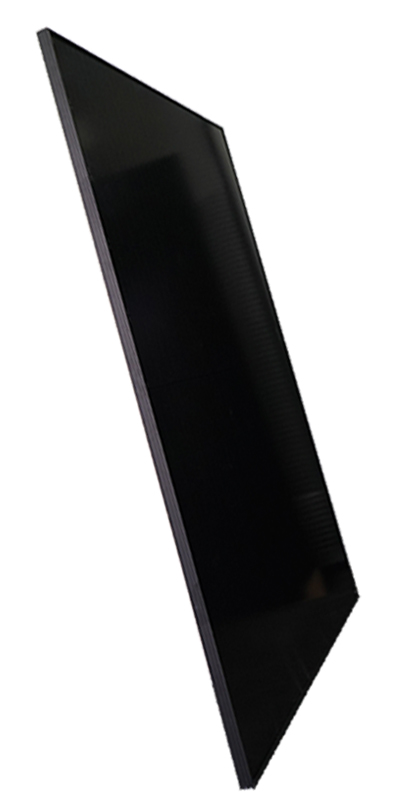

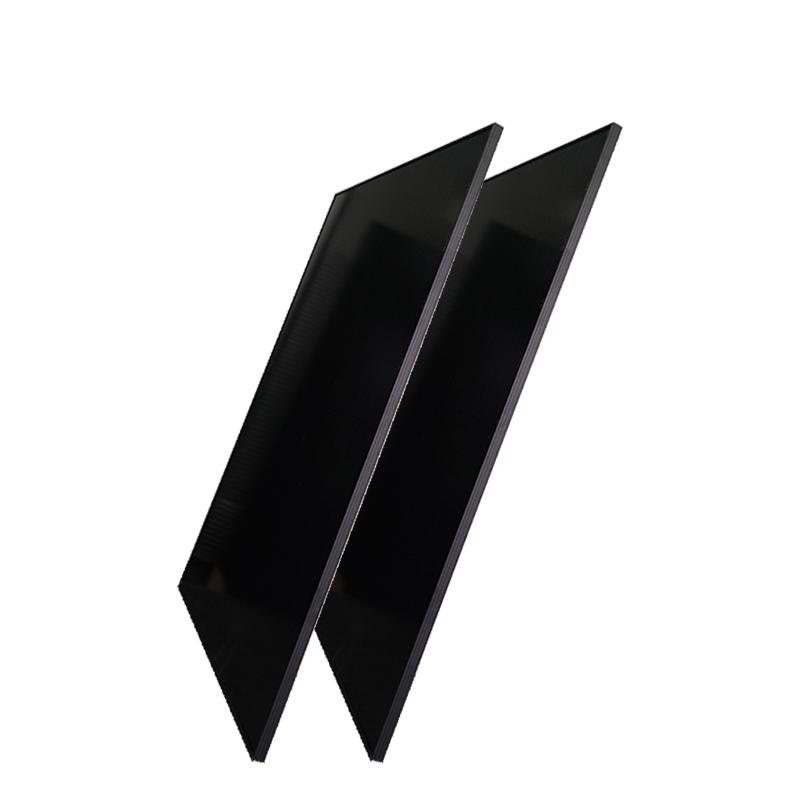

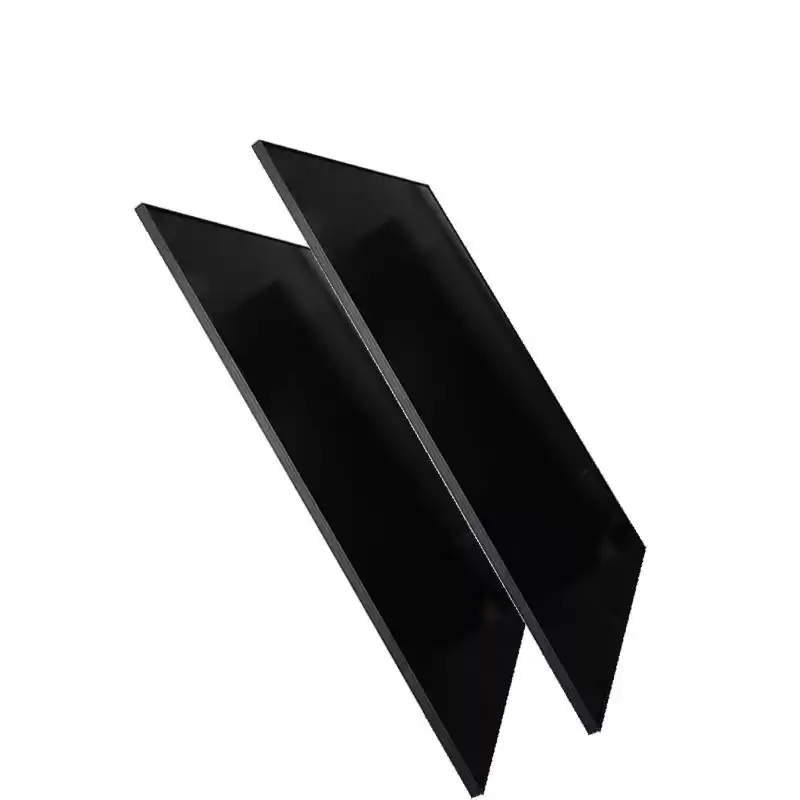

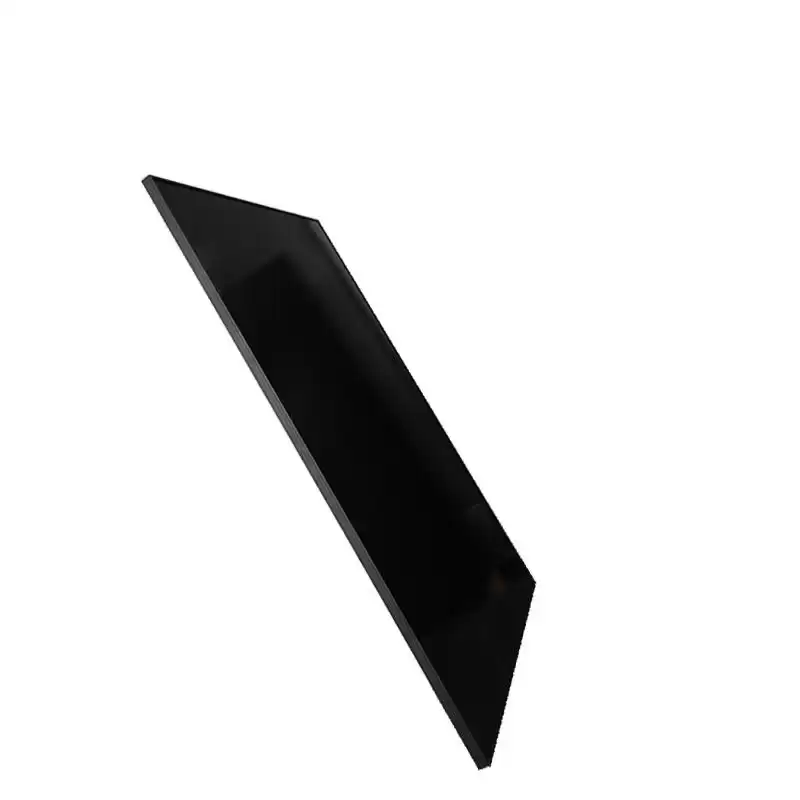

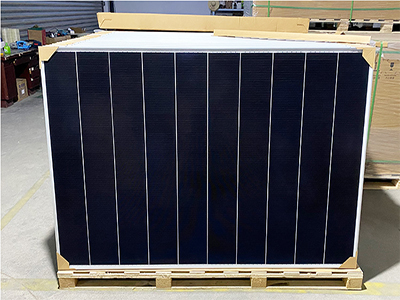

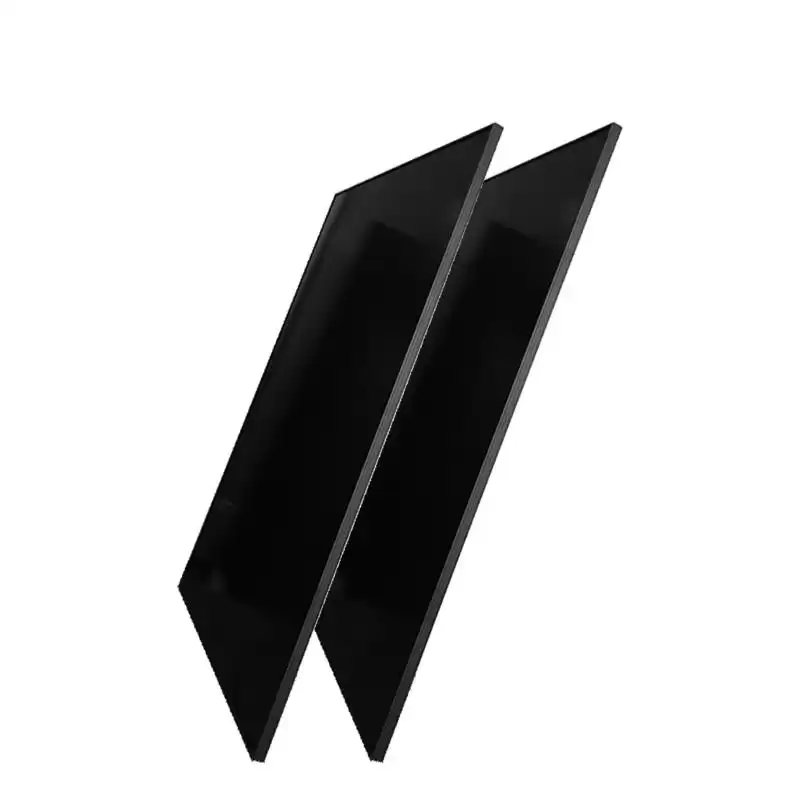

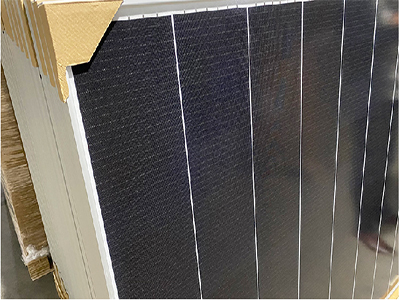

Monocrystalline PERC Full black Solar Cell Singled solar Panel
Product Details
-
Shingled technology connects the cell slices with conductive glue, eliminating the need for soldering, reducing shading area and line loss, saving space and encapsulating 13% more cells than conventional 60-type modules.
-
Shingled components can withstand mechanical loads better with fewer cracks.
-
Shingled components have stronger resistance to shadow occlusion and lower working temperature.
Product Specification
|
MECHANICAL CHARACTERISTICS
|
|
Solar Cells
|
Monocrystalline silicon
|
|
NO. of Cells
|
360(36*10)
|
|

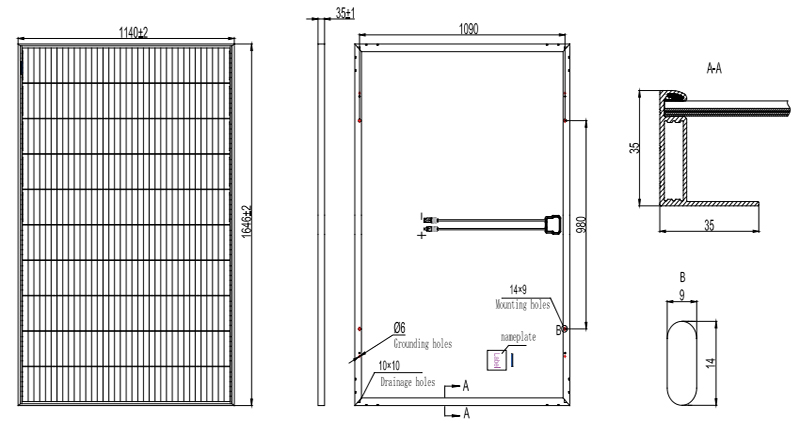

Dimensions
|
1646*1140*35mm
|
|
Weight
|
20.5kg
|
|

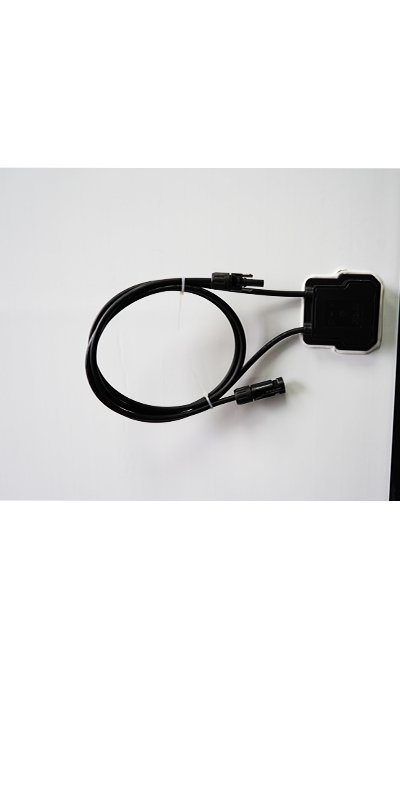

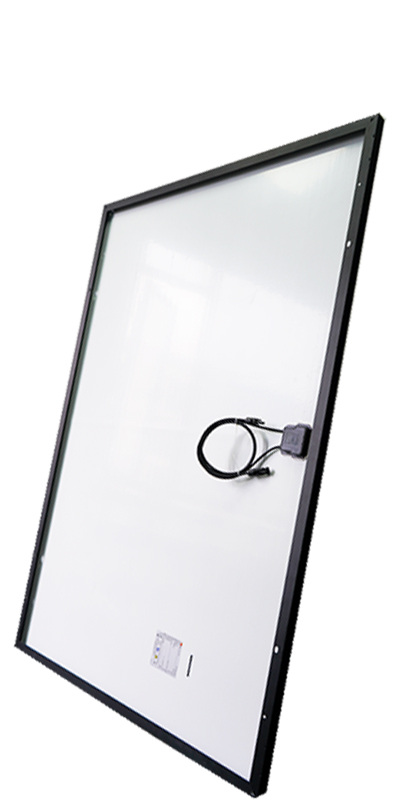

Junction Box
|
IP68, two diodes
|
|
Front Glass
|
AR coating tempered glass, 3.2mm
|
|

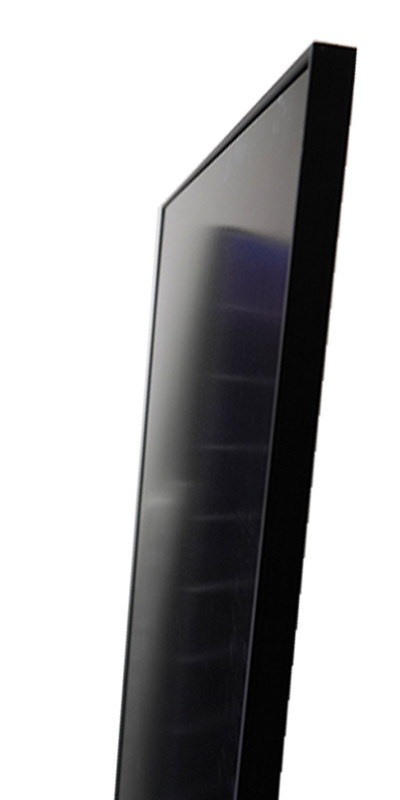

Frame
|
Anodized aluminum profile
|
|
Output Cables
|
4.0mm²,800mm（Be customized by customers）
|
|
Connectors
|
MC4
|
|
ELECTRICAL PARAMETERS
|
|
400
|
395
|
390
|
385
|
380
|
375
|
|
Rated Maximum Power (Pmax) [Wp]
|
400
|
395
|
390
|
385
|
380
|
375
|
|
Open Circuit Voltage (Voc) [V]
|
49.5
|
49.4
|
49.3
|
49.3
|
49.1
|
48.9
|
|
Short Circuit Current (Isc) [A]
|
10.12
|
10.07
|
10.03
|
9.98
|
9.93
|
9.89
|
|
Maximum Power Voltage (Vmp) [V]
|
41
|
40.9
|
40.8
|
40.8
|
40.6
|
40.4
|
|
Maximum Power Current (Imp) [A]
|
9.76
|
9.66
|
9.56
|
9.44
|
9.36
|
9.28
|
|
Module Efficiency [%]
|
21.3
|
21.1
|
20.8
|
20.5
|
20.3
|
20
|
|
Working Temperature [°C]
|
-40°C ~ +85°C
|
|
Maximum System Voltage
|
DC 1500 /1000 (IEC)
|
|
Maximum Series Fuse Rating
|
20
|
|
Application Class
|
Class A
|
|
Maximum Surface Load Capacity[Pa]
|
5400
|
Difference
|
|
|
Different welding methods
|

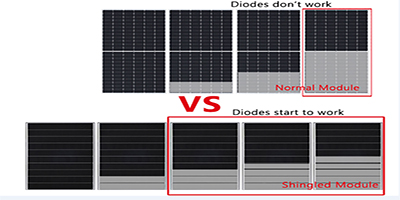

When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.
|

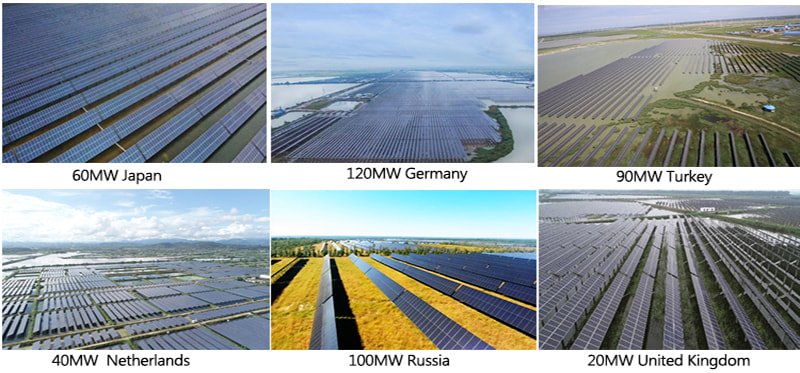

Projects

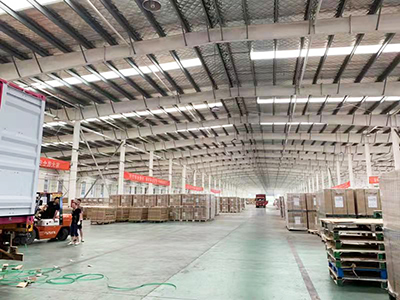

Packing
