Monocrystalline 360W 350W 340W solar panel 48V PV system solar module for solar power plant
Product Description
|
Moduel
|
BSM340M-72
|
BSM345M-72
|
BSM350M-72
|
BSM355M-72
|
BSM360M-72
|
|
Rated Maximum Power at STC
|
340
|
345
|
350
|
355
|
360
|
|
Open Circuit Voltage(Voc/V)
|
46.91
|
47.13
|
47.29
|
47
|
47.2
|
|
Maximum Power Voltage(Vmp/V)
|
38.17
|
38.39
|
38.59
|
38.7
|
38.9
|
|
Short Circuit Current(Isc/A)
|
9.41
|
9.48
|
9.55
|
9.69
|
9.79
|
|
Maximum Power Current(Imp/A)
|
8.91
|
8.99
|
9.07
|
9.17
|
9.26
|
|
Module Efficiency(%)
|
17.54
|
17.8
|
18
|
18.3
|
18.5
|
|
Power Tolerance
|
-0~+3%
|
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25β,Air Mass1.5
|
Detailed&Production
Packing & Delivery
26 pieces per pallet , 280 pieces per 20ft container , 620 pieces per 40HQ container
Monocrystalline 360W solar panels and 72 cells series solar modules , normal package is 2 pieces per carton , we accept customized or OEM package too.

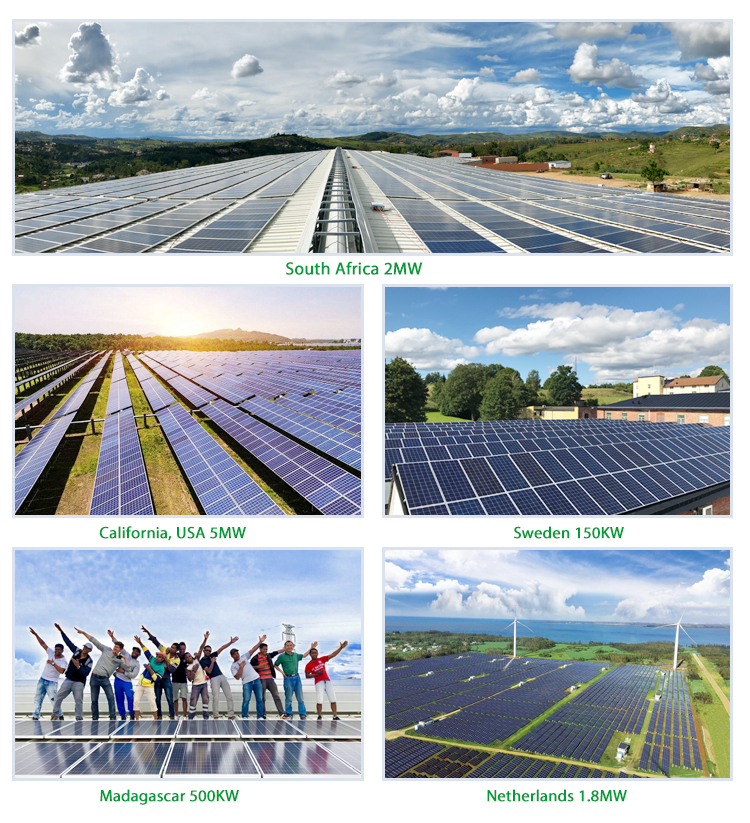

Project
Monocrystalline 3560 Watt solar panel and higher efficiency 340 W 350 W solar panel, higher conversion efficiency , higher capacity and power output performance per unit area.
As follows some advantages of 5BB 360 W monocrystalline silicon solar panel for your reference:
Reduction of transportation costs 4%
Reduction of land costs 3%
Reduction of installation costs 2.5%
Reduction of BOS-costs 1.5%
Higher solar module efficiency lower solar system cost per watt .
If you are an end users , we can offer more detail information to you. So that you can get the satisfied solar power system for your home solar generator solution or factory solar system plant .
Any more doubts , you can ask our professional products consultant.
