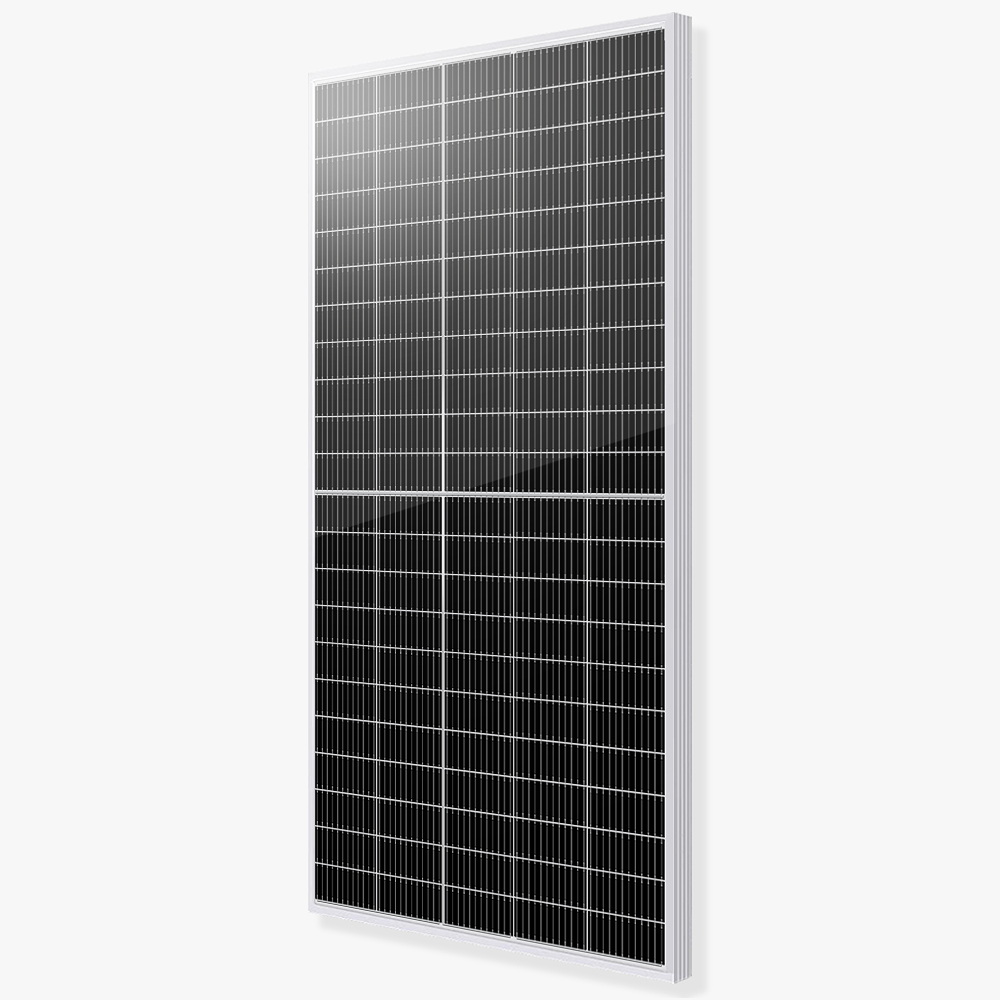

Monocrystalline 550 watt Solar Panel with High Reliability
This 110cells monocrystalline solar panel has a rated power of up to 550 watt, a conversion efficiency of up to 21%, and a 30-year product and performance warranty. This 550w solar panel is an ideal for residential and commercial rooftop systems; ground mount compatible; compatible with on-grid and off-grid inverters.
JC(530-555)-110M Solar Panel Features
-

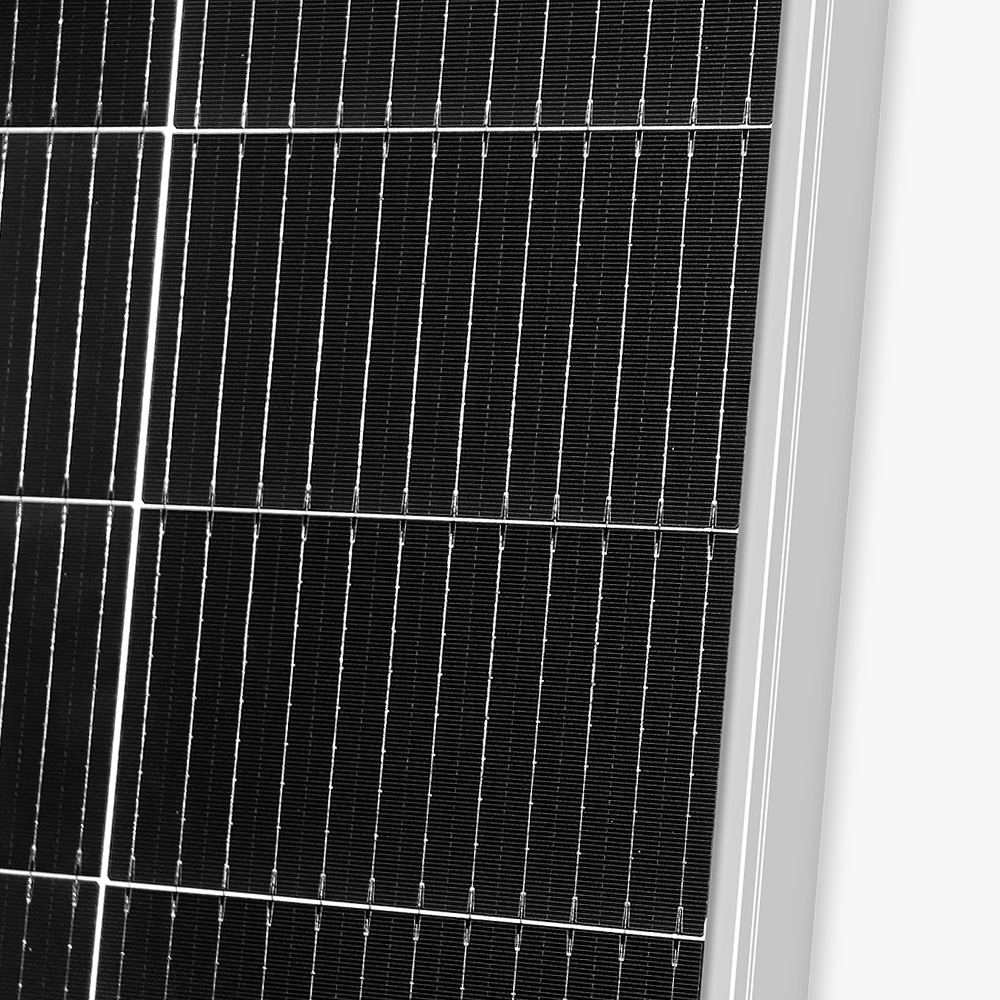

1/3-Cut Technology help to achieve higher power while minimizing hotspot issues
-
EL tested solar modules; Minimizes micro-cracks; PERC Solar Cells; Low power loss in cell connection; Better shading tolerance.
-
Capable of withstanding heavy snow load up to 5400 pa, wind load up to 3600 pa; Corrosion-resistant aluminum frame for extended outdoor use.
-
Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance.
-
IP68 rated junction box provides complete protection against environmental particles and low-pressure water jets.
|
Electrical Characteristics(STC)
|
|
Module
|
JC(530~555)-110M
|
|
Module Type
|
JC530M
|
JC535M
|
JC540M
|
JC545M
|
JC550M
|
JC555M
|
|
Maximum Power (Pmax)
|
530W
|
535W
|
540W
|
545W
|
550W
|
555W
|
|
Maximum Power Voltage (Vmp)
|
30.8V
|
31.0V
|
31.2V
|
31.4V
|
31.6V
|
31.8V
|
|
Maximum Power Current (Imp)
|
10.36A
|
10.44A
|
10.52A
|
10.61A
|
10.69A
|
10.77A
|
|
Open-circuit Voltage (Voc)
|
37.1V
|
37.3V
|
37.5V
|
37.7V
|
37.9V
|
38.1V
|
|
Short-circuit Current (Isc)
|
18.31A
|
18.36A
|
18.41A
|
18.47A
|
18.52A
|
18.56A
|
|
Module Efficiency (%)
|
20.3%
|
20.5%
|
20.7%
|
20.9%
|
21.0%
|
21.2%
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coeffcient of Isc
|
0.05%/℃
|
|
Temperature Coeffcient of Voc
|
-0.25%/℃
|
|
Temperature Coeffcient of Pmax
|
-0.34%/℃
|
