500W-520W Mono Solar Panel design solution
Product Description

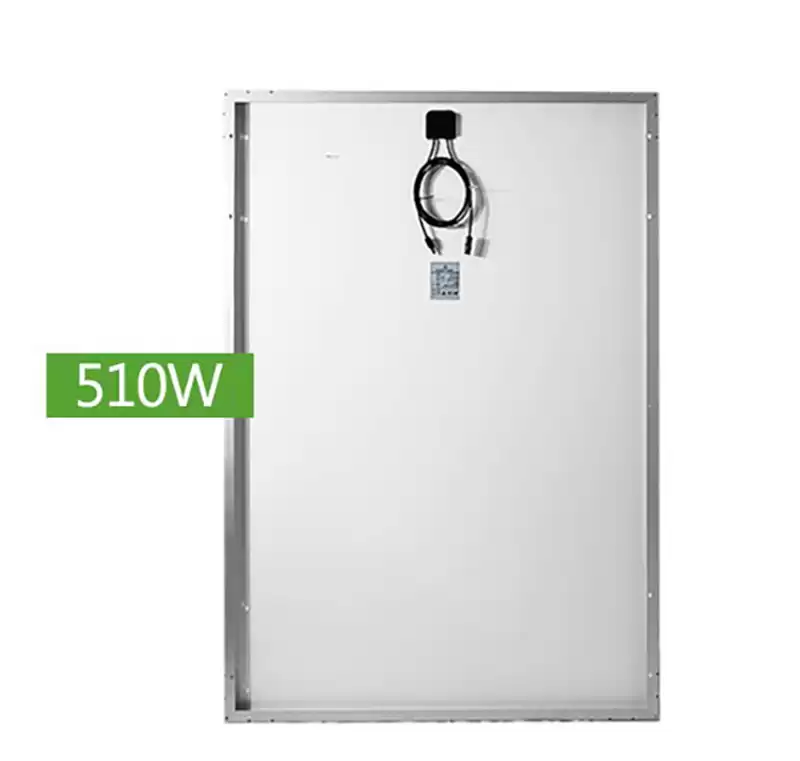

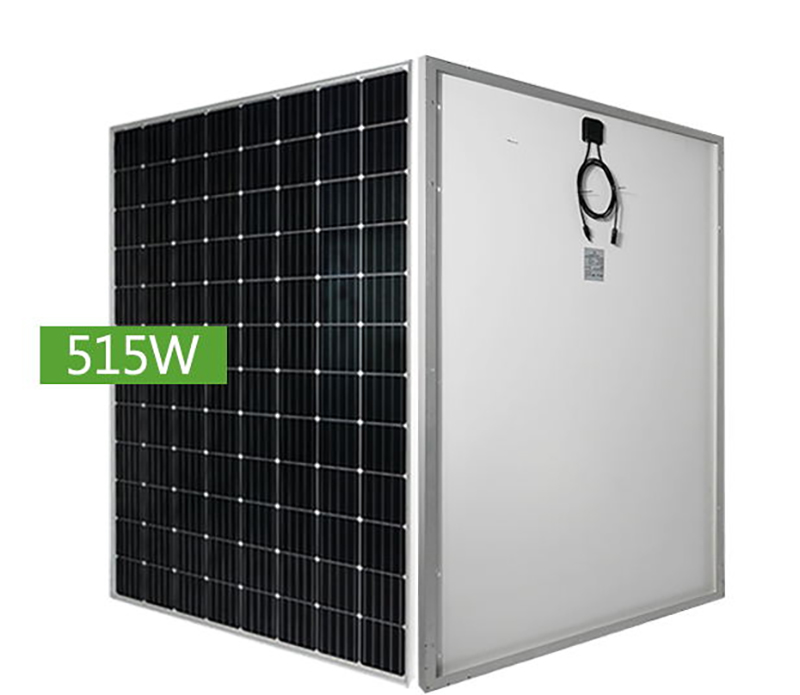

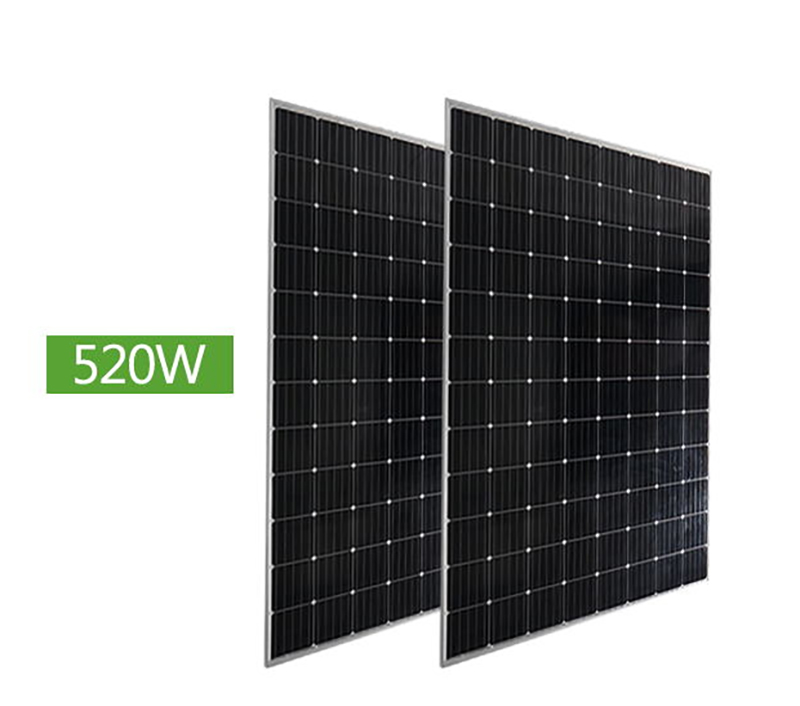

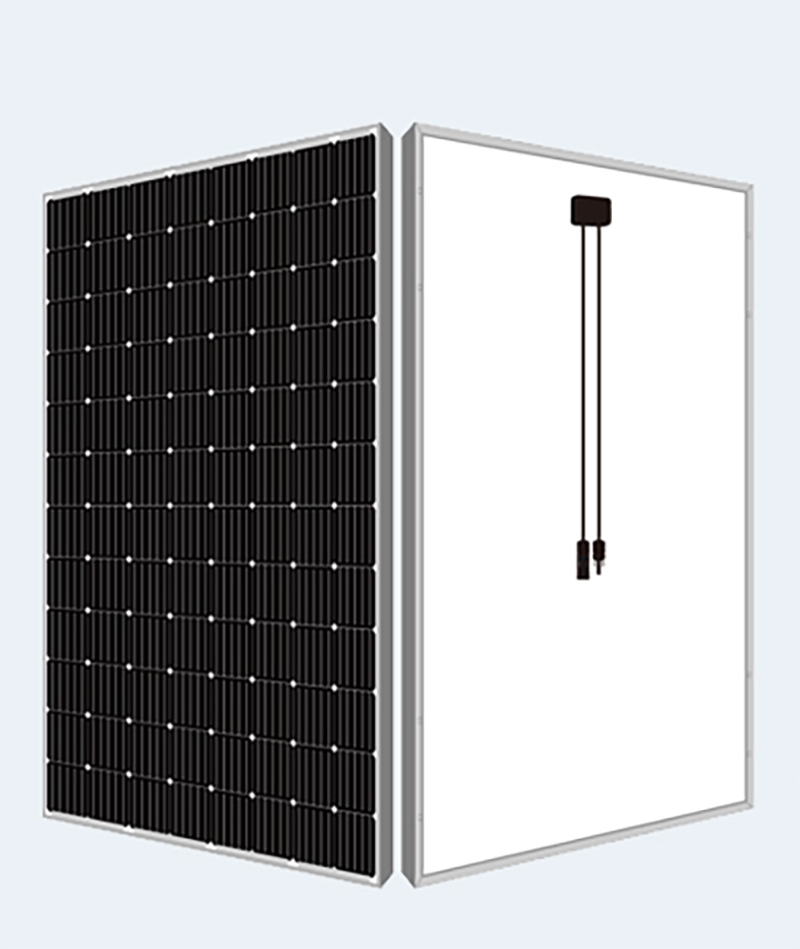

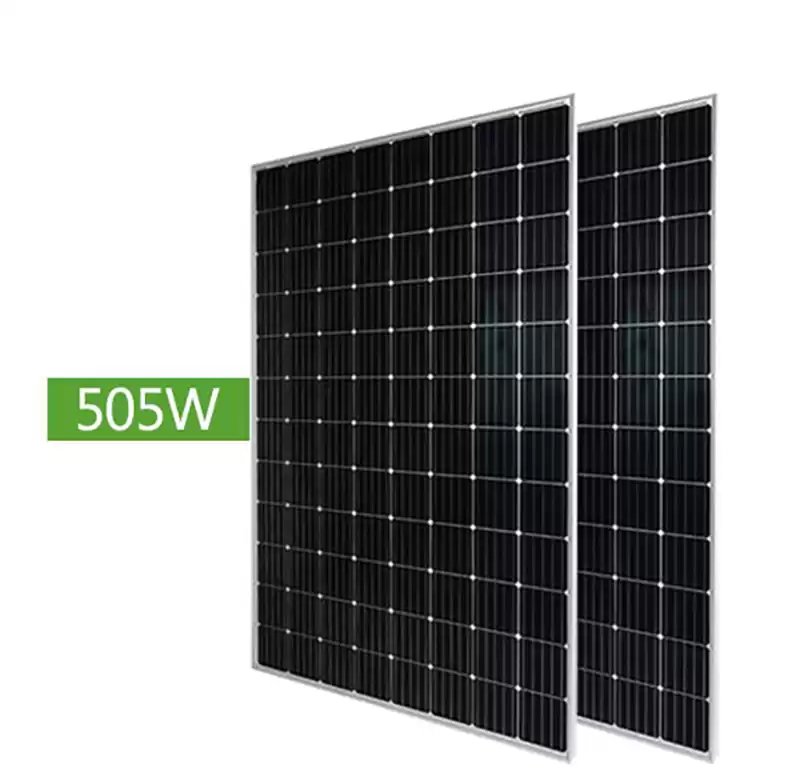

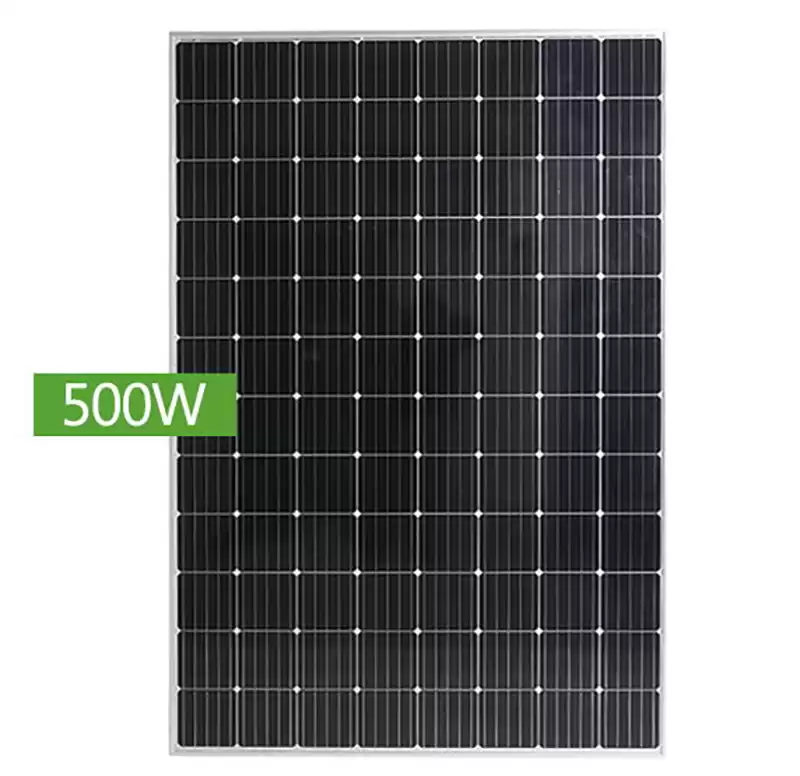

Product show
Electrical Characteristics
|
Model Number
|
ST500M6-48
|
ST505M6-48
|
ST510M6-48
|
ST515M6-48
|
ST520M6-48
|
Open Circuit Voltage (Voc/V)
|
59.01
|
59.07
|
59.13
|
59.19
|
59.25
|
Short Circuit Current (Isc/A)
|
10.87
|
10.97
|
11.06
|
11.15
|
11.24
|
Voltage at Maximum Power (Vmp/V)
|
48.63
|
48.72
|
48.81
|
48.90
|
48.99
|
Current at Maximum Power (Imp/A)
|
10.28
|
10.36
|
10.44
|
10.52
|
10.60
|
Maximum Power (Pmax/W)
|
500
|
505
|
510
|
515
|
520
|
Module Efficiency(%)
|
19.51
|
19.70
|
19.89
|
20.09
|
20.28
|
|
Higher Power Output
Less Shading Effect
Appearance Consistency
|
|

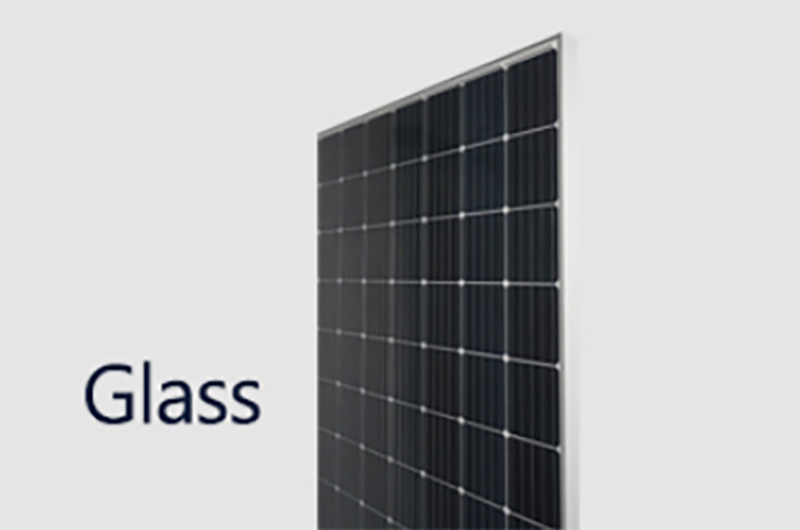

3.2mm thickness
>91% Higher Transmittance

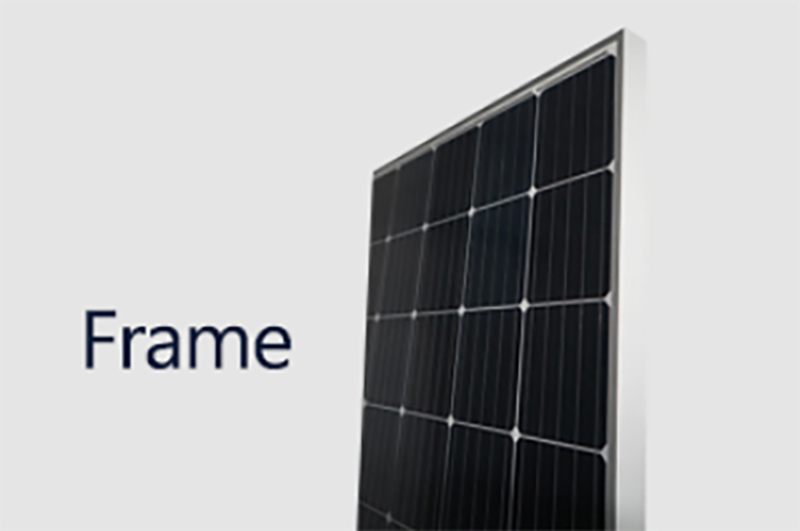

High mechanical strength
|
|
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
Black/Silver Optional
|
|
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
|

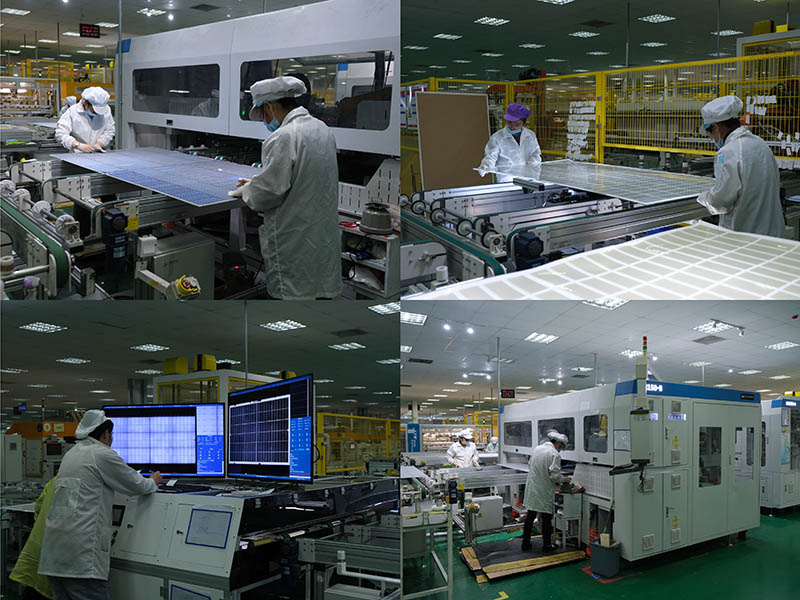

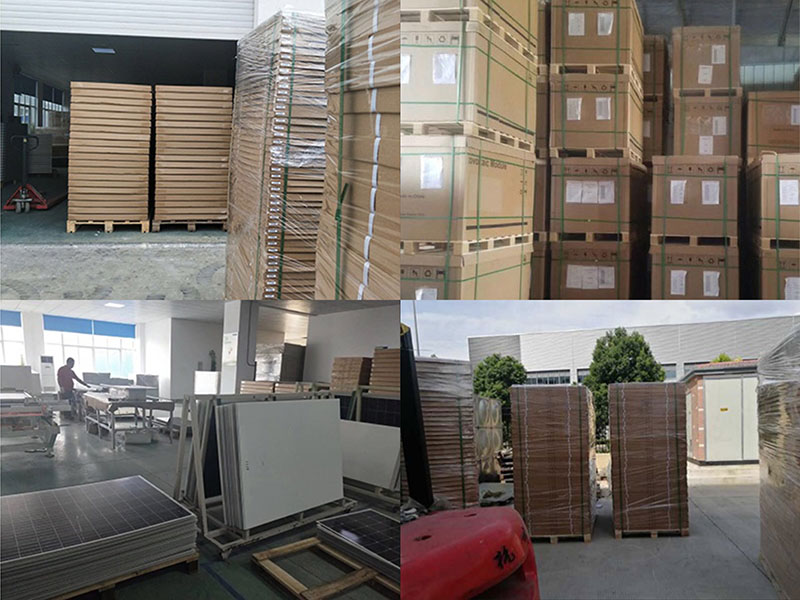

Production
Packing & Delievery

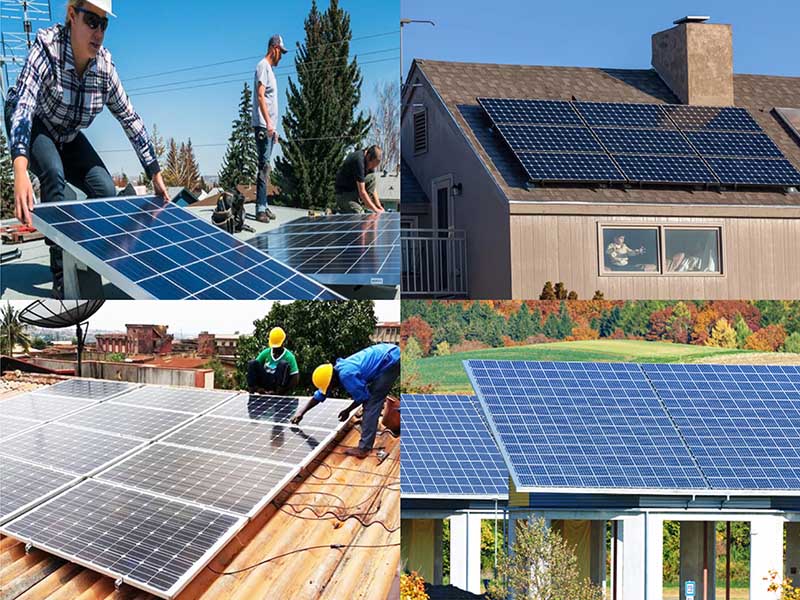

Residential&Commercial Projects
FAQ
1. Can you introduce your company?
A:l am very honored. l will send you the company's introduction document later to give you a more comprehensive and direct introduction to our company's information.
2. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
3.How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
