Outdoor lighting compact wall pack lamp
Garden lighting Aluminum alloy wall pack adopts special patented die-casting radiator design and prism design. The gasket is applied to the back of the fixture to seal the entire lens and housing. The appearance is elegant, the structure is unique and excellent to realize the ornamental and practicality.

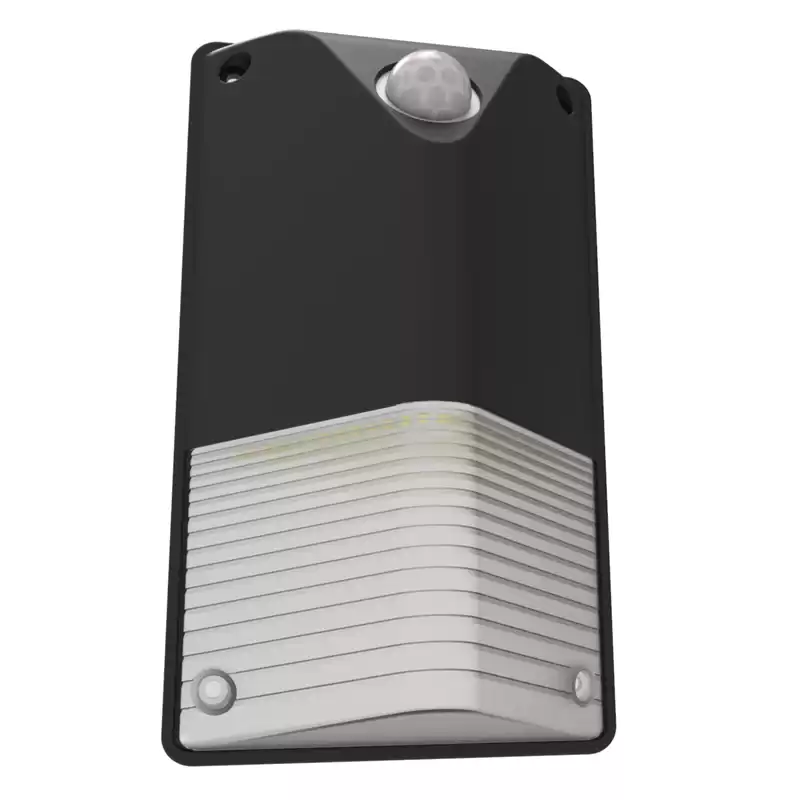

The 13W black small wall back light uses a 150lm/W Samsung LED chip with a luminous efficiency of 130lm/W. Equipped with intelligent photosensitive parts and infrared human body sensing function, 70% lumen maintenance rate can achieve lighting for more than 50,000 hours.
Features of prismatic energy saving mini wall pack
- Power Factor:≥0.95
-LED Chip: Samsung
-CRI:Ra≥80
-Dimming：YES/No
-Material: Aluminum alloy + PC Cover
-Standard color: dark bronze/Black
-Working Temperature:-40℉~122℉
-Lifespan:>54000 hours (@Tc=176℉)
-Total Harmonic Distortion: 15%
Specifiction of strong and sturdy wall pack light
|
Model
|
Wattage
|
CCT
|
Lumen
|
Input Frequency/Voltage
|
Luminous Flux (LM)
|
Emergency Function
|
|
MA-HWP201D-13W
|
13watt
|
3000K-7000K
|
1,690lm
|
50/60HZ 100-277V
|
1690lm
|
Yes/No
|
|
MA-HWP202D-26W
|
26watt
|
3000K-7000K
|
3,380lm
|
50/60HZ 100-277V
|
3380lm
|
Yes/No
|
|
|
|
|
|
|
|
|
|
Model
|
Driver
|
Inner Box Size(MM)
|
IP Grade
|
Carton Size(MM) 2pcs/CTN
|
N.W/G.W (KG)
|
Photocell Sensor
|
|
MA-HWP201D-13W
|
Daermay
|
210*130*79mm
|
IP54
|
220*170*150mm
|
0.48kg/pc 1.34kg/2pc/ctn
|
Yes/No
|
|
MA-HWP202D-26W
|
Application of efficient mini LED flood light 26W

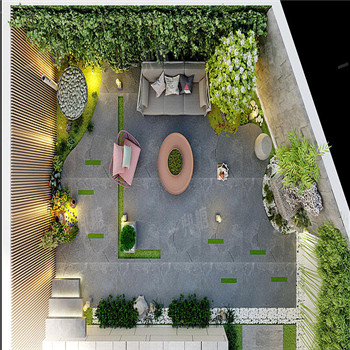

-Garden
-Court

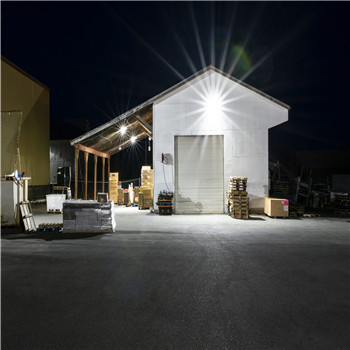

-Warehouse
-Workshop
-Lawn
- Patio
-Stairways
-Entryways
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
