Morstar Classic Mini High Light 100W Brightness Design
The product is made of aluminum alloy, which makes the product strong and durable, and the power source has good heat dissipation. It effectively prolongs the service life of the product. This lamp issuitable for installation at a height of 4-8m. Besides, product installation is convenient and simple high bay light ideas design. In the light source area, adopt domestic famous brand SMD light source, which has high brightness, small light attenuation and longer service life.

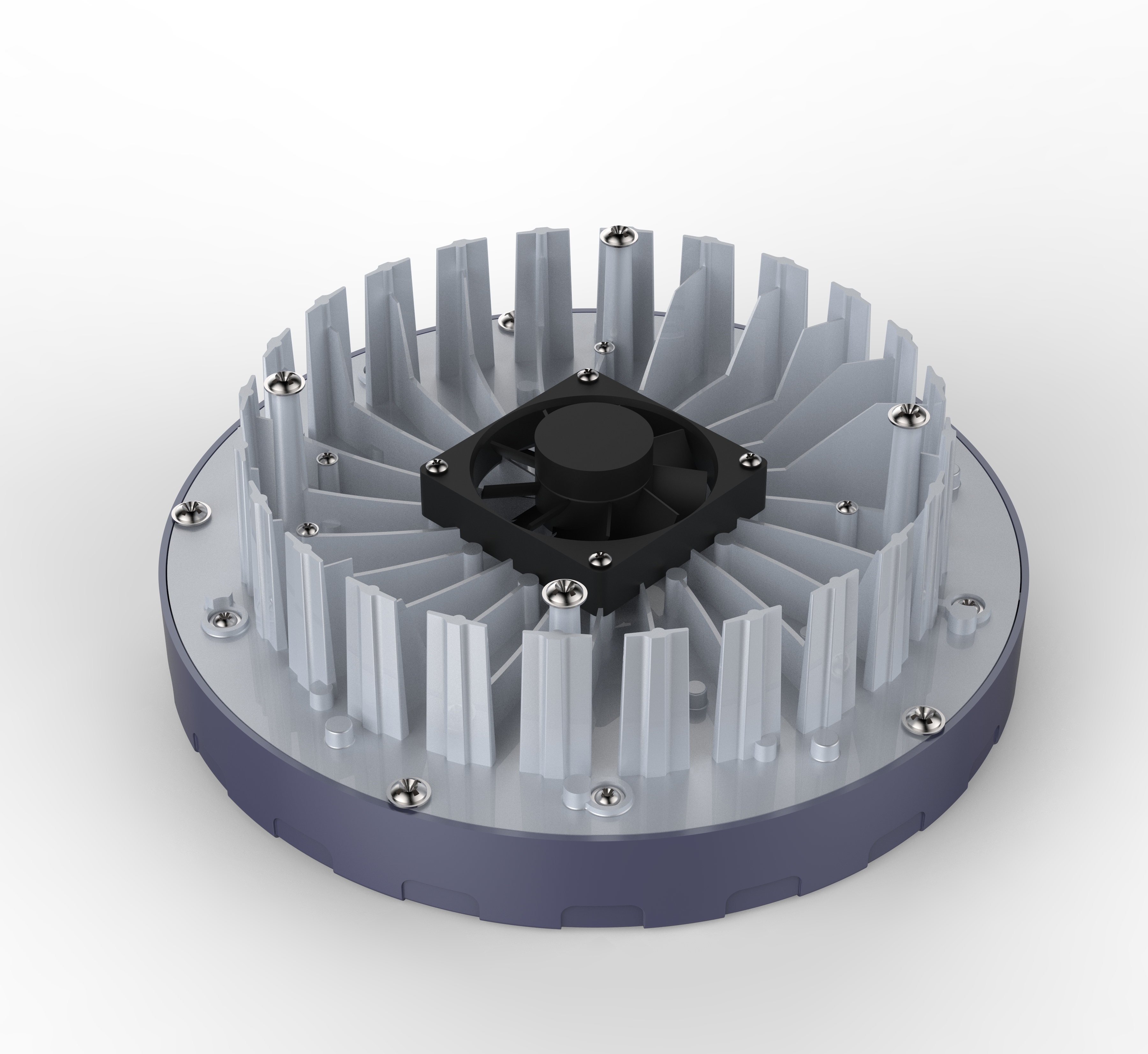

In the Power supply, adopt high-stability isolated constant current power supply scheme, it has the characteristics of over-temperature protection, wide voltage range, high power factor, high efficiency and good heat dissipation effect. By the way, The product adopt high-purity aluminum radiator with high thermal conductivity. The aluminum radiator is specially designed, which increases the radiating area, enhances the heat exchange efficiency of cold and hot air, which can reduces the temperature of the light. It is quality assurance small high bay light widely adapt to any commercial indoor application.
Application: Classic small high space light is suitable for supermarkets, large workshops, steel mills, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasiums, bus waiting rooms, railway station waiting rooms and other places requiring high space lighting.

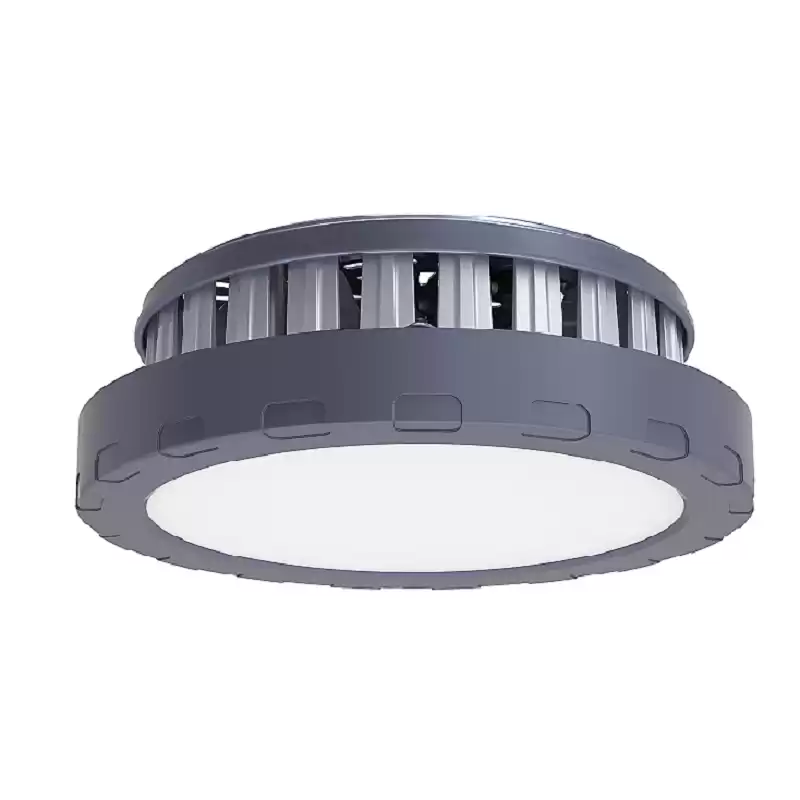

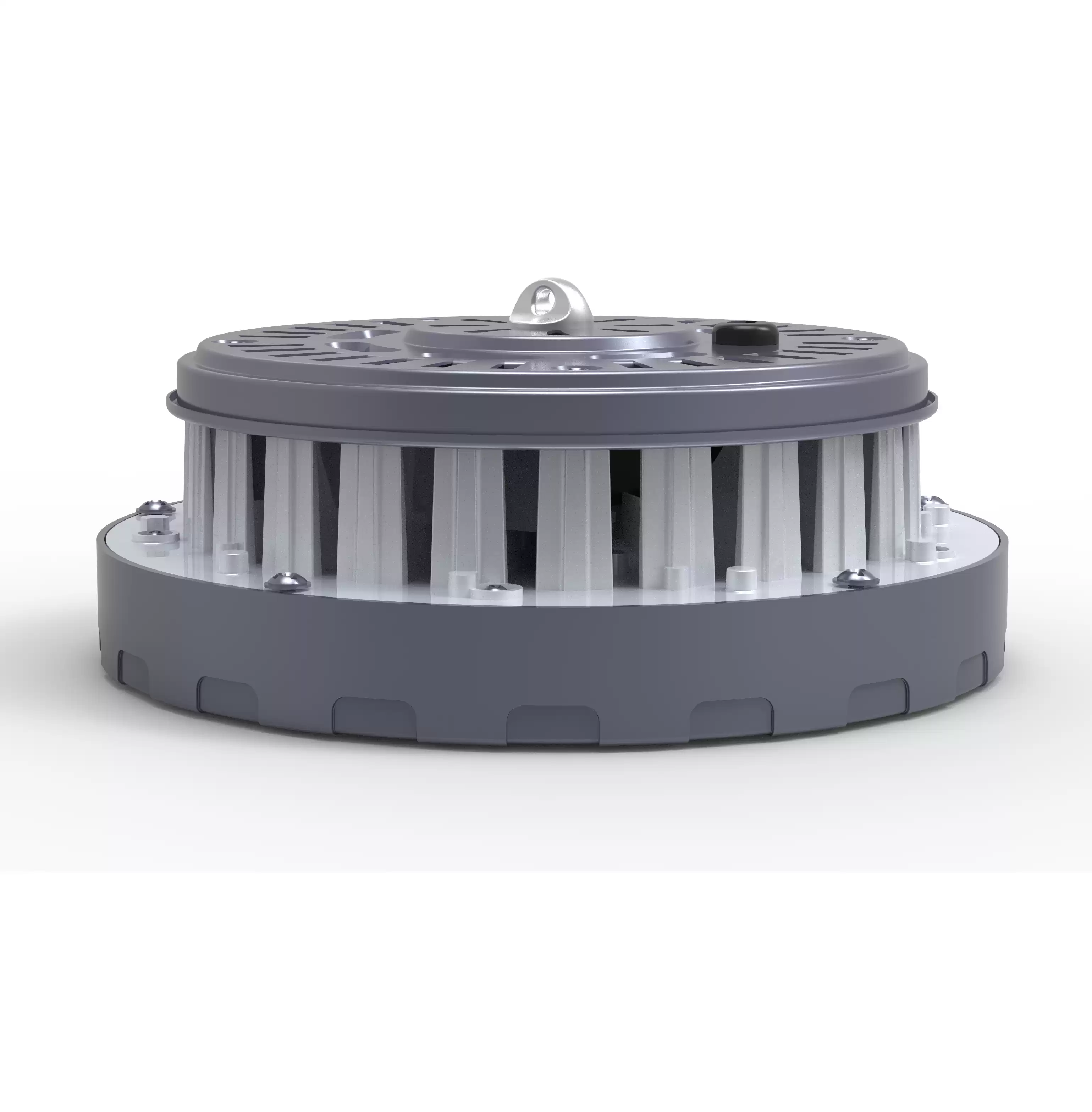

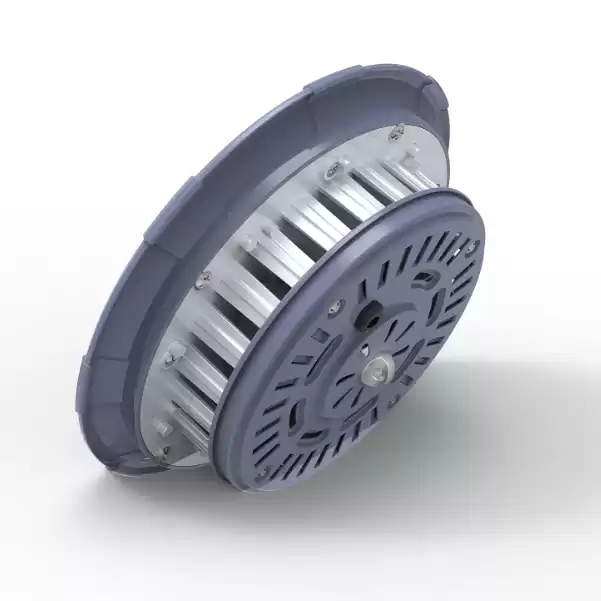

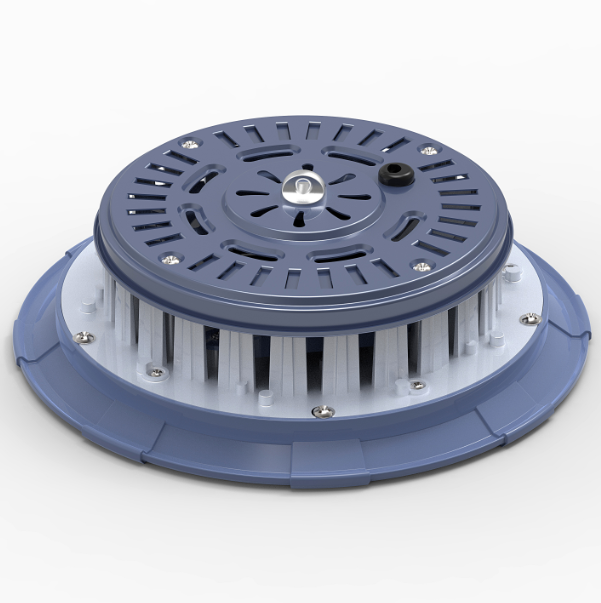

PRODUCT APPEARANCE
Product series: MS-HHB1001E-100W/ MS-HHB1002E-150W/ MS-HHB1003E-200W
Input voltage: AC 100-265～50/60Hz
Power: 100W±10%
Light effect: 100-110 lm/W
Luminous flux: 11000 lm / 16500lm / 22000lm
light emitting diode: 200pcs＊SMD2835
Color temperature: 6000k/4000k/3000k
Color rendering index (CRI): ＞70
Color tolerance adjustment: ≤10SDCM
Power factor: ≥0.95
THD: ≤10%
Efficiency: ≥88%
Working temperature: -25℃— +40℃
Service life: 30000 H
IK/IP protection level: IK08/IP44
Insulation grade: Class I
Surge protection： 4KV
Installs Way： Hoisting
External dimensions ：212.1mm * H100.7mm
Net weight： 1.4 kg
Gross weight： 1.51kg
Size of color box： 215mm*215mm*125mm
Size of Carton： 445mmx445mmx400mm
