PRODUCT APPEARANCE

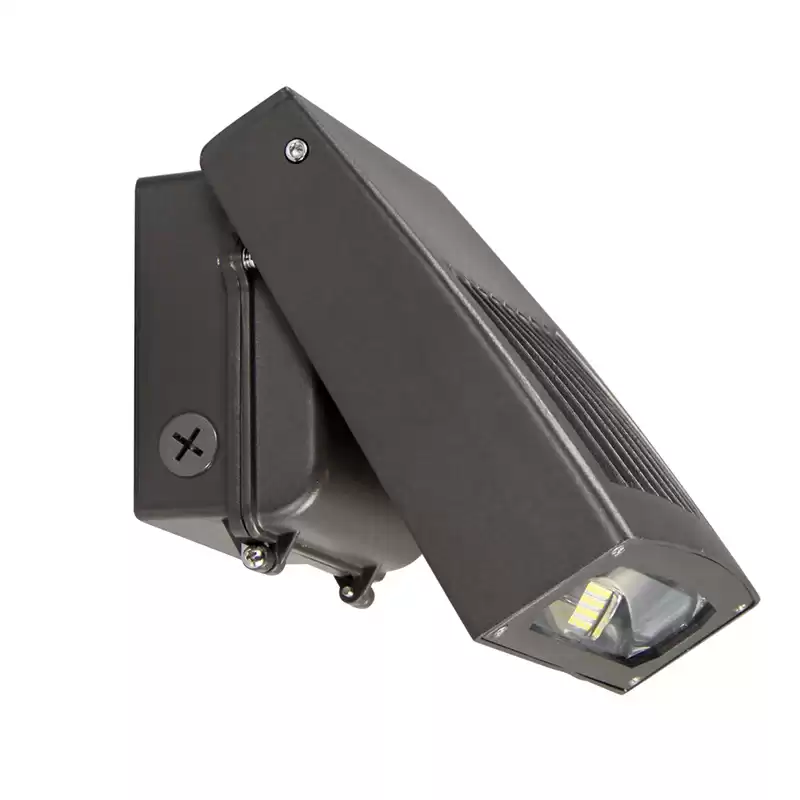

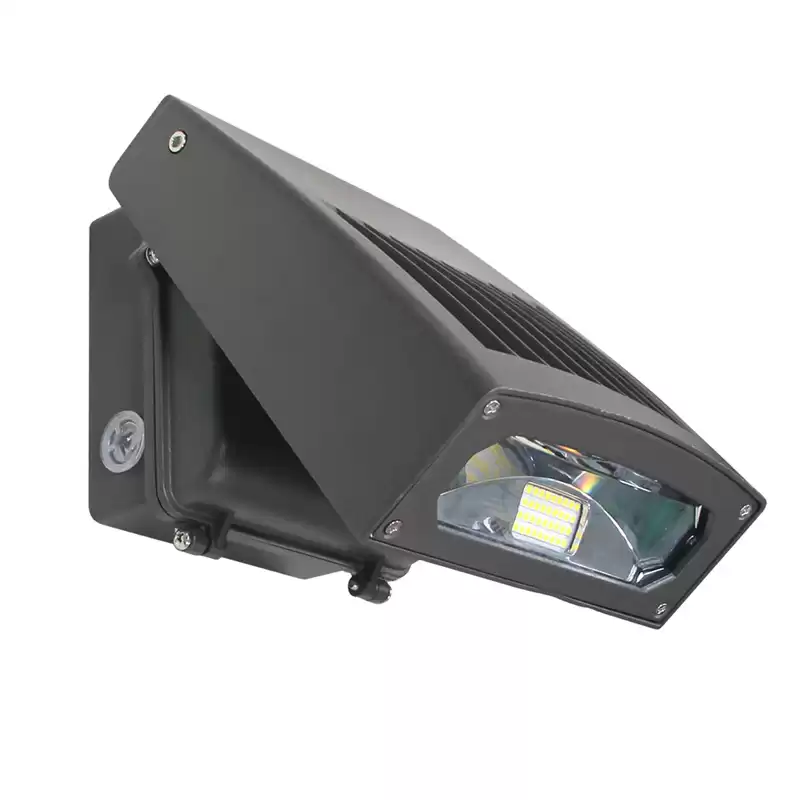

LED Outdoor Wall Mounted Light 05 Series with Motion Sensor in the USA
“full cut-off” or “half cut-off” for your option

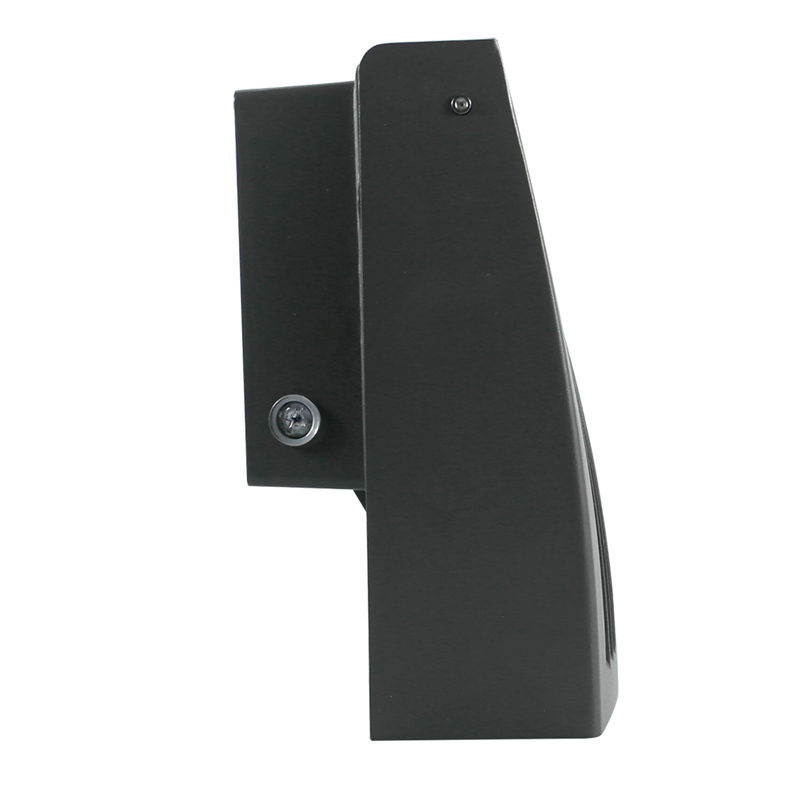

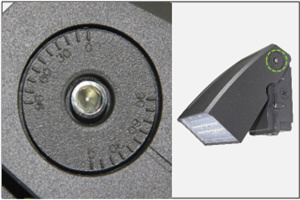

There are adjustment scale at the side
of lamp body for your easy adjusting

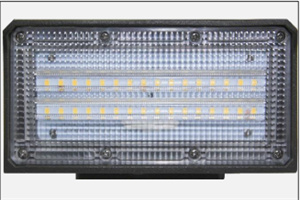

High efficiency Fresnel lens
luminous efficacy up to 120m/w
Glare-Free to protect people eyes
UV-Resistant, No yellowish worry

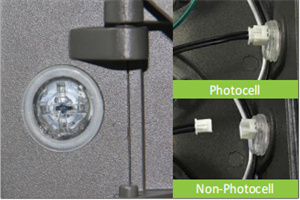

Support Removable,

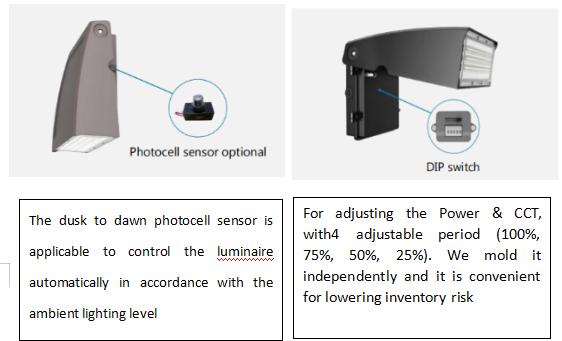

Connect the terminal with photocell
Remove the terminal without photocell
-
Multi-Volt: 100-277/347Vac

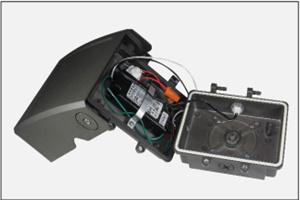

High Quality IP65 Waterproof Driver
100-277Vac or 100-277/347Vac optional
A LED adjustable wall mounted light with motion sensor offers outstanding value in thermal performance, high reliability in a 5-year limited warranty and wide range in energy efficiency.

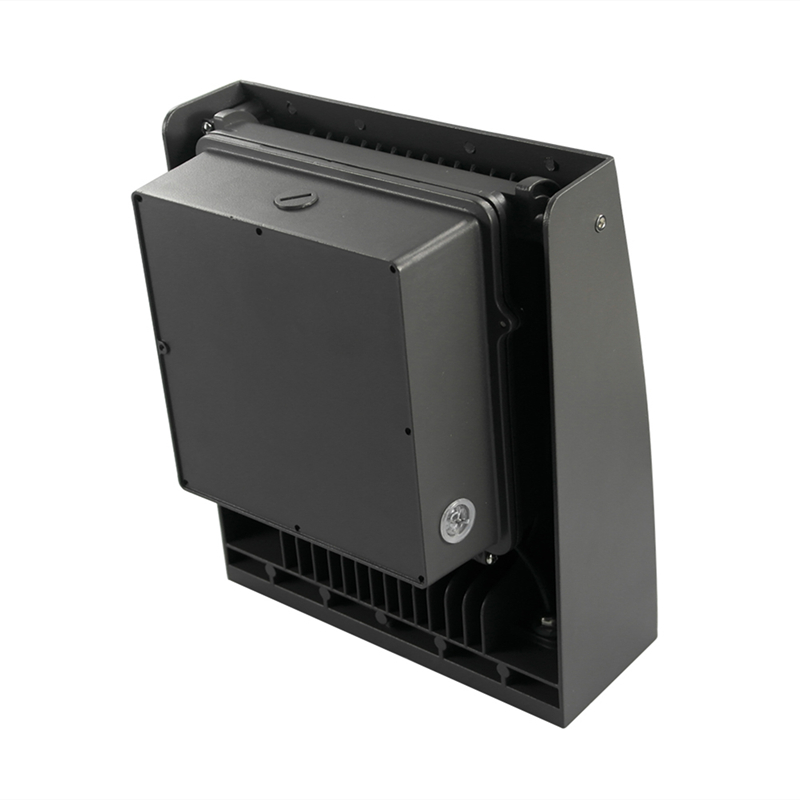

For better outdoor lighting, It features in humanized designs, which include adjustable direction available from 0-90 degree and “full cut-off”, “semi cut-off”, or motion sensor for your option. Besides, it is humanized foam design wall mounted light that foam is added to the back of the fixture for installation, which will not only reduce pressure in installation but also prevent water from flowing into driver compartment.
With IP65 rated enclosure wall mounted design, it is applied to any outdoor space in the field of building facade, commercial, industrial, retail, hospitality buildings that demand long service life and low maintenance.
PRODUCT SPECIFICATION
Efficacy：140LM/W (±10%)
Input Power：20W / 40W / 60W / 80W/ 100W / 120W
Certification：ETL, DLC
|
Input Voltage
|
Lighting Distribution
|
CCT
|
CRI
|
Life Time
|
Surge Protecting
|
IP/IK Rating
|
Housing
|
|
100-277Vac or 100-347Vac
|
Type Ⅱ
|
3000K
5000K
5700K
|
>70
|
L70@50000hrs
|
L-N: 2KV L/N-PE:4KV
|
IP65 IK08
|
ADC12
|
|
Lens
|
Operating Temp
|
Storage Temp
|
Warranty
|
|
Polycarbonate
|
-22F to 113F(-30°C to +45℃)
|
-40°F to 158°F(-40°C to+70℃)
|
5 Years standard
|
CONTROLS

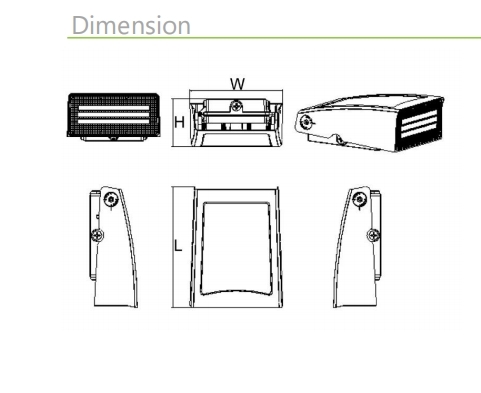

DIMENSIONS
|
POWER
|
L(mm/inch)
|
W(mm/inch)
|
H(mm/inch)
|
|
20W/30W/40W
|
205.25
8.08in
|
164.95
6.49in
|
97.65
3.84in
|
|
60W/80W
|
280.57
11.05in
|
215.96
8.5in
|
110.15
4.34in
|
|
100W/120W
|
330.55
13.01in
|
268.97
10.59in
|
124.15
4.89in
|
PACKAGE INFORMATION
|
ITEM
|
WP-20D
|
WP-30D
|
WP-40D
|
WP-60D
|
WP-80D
|
WP-100D
|
WP-120D
|
|
QTY/CTN
|
6pcs
|
6pcs
|
6pcs
|
6pcs
|
6pcs
|
4pcs
|
4pcs
|
|
G. W.
|
10kg(2.2lb)
|
10kg(2.2lb)
|
10kg(2.2lb)
|
15kg(33lb)
|
15kg(33lb)
|
14.9kg(32.8lb)
|
14.9kg(32.8 lb)
|
|
CTN SIZE
|
42x40x26cm (16.5”x15.8”x10.2”)
|
42x40x26cm (16.5”x15.8”x10.2”)
|
42x40x26cm (16.5”x15.8”x10.2”)
|
50.5x36x56.5cm (19.9”x14.2”x22.3”)
|
50.5x36x56.5cm (19.9”x14.2”x22.3”)
|
40x39.5x64.5cm (15.8”x15.6”x25.4”)
|
40x39.5x64.5cm (15.8”x15.6”x25.4”)
|
|
CBM
|
0.044
|
0.044
|
0.044
|
0.103
|
0.103
|
0.102
|
0.102
|
FAQ
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
