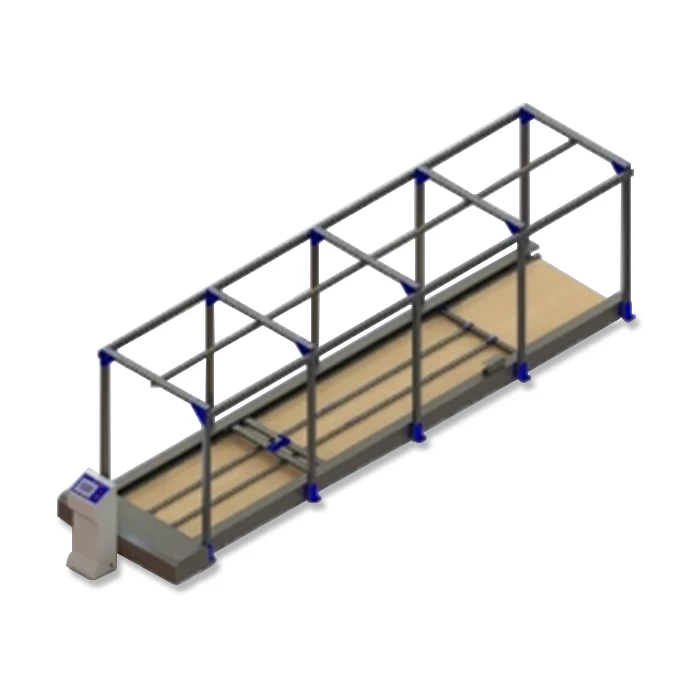

Motor Horizontal Brake Performance Tester GT-M31

Applications:

This Brake Performance Tester is mainly used to test the motor brake performance of electric ride-on toys.

Standards:

EN 71-1

Load the toy a suitable static strength load. Measuring the force required to pull the toy on a horizontal plane covered with a surface of abrasive paper (aluminium oxide P60) at a constant speed of (2 ± 0,2) m/s. The motor shall be considered to supply sufficient braking if:

FT1 ≥ (M + 25) x 1.7  or  FT2 ≥ (M + 50) x 1.7

where

FT1 is the maximum pull force in Newtons for a toy intended for children under 36 months;

FT2 is the maximum pull force in Newtons for a toy intended for children of 36 months and over;

M is the mass of the toy in kilograms.
