Mounting System for Photovoltaic

Mounting System for Photovoltaic is designed for Metal Roof, it has advantages like Easy Assembly, enormous Power Supply, steady and so on.


  • Panel TypeFramed & Frameless
  • HS Code76109000
  • Installation SiteMetal Roof
  • Tilt Angle0°~60°
  • FoundationClamp/Hook

Mounting System for Photovoltaic


Mounting System for Photovoltaic is designed for Metal Roof, it has advantages like Easy Assembly, enormous Power Supply, steady and so on.


Material
   AL 6005-T5/SUS304
Surface Treatment

   AverageAnodizing Coating Thickness≥12μmAverage

Panel Type
  Framed & Frameless
Wind Load
   ≤60m/s
SnowLoad
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

 15years qualitywarranty, 25years life span warranty

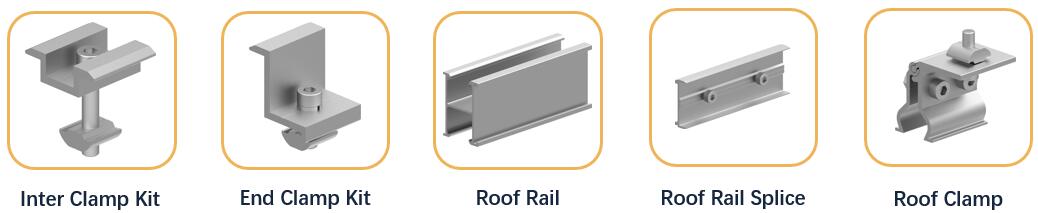

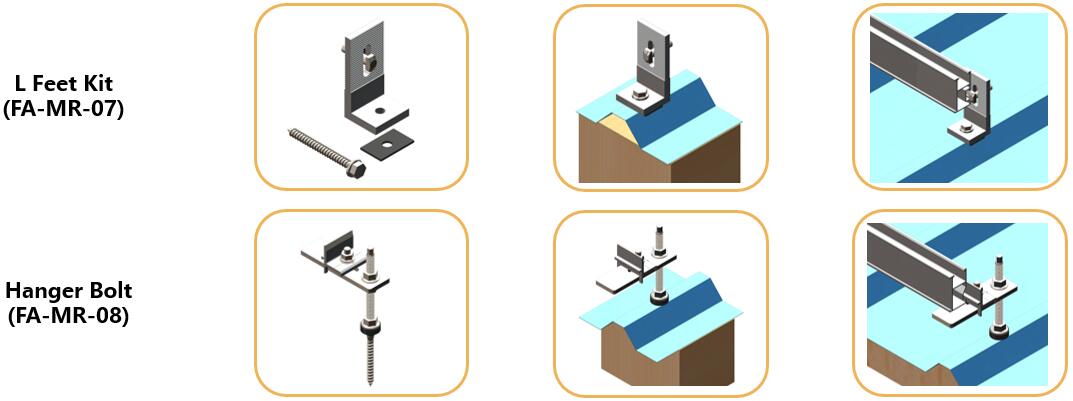

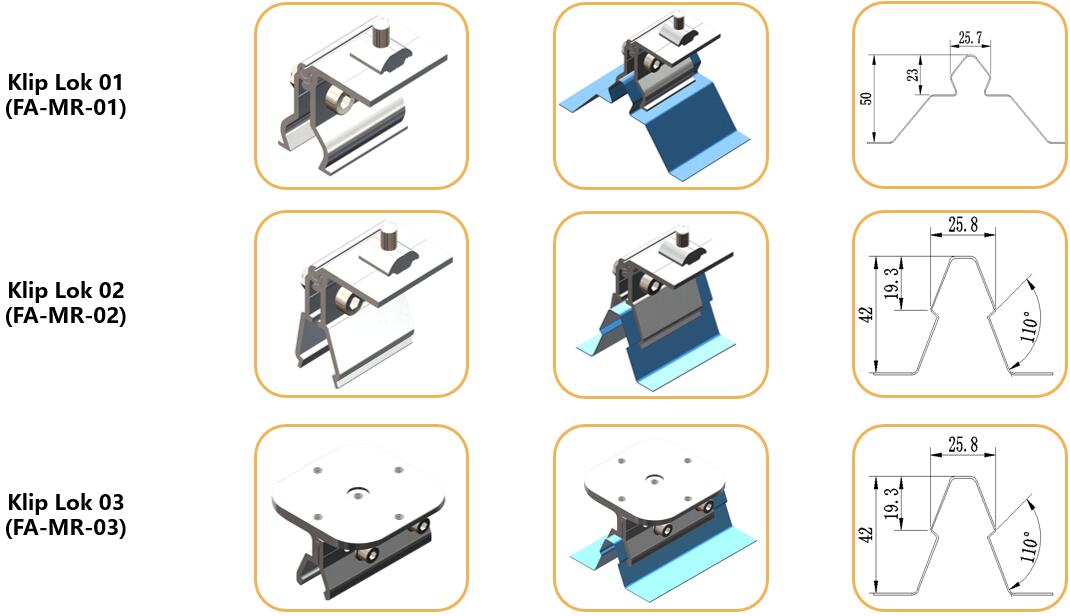

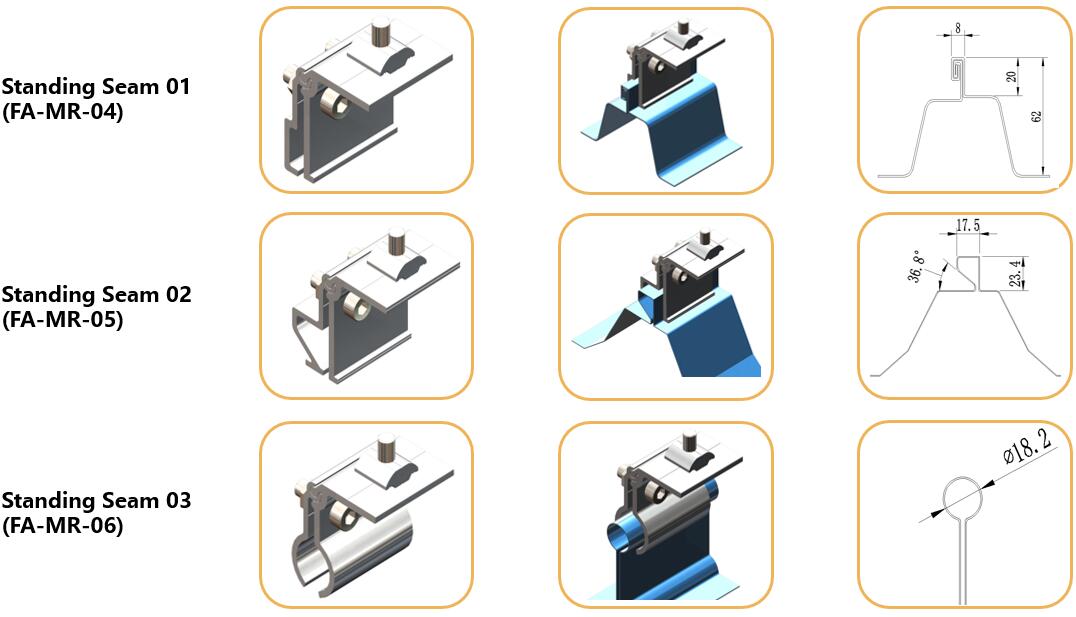

 Component List

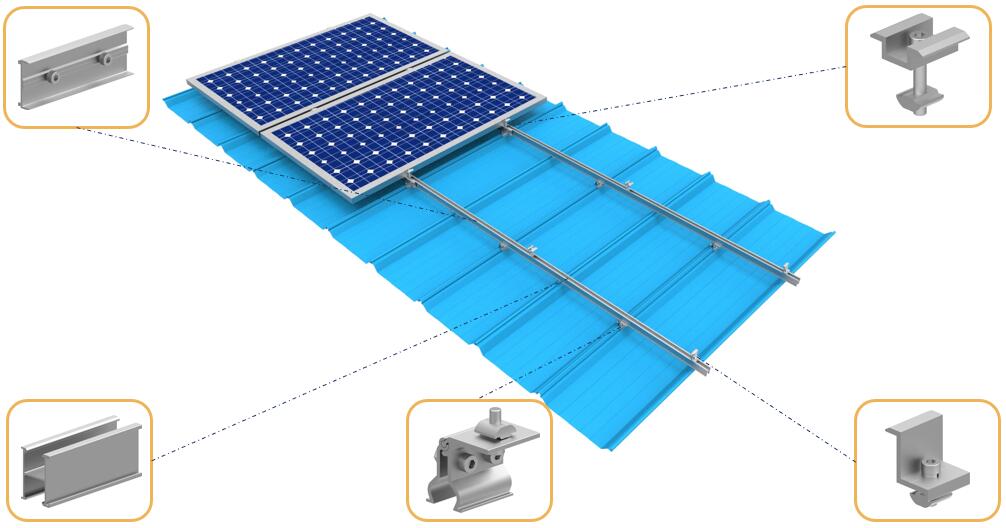

System Overview


 Advantages

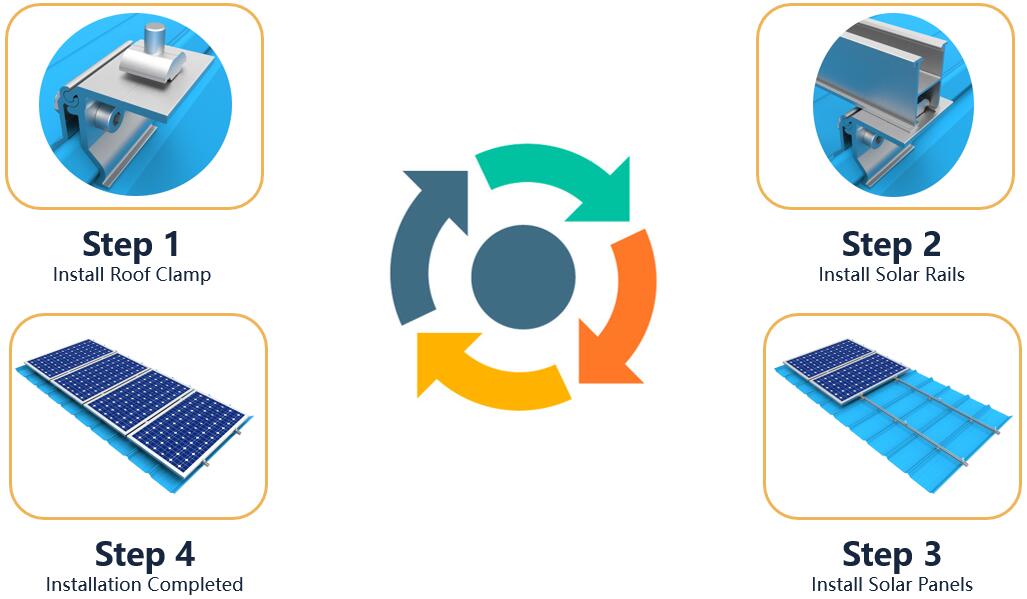

1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work

2. Safety & Reliability:  Check and test Structure strictly for the use in extreme weather condition


3. Lower Cost : Simpler design and less components make the solution more competitive


4. 15 Years Warranty: 15 years' warranty, 25 years' life span
