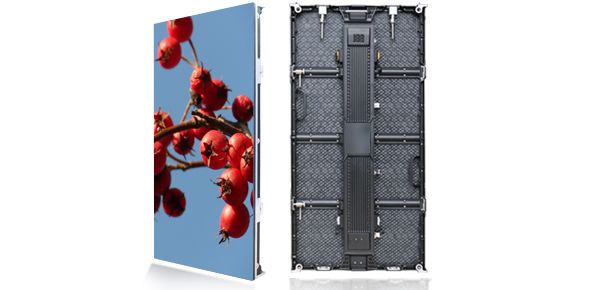

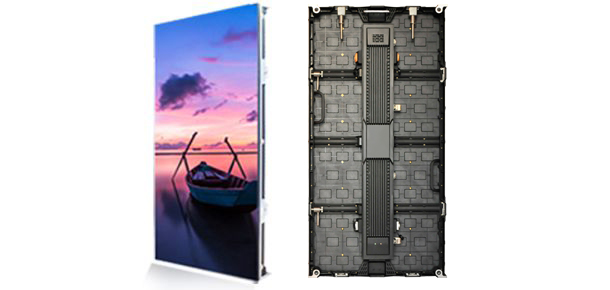

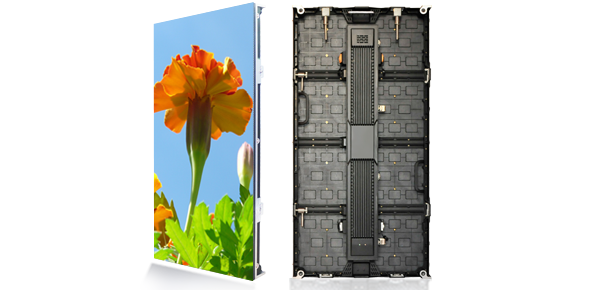

Movable Installation P3.91mm 500mmx1000mm Outdoor Rental LED Display Cabinet With Hard Connection.Easy Maintanence and Easy Installation
1. Both 500*500mm and 500*1000mm cabinets available;
2. New generation curve lock;
3. Front and rear maintenance;
4. User-friendly cabinet handles;
5. User-friendly top lock and side lock, fast installation;
6. Both concave and convex curve;
LED Display Screen Technical Specifications:
|
Model
|
LEEMAN DISPLAYLED-P3.91-500X1000
|
|
LED
|
SMD 3in1
|
|
Pixel
|
3.91mm
|
|
Module size
|
250*250mm
|
|
Module resolution
|
64*64dots
|
|
Density
|
65536 pixels/sqm
|
|
LED Cabinet Size
|
500*1000*75(mm)
|
|
Cabinet Weight
|
13kg/pc
|
|
Material
|
Die Casting Magnesium Alloy
|
|
Brightness
|
4500-5500 cd/m2 (Nits)
|
|
Average power consumption
|
450w/m2
|
|
Maximum power consumption
|
900w/m2
|
|
Optimal Viewing Distance
|
3.9m to 39m
|
|
Grey Level
|
14 bits
|
|
Fresh frequency
|
960-1920HZ
|
|
Humidity-operating
|
10% ~ 95%
|
|
Temperature-operating
|
-20℃~+50℃
|
|
Screen life
|
≥100000 hours
|
|
Controlling mode
|
Synchronization or Asynchronous
|
|
Controlling system
|
Novastar/Linsn/Huidu
|
|
Protective grade
|
IP65
|
|
Certificates
|
CE,RoHs,FCC,UL
|
Light weight: The aluminum die-casting technology makes the single cabinet as light as 8.5KG, which is convenient for assembly and transportation.
Seamless connection: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, which in other words is to save money.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 2880Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
LED Video Controller Card System Novastar Linsn Colorlight LEEMAN DISPLAYLED Software
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
LEEMAN DISPLAYLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
LEEMAN DISPLAYLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
BarcoLED PCB
|
4 Layer PCB Board
|
|
LEEMAN DISPLAYLED PCB Board
|
1.6mm Thickness
|
|
Packaging Materials
|
Flight Case Wooden Box Carton Box
|
1. High Quality LEDs
We use Outdoor SMD LEDs we choose CEE or Nationstar LED GOLD WIRE that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness 7500NITS, high refresh rate 3840HZ, high gray scale and keep natural color at one time with best color uniformity.
2. Driving IC
To achieve the best visual performance of our indoor and outdoor led display, we use the Best Driving IC, such as MBI5153S, MBI5124, ICN2153, SUM16136, ICN2038S with high refresh rate 3840HZ,high grey level with latest technology. And config the best Brightness Efficiency by the led screen Software NOVASTUDIO
3. Easy Transpoartion,Easy Installation
Latest Die Casting Aluminum Cabinet Design,it can be used for outdoor 3.91mm,4.81mm,5.95mm, Quick Locks for easy installation.
4. Curved LED Cabinet Design for creative led display
The Cabinet is curved design for 35 degree adjustment. You can use it for Creative LED Display such as Around LED Screen, Curved LED Display For Any Sharp
5. HDMI,SDI,S-Video,DVI singal input.
VDWALL led video processor can receive different signals like HDMI,SDI,VGA from DVD or other video player, to show the best video effects for your led display applications.
6. LEEMAN DISPLAY LED Factory View
LEEMAN DISPLAY LED has builded a long term relationship with LED Display Material Supply, such as Nichia, Cree, Epistar LED, aslo the Nationstar LED, Meanwell LED Power Supply, Linsn, Novastar, VDWALL etc.
