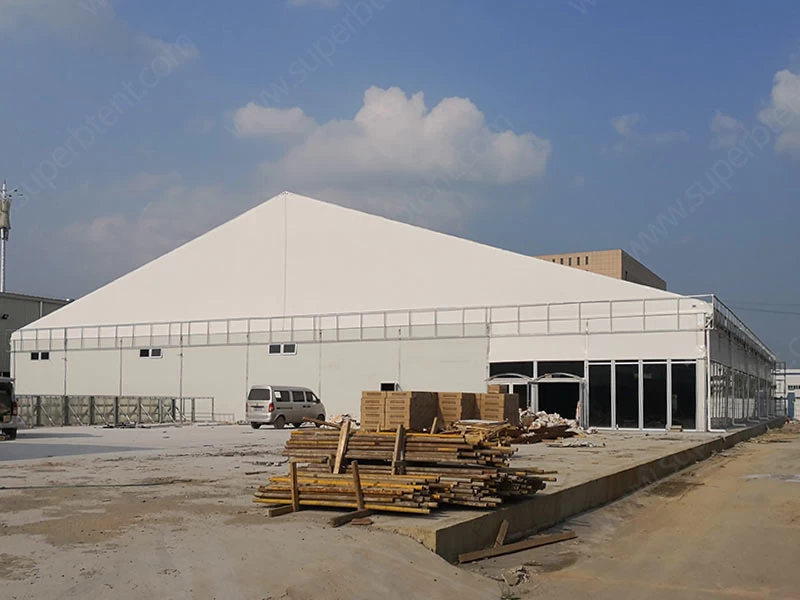

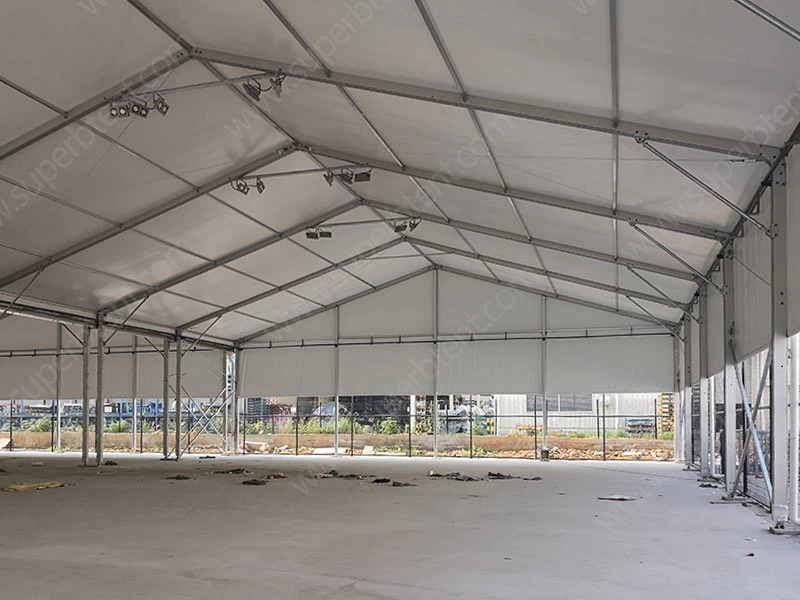

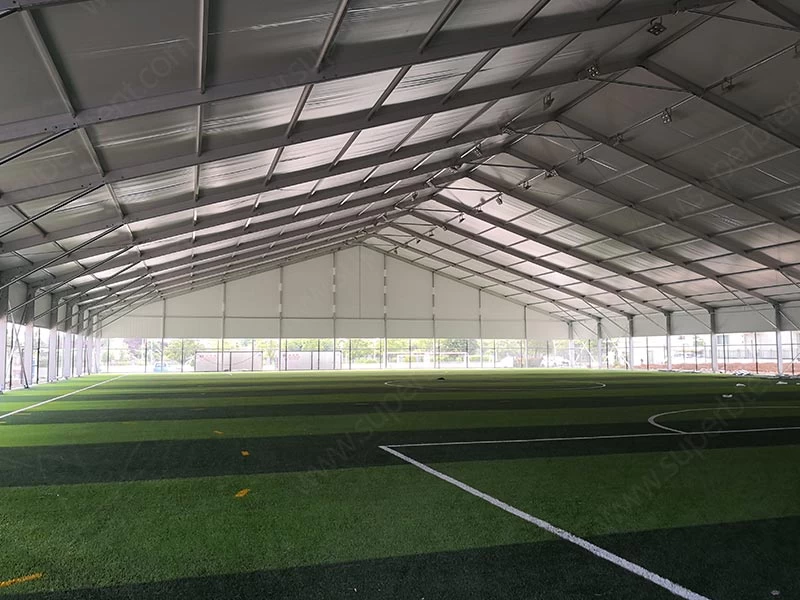

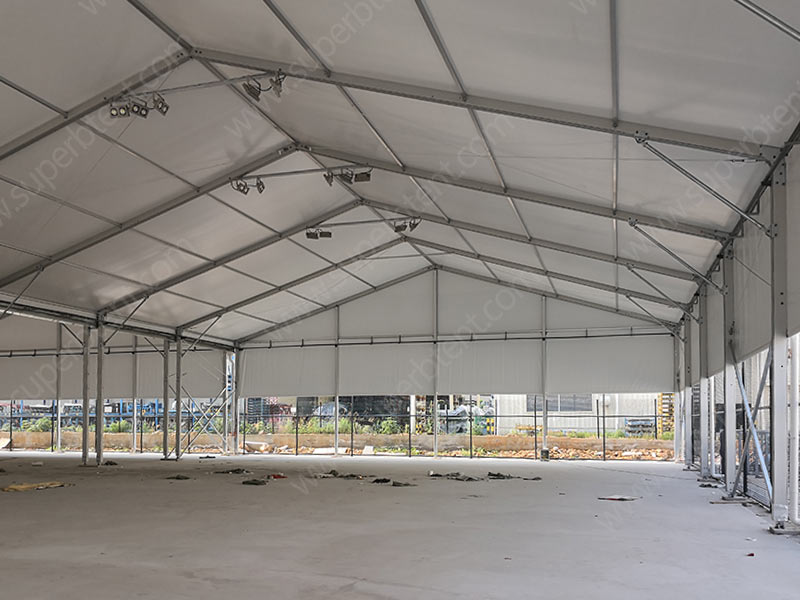

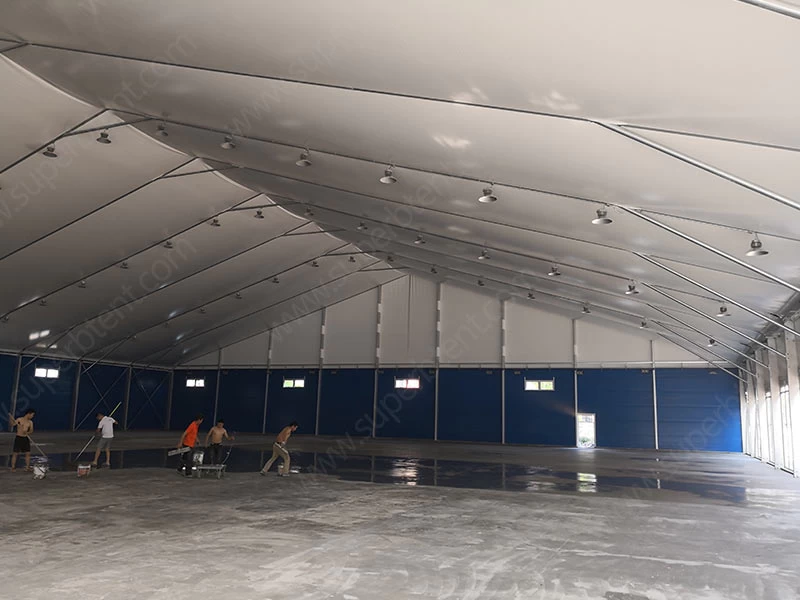

Product Name:Movable Sports Canopy Tents
Sport tent's available sizes:
Clear span available from 3m to 60m.
Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Sport tent's features:
No exterior guy ropes or staking required.
No poles inside, 100% interior space be used.
Roof and gable vent is available.
Relocatable, easy to install, dismantle and transport.
Full line accessories available.
The specification of Sport Tent Canopy:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
LS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
LS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
The accessories of Sport Tent Canopy：
