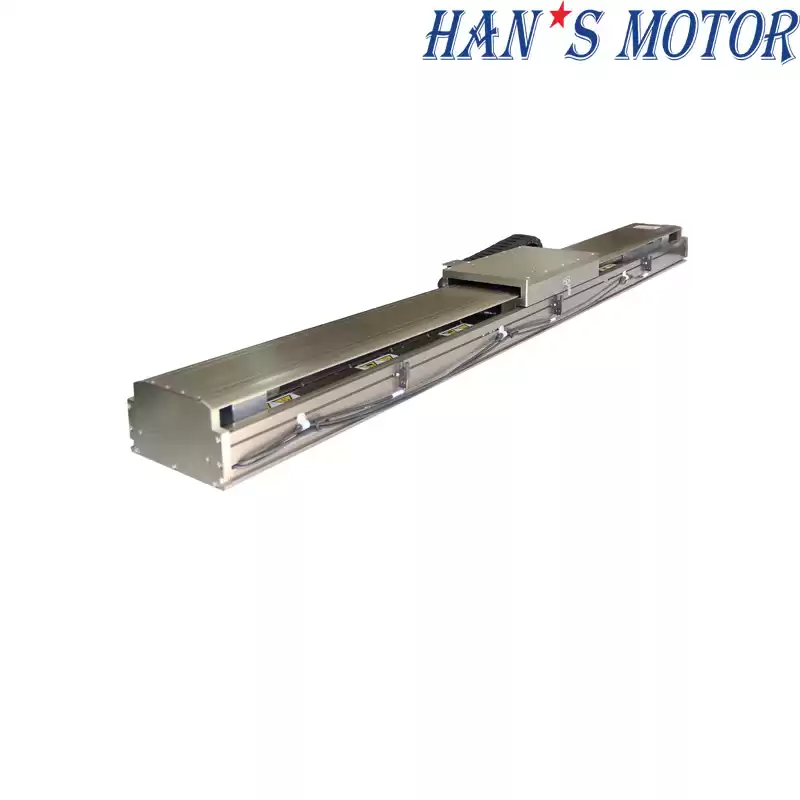

Products Name: Moving magnet linear motor stages for photovoltaic industry（LM210 Series)
Characteristics:
• Standard linear motor modules
• It can realize single-axis multi-mover to drive, the longest stroke can reach 2500mm
• Grating Positioning, Magnetic Grating Positioning or Time Grating Positioning
• warranty period is 1 year
Linear Motor Stages type:
Product Specifications
Motor Model/Parameter
|
|
Flat-type Motor
|
U-type Motor
|
|
Parameter\ Motor Model
|
Unit
|
FJ23
|
FL23
|
FL33
|
FL43
|
U53
|
U54
|
U55
|
U56
|
|
Continuous Force (Tmax）
|
N
|
332
|
314
|
472
|
629
|
168
|
224
|
280
|
336
|
|
Peak Force
|
N
|
1329
|
827
|
1237
|
1653
|
936
|
1248
|
1560
|
1872
|
|
Motor Constant
|
N//SqrtW
|
24.4
|
25.3
|
31
|
36.2
|
15
|
17.3
|
19.4
|
21.3
|
|
Max.Continuous Power Dissipation
|
W
|
184.8
|
154.6
|
231.8
|
302.4
|
125
|
166.6
|
208.3
|
250
|
|
Continuous Current (Tmax）
|
Arms
|
4.4
|
4
|
4
|
4
|
2.3
|
2.3
|
2.3
|
2.3
|
|
Peak Current (1S)
|
Arms
|
18
|
12
|
12
|
12
|
13
|
13
|
13
|
13
|
|
Force Constant (25℃，±5%）
|
N/Arms
|
75.6
|
78.5
|
118
|
157
|
73
|
96
|
120
|
144
|
|
Back EMF Constant (25℃，±5%）
|
Vrms/rad/s
|
25.2
|
26
|
39.3
|
52.4
|
24.3
|
32
|
40
|
48
|
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
4.5
|
4.6
|
6.9
|
9
|
11.25
|
15
|
18.75
|
22.5
|
|
Inductance(25℃，±20%）P-P
|
mH
|
15.3
|
24.0
|
36.0
|
48
|
10.5
|
14
|
17.5
|
21
|
|
Max Coil Temperature
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
20
|
20
|
20
|
20
|
60
|
60
|
60
|
60
|
|
Magnetic Attraction
|
KN
|
1.82
|
1.7
|
2.6
|
3.4
|
0
|
0
|
0
|
0
|
|
Mover Mass
|
Kg
|
2.4
|
3.8
|
5.5
|
7.3
|
1
|
1.3
|
1.65
|
2
|
Linear Motor Stages Selection
|
LM210-FJ23-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
420
|
520
|
620
|
720
|
820
|
920
|
1020
|
1120
|
1220
|
1320
|
1420
|
1520
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
12.3
|
14.1
|
16.0
|
17.8
|
19.6
|
21.5
|
23.3
|
25.1
|
27.0
|
28.9
|
30.6
|
32.5
|
|
Sliding Table M (mm)
|
200
|
|
A
|
8
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
3.5
|
|
LM210-FL23-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
390
|
490
|
590
|
690
|
790
|
890
|
990
|
1090
|
1190
|
1290
|
1390
|
1490
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
10.9
|
12.8
|
14.7
|
16.5
|
18.3
|
20.2
|
22.0
|
23.9
|
25.8
|
27.5
|
29.4
|
31.3
|
|
Sliding Table M (mm)
|
170
|
|
A
|
8
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
2.8
|
|
LM210-FL33-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
450
|
550
|
650
|
750
|
850
|
950
|
1050
|
1150
|
1250
|
1350
|
1450
|
1550
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
13
|
14.9
|
16.8
|
18.6
|
20.4
|
22.2
|
24.1
|
26
|
27.7
|
29.6
|
31.5
|
33.2
|
|
Sliding Table M (mm)
|
230
|
|
A
|
12
|
|
B
|
5
|
|
Motion Parts Weight (kg)
|
3.7
|
|
LM210-FL43-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
520
|
620
|
720
|
820
|
920
|
1020
|
1120
|
1220
|
1320
|
1420
|
1520
|
1620
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
15.4
|
17.3
|
19.2
|
20.9
|
22.8
|
24.7
|
26.4
|
28.3
|
30.2
|
31.9
|
33.8
|
35.7
|
|
Sliding Table M (mm)
|
300
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
4.8
|
|
LM210-U53-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
10
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
|
N
|
1
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
|
Stage Total Length (mm)
|
410
|
510
|
610
|
710
|
810
|
910
|
1010
|
1110
|
1210
|
1310
|
1410
|
1510
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
16.8
|
20
|
23.2
|
26.4
|
29.6
|
32.8
|
36.0
|
39.2
|
42.4
|
45.6
|
48.8
|
52.0
|
|
Sliding Table M (mm)
|
190
|
|
A
|
8
|
|
B
|
3
|
|
Motion Parts Weight (kg)
|
5
|
|
LM210-U54-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
470
|
470
|
670
|
770
|
870
|
970
|
1070
|
1170
|
1270
|
1370
|
1470
|
1570
|
|
Dowel Pin D1 (mm)
|
50
|
50
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
20
|
20
|
26.4
|
29.6
|
32.8
|
36
|
39.2
|
42.4
|
45.6
|
48.8
|
52.0
|
55.2
|
|
Sliding Table M (mm)
|
250
|
|
A
|
12
|
|
B
|
5
|
|
Motion Parts Weight (kg)
|
5.5
|
|
LM210-U55-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
|
N
|
2
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
|
Stage Total Length (mm)
|
530
|
630
|
730
|
830
|
930
|
1030
|
1130
|
1230
|
1330
|
1430
|
1530
|
1630
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
23.5
|
26.8
|
30.1
|
33.4
|
36.7
|
40
|
43.3
|
46.6
|
49.9
|
53.2
|
56.5
|
59.8
|
|
Sliding Table M (mm)
|
310
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
6.5
|
|
LM210-U56-xxx-xxx-A
|
|
|
Parameter\ Stroke (mm)
|
100
|
200
|
300
|
400
|
500
|
600
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
K
|
14
|
18
|
18
|
22
|
22
|
26
|
26
|
30
|
30
|
34
|
34
|
38
|
|
N
|
2
|
3
|
3
|
4
|
4
|
5
|
5
|
6
|
6
|
7
|
7
|
8
|
|
Stage Total Length (mm)
|
590
|
690
|
790
|
890
|
990
|
1090
|
1190
|
1290
|
1390
|
1490
|
1590
|
1690
|
|
Dowel Pin D1 (mm)
|
50
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
600
|
|
Stage Weight (kg)
|
27.0
|
30.3
|
33.6
|
36.9
|
40.2
|
43.5
|
46.8
|
50.1
|
53.4
|
56.7
|
60.0
|
63.3
|
|
Sliding Table M (mm)
|
370
|
|
A
|
16
|
|
B
|
7
|
|
Motion Parts Weight (kg)
|
7.5
|
Kindly provide below parameters, then we can provide 2D/3D drawing and a reasonable price to you.
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
Industry Applications:
It is mainly used for the handling shaft (loading and unloading shafts) of automation equipment.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen, guangzhou, xiamen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to order quantity, 7-10 days for sample order and 20-35 days for bulk order
