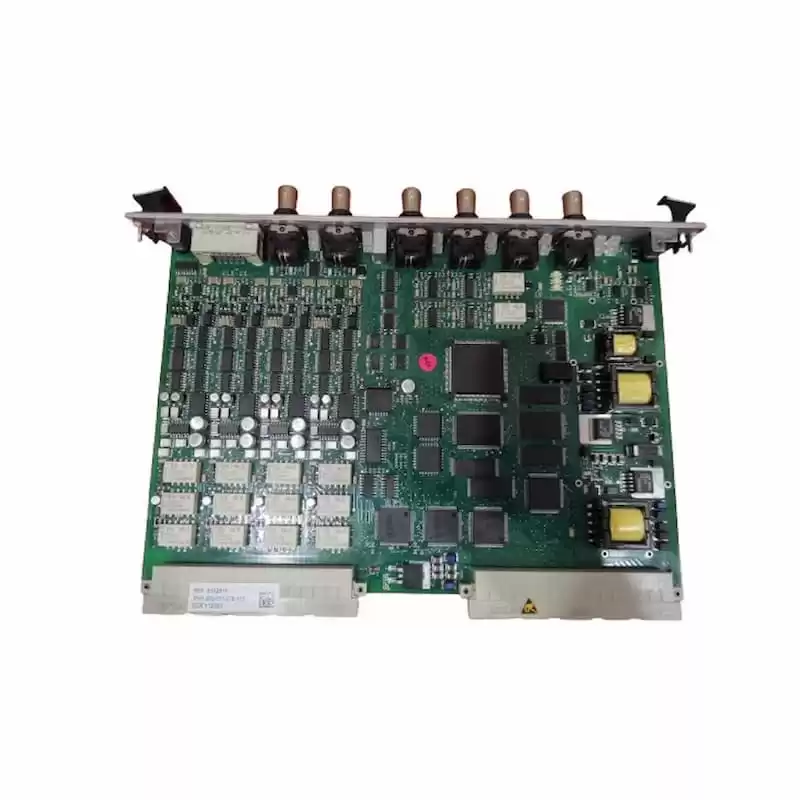

MPC4 200-510-078-115 machinery protection card
The MPC4 mechanical protection card is the centerpiece of the mechanical protection system.
This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.
KEY FEATURES AND BENEFITS:
• Continuously online machinery protection card
• Real-time measurement and monitoring using state-of-the-art DSP techniques
• 4 dynamic signal channels and 2 tachometer (speed) channels, all individually programmable
• Programmable broad-band and narrow-band filters
• Simultaneous amplitude and phase monitoring in order-tracking mode
• Programmable Alert, Danger and OK set points
• Adaptive Alert and Danger levels
• Front-panel LEDs indicate status and alarms
• Integrated power supplies for sensors and signal conditioners such as IEPE accelerometers and proximity measurement systems
• Live insertion and removal of cards (hot-swappable)
• Available in “standard”, “separate circuits” and “safety” (SIL) versions
Technical Specifications
| Part Number |
200-510-078-115 |
| Ordering Information |
MPC4 |
| Product Catalog |
Vibration Monitoring |
| Description |
Machinery Protection Card |
| Voltage |
±20 VDC |
| Current |
0 to 23 mA |
| Dimension |
262 mm × 20 mm ×187 mm |
| Weight |
0.40 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
