MPC4 200-510-150-011 Machinery Protection Card

The MPC4 machinery protection card is the central element in the machinery protection system (MPS). This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.





MPC4 200-510-150-011



The MPC4 mechanical protection card is the centerpiece of the mechanical protection system.



This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.



KEY FEATURES AND BENEFITS



• Continuously online machinery protection card



• Real-time measurement and monitoring using state-of-the-art DSP techniques



• 4 dynamic signal channels and 2 tachometer (speed) channels, all individually programmable



• Programmable broad-band and narrow-band filters



• Simultaneous amplitude and phase monitoring in order-tracking mode



• Programmable Alert, Danger and OK set points



• Adaptive Alert and Danger levels



• Front-panel LEDs indicate status and alarms



• Integrated power supplies for sensors and signal conditioners such as IEPE accelerometers and proximity measurement systems



• Live insertion and removal of cards (hot-swappable)



• Available in“standard”, “separate circuits” and “safety” (SIL) versions

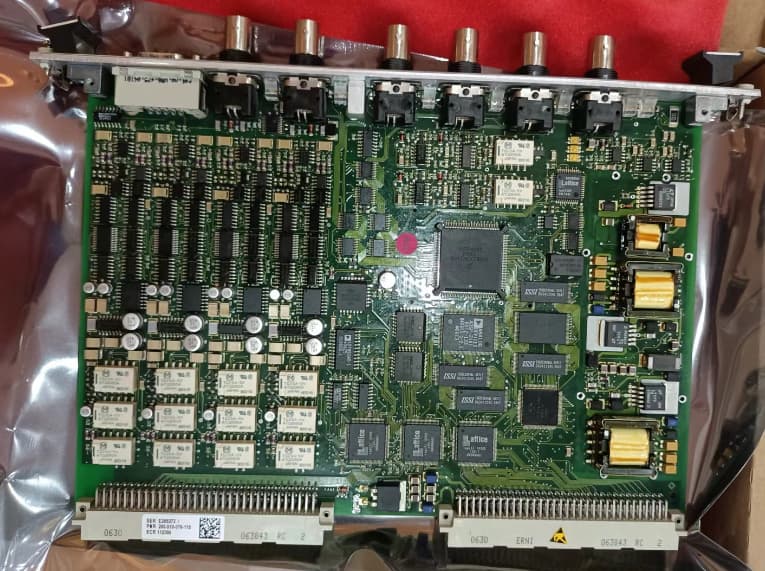

MPC4 200-510-150-011

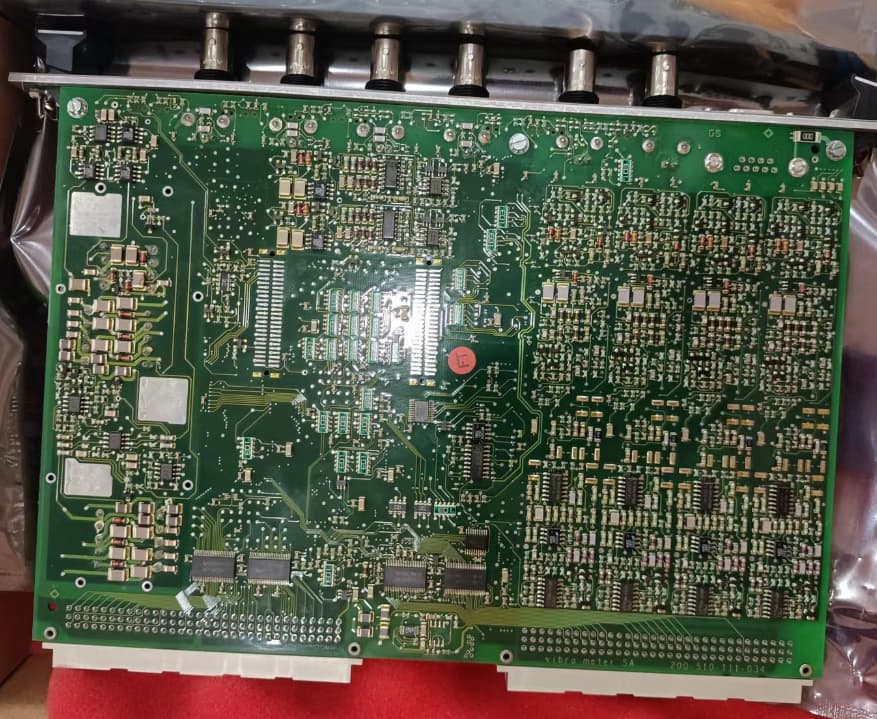

MPC4 200-510-150-011

Technical Specifications

Part Number 200-510-150-011
Ordering Information MPC4
Product Catalog Vibration Monitoring
Description Machinery Protection Card
Voltage  ±20 VDC
Current 0 to 23 mA
Dimension 262 mm × 20 mm ×187 mm
Weight 0.40 kg



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags Vibro-Meter MPC4          MPC4          200-510-150-011          MPC4 200-510-150-011          Machinery Protection Card          200-510-150-011 Machinery Protection Card
