The MPC4 cards are highly suitable for machinery protection in a wide range of industrial applications.

So although machinery protection cards and condition monitoring cards can easily share sensor signals from measurement chains, MPC4/IOC4T card pairs do not share any communication buses with XMx16/XIO16T condition monitoring card pairs in a VM600 rack, and MPC4/IOC4T card pairs are configured and operated using the MPSx software (while XMx16/ XIO16T card pairs are configured and operated using the VibroSight® software).

The ‘standard’ and ‘separate circuits’ versions of the MPC4 card support narrow-band tracking (see Specifications – ‘standard’ and ‘separate circuits’ MPC4 cards only on page 6). The ‘safety’ MPC4 card does not support narrow-band tracking

To order please specify

Type        Designation                         Ordering number

MPC4        Machinery protection card:

          ‘Standard’ version                       200-510-SSS-1Hh

          ‘ Separate circuits’ version, in accordance with CEI/IEC 60255-5    200-510-SSS-2Hh

          ‘Safety’ (SIL) version, safety certified in accordance with       200-510-SSS-3Hh

          IEC 61508 and ISO 13849

• » Datasheet Link

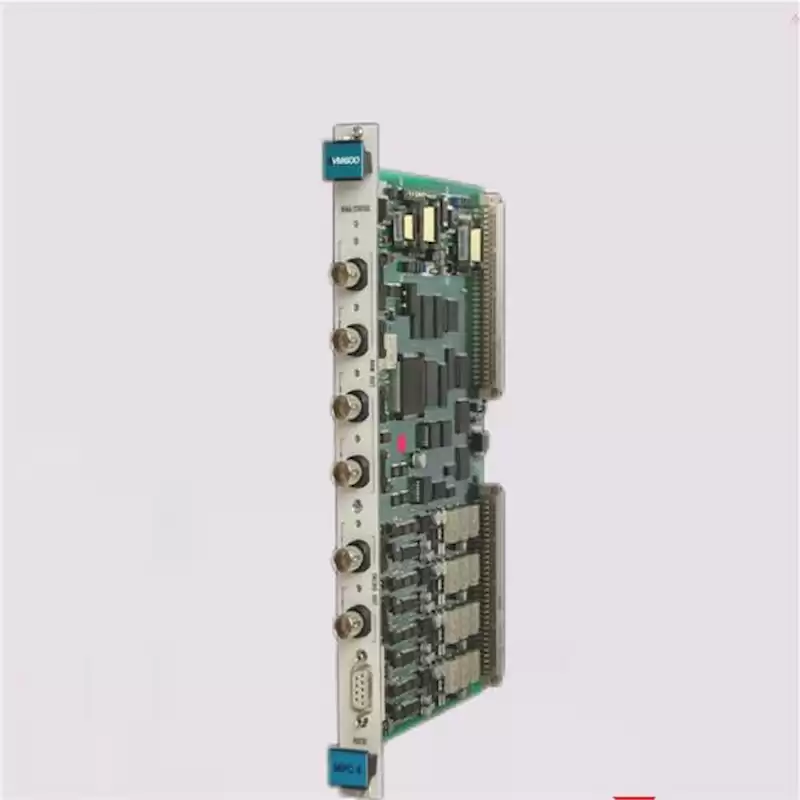

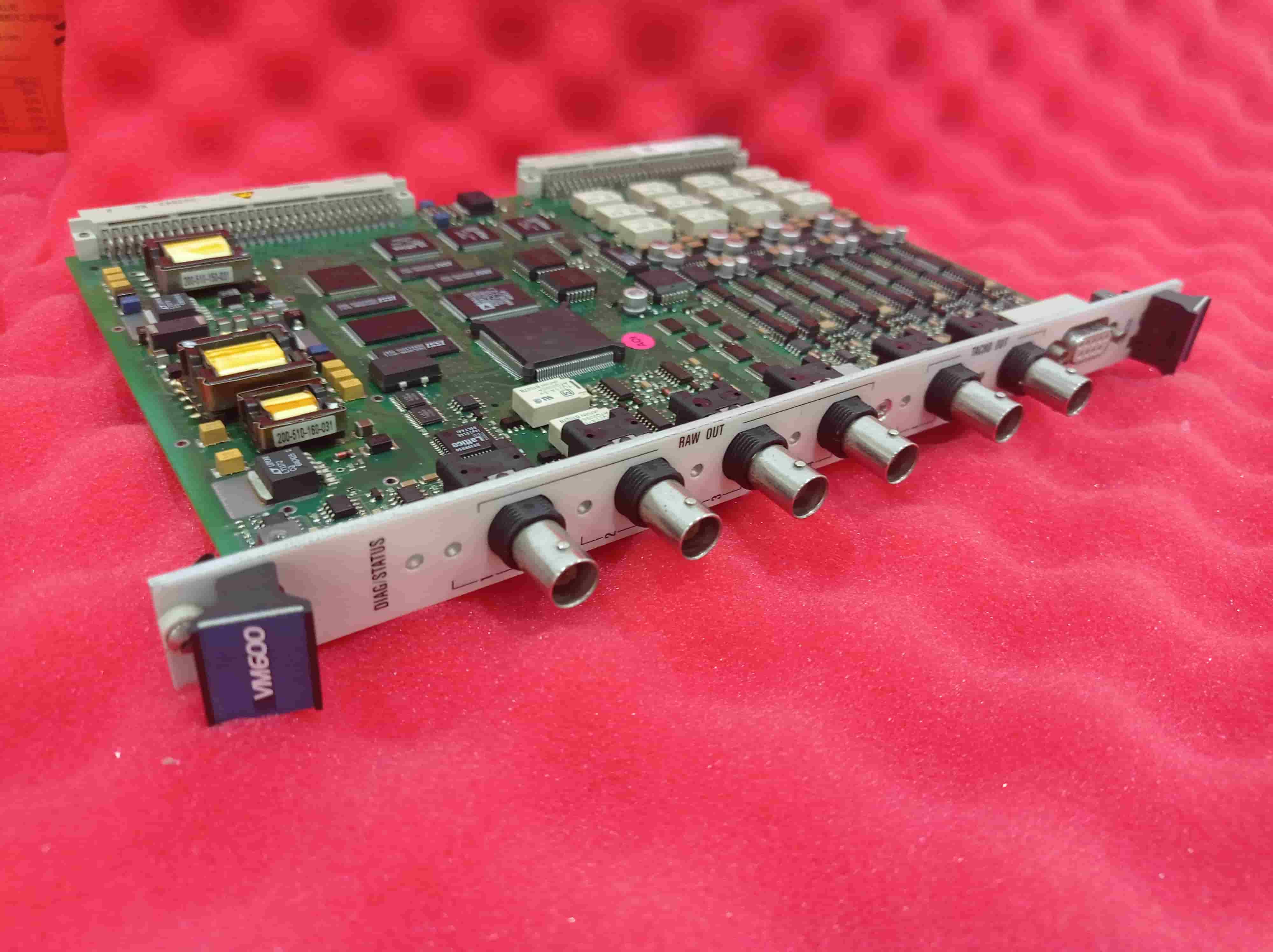

MPC4 machinery protection card MPC4 200-510-071-113 Datasheet
