| Manufacture |
Vibration |
| Model |
MPC4 |
| Product ID |
200-510-078-115 |
| Catalog |
Vibration Monitoring |
| Description |
MPC4 200-510-078-115 machinery protection card |
| Country of Origin |
Swizerland |
| Dimension |
262mm*20mm*187mm |
| Weight |
0.40kg |

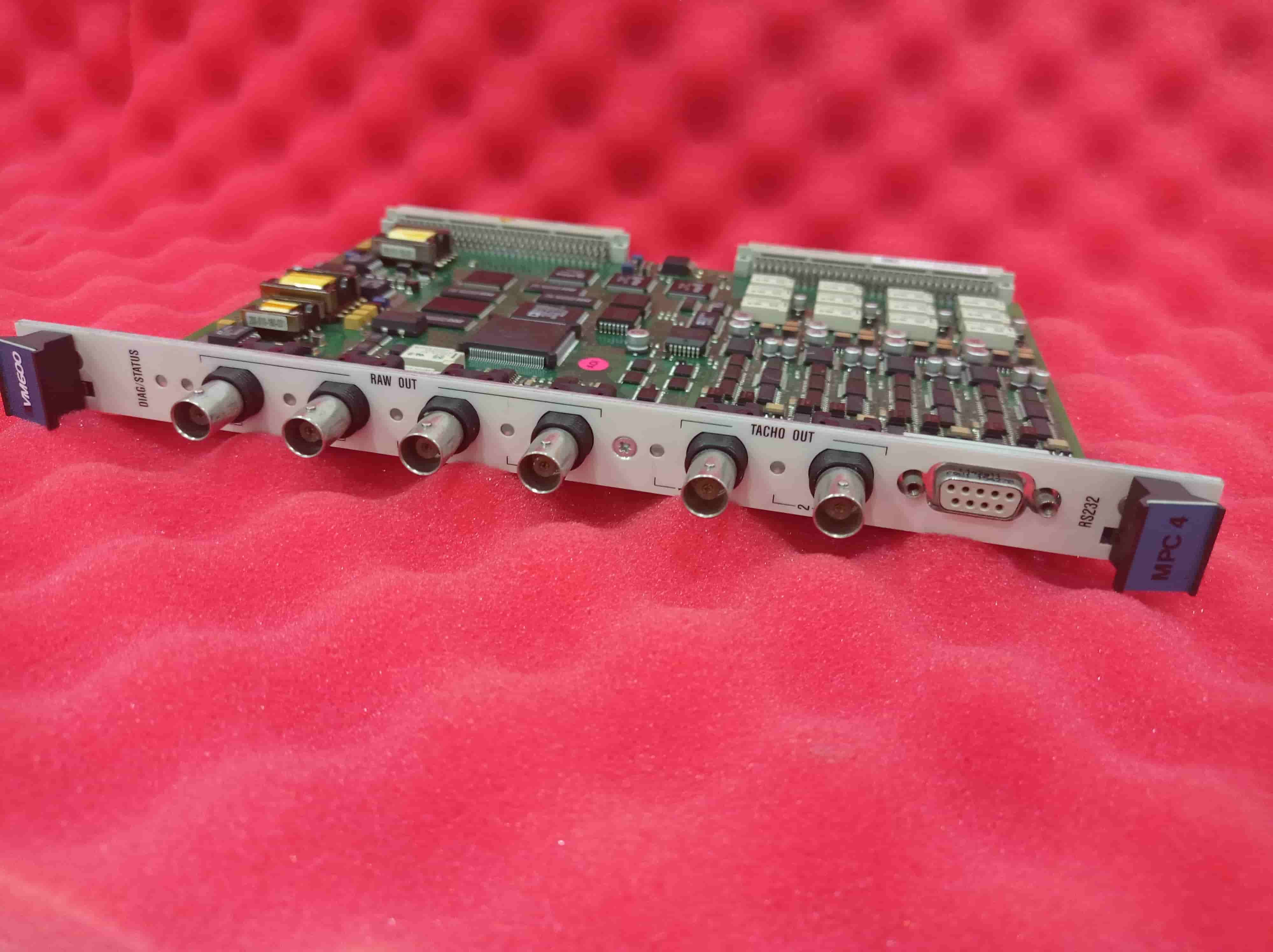

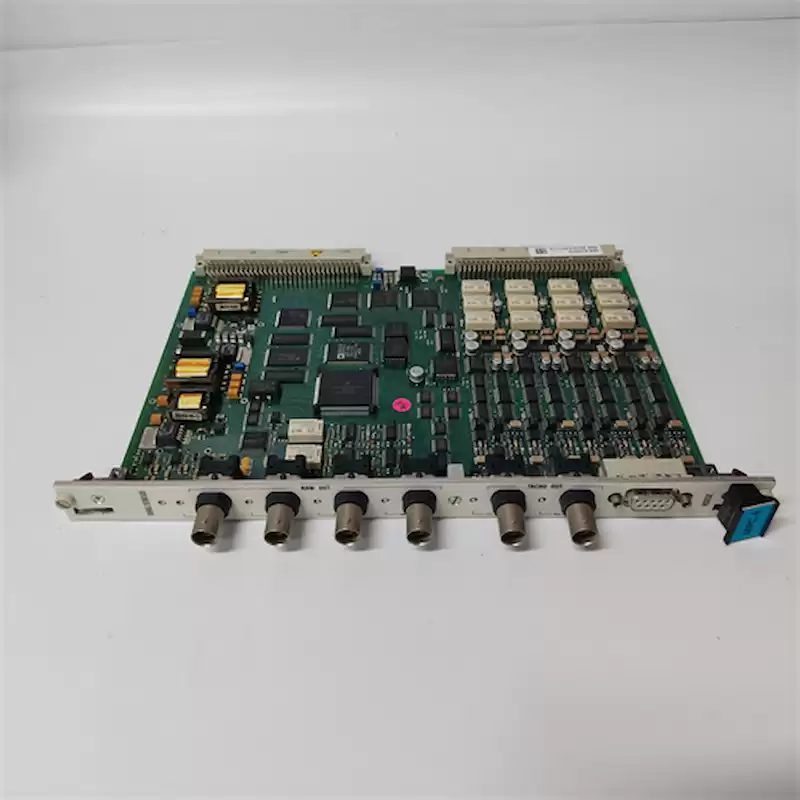

MPC4 card
The MPC4 machinery protection card is the central element in the series machinery protection system (MPS) ，This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously. The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others.
On-board multi-channel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.
Digital processing includes digital filtering, integration or differentiation (if required), rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the transducer-target gap.
The speed (tachometer) inputs accept signals from a variety of speed sensors, including systems based on proximity probes, magnetic pulse pick-up sensors or providing TTL signals. Fractional tacho ratios are also supported.
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
