About product:
|

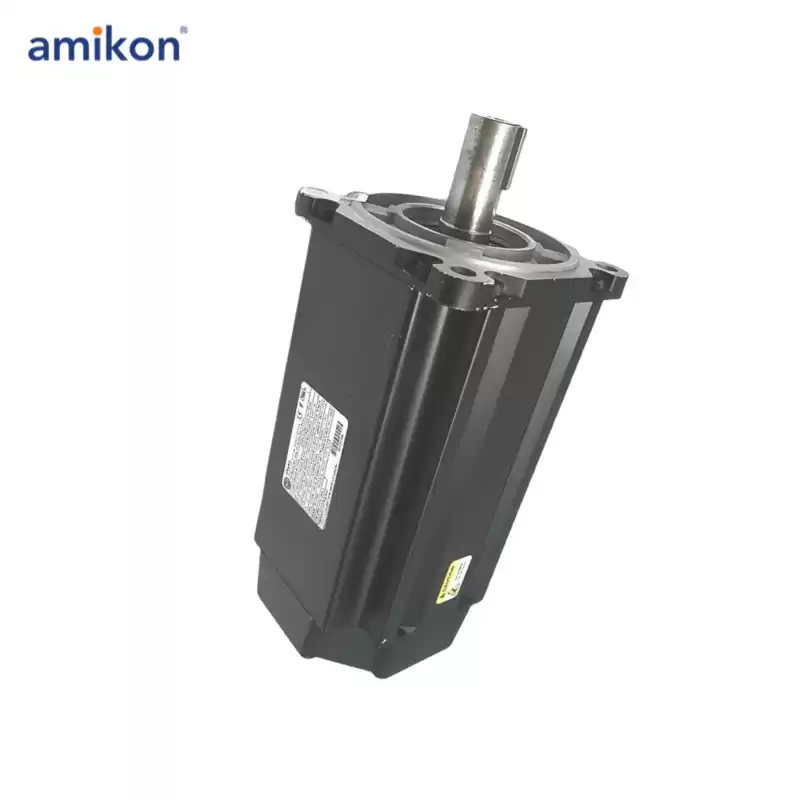

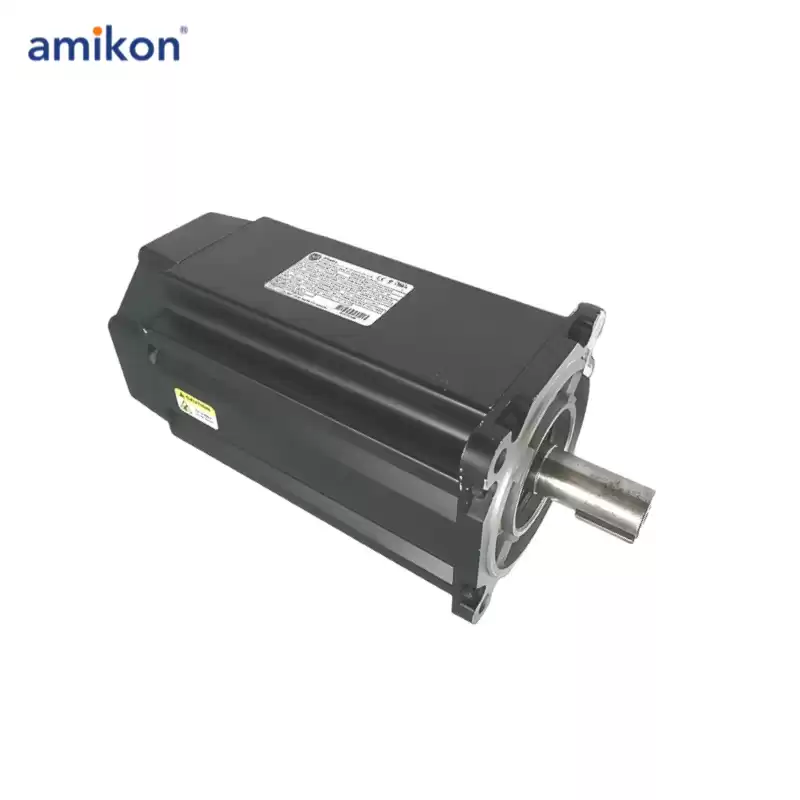

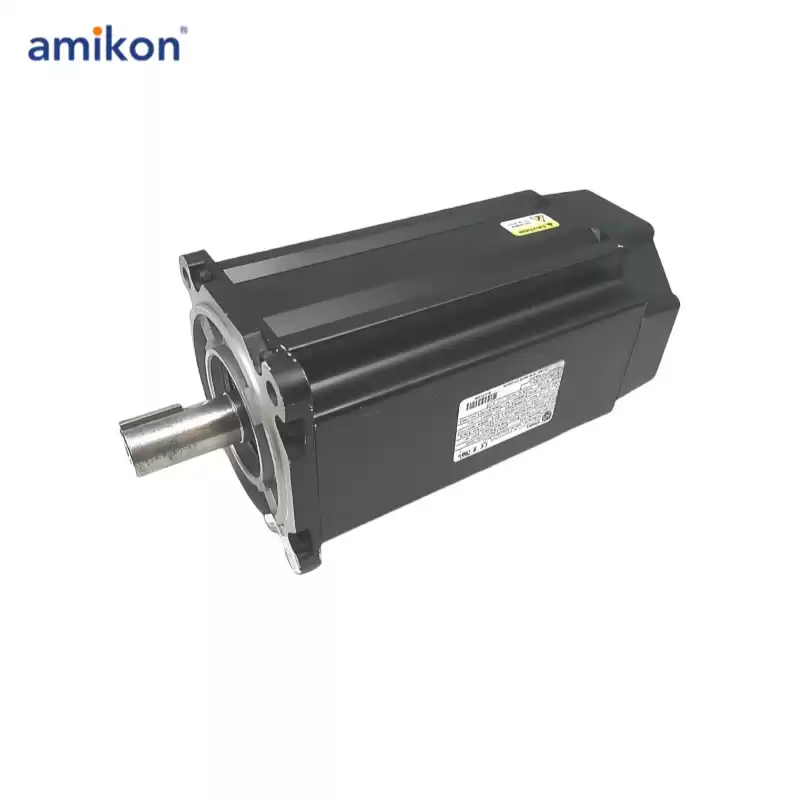

MPL-B540K-MJ74AA 480V AC Rotary Servo Motor
|
|
MPL-B540K-MJ74AA Types
|
The MPL-B540K-MJ74AA is a high-performance 480V AC rotary servo motor designed for precision industrial automation applications.
|
|
It features a compact design, integrated advanced feedback systems, and optimized torque density, enabling smooth motion control and outstanding positioning accuracy.
|
|
Built for high dynamic response, this motor excels in applications demanding rapid, precise performance for complex motion tasks.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
SERVO MOTOR 4000RPM 19.4Nm MULTI TURN W/BRAKE
KEYED
Continuous stall torque of 0.26 to 163Nm (2.3 to 1440lb-in.)
· Peak torque of 0.77 to 278Nm (6.8 to 2460lb-in.)
· Integral 24V brake option
· Absolute multi-turn and single-turn high resolution, incremental encoder and resolver feedback options
· Low-profile, field-reversible motor connectors for minimal servo motor impact on machine design
· DIN connector versions allow flexible orientation of connectors and use of a single cable family with all MP-Series motors
|
Specification
|
Details
|
|
Product Series
|
MPL Low Inertia
|
|
Component Type Motion Control
|
Rotary Servo Motor
|
|
Mounting, Motor
|
Flange Mount, Metric
|
|
Brake
|
Yes / No
|
|
Food Grade
|
No
|
|
Connector, Motor End
|
SpeedTec DIN (Type M7)
|
|
Keyed Shaft
|
Yes / No
|
|
Feedback Type
|
Absolute Multi-turn type
|
|
Feedback Resolution
|
Sin/Cos, 1024 cycles/rev resolution
|
|
Feedback Protocol
|
Hiperface protocol
|
|
Speed, Rated
|
4000 rpm
|
|
Speed, Max
|
4000 rpm
|
|
Magnet Stack Length
|
40 = 101.6 mm
|
