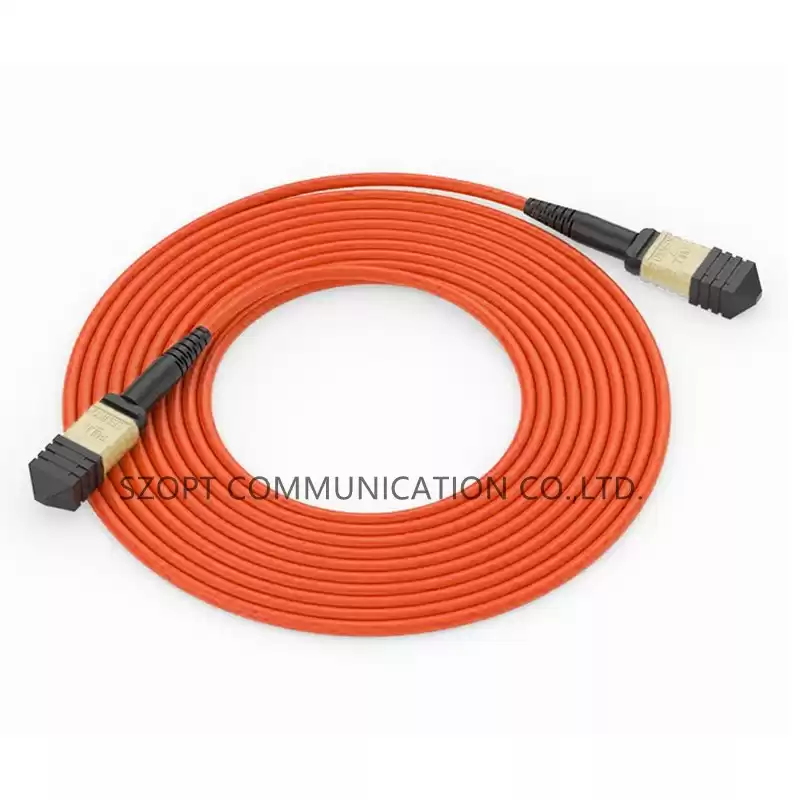

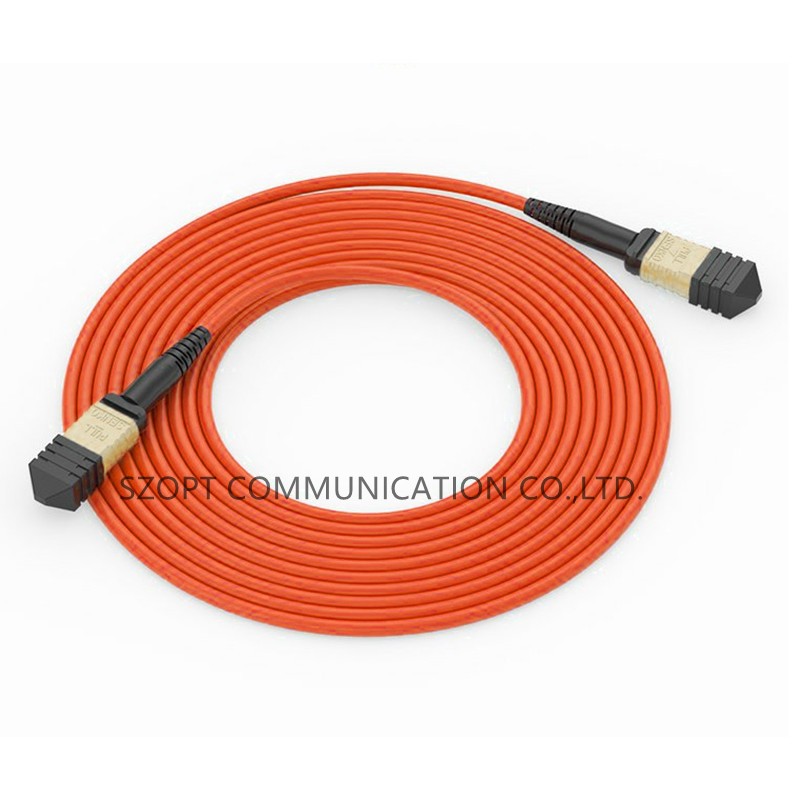

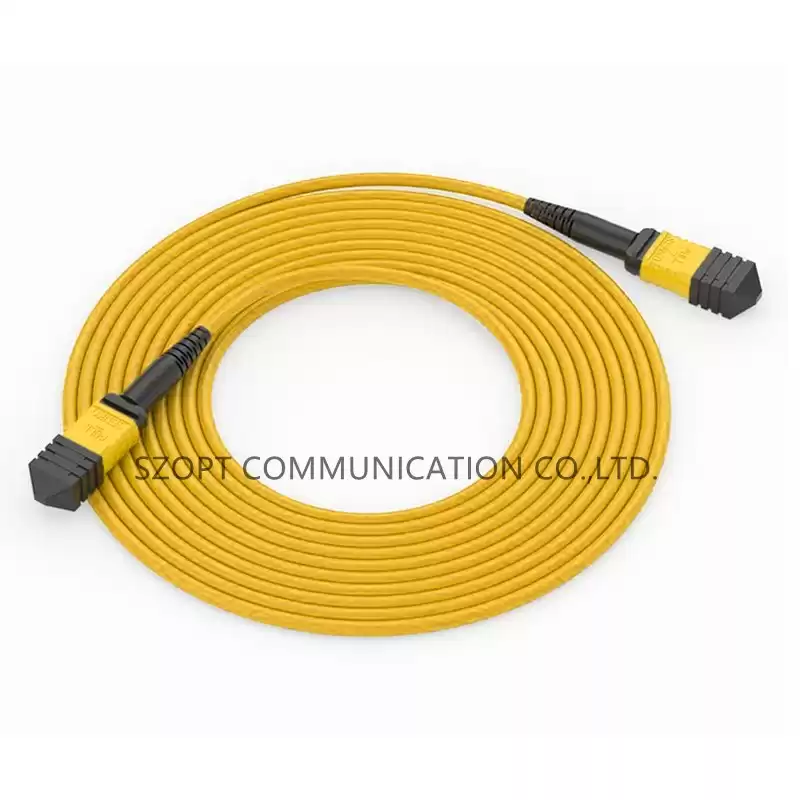

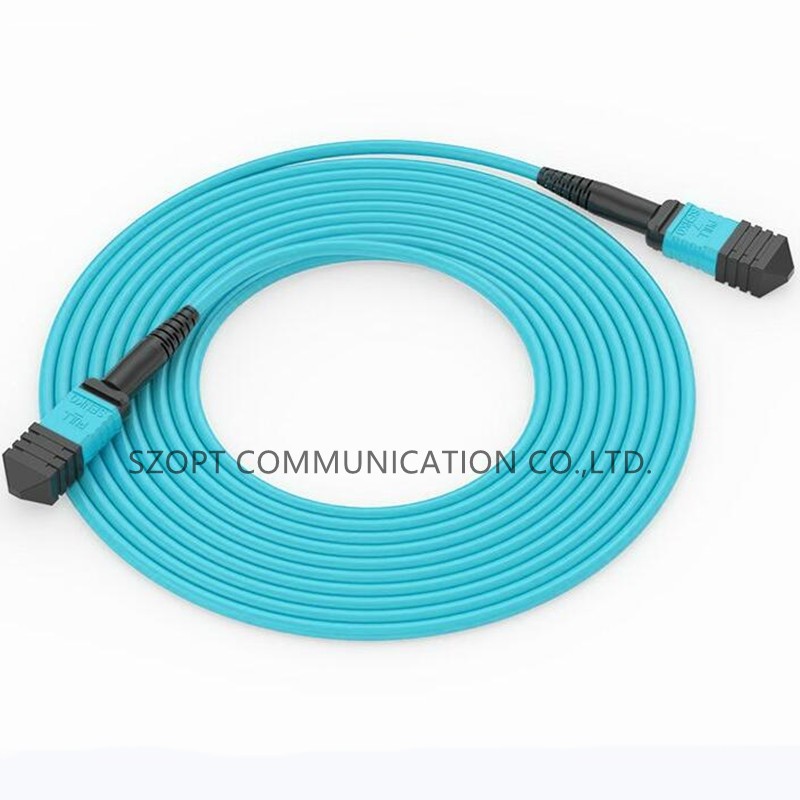

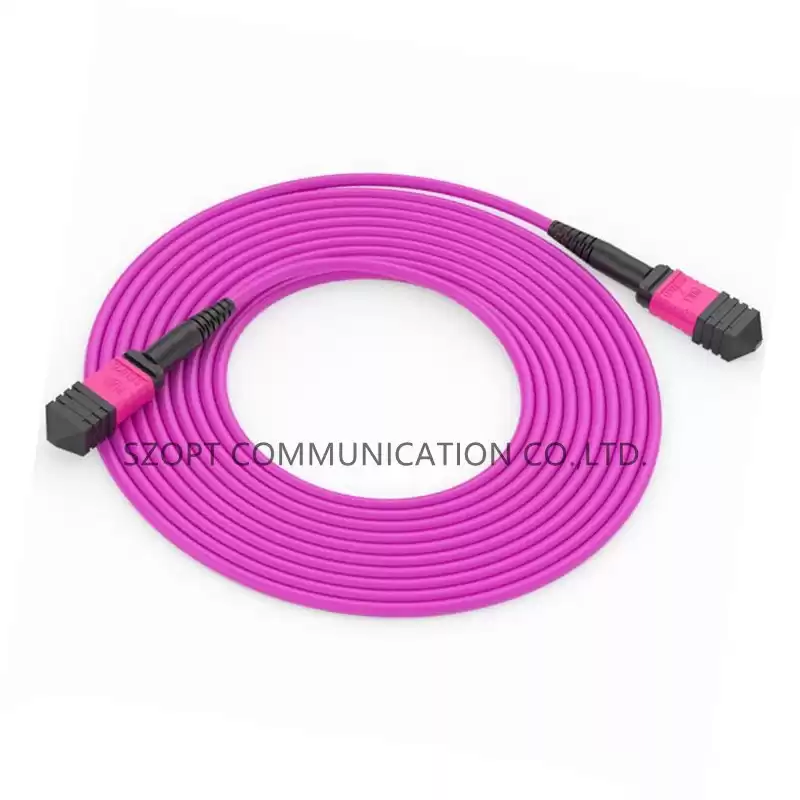

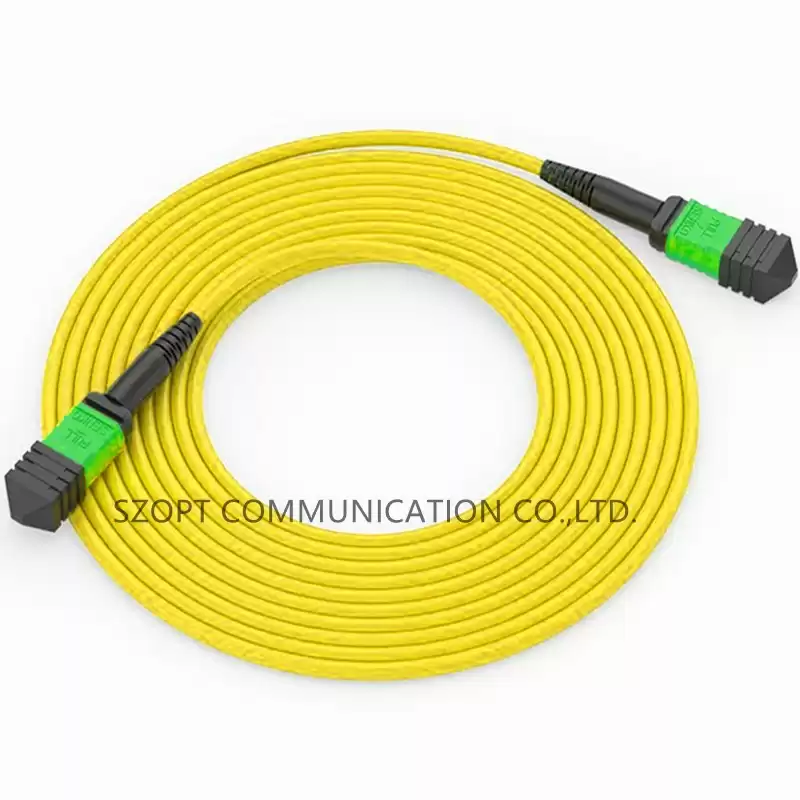

MPO-MPO MTP-MTP SM MM OM3 OM4 OM5 Trunk Cable 12/16/24C

MPO MTP Trunk Cables 12/16/24 Core is type of multitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The compact cable optimizes cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite(premium) versions are offered accordingly,please contact SZOPT for details.



MPO/MTP-MTP/MTP SM MM OM3 OM4 OM5 Trunk Cable 12/16/24C


From raw materials such as cables,connectors,etc.we have a complete strict quality control system throughout the whole production process.We never let any defect out of factory.


MPO/MTP-MTP/MTP OM4 Trunk Cable

Different MPO MTP Connectors

MPO Polarities

MPO MTP Cable assemblies

Test of mpo mtp cables


MPO MTP polishing station


MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
