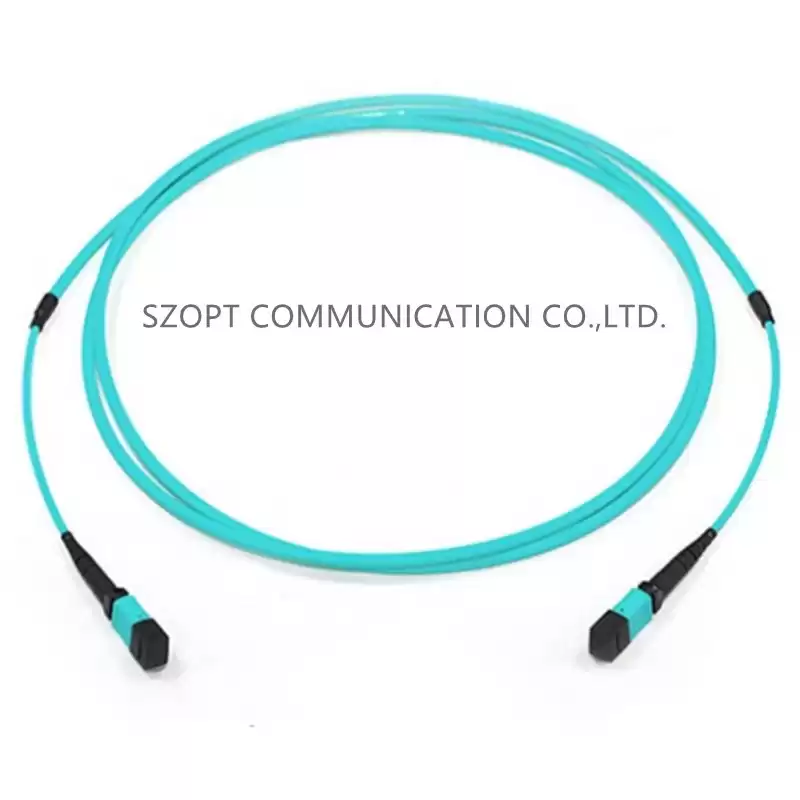

MPO MTP Trunk Cable Double Jacket SM MM OM3 OM4 OM5 12C 24C 48C

MPO MTP Trunk Cable Double Jacket can be available for 12Core 24Core 48Core or custom,such double jacket trunk cable is of much more rigid performance for preferable deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.MTP/MPO are used to interconnect cassettes, panels, or fan outs using a compact and rugged microcables structre. The micro cable optimizes cable way use and improve airflow.These MPO/MTP cable are build with the highest quality components , better insertion loss versions are offered accordingly,please contact SZOPT for details.



MPO MTP Trunk Cable Double Jacket SM MM OM3 OM4 OM5 12C 24C 48C


SZOPT’s Micro Cable Double Jacket is commonly made of 12C,24C,48C,96C,144C,etc. 250um fibers covered with aramid yarn strength member in PVC/LSZH jacket. This compact 3mm subunit provides more rigid structure performance.

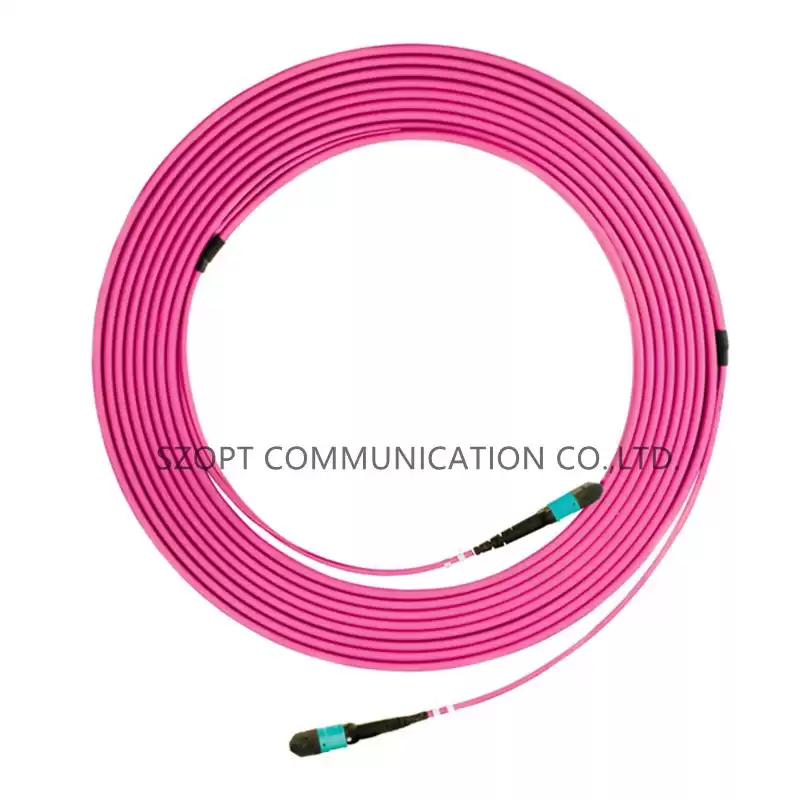

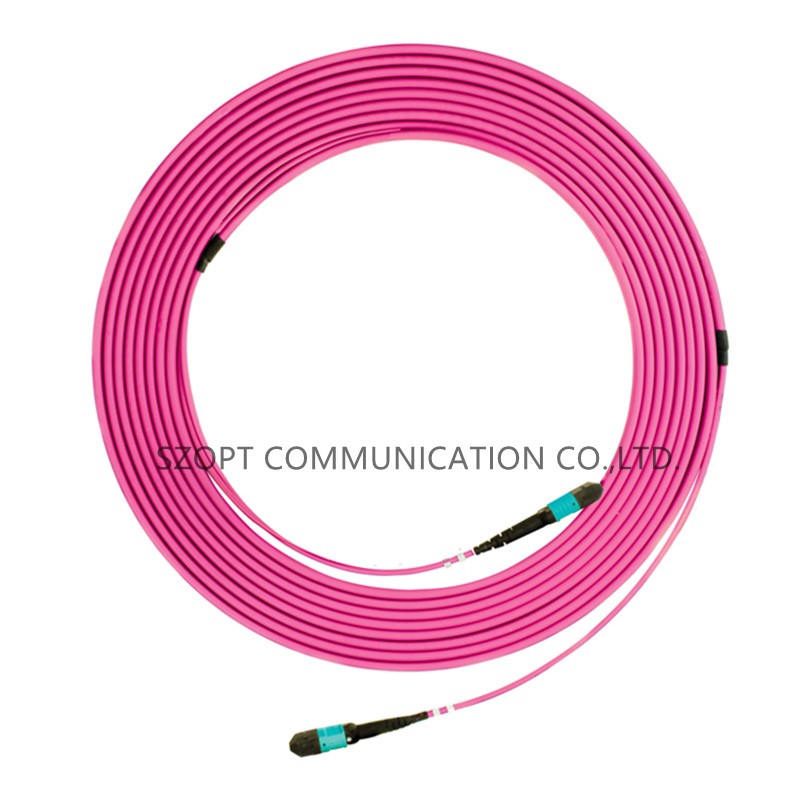

MPO/MTP-MTP/MTP OM4 Trunk Cable

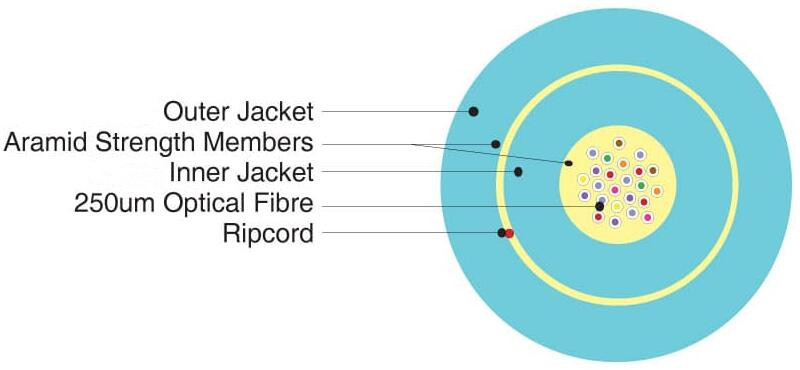

Double jacket micro cable structure

MPO Polarities


Test of mpo mtp cables


MPO MTP polishing station


MPO MTP Workshop

MPO MTP Appliance

Goods ready to ship


Application:

Telecommunication System

Testing Equipment

CATV System

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom


Package:

Each piece in a small PE bag,then 10pcs or 20pcs in a big bag,finally put into carton box.


Specification:

Connector

Fiber Mode

Endface

Standard

Elite(Premium)

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MPO/MTP

Singlemode

APC

≤0.75

≥60

≤0.35

≥60

Multimode

PC

≤0.60

≥20

≤0.35

≥20
