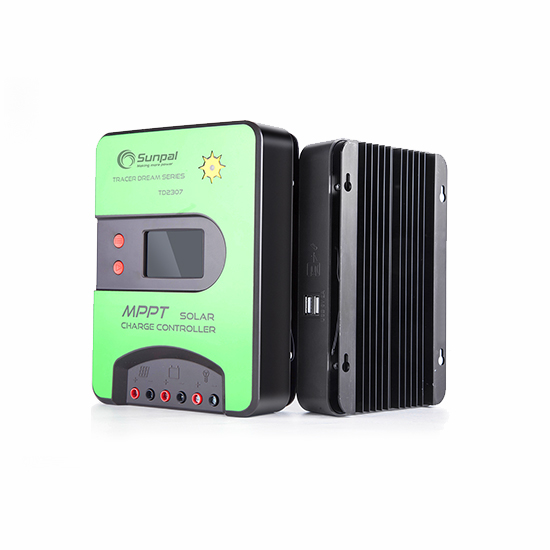

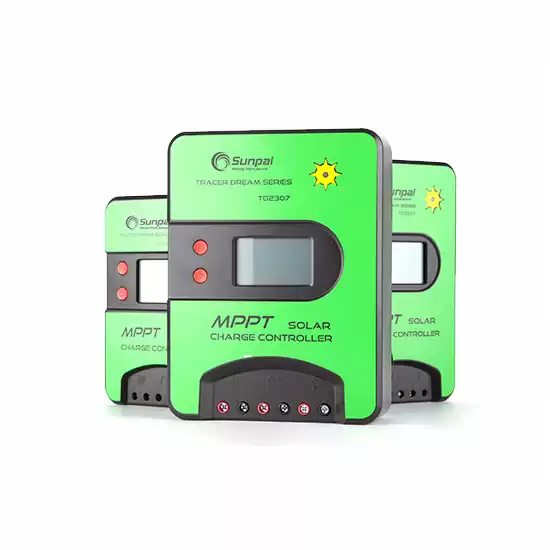

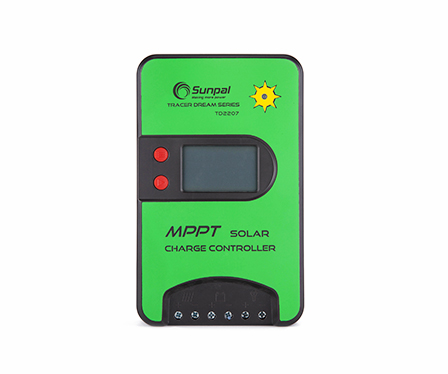

MPPT Solar Charge Controller 75V Solar Input Battery Regharger Auto Recognlton

TD 75V Series MPPT solar charge controller, max.75V solar input, 15A 20A 30A. Continual full power output with derating. Think everything for high efficiency.


  • CommunicationRS485 ,RS232
  • ProtectionIP32
  • Temperature-20℃-+50℃
  • Tracking Efficiency99.5%
  • Conversion Efficiency≤98%
  • No-load Loss0.7W-1.2W
  • System Voltage12v/24v Automatic Recognition




High Conversion Efficiency

TD series controllers use the latest MPPT algorithm to improve tracking accuracy and speed. Reduce energy loss during tracking and reduce tracking time.32-bit ARM main control, the main control chip adopts STMicroelectronics, other components adopt Samsung, Toshiba and other well-known brand devices, and the running program of the upgradeable frame structure ensures the low loss of the controller and makes it more efficient.

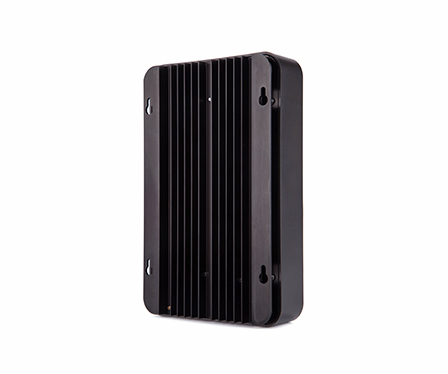

Aluminum Alloy Radiator

Industrial-grade aluminum alloy heat dissipation, longer life and more stable.High temperature charging automatic power reduction protection, when the internal temperature of the controller exceeds 75 ℃, the controller will reduce the power to work.Automatic temperature compensation, the built-in temperature probe can detect the ambient temperature and adjust the charging and discharging of the battery, which can extend the service life of the battery up to 30%.

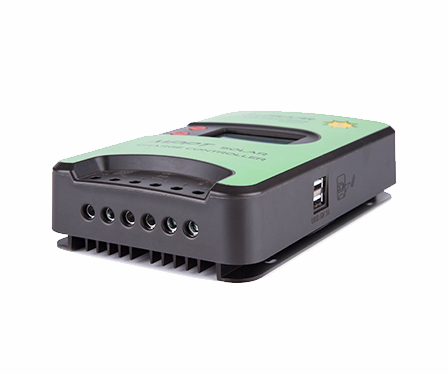

Large-Diameter Terminal

Open mold customization is dedicated to the large-diameter port of DC, which is suitable for solar systems that need to connect large-diameter wires to reduce line loss and voltage drop.Free USB charging, support high current mode, maximum 2.4A charging current to charge your mobile devices faster. The whole system comes standard with 2 USB.

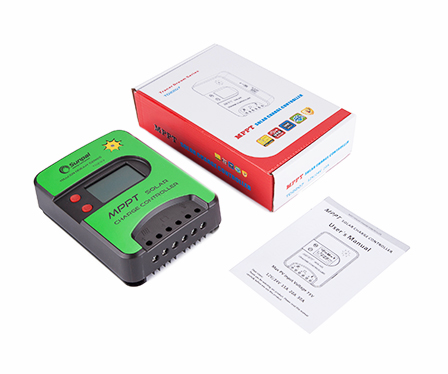

Packaging And After-Sales

Including controller and instructions. Factory warranty, MPPT controller provides a 3-year warranty. During the warranty period, there is a non-artificial product failure, our company promises to replace it free of charge









MPPT Solar Charge Controller Features:

  • Able to automatically detect battery voltage.
  • Prevent the battery from overcharging and over-discharging, and prolong the service life of the battery.
  • The output current exceeds 1.1 times the rated current of the controller, the controller will cut off the output to protect the controller.
  • Real-time display of charging power, and statistical records
  • When the solar panel or load short-circuit occurs, the controller will immediately stop charging or cut off the output to protect the battery from damage.
  • When the battery voltage exceeds 16.5V, the controller will stop charging and cut off the output.
