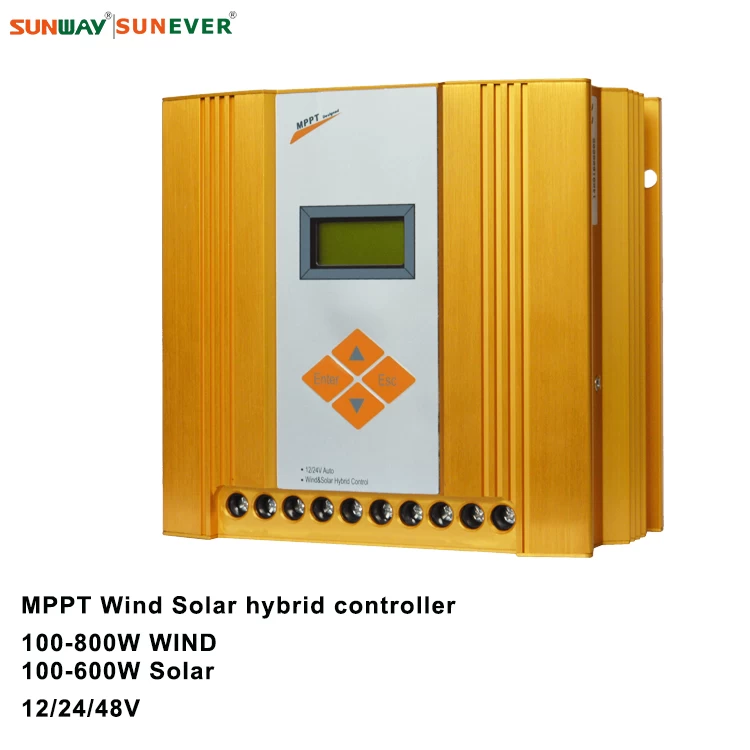

MPPT wind solar hybrid charge controller 12v 24v
Description of MPPT wind solar hybrid charge controller
MPPT Wind solar hybrid street-lighting controller is the firstly apply MPPT technology for the small power wind generator in china. With the application of this technology, the charge efficiency has vastly improved under the situation of low-wind, and obvious exceed the traditional PWM charging mode of 30%. Presently, we have solved such so technical problem on charging efficiency of the low-power wind generator already. Especially apply to the horizontal and vertical low-power wind generator of 100W to 600W. This type controller has strong compatibility and a great various protection functions, have more 10 years of application practice to improve performance continuously to make it has high reliable and stability. It can be used to the street lighting, monitoring system, outdoor advertisement, home type generation system etc.
Feature of MPPT wind solar hybrid charge controller
l MPPT technology, maximum power point tracking method to optimize using the wind energy
l Boost circuit designed. User can set this voltage parameter
l 12V/24V System Automatic Recognition function
l Be able to use for 200W-600W wind turbine with high compatibility
l Digital design,module structure, stable and reliable

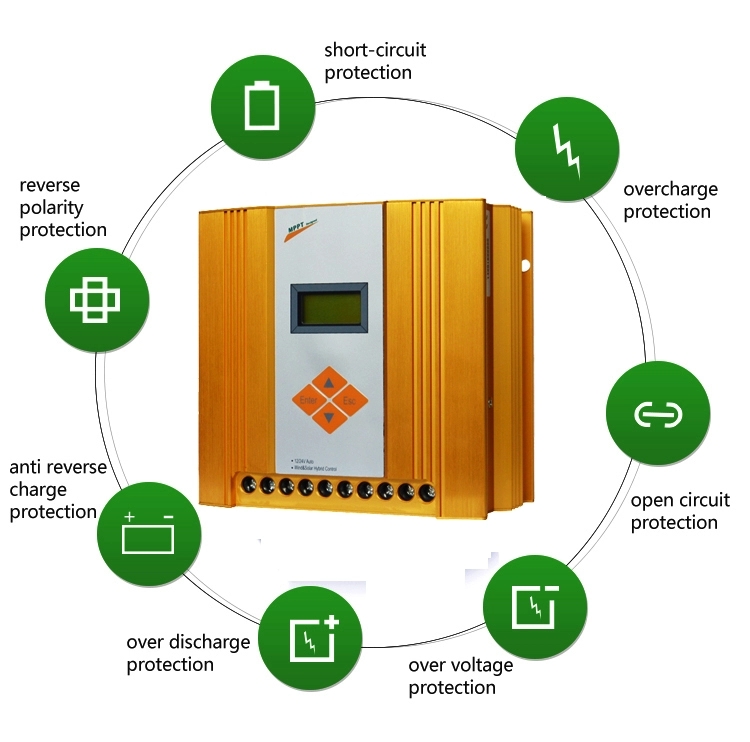

l With perfect protection, such as over-charge, over-discharge, open circuit, anti-reverse connection, overload, short- circuit, PMG over speed brake, over current brake, solar anti-reverse charging on night
l Dual-line output, light sensor and timer functions, morning lighting, constantly output 24hour
l User can adjust setting of system parameters
l Utility Power switch function (optional)
l Monitor software offer to transfer data communication (optional)

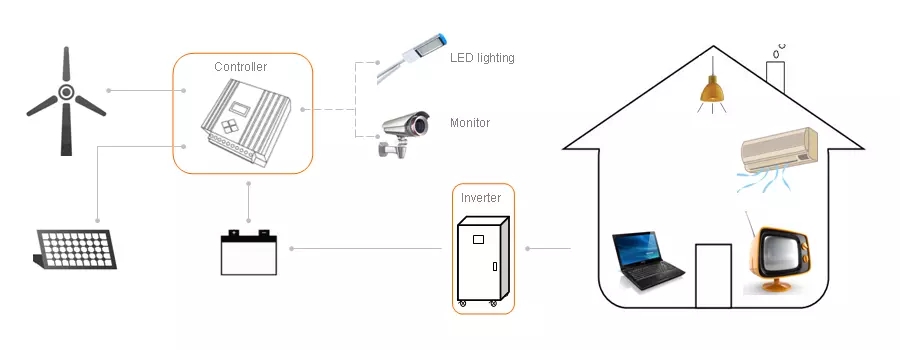

Topology of MPPT wind solar hybrid charge controller
Technical Data of MPPT wind solar hybrid charge controller
|
Wind generator control set-up definition
|
|
Rated Wind Turbine Power (12V/24V)
|
100W-300W / 200W-600W (compatible)
|
|
Wind Turbine brake voltage (12V/24V)
|
15Vac / 30Vac
|
adjustable
|
|
Wind Turbine brake current
|
23A
|
|
Solar panel set-up definition
|
|
PV max power (12v/24v)
|
150W / 300W
|
|
PV max charge current
|
12.5A
|
|
Battery management definition
|
|
Over-discharge Voltage (12v/24v)
|
10.5V /20.0V
|
adjustable
|
|
(Over-discharge Recovery Voltage (12v/24v)
|
12.0V / 24.0V
|
adjustable
|
|
Over-charge Voltage (12v/24v)
|
15.0V / 30.0V
|
adjustable
|
|
Over-charge Recovery Voltage (12v/24v)
|
13.5V / 27.0V
|
adjustable
|
|
Output Set-up function
|
|
Each Line Output Current rating
|
5A
|
|
Each Line Output rated Power (12v/24v)
|
60W / 120W
|
|
MODE:A(street lighting control mode)
|
Light on;light off
|
|
MODE:B(street lighting control mode)city-electric type
|
Light on;light off
|
|
MODE:C(monitor system control mode)
|
Output constantly
|
|
MODE:D(monitor system control modee)city-electric type
|
Output constantly
|
|
General parameters
|
|
Indication
|
LCD (8X2characters,green backlight)
|
|
display language
|
English
|
|
static power consumption[mA]
|
<20
|
|
Operating temperature
|
-30℃ ∼ +55℃
|
|
Store temperature
|
-35℃ ∼ +80℃
|
|
Humidity
|
0%~98% (NC)
|
|
Temperature compensation
|
-35mV/℃ (25℃ ref.)
|
|
Altitude [m]
|
<2000
|
|
Protection class
|
IP55
|
|
Data-transfer port
|
RS232
|
|
Dimension(W*L*H) [mm]
|
146X152X78
|
|
Net-weight[kg]
|
1.2
|

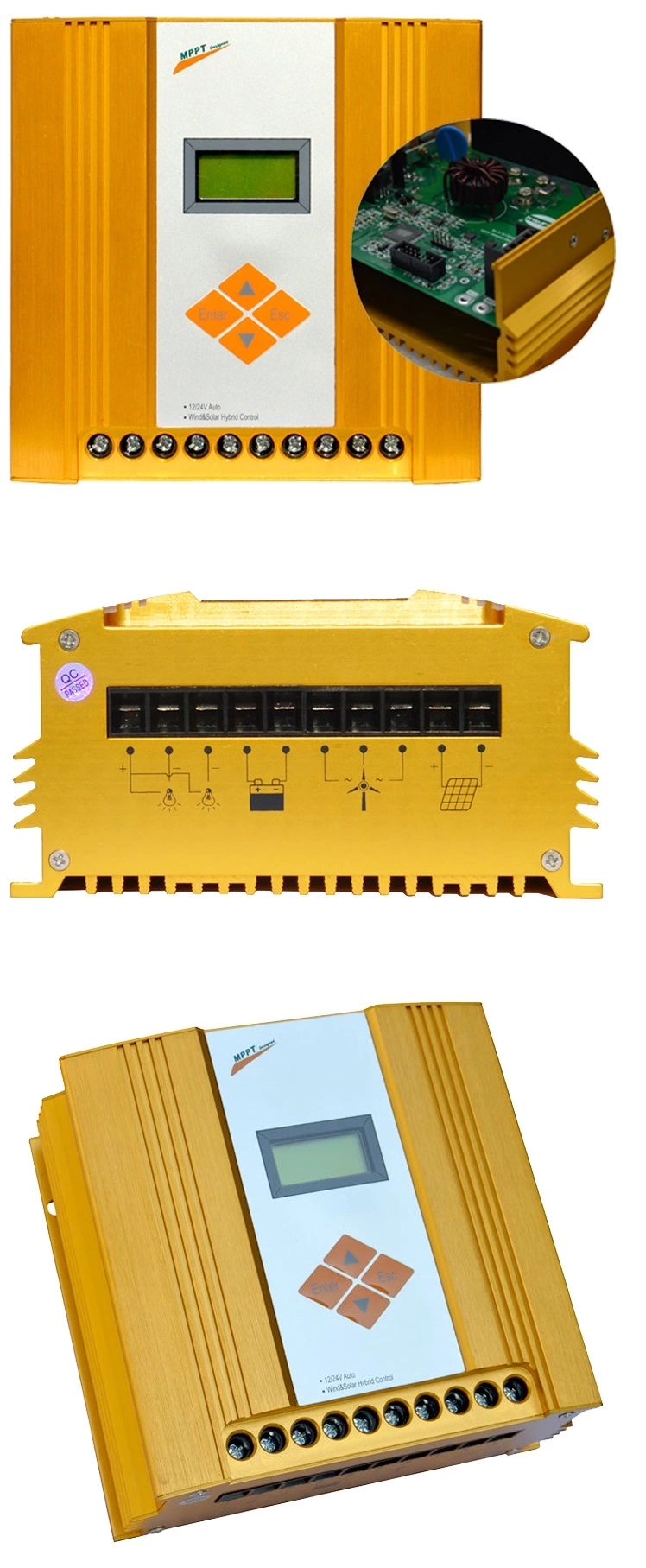

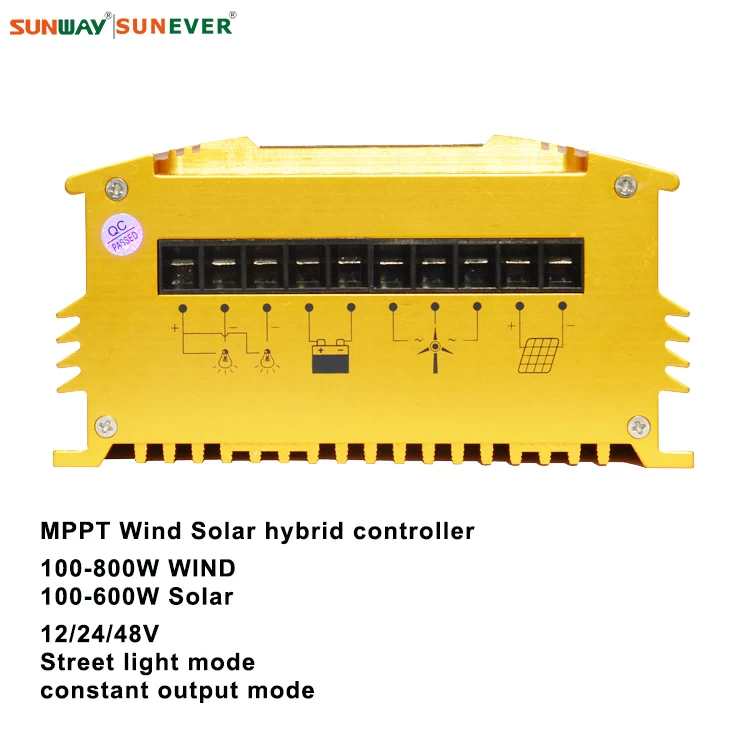

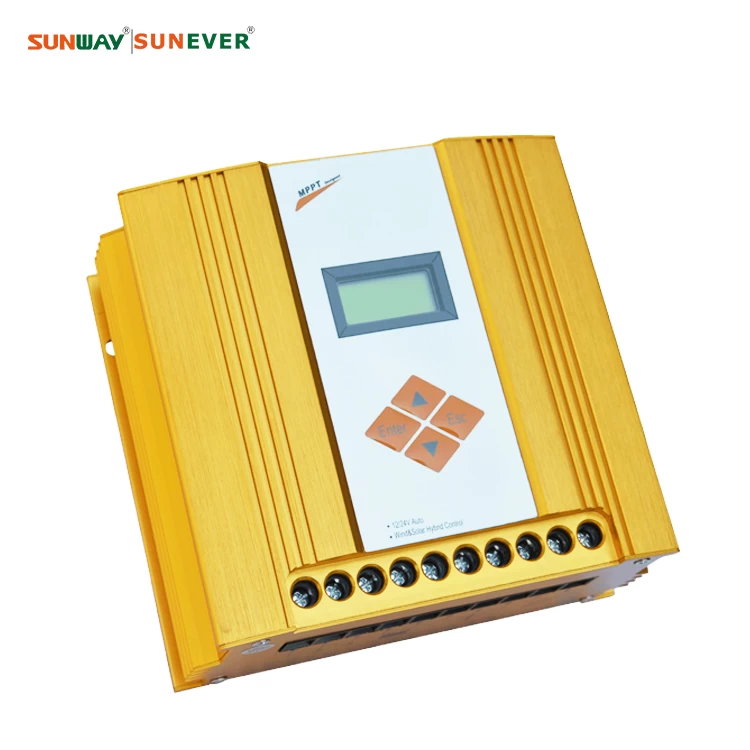

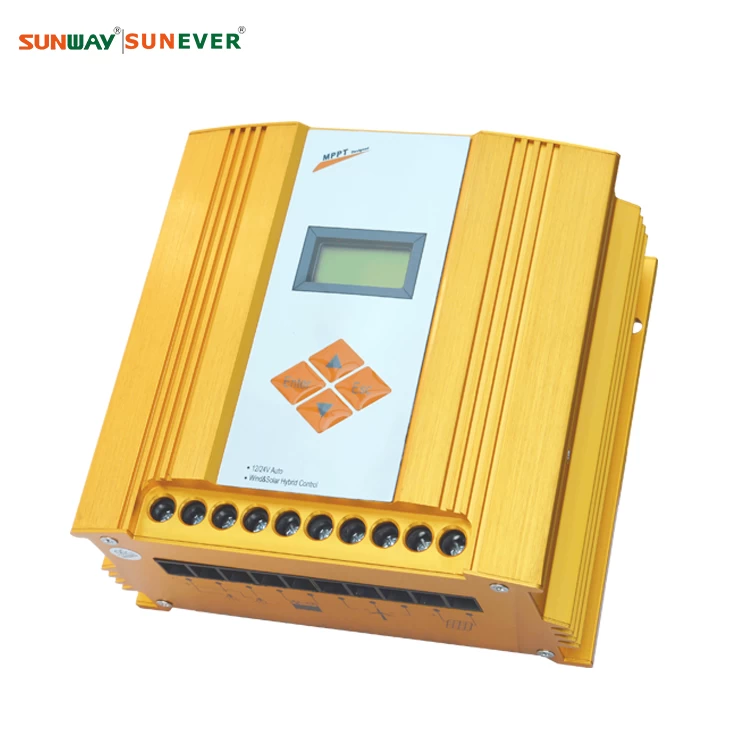

Product details of MPPT wind solar hybrid charge controller
