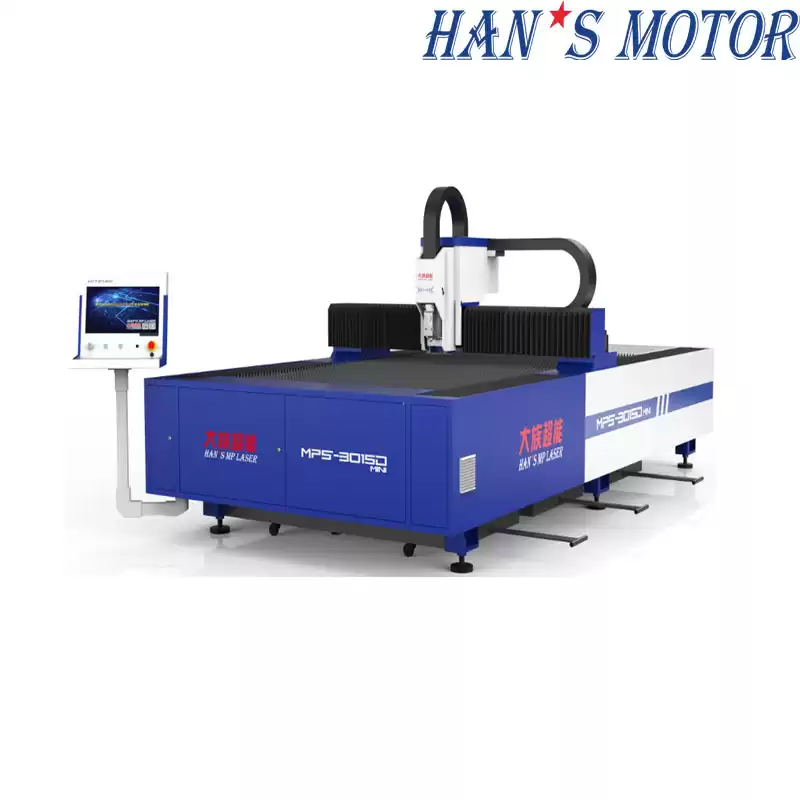

Products Name: HAN'S Laser fiber laser cutting machine MPS-3015C
Product Specifications
|
Model
|
MPS-3015C
|
|
Laser source power (optional)
|
3KW/ 6KW
|
|
Processing area (L*W)
|
3000mm*1500mm
|
|
X/Y axis Location Accuracy
|
±0.05mm/m
|
|
X/Y axis repeat location accuracy
|
±0.03mm
|
|
Max. location speed
|
120m/min
|
|
Max. acceleration
|
1.2g
|
|
Max load of worktable
|
800kg
|
|
Machine tool weight
|
6.5T
|
|
Dimension (L*W*H)
|
8000mm*2920mm*2400mm
|
MPS-3015C series is mainly facing high efficiency laser cutting processing customer group, which uses gear rack transmission structure, parallel interactive worktable, large package outer sheet metal, can be used for general sheet metal cutting.

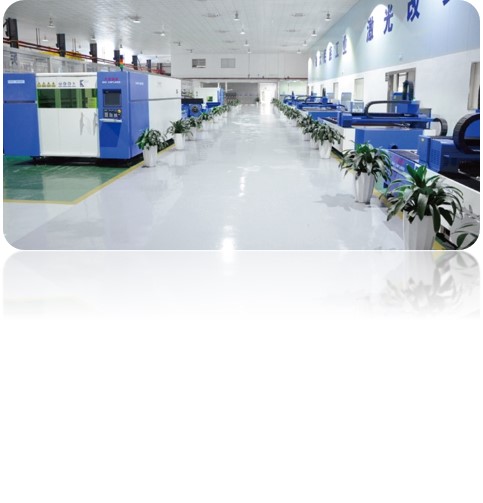

About HAN'S Laser
1996, Han’s Laser was established ,becoming one of the largest industrial laser solution provider in the world.
2004, Listed on the Shenzhen stock exchange，stock code：002008.
2018, recorded a sales revenue of USD 1.8 billion
Employees Number: 13000+
Over 100 offices, contact points and agents in the global world, building a perfect sales and service network.
Characteristics:

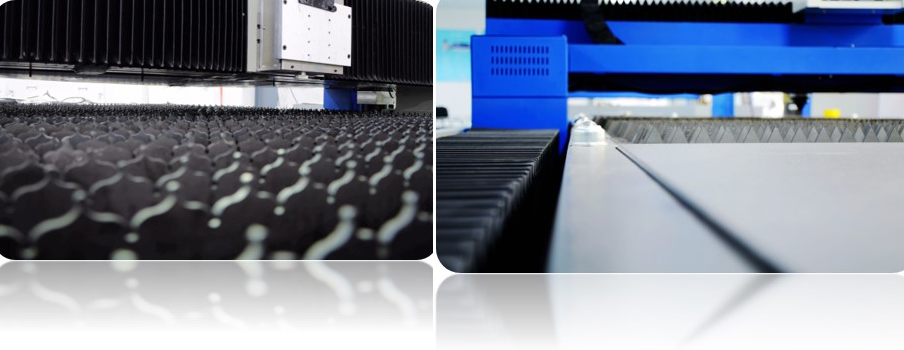

Bed of worktable: High speed stability
Dual-drive system maximum positioning speed 100m/min
The positioning accuracy of XY < ± 0.05mm
XY repeat positioning accuracy < ± 0.03mm
Z axis positioning < ± 0.02mm
The Z axis repeat positioning accuracy < ± 0.01mm
HAN’s fiber laser source:
Good beam quality, faster, the effect is more perfect
High electro-optical conversion efficiency
Wide modulation frequency range strong anti-high reflection ability
Extremely good pulse power, energy stability, high precision, pump source lifetime about 100,000 hours

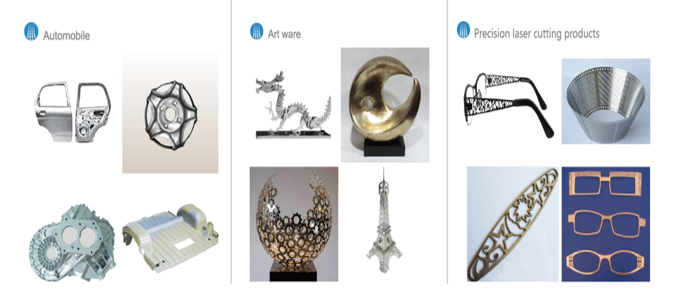

Industry Applications:
It is suitable for sheet metal processing, kitchen appliances, sheet metal case cabinets, lighting advertising, electrical equipment and all kinds of metal products processing industry.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( By Sea )
Leading time: 20 days
