MTB 27.5er Full Suspension ebike Carbon Frame E708

- 27.5 plus full suspension Enduro ebike frameset

- 12*148mm plus thru axle

- Shimano Steps motor system

- 185*55mm rear shock



FS708

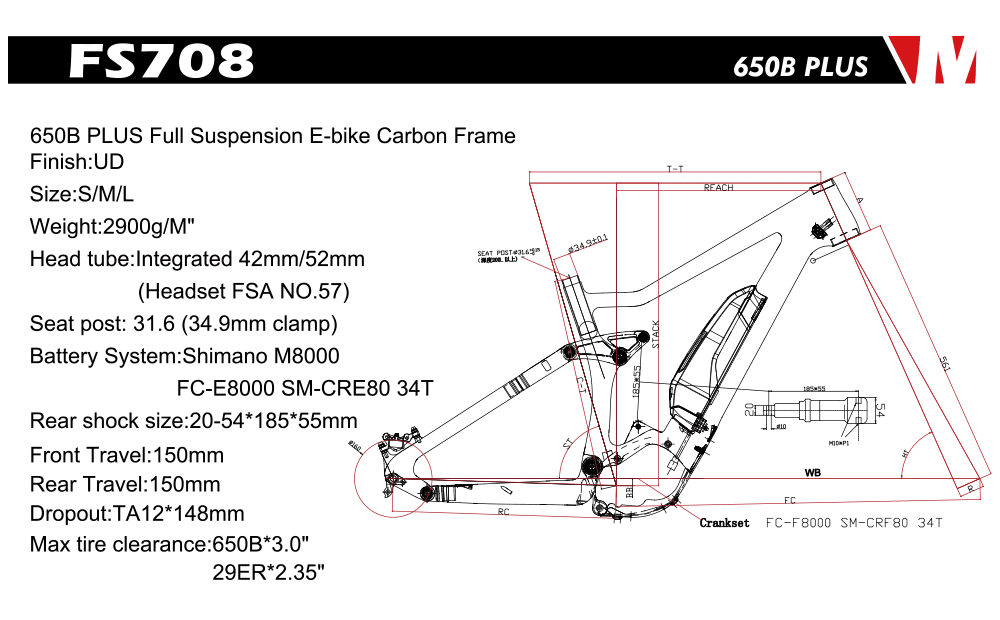

650B Plus Full Suspersion MTB E-bike Frame



FS708
 SIZE
C-T A Offset TT HT ST BB RC WB FC RD RB POST REACH STACK H/T INSERT SYSTEM
S 400 120 51 585 66 74 15 460 1191.6 732

Inner

Inside

31.6

616.4 408.2

FSA

NO:57

ACB

SHIMANO

M8000

M 440 130 51 601 66 74 15
460 1209 749.3 625.5 412.5
L 490 140 51 625 66 74 15
460 1234.5 774.9 634.7 443

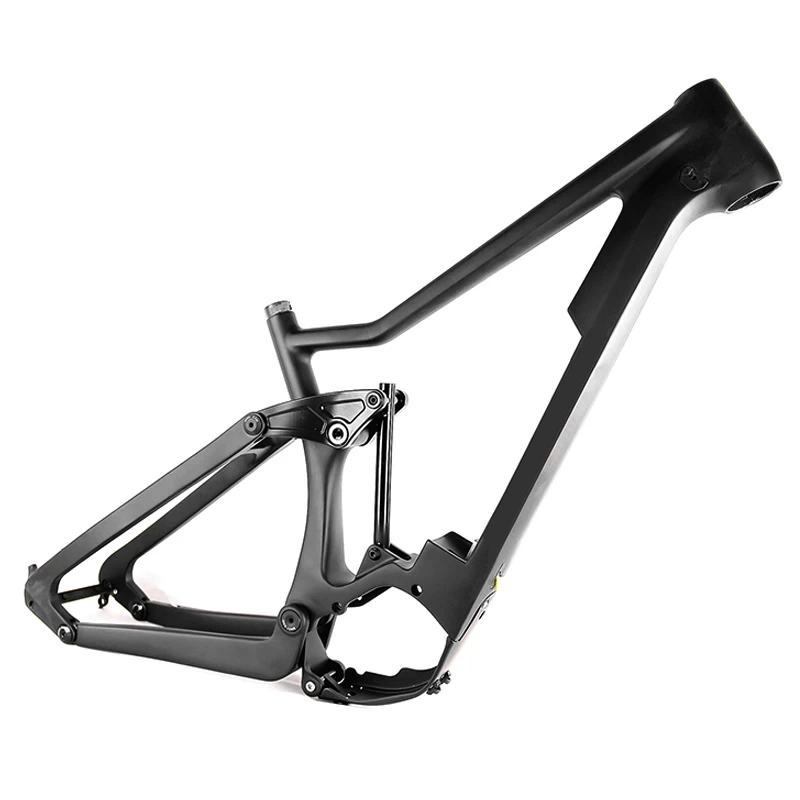

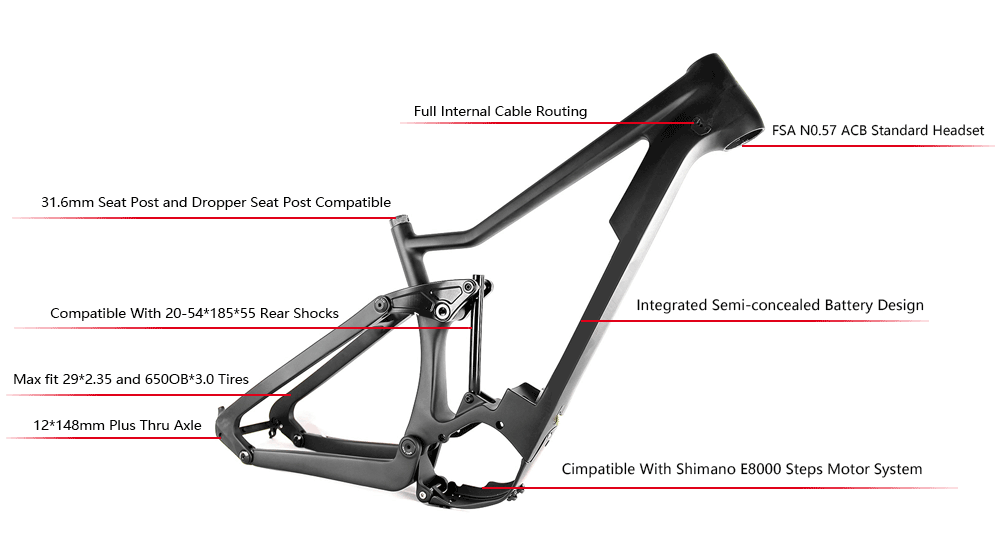

650B Plus Full Suspension MTB E-bike Frame


Frame full suspension Enduro ebike mountain bike frame
Material High modulus Toray T700  carbon fiber
Size
Small, Medium, Large
Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.57ACB)
Weight 2900g/Medium
Seatpost Diameter 31.6mm(34.9mm clamp)
Bottom Bracket Shimano steps E8000 motor system
Max Tire Clearance                  650b*3.0'' and 29er 2.35''
Brake Type Post Mount Disc brake 180mm
Dropout Thru Axle 12*148mm plus
Max Chainring 34T
Test Standard ISO4210
Warranty  2 years
