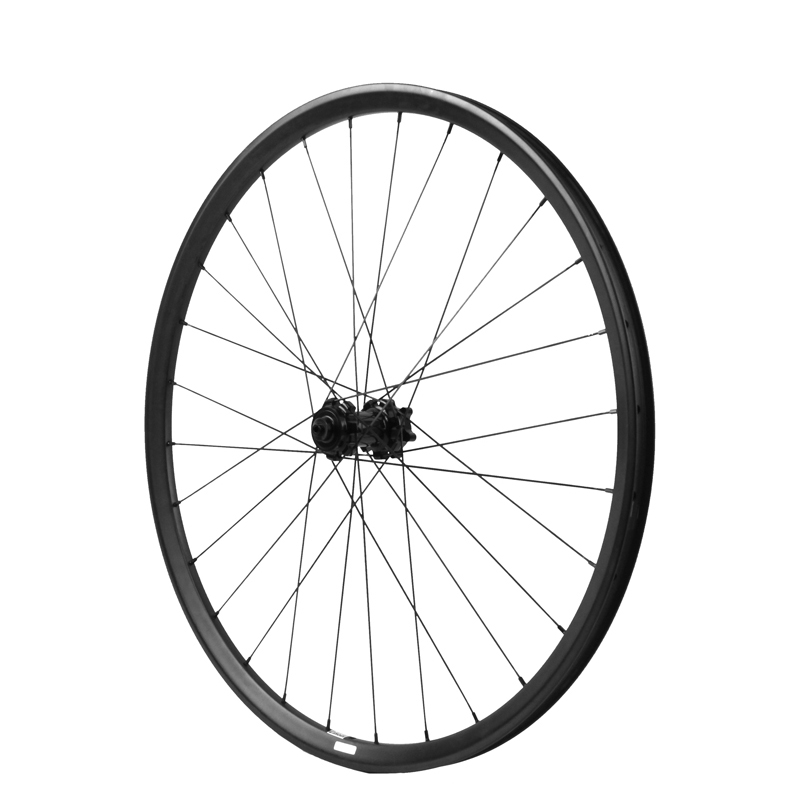

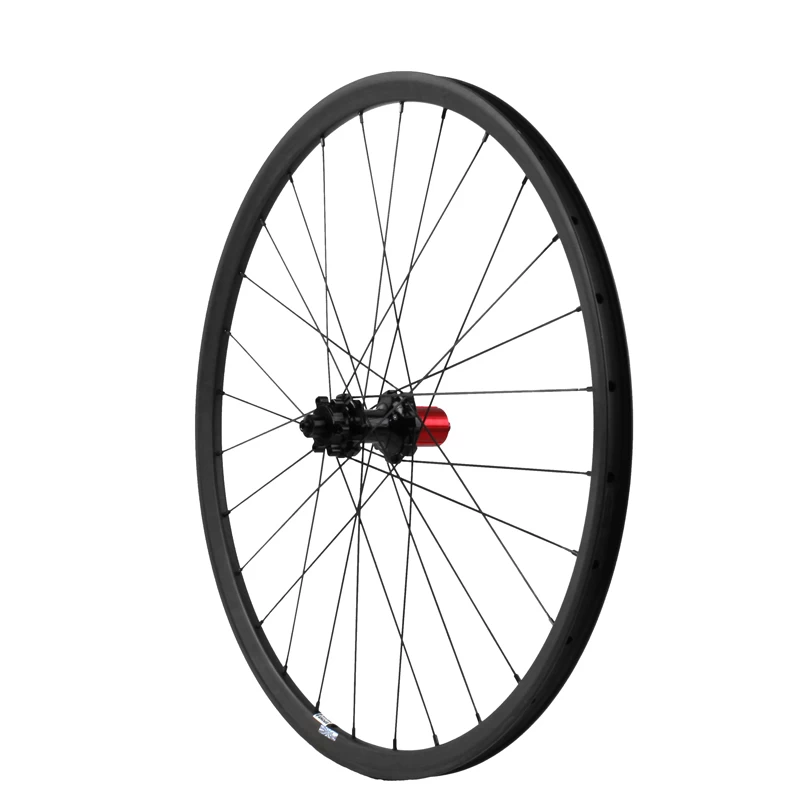

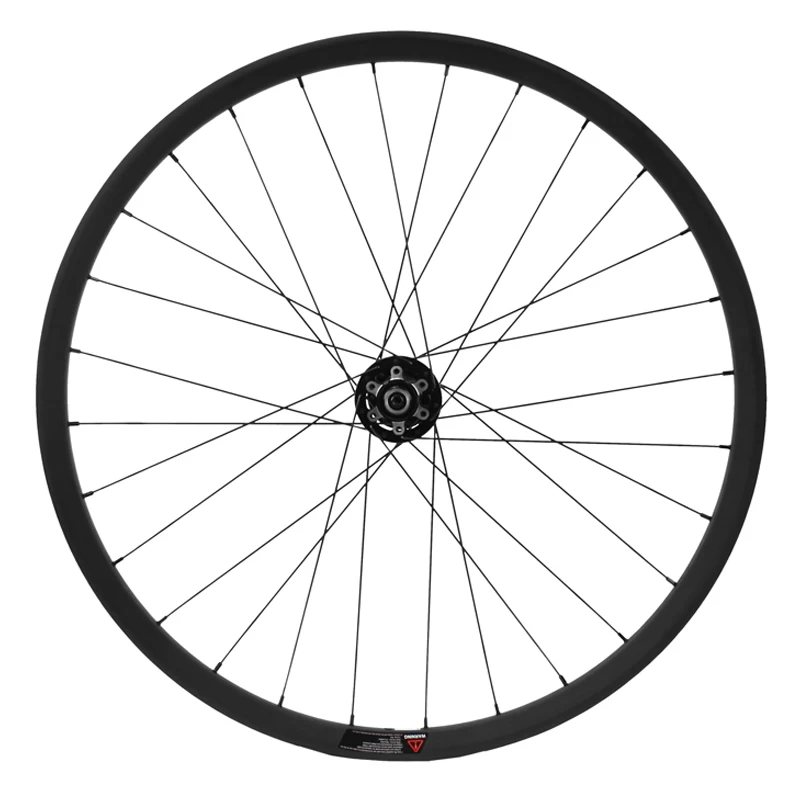

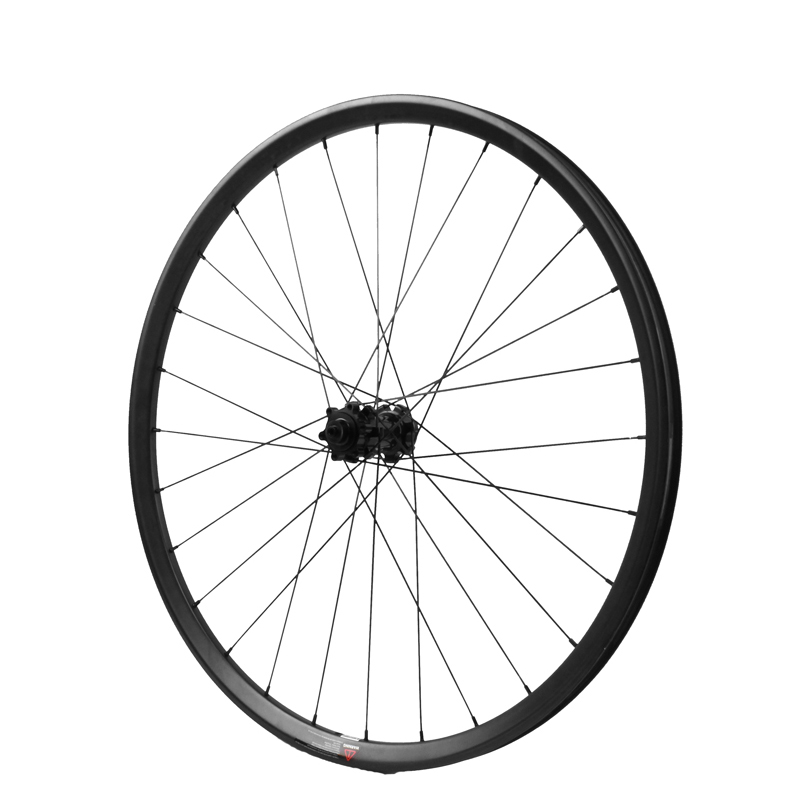

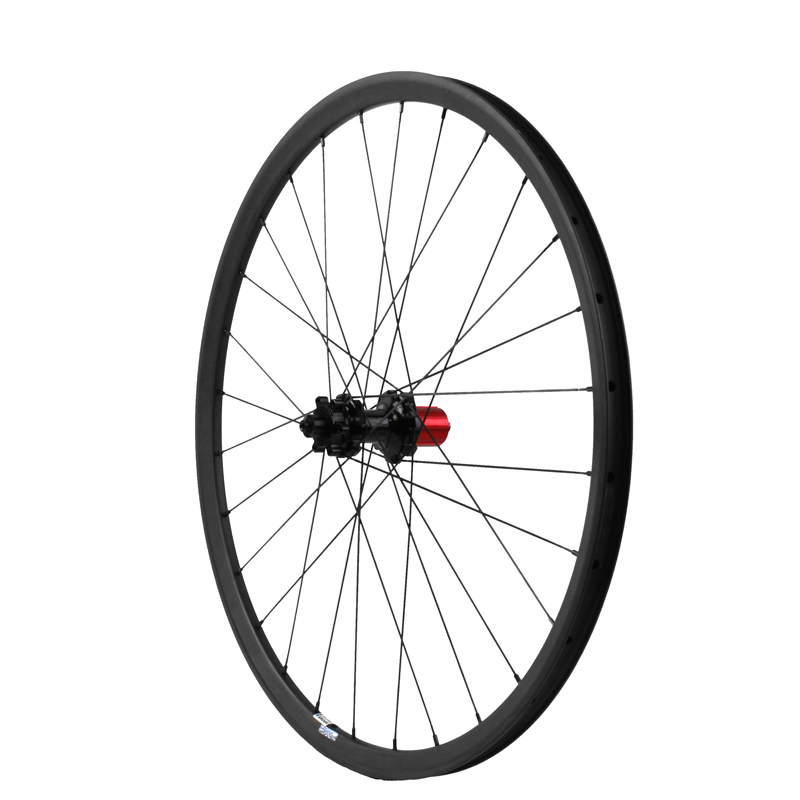

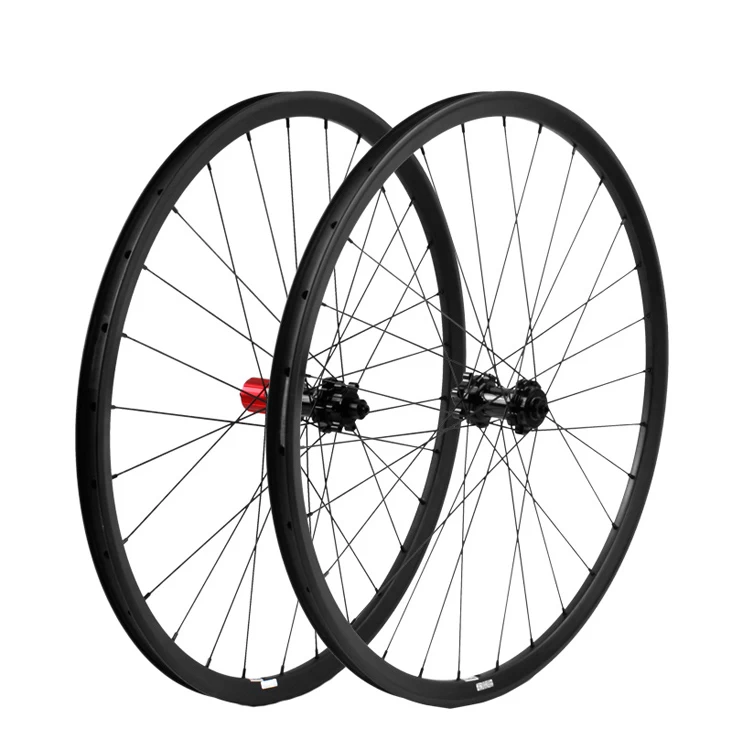

MTB XXR Carbon Bicycle Wheels

Specially built for standard mtb 12*142mm.

Taiwan straight pull hubs&Sapim spokes for faster riding speed.

Asymmetric rim design for better spoke tension balance and better wheel stiffness.

Optimized rim bed design for ease of tubeless inflation and best tire bead retention.

Wide hookless beads to improve pinch flat resistance or impact damage.

Several inner width for different riding, XC, TRAIL, AM&DH Riding

Precisely trued by Holland Mechanics.

Accept customized wheels-built&customized branding.





XXR Bicycle MTB Carbon Wheels

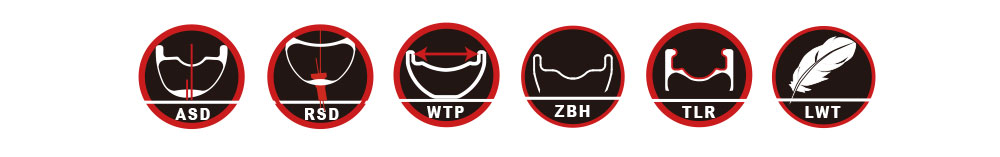

Key Features The Entry High End MTB Carbon Wheels

  Low profile design for the better impact distribution

  Asymmetric design for the better wheel stiffness

  Balanced spoke tension on drive side & non drive side

  Ease of tubeless inflation and best tire bead retention

  Ultra smooth rim inner wall technology for better strength

  Thick side wall design for better impact resistance






 Carbon Mountain Bike Wheels

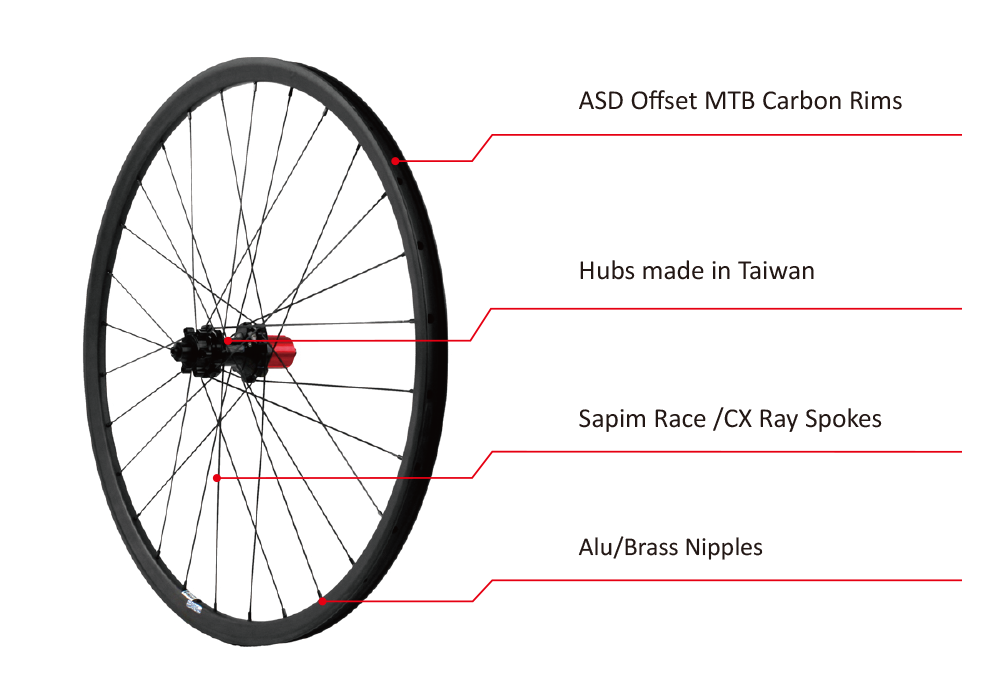

WHEELS SPECS




Rim

29ER ASD ASYMMETRY MTB RIMS
650B ASD ASYMMETRY MTB RIMS

Hub

XXR MTB Straightpull hubs                                               XXR BOOST MTB Straightpull hubs
Front 28h 15/100mm AT                                                    Front: M15*110 Sram Rockshow RS-1

Rear 28h 12/142mm AT Shimano 11S, Sram XD                 Rear: 12*148 Shimano 11S/Sram XX1

Brake

6-Bolt  Disc Brake

Spoke

Race 5.7g/CX-Ray 4.2g/PC

Nipple

External/internal alu nipples or brass nipples

Max.system weight

110-130 kg

Model (weight with CX Ray Spokes)

                                                                                                                                                                All Weight is w/t 5% tolerance


XXR-ASD730S-XC (1405g)

XXR-ASD733S-TRAIL (1555g)

XXR-ASD737S-AM (1575g)

XXR-ASD742S-PLUS (1575g)

XXR-ASD930S-XC (1445g)

XXR-ASD933S-TRAIL (1595g)

XXR-ASD937S-AM (1615g)

XXR-ASD942S-PLUS (1675g)

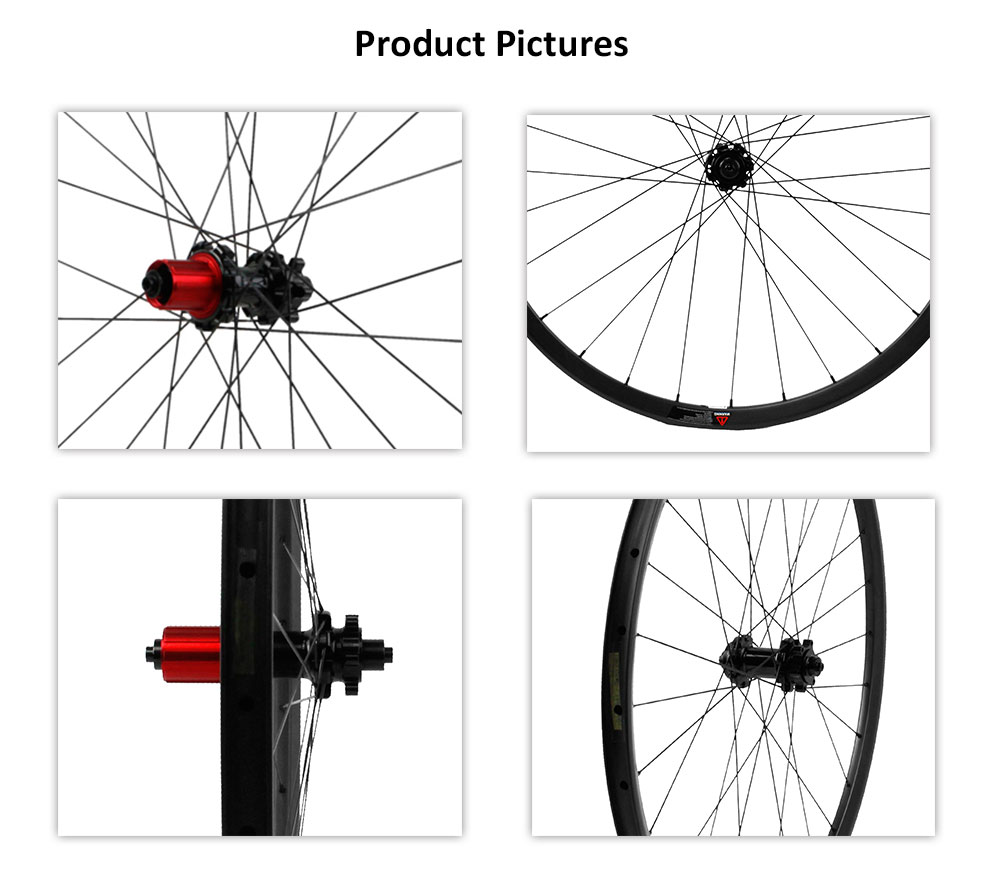

Hand-built High Precision Carbon Wheels






Wheel Building Technology

All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:

- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing




Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
