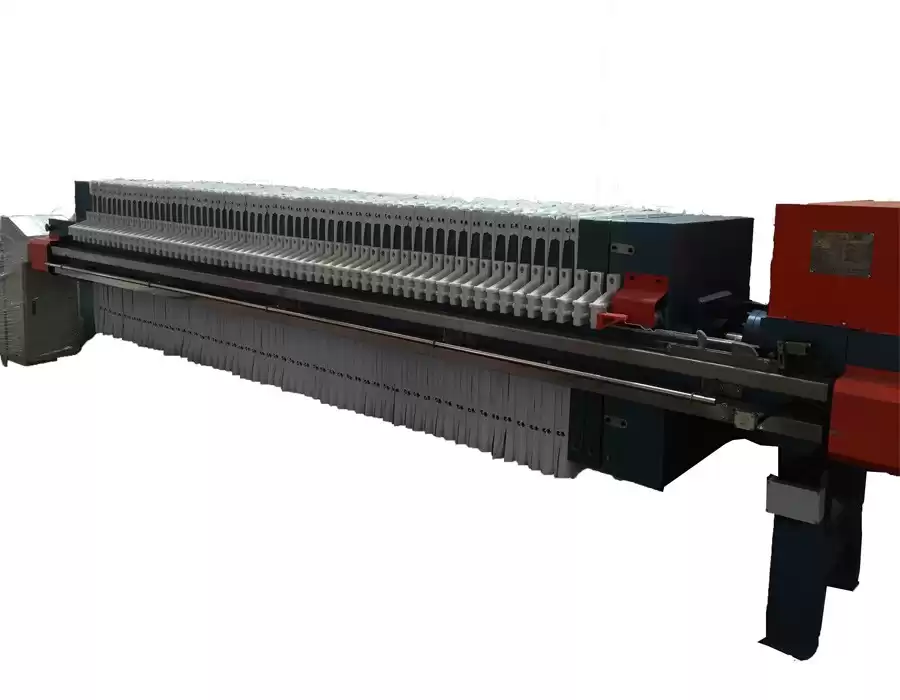

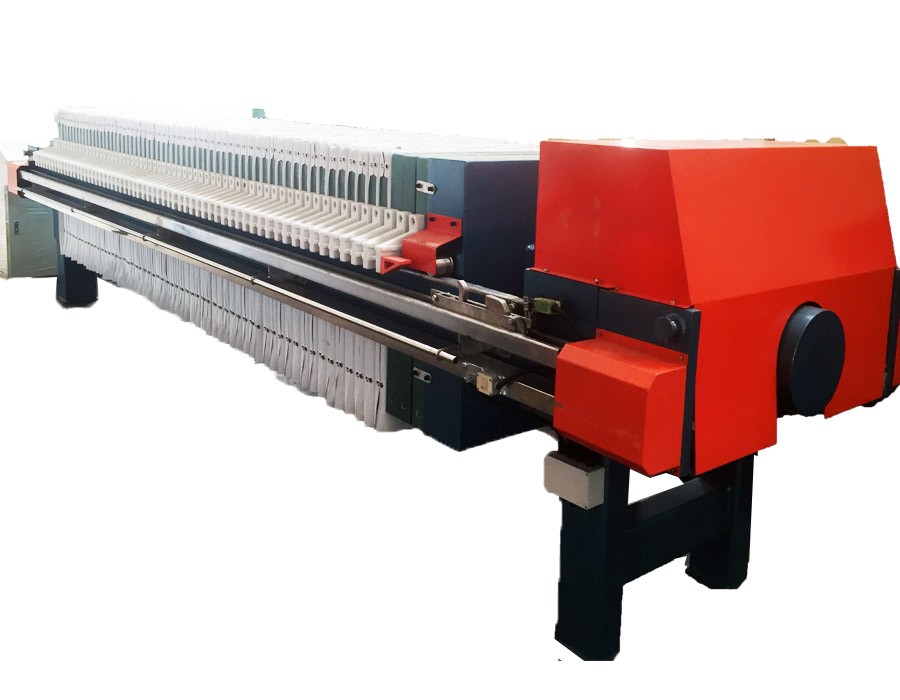

Mud Liquid Square Filter Plate Chamber Press Filtration
Filter Press Characteristic：
1. The main parts of filter press is made of high intensity welded steel, accessories processed by PLC with high precision.
2. The filter plates are made of PP, long life span Corrosion resistant, non-toxic and tasteless
3. Hydraulic Pressing, adopting the contact meter to maintain the pressure automatically.
4. The highest working pressure could be 1.5Mpa.

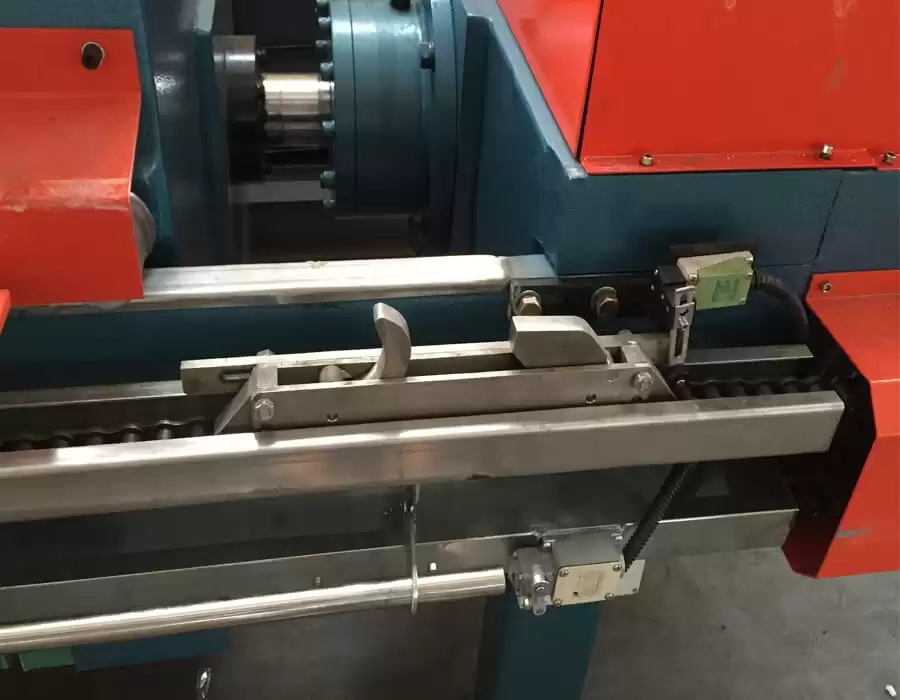

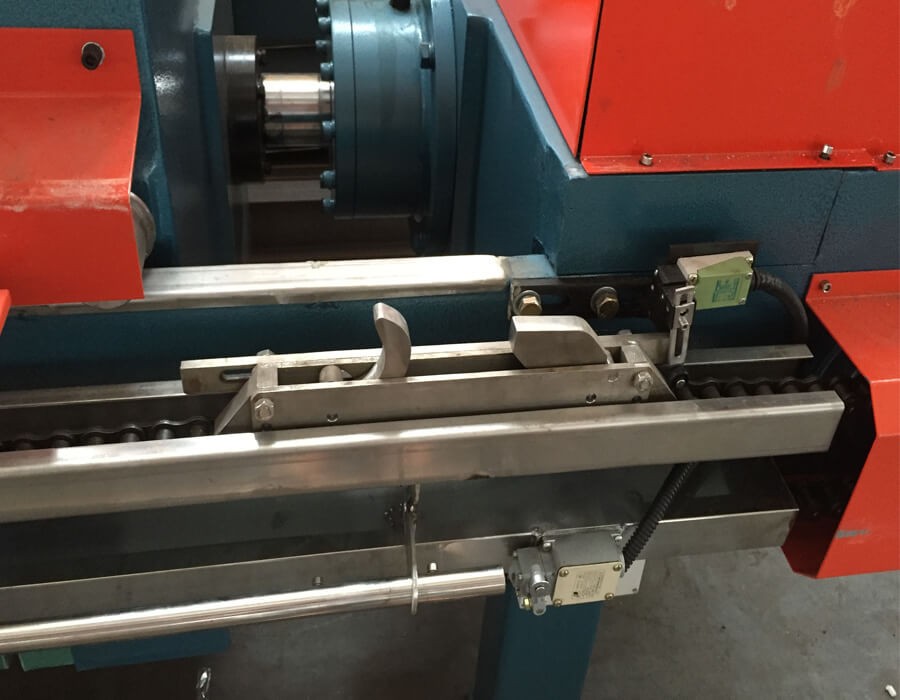

5. The filter press could be of automatic plate opening device and water collector.
Filter Press application：
Food, Textile, Chemical, Dyeing, Leather, Mining (Aluminium, Bauxite， Copper, Iron) and Electroplate.
Filter Press Technical Parameters：
Hydraulic Chamber Filter Press With Square Plates
Model | Filter Area (m2) | Inner Size (mm) | Plate Thickness (mm) | Motor Power (kw) | Plate Number (Pcs) | Filter Capacity (L) | Working Pressure In Chamber (Mpa) | External Size (mm) L*W*H | Weight (kg) |
NX-630 | 16 | 630*630 | 50 | 1.5 | 26 | 200 | ≤1.0 | 2790*1020*1200 | 1320 |
20 | 32 | 250 | 3096*1020*1200 | 1400 |
25 | 40 | 313 | 3504*1020*1200 | 1540 |
NX-800 | 50 | 800*800 | 60 | 1.5 | 50 | 750 | ≤1.0 | 4794*1246*1325 | 3140 |
60 | 60 | 900 | 5404*1246*1325 | 3470 |
70 | 70 | 1050 | 6014*1246*1325 | 3950 |
NX-1000 | 50 | 1000*1000 | 60 | 3.0 | 30 | 750 | ≤1.0 | 3984*1500*1555 | 4590 |
60 | 36 | 900 | 4350*1500*1555 | 4800 |
70 | 42 | 1050 | 4716*1500*1555 | 5160 |
80 | 48 | 1200 | 5082*1500*1555 | 5440 |
Plates could be added or reduced according to customer's requirements.

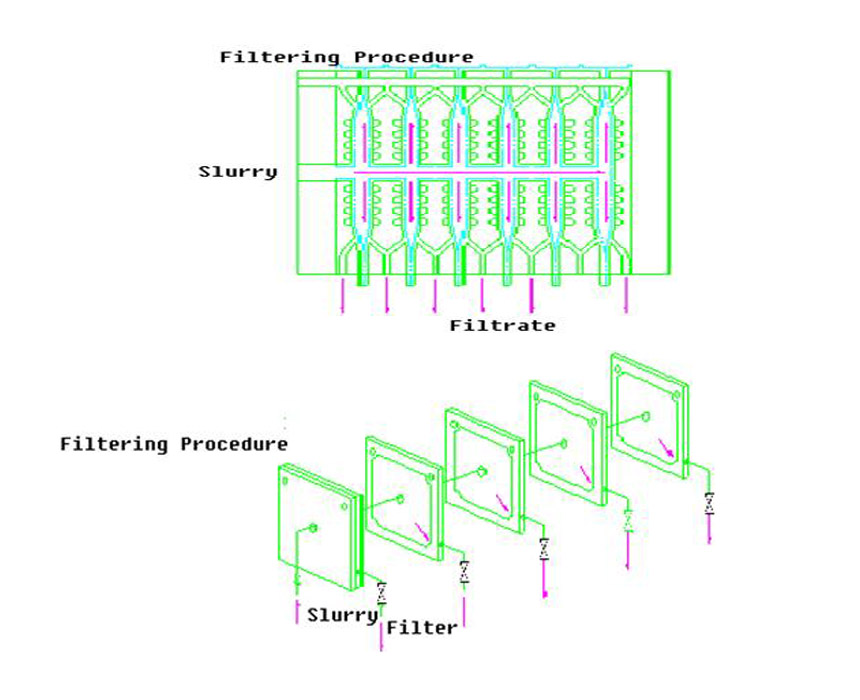

How Filter Press Work:

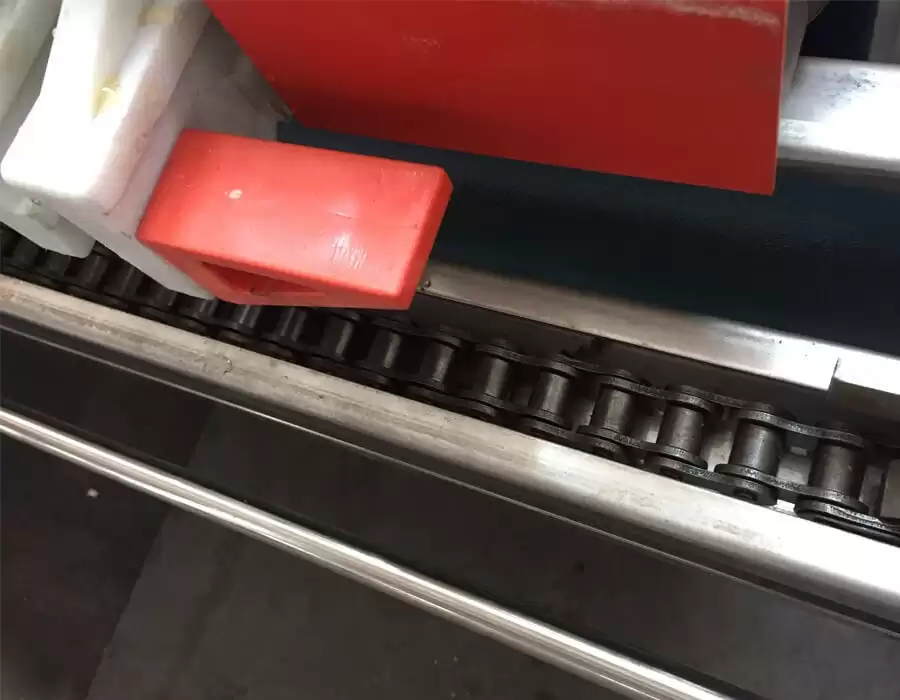

1The slurry is sent by slurry pump to chambers which formed by filter plates. Then filtrating media (filter cloth) separates solid and liquid. After the filtration finished, stopping the feeding, releasing the slurry pressure, press the returning button, shifting the plates automatically.
FAQ
1.Q: Can you provide us the detailed drawing?
Yes, we can provide you the drawing after have made the prepayment.
2.Q: Are you a manufacturer or a trader?
We're a professional and experienced manufacturer located in Fujian province.
3.Q: Can you accept OEM?
Yes
4Q: How about the delivery time?

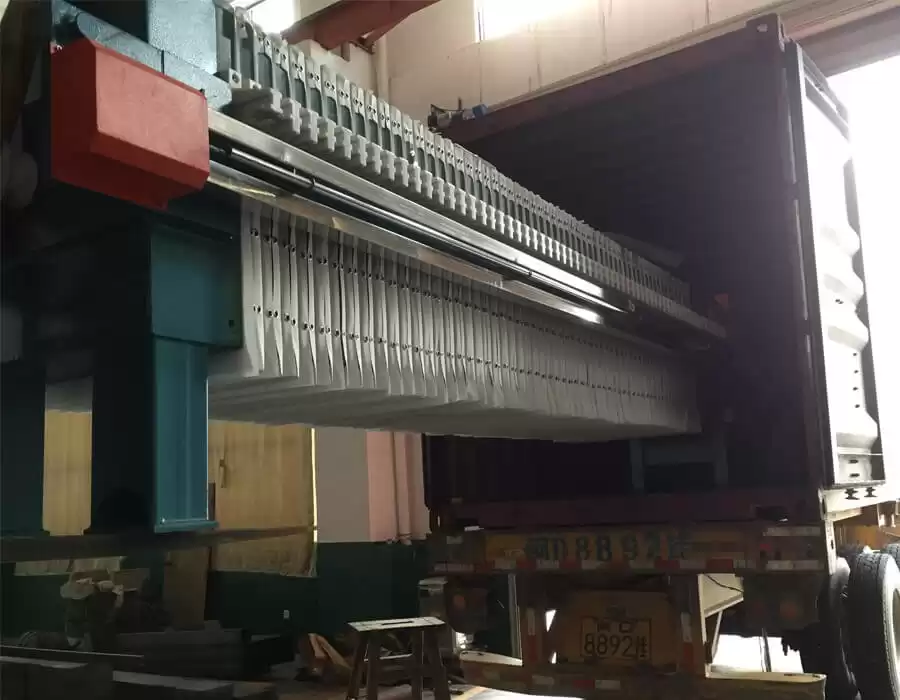

Normally 10-30 working days after prepayment, and we promise we will make the delivery as soon as we can.
