Description
Mud pump super charging pump is a pump used to create a vacuum or suction effect in the mud pump's suction line, allowing the pump to be primed and effectively start pumping drilling mud. It assists in the initial filling of the pump with fluid, removing any air or gases from the system.
When a mud pump is not properly primed, it may experience difficulties in creating the necessary suction to pull in and circulate the drilling mud. Air pockets or gases in the suction line can impede the pump's performance and disrupt the drilling operation.
The supercharging pump can be manually operated or automated, depending on the specific equipment and setup. It is an essential component in the mud pump system, ensuring the smooth initiation of mud circulation and preventing any potential issues caused by improper priming.
Features
- Highly wear resistant ductile iron for fluid end parts.
- Extended life of mechanical seal, packing and stuffing box.
- Parts are highly versatile and interchangeable among different models.
Specifications (based upon 20℃ clear water)
|
Model
|
Impeller
Diameter
|
Capacity,
m³/h(gpm)
|
Head,
m(feet)
|
Speed, rpm
|
Efficiency
|
Power, kW
|
NPSHR
m(feet)
|
|
50HZ
|
60HZ
|
%
|
Shaft power
|
Motor power
|
|
SBW6×8
|
13”
|
240 (1057)
|
37 (121)
|
1480
|
1780
|
67
|
36
|
75
|
2.5 (8.2)
|
|
12-1/2”
|
200 (880)
|
36 (118)
|
1480
|
1780
|
66
|
29.7
|
55
|
2.5 (8.2)
|
|
12”
|
200 (880)
|
33 (108)
|
1480
|
1780
|
64
|
28
|
45
|
3.0 (9.8)
|
|
SBW5×6
|
12-1/2”
|
200 (880)
|
33 (108)
|
1480
|
1780
|
64
|
28
|
45
|
3.0 (9.8)
|
|
12”
|
180 (792)
|
31 (98.4)
|
1480
|
1780
|
63
|
24.1
|
37
|
2.5 (8.2)
|

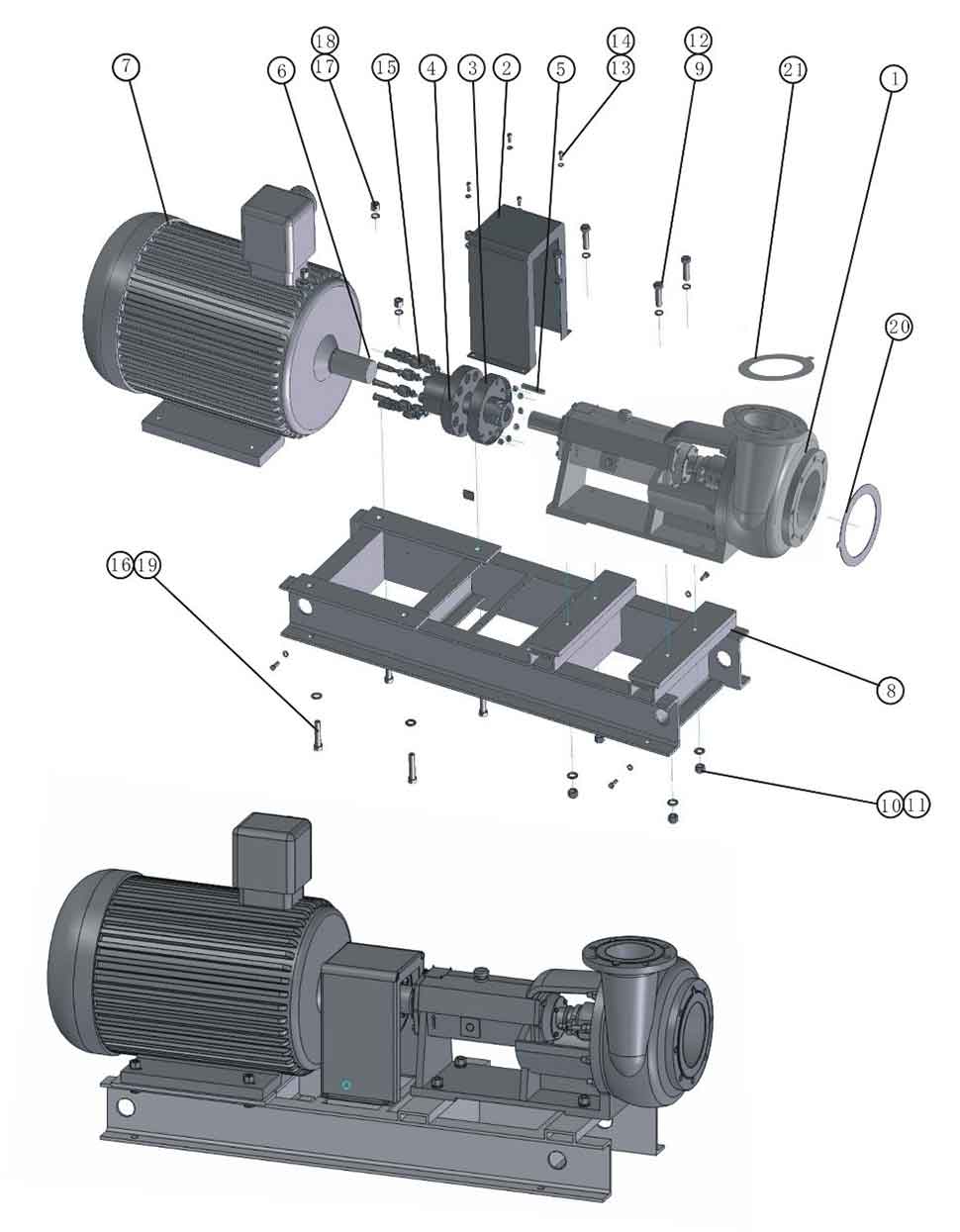

Exploded view for SB6×8-13” Supercharging Pump Set
Parts List for SB6×8-13” Supercharging Pump Set
|
Item
|
Description
|
Part No.
|
Qty.
|
Item
|
Description
|
Part No.
|
Qty.
|
|
1
|
Pump head
|
SB68ZJ0001S
|
1
|
12
|
Flat washer
|
SB68ZJ0012S
|
4
|
|
2
|
Coupling guard
|
SB68ZJ0002S
|
1
|
13
|
Guard bolt
|
SB68ZJ0013S
|
4
|
|
3
|
Pump coupling
|
SB68ZJ0003S
|
1
|
14
|
Flat washer
|
SB68ZJ0014S
|
4
|
|
4
|
Motor coupling
|
SB68ZJ0004S
|
1
|
15
|
Coupling pin set
|
SB68ZJ0015S
|
10
|
|
5
|
Pump head key
|
SB68ZJ0005S
|
1
|
16
|
Motor bolt
|
SB68ZJ0016S
|
4
|
|
6
|
Motor key
|
SB68ZJ0006S
|
1
|
17
|
Nut
|
SB68ZJ0017S
|
4
|
|
7
|
Motor
|
SB68ZJ0007S
|
1
|
18
|
Spring washer
|
SB68ZJ0018S
|
4
|
|
8
|
Skid
|
SB68ZJ0008S
|
1
|
19
|
Flat washer
|
SB68ZJ0019S
|
4
|
|
9
|
Pump head bolt
|
SB68ZJ0009S
|
4
|
20
|
Suction gasket
|
SB68ZJ0020S
|
1
|
|
10
|
Nut
|
SB68ZJ0010S
|
4
|
21
|
Discharge gasket
|
SB68ZJ0021S
|
1
|
|
11
|
Spring washer
|
SB68ZJ0011S
|
4
|
|
|
|
|
Performance curve (SB6×8-13”)
Packaging & Shipment
Packaging type: Export plywood box
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
