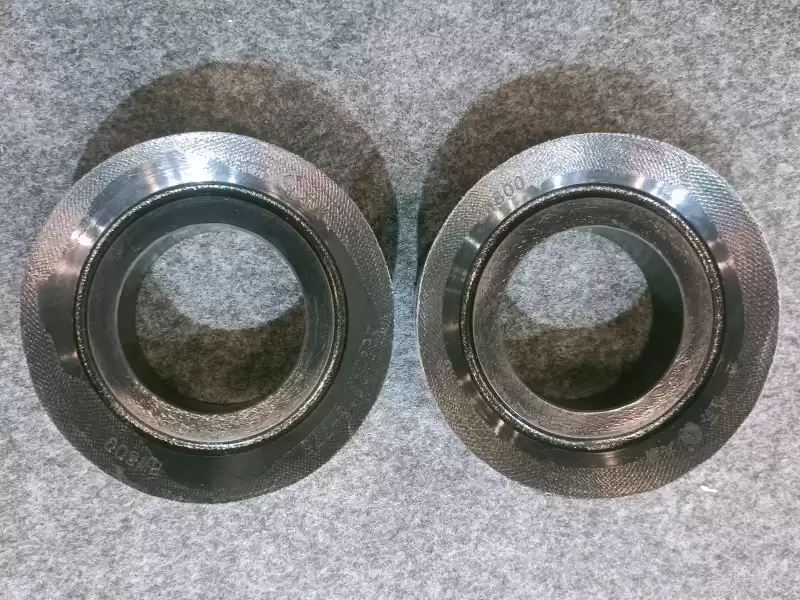

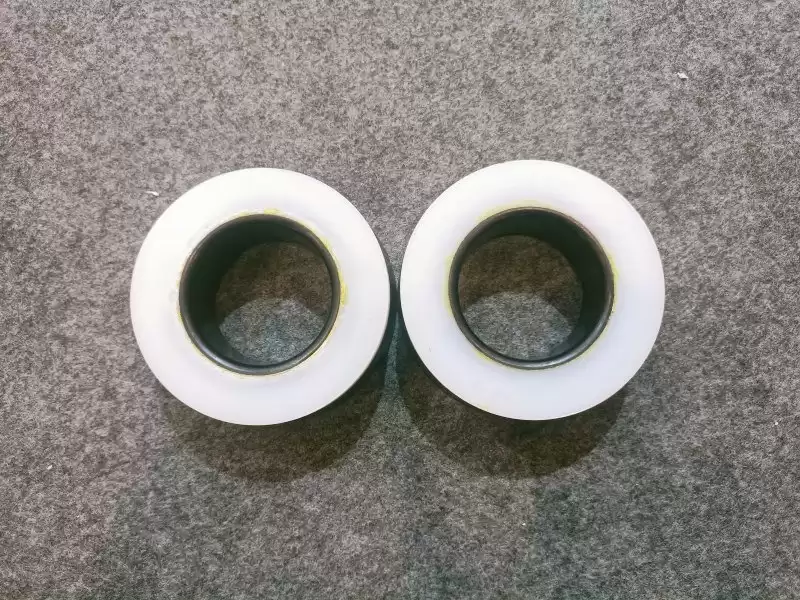

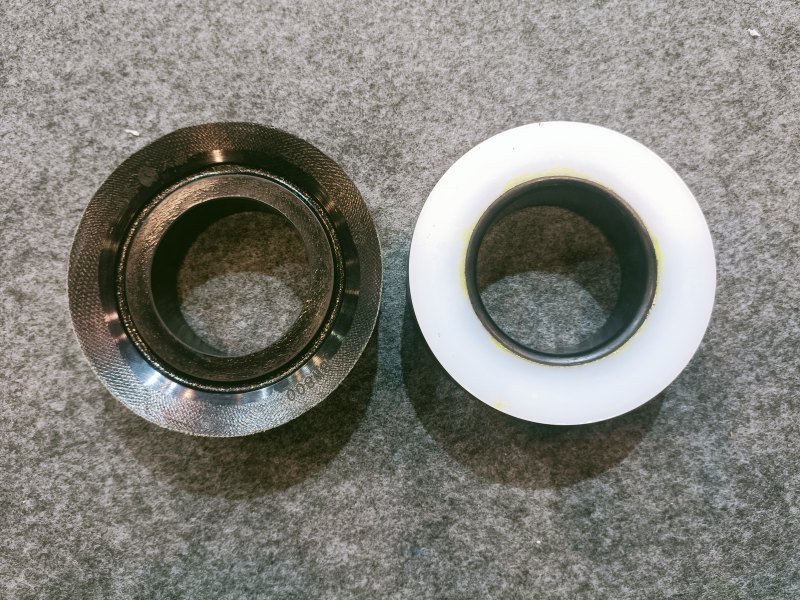

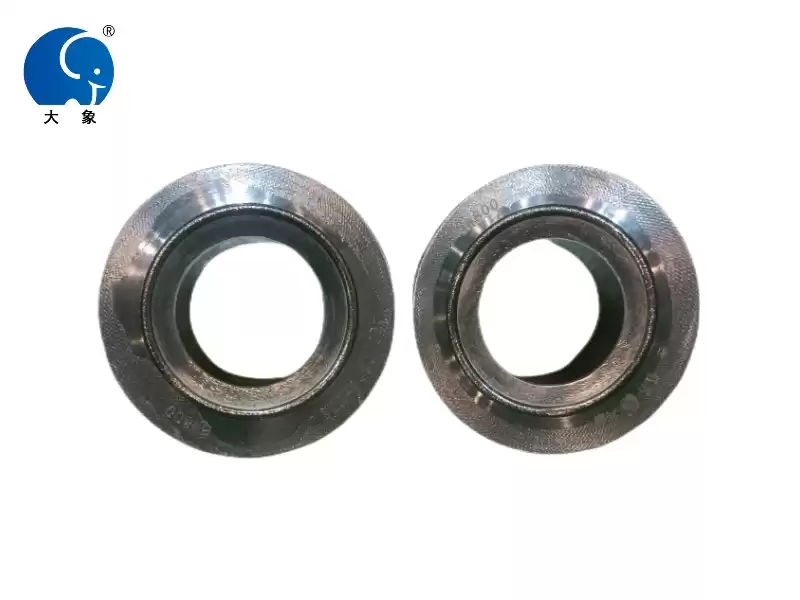

Mud Pump Fiber Cloth Piston

Mud pump piston assembly is the important spare parts and expendable parts of mud pumps.



Drilling mud Pump piston is the main accessory in the hydraulic end system of the mud pump, and it is also one of the most used wearing parts in the mud pump.

It is used for the piston of the mud pump and reciprocates in the mud and crude oil medium,seal.



Check this video to get more information regard our mud pump piston.



Advantages:

1.  Resistant to high pressure, abrasion, heat, chemical and extrusion;

2.  Averages 2-3 longer life than other mud pump pistons;

3.  New material, using wear-resistant fiber cloth, the only factory used in China

4.  Excellent lip and cut back hub design reduces wear on liner dramatically lowering mud pump operating costs.

FAQ:
Q1: How to remove the mud pump piston?
A: First remove cylinder cap clamping plate nuts, and loosen the horned nuts, flat nuts and sheets on the tie rod in the cylinder liner, then use the tools for removing piston to screw in the piston seat, and use the reciprocation hammer to impact back and forth to take out pistons.

Q2: How to install the mud pump piston?
A: When installing the piston, first put the compression pad on the piston seat, and then screw the piston seat on the piston removal tool.
When installing, pay attention to rotating the piston seat to the pull rod to prevent rotation, and then loosen the piston removal tool outward. Take it, and then install the piston in sequence according to the structure drawing (note that the thin nut is tight when installing the piston, and then use the afterburner to tighten 1/4 to 1/2 circle after hand tightening).

Q3: How is the quality? ?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shippment.

Q4: What is your terms of payment? ?
A: T/T, 30% advance payment, the balance 70% payment should be paid before delivery.

Q5: Do you have any certificate of authorization?
A: Our company have ISO certificate. Our machinery is CE certified.
