Description

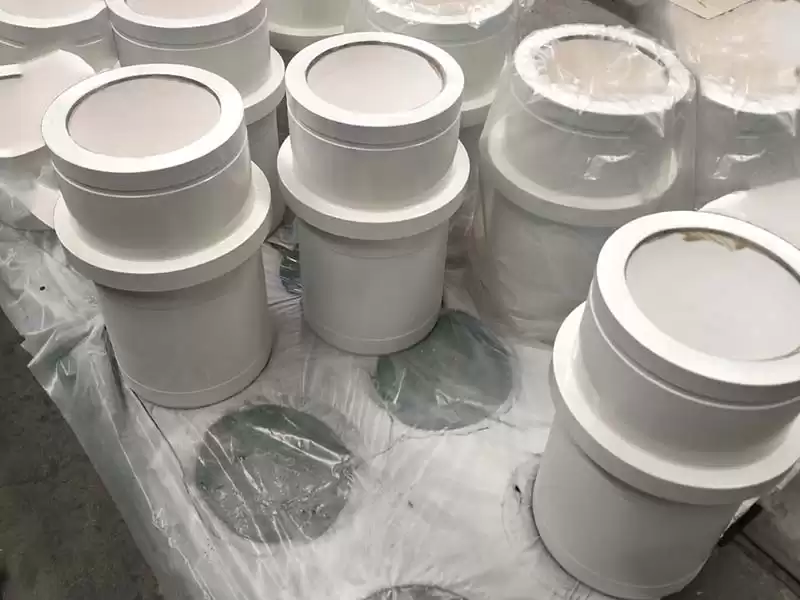

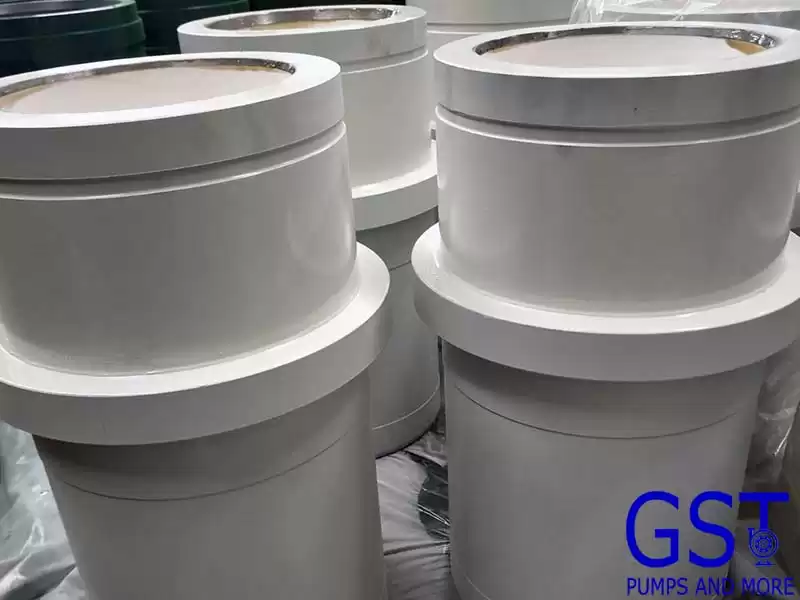

Mud pump ZTA liners are engineered ceramics that combine the properties of zirconia and alumina to create a material with exceptional wear resistance, toughness, and thermal stability. These liners are designed for the fluid ends of mud pumps, providing a protective barrier against abrasive drilling fluids.
Features and Benefits
1. High Wear Resistance: ZTA liners are known for their remarkable wear resistance, which makes them ideal for withstanding the abrasive nature of drilling fluids. This characteristic significantly reduces the need for frequent replacements, saving both time and money.
2. Toughness: ZTA liners exhibit excellent toughness, meaning they can endure extreme drilling operating conditions without fracturing. This property is vital for ensuring the longevity of the mud pump fluid end.
3. Chemical Resistance: ZTA liners are resistant to corrosive chemicals often found in drilling fluids. This resistance helps maintain the integrity of the liner even when exposed to harsh environments.
4. Thermal Stability: These liners can withstand high temperatures, ensuring they remain effective and reliable even in the most demanding drilling operations.
Specifications
|
Descriptions
|
ZTA Ceramics liner
|
|
Outer shell material
|
Forged steel, AISI 1050（50#）
|
|
Inner sleeve material
|
Zirconia toughened alumina
|
|
Inner sleeve hardness
|
92-94 HRC
|
|
Typical service hours
|
6000
|
|
Features
|
High hardness, high wear resistance and corrosion resistance, long service life, suitable for offshore drilling operation.
|
Note: Above typical service hours are tested by normal temperature clear water, and actual service hours will vary depending on liner stroke, mud specific weight, solids contents, and skills of pump operators etc.
Packaging & Shipment

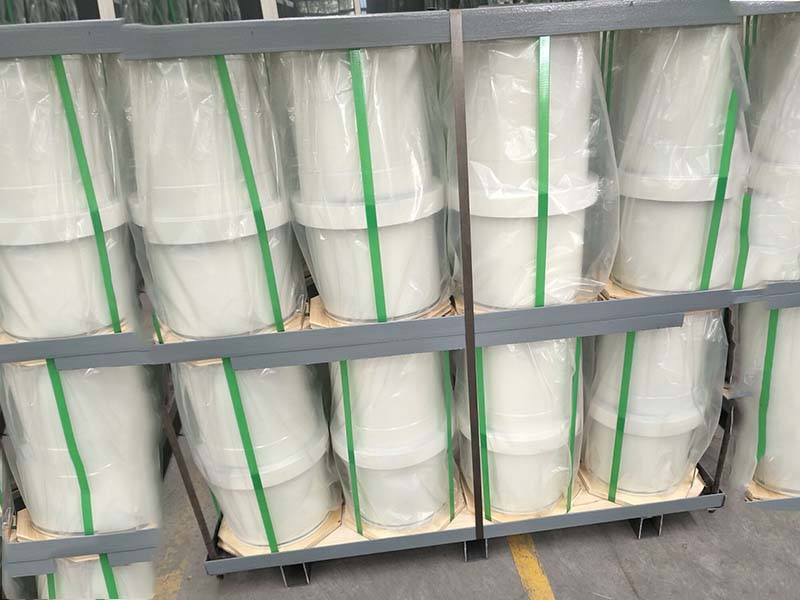

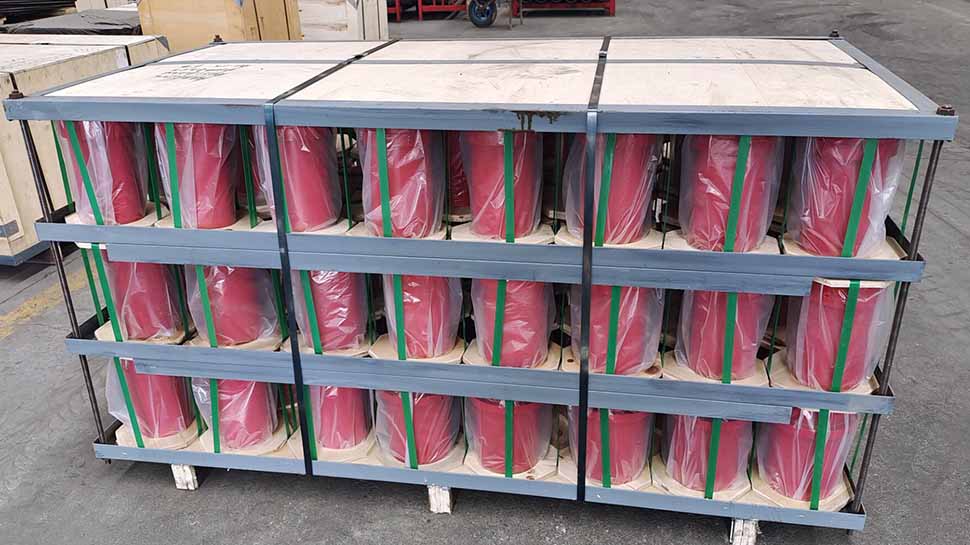

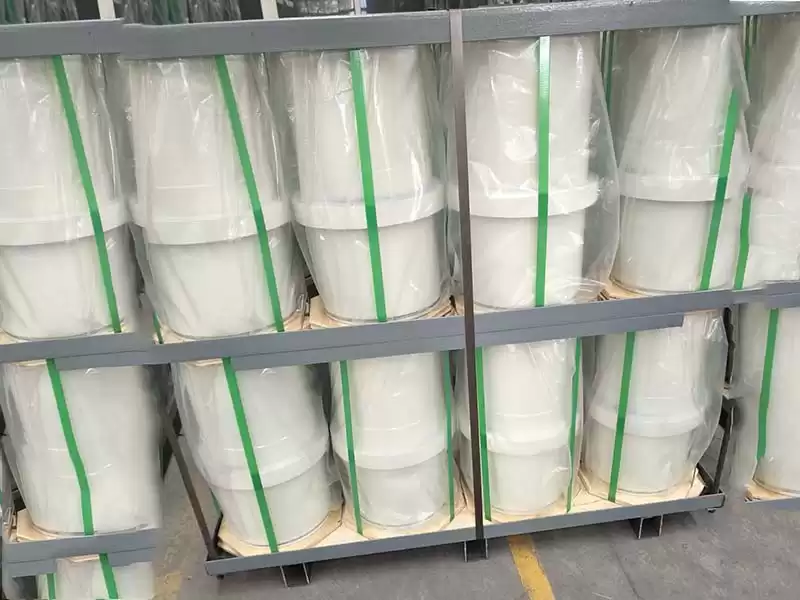

Packaging type: Steel framed wood box
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
