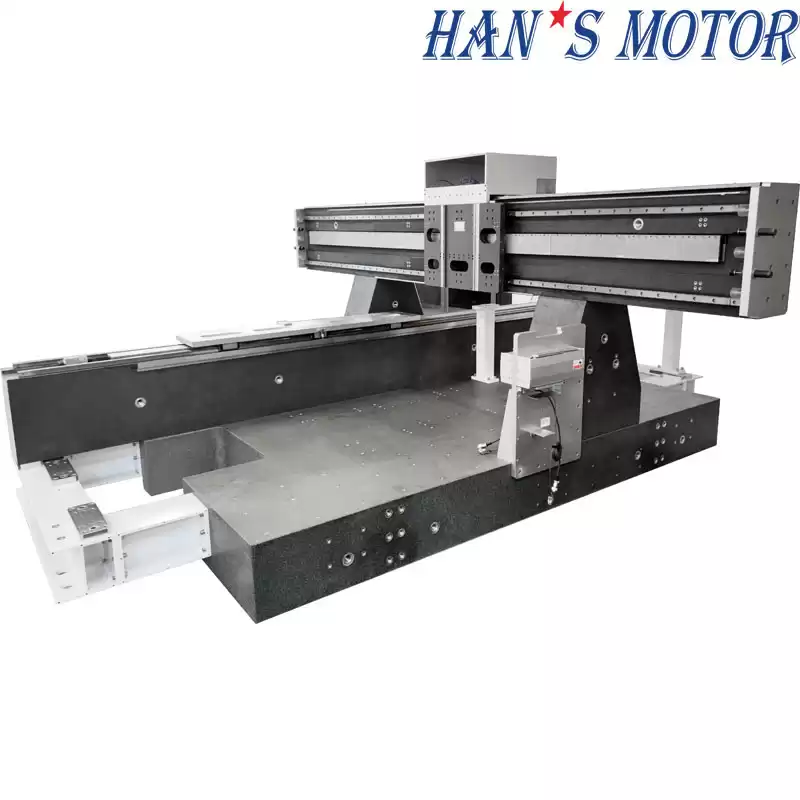

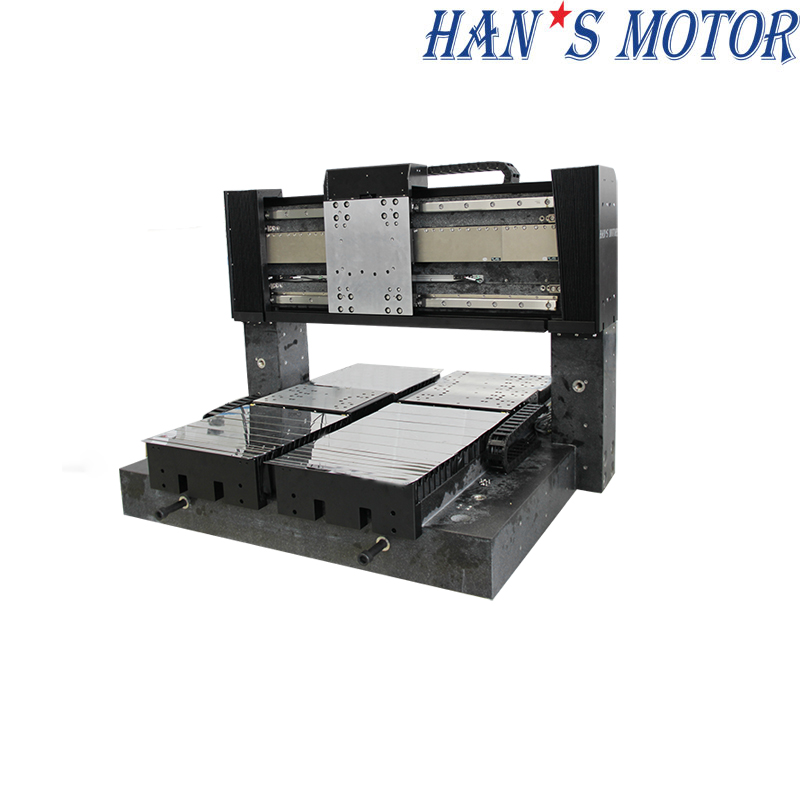

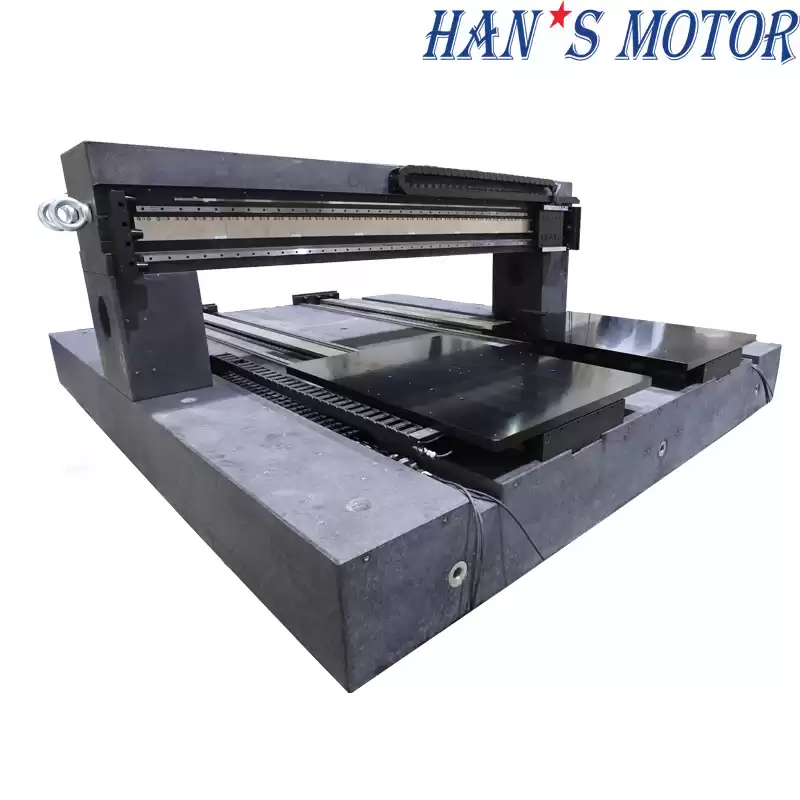

Products Name: Multi-axis double-drive gantry marble motion stages(LMD Series)
Product Specifications
|
Parameter
|
X-axis (Lower axis)
|
Y-axis (crossbeam axis)
|
|
Stroke (mm)
|
2700
|
2850
|
|
Max.velocity (m/s)
|
1
|
1
|
|
Acceleration (g)
|
0.4
|
0.4
|
|
Repeat accuracy(μm)
|
±0.75um
|
±1.15um
|
|
PositionaI accuracy (μm)
|
±2um/1.5m
|
±2um/1.5m
|
|
Velocity fluctuation
|
＜0.3%
|
＜0.3%
|
|
Acceleration and deceleration vibration
|
Smooth without vibration
|
Smooth without vibration
|
|
Horizontal straightness (μm)
|
7.7
|
7.53
|
|
Vertical straightness (μm)
|
7.07
|
6.96
|
|
Load (kg)
|
100
|
140
|
|
X-Y Verticality (mm)
|
0.01
|
Characteristics:
• Low-noise, and insulation of high temperature
• Imported ACS, ELMO, Servotronix driver
• Imported HEIDENHAIN or RENNISHAW absolute grating (0.1μm) and SHS30 guide rail P class with dust-free drag chain.
• The warranty period is 12 months
• Production capacity 1000 Pieces permonth
Kindly instruct us below parameters, and we would assist you product manual and 3D model and with a competitive price
1. Effective stroke
2. Maximum velocity
3. Maximum acceleration
4. Payload
5. Repeatability accuracy
6. Straightness
8. Stages structure type
Industry Applications:

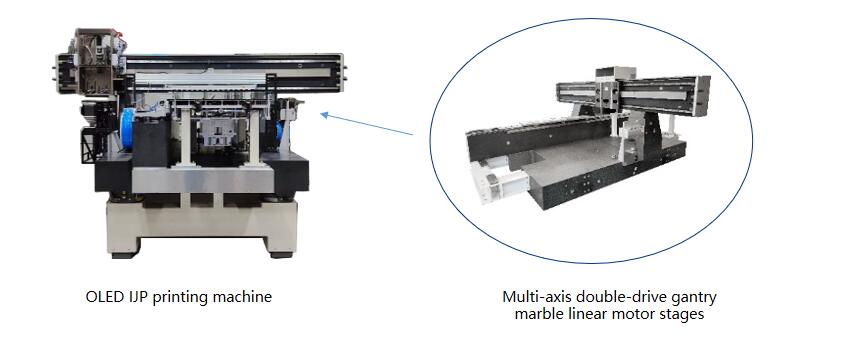

it is widely apply to six-axis drilling machine, single-axis drilling machine, two-axis drilling machine, laser direct imaging machine (LDI), automatic optical inspection machine (AOI), reinforcement machine (FPC).
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
