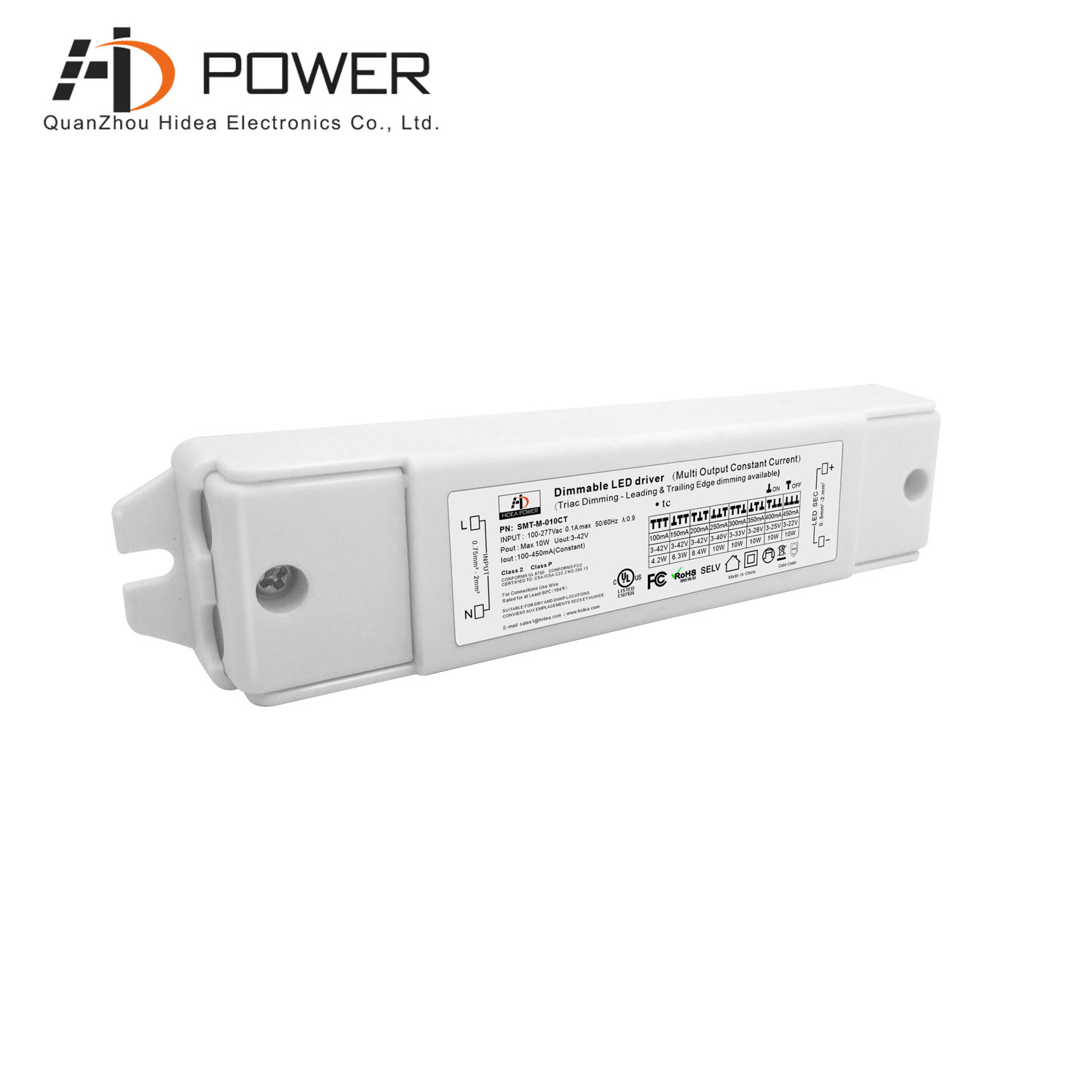

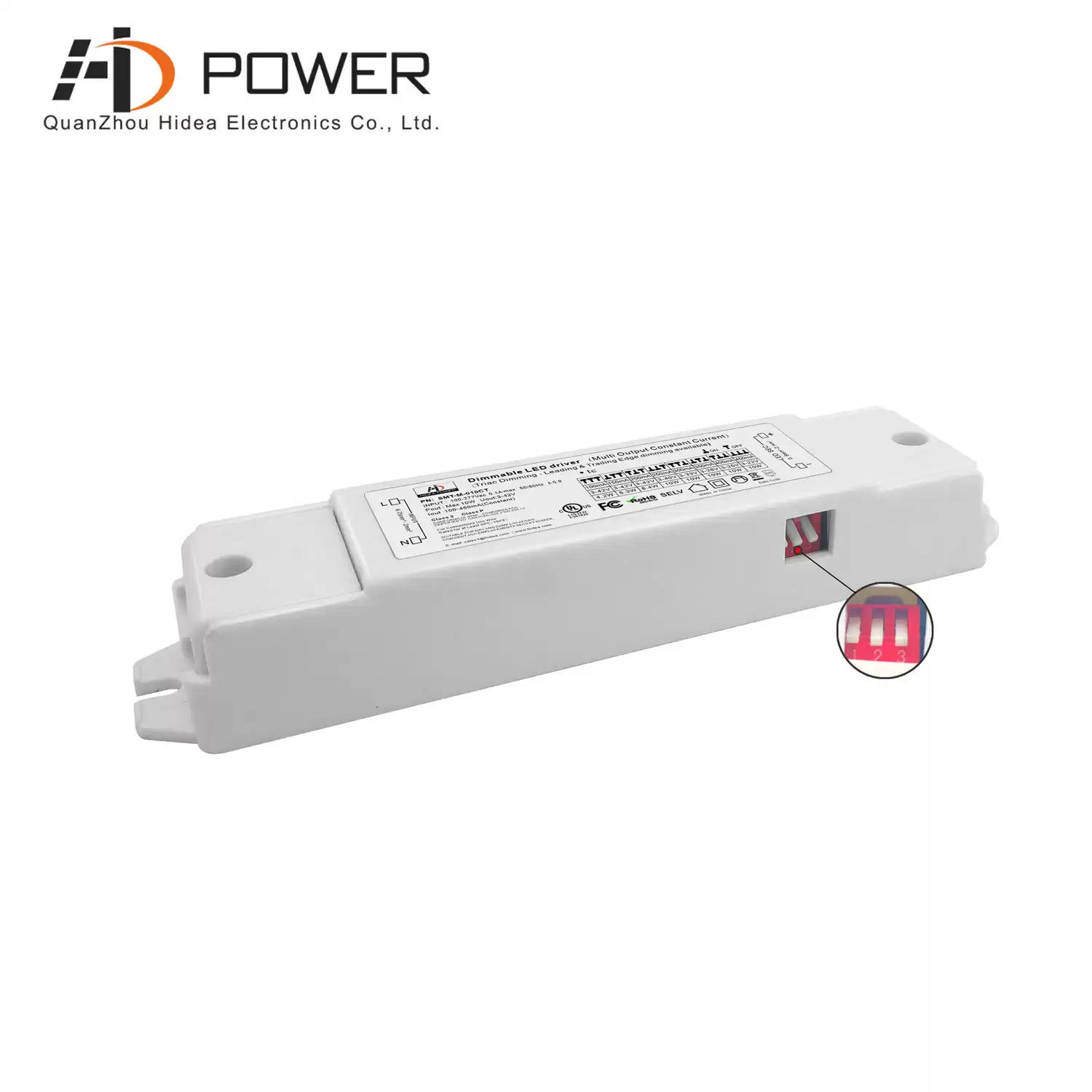

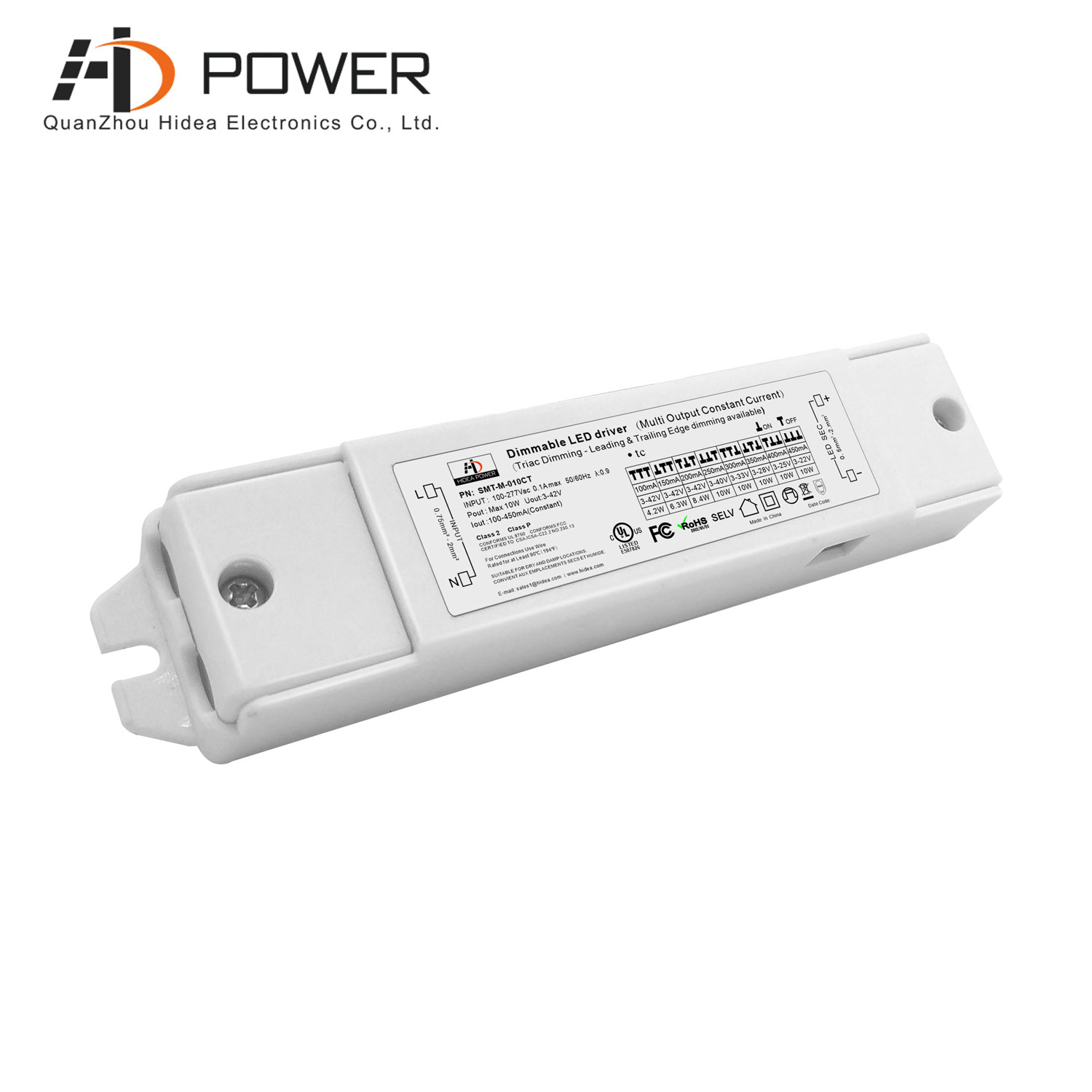

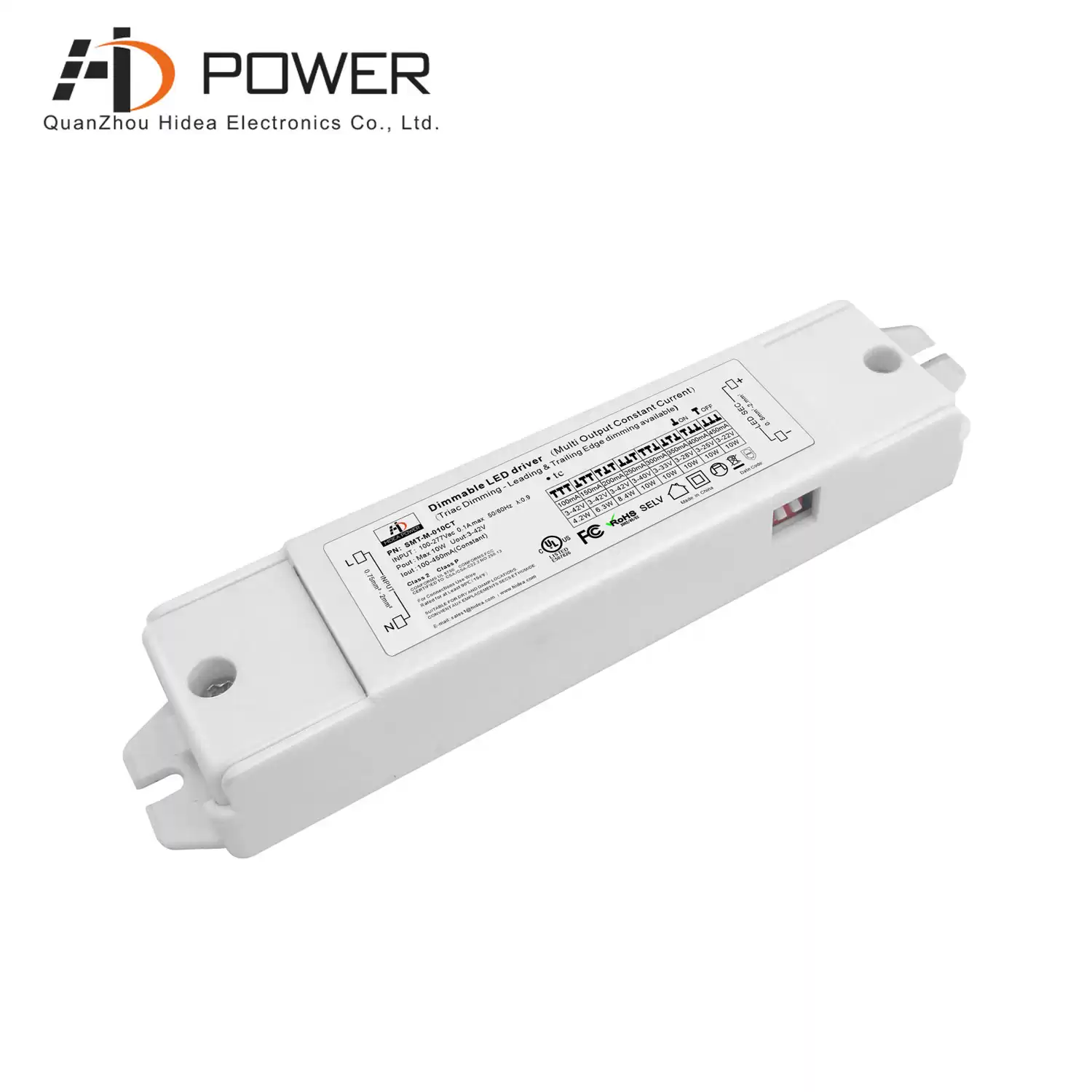

Multi-current selectable triac dimmable constant current led driver 10w 300ma power supply

300ma 10W triac dimmable Multi-output current led driver, plastic shell design, free air convection cooling, with good heat dissipation function, in line with global safety lighting rules, Compatible with Acuity Brands' 10W LED downlight

Size135*30*20mm
Output Current300mA
Shape & SizeStandard Size
Output Power(Watt)10W
Input Voltage100-277Vac
Working ModeMulti-Output Current Driver
Dimming ModeTriac Dimming
Weight130g
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

Multi-current selectable triac dimmable constant current led driver 10w 300ma power supply

UL certified 300ma triac dimmable constant current led driver, built-in active PFC function, work efficiency up to 75%, suitable for indoor lighting projects in small Spaces, with strong compatibility, can connect with most dimmers on the market very well

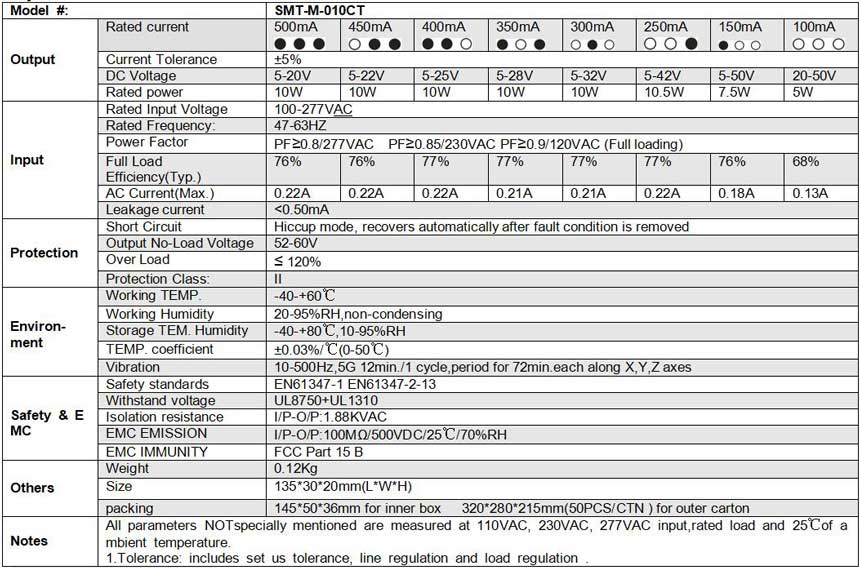

Specification

Related Products

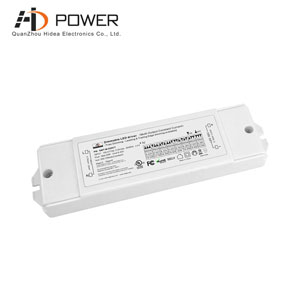

20W TRIAC dimmable multi-current dip switch led driver, output current between 250ma-700ma, easy to install, UL certification, mainly sold in North America

Mode：SMT-M-020CT

Dimming Mode : triac dimming

Output Power : 20W

intput voltage：100-277Vac

Size：135*30*20mm（L*W*H）
