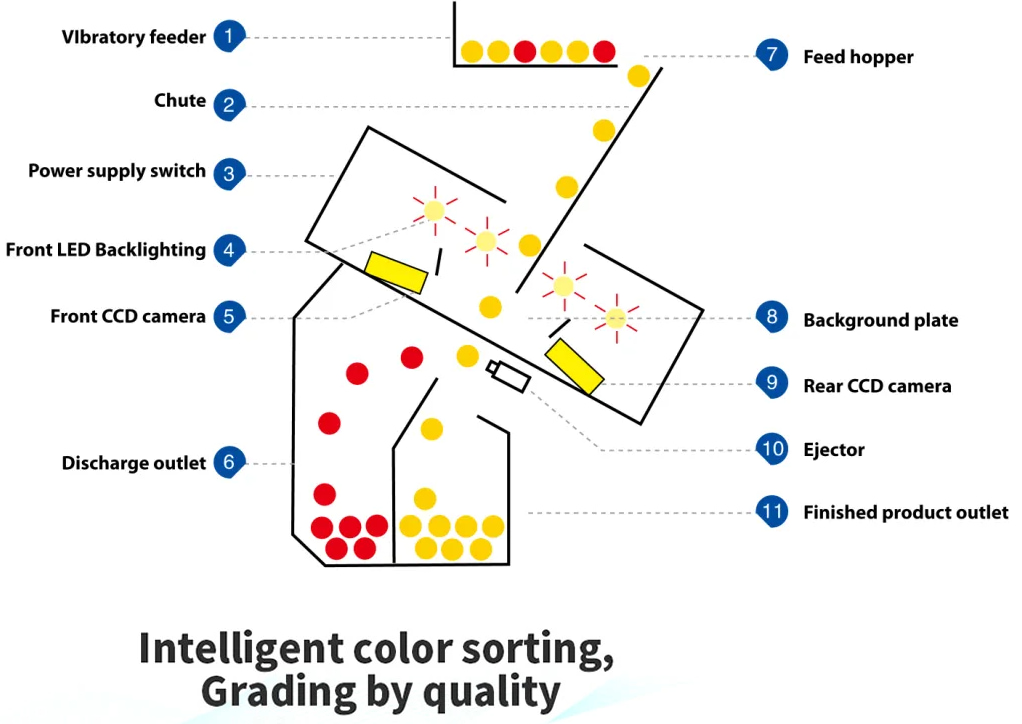

Vertical Color Sorting Machine Working Principle
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Spice Color Sorting Machine Features
1. Massive database with storage of unlimited mode can achieve multiple function of one machine.
2. Optical color sorting with high resolution 5400 pixel CCD camera, high reliability and long life LED light source;
3. Efficient and stable software system, intelligent algorism, user friendly interface;
4. Better sorting accuracy , lower carryover, and bigger production capacity;
5. Stable, reliable, ultra-fast mass data processing;
6. Spice sorting with expert sorting solution realizes one key debugging
7. Remote debugging, diagnosing and maintenance.

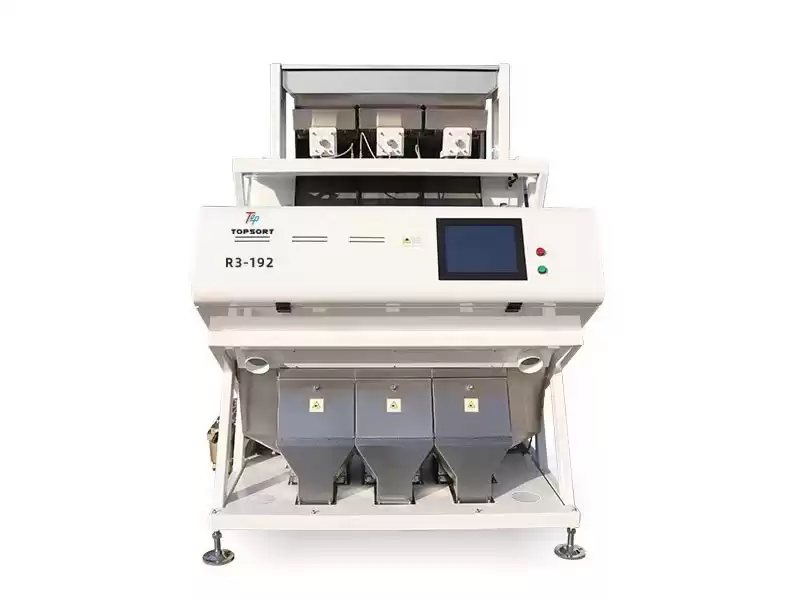

192 Channels Optical Sorting Machine Technical Parameters
| Model |
TS3-192 |
| Channles |
192 |
| Power |
1.9kw |
| Weight |
500kgs |
| Dimensions |
1650*1504*1760mm |
| Power voltage |
220V/50HZ/60HZ |
| Sorting accuracy |
99.99% |
| Capacity |
300-600kgs/h |
| Air consumption |
<3.0m3/min |
| Air pressure |
0.6-0.8Mpa |
Superb Sorting Sulotions
Our Color Sorter Machine Core Advantages
Sucessful Cases
After Sales Services
• With presence in a variety of countries, TOPSORT is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, TOPSORT managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, TOPSORT machines enjoy 2 years of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• TOPSORT products will be serviced and supported wherever customers are located.
• Through the global TOPSORT network and from TOPSORT technical experts, training on TOPSORT machines is available worldwide.
