Description:

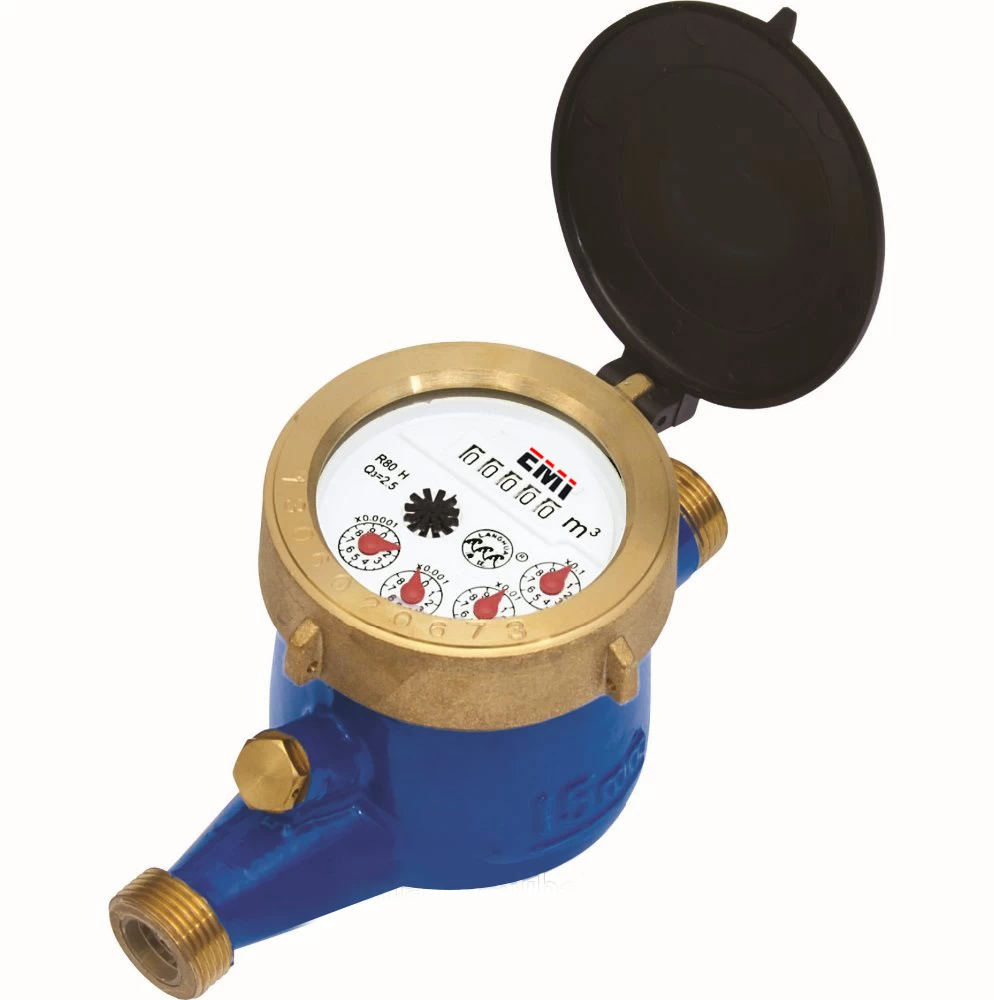

The multi jet water meter, is made of brass, plastic or iron body. Available in sizes 15mm to 50 mm for residential application, and DN 50 to DN 300 for commerical and industrial applications. It's for cold water volumetric measurement, or hot water up to 90 ℃.
this kind of Domestic water meters are used to measure the water consumption ratio among multiple customers. They are therefore used in buildings with multiple separate units (apartment houses). The water meter is most often owned by the owner of the unit or object (private owner, or city or housing cooperative), which ensures its maintenance on verification (calibration).
Multi jet, dry dial velocity type measurement principle water meter with direct reading.
Protected dial - isolating in a protective capsule that contains a special liquid for perfect and clean reading of the dial even when the water is slightly soiled
The optional remote reading: pulse emitter (reed switch), or photo electric reading.
The water meter is fully waterproof and can be installed without any risk of water ingress or condensation on the display
The meter has extraordinary precision at low flow, so even at a very low flow rate.This ensures fair and accurate billing, increases data quality and helps reduce waste water.
can equipped with an integrated communication that allows safe and easy remote reading without additional attachments.
That means you can say goodbye to manual readings and couners. The data collection time is greatly reduced and the need for time-consuming follow-up checks is eliminated due to missing or inaccurate data that only endangers your end-users. Instead, you can devote your resources to services that give your customers greater value. you will be well prepared to answer customer inquiries and give end users access to detailed information about their consumption.
Competitive Advantage:
-
Compliance to international standards: ISO4064
-
Strict process control
-
Advanced calibration equipment
-
Engineer team
-
Work condition:
-
Water temperature:0.1℃～40℃ for cold water
-
30℃～90℃ for hot water meter.
-
Water pressure: ≤1.0 Mpa
-
low start up flow
-
construction without magnetic coupling
-
resistant magnet
-
increased magnetic protection
-
integrated radio module
-
wireless communication MBUS or wilress module according to ISO4064
Remarks:
Measuring accuracy conform to ISO 4064 class B standard..
Available with different length on request. Available in hot water meter on request.
Maximum Permissible Error:
(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%
