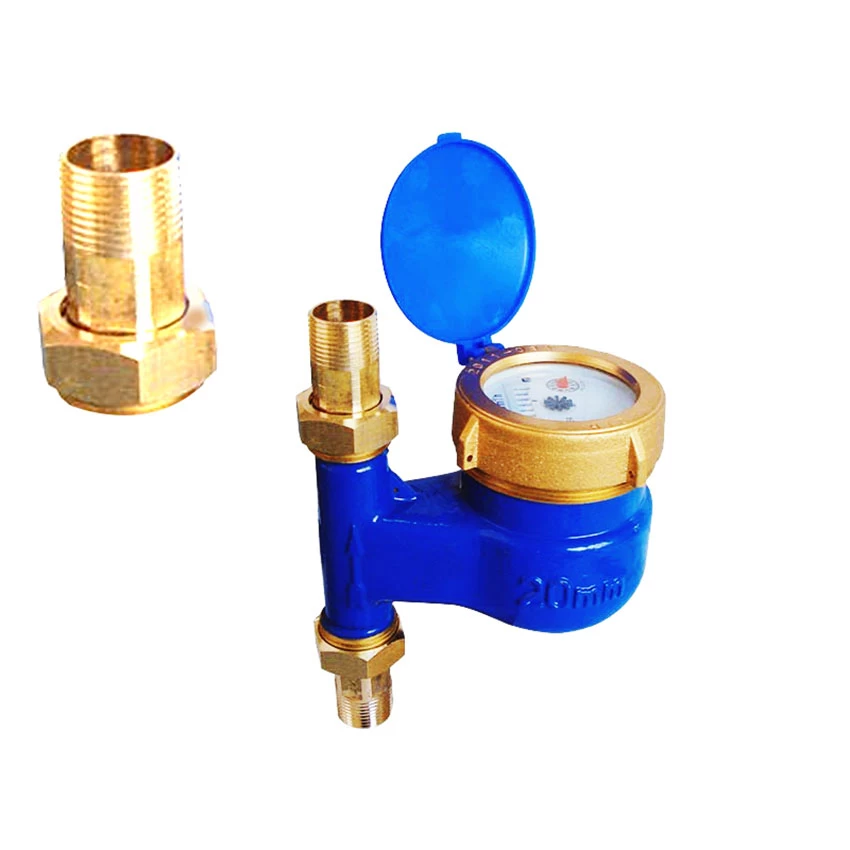

Multi jet potable cold water meter

A dry rotating counter connected to a magnetic coupling measuring part, standardly pre-equipped for installation of the CYBLE communication member. Cover IP68 - copper sheath and mineral glass.

Facebook Twitter Pinterest LinkedIn 分享
BENEFITS OF MULTI JET WATER METER:
--Accurate registration of low flow and water leakage.
--High accuracy in a wide flow range.
--Possibility of high overload
--Measuring mechanism with hydrostatically and hydrodynamically balanced turbine, minimum friction resistance, high accuracy, low -----pressure loss, metrological stability.
--Rolling turbine mounting - extended lifetime and higher sensitivity in the area of very small flows.
--High reliability - the only moving part in the water.

Mounting position:
--Horizontal - accuracy class B.
--No demands on the calming length of the pipe.

FEATURES:
--domestic water meter Dry-dial, Multi-jet, Plastic Body, Magnetic transmission and magnetic shield
--Selected high quality materials for steady and reliable characteristics
--Technical data conform to International Standard ISO4064

APPLICATION:
--Measuring the volume of portable water passing through the pipeline.
--WORKING CONDITION: Water temperature: ≤40°C, Water pressure: ≤1.6Mpa cold water metermulti jet water meterpotable water meter
