Multi jet pulse type Lora wireless AMR water meter

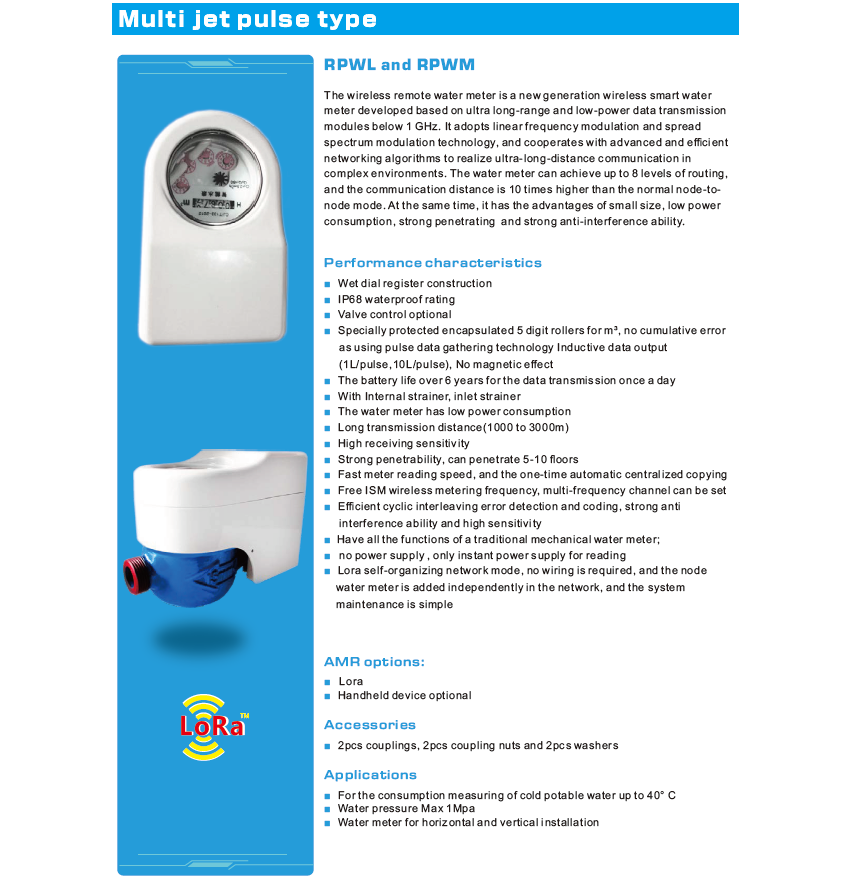

The wireless remote water meter is a new generation wireless smart water meter developed based on ultra long-range and low-power data transmission modules below 1 GHz. It adopts linear frequency modulation and spread spectrum modulation technology, and cooperates with advanced and efficient networking algorithms to realize ultra-long-distance communication in complex environments. The water meter can achieve up to 8 levels of routing,and the communication distance is 10 times higher than the normal node-to node mode. At the same time, it has the advantages of small size, low power consumption, strong penetrating and strong anti-interference ability.



Multi-jet wet dial valve controlled  Remote Reading Water Meter AMR

· It is a multi-jet remote reading water meter for residential application in sizes15mm-20mm for cold water.

Features

· Vane Wheel measurement, Dry dial, Copper can register
· High accuracy level, to be R160
· Internal strainer, inlet strainer
· Inductive data output (1L/pulse), No magnetic effect
· Radio Frequency transferring (Lora Technology 433/470MHz,other FR could be option)
· The battery life should be minimum 6 years for the data transmission once per day
· Mechanical display (Max: 99999), NOT digital display
· Hand-held could be a option, collect data min distance 200m,and could connect with computer.

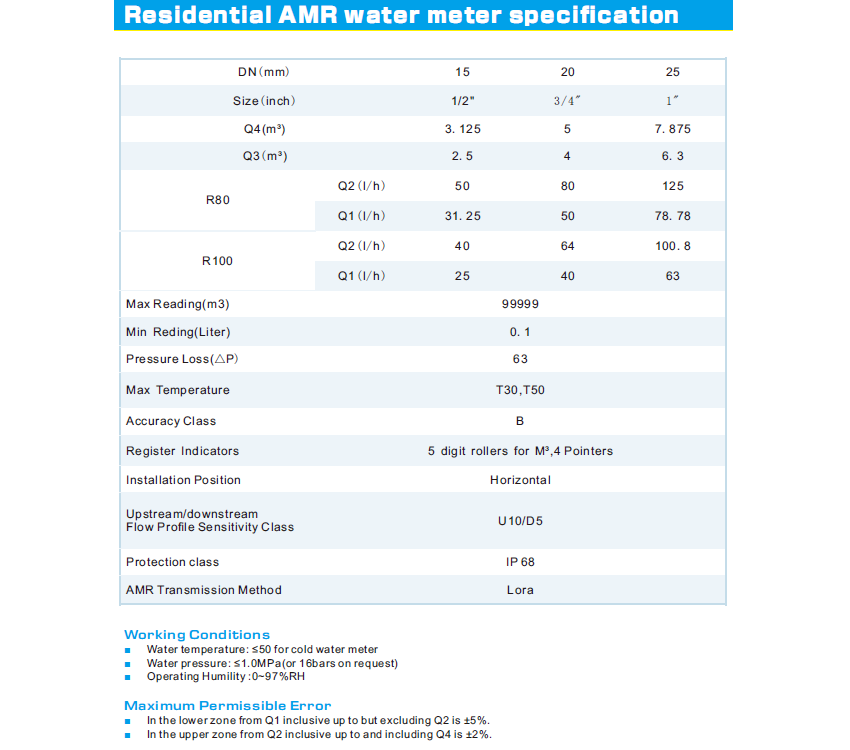

Working Conditions

· Water temperature: ≤50℃ for cold water meter
· Water pressure: ≤1.6MPa(16bars)

Accessories

· 2pcs couplings, 2pcs coupling nuts and 2pcs washers.

Maximum Permissible Error

· In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%.
· In the upper zone from Q2 inclusive up to and including Q4 is ±2%.
