Overview :
Place of Origin:Shandong, China (Mainland)
Brand Name:EMI ®

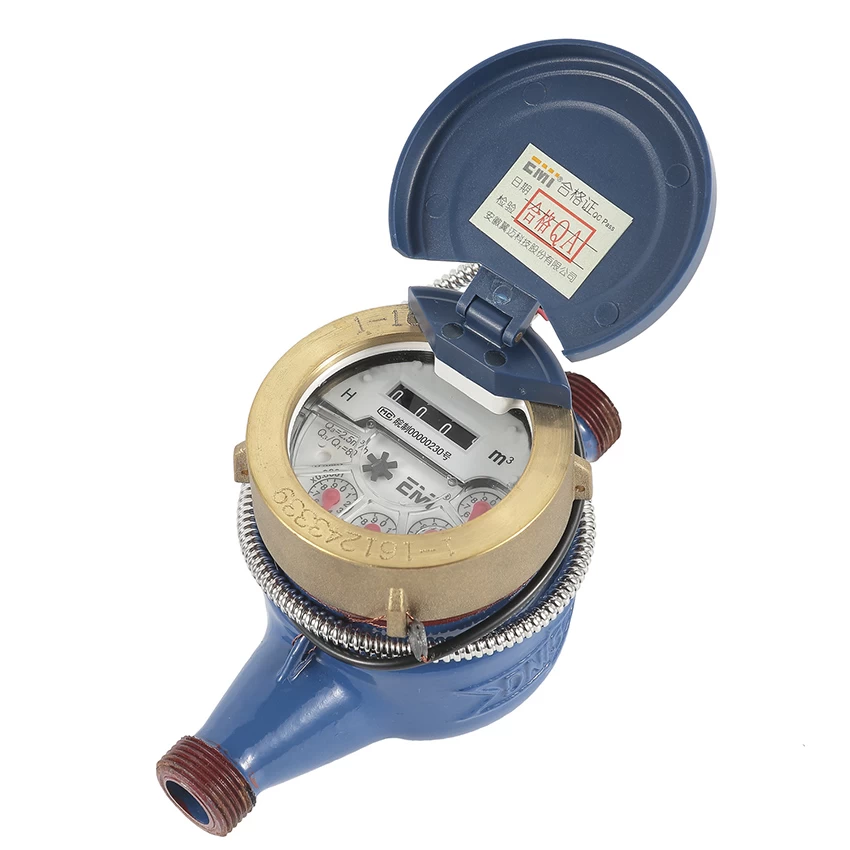

Keyword:M-BUS Photoelectric direct reading remote water meter
Material:Brass
Color:Blue
Certificate:ISO9001/ISO14001/OHSAS18001
Size:DN15mm~DN50mm (1 /2''~1')
Standard:ISO 4064 ClassB
Feature:Long Working Life
Type:Wet
Features
Small,light
For cold water
Dry-dial,magnetic drive, protected against external magnetic tampering
Vacuum-sealed register, frost resistant, keeps clear reading for long time
Register can be rotated in any direction for convenient reading
Brass body or plastic body, optional
Brass body can be painted or nickel coated
High accuracy
m3 or gal, optional
Many kinds of sensors, such as Optoelectric ,Reed Switch, Hall and Weagand can be supplied upon request
Pulse output may be 10l/pulse
The meters conform to ISO4064 Standard Class B
Working condition
Water pressure≤1MPa
(PN: 1.6MPa/16bar)
The pressure loss≤0.1MPa

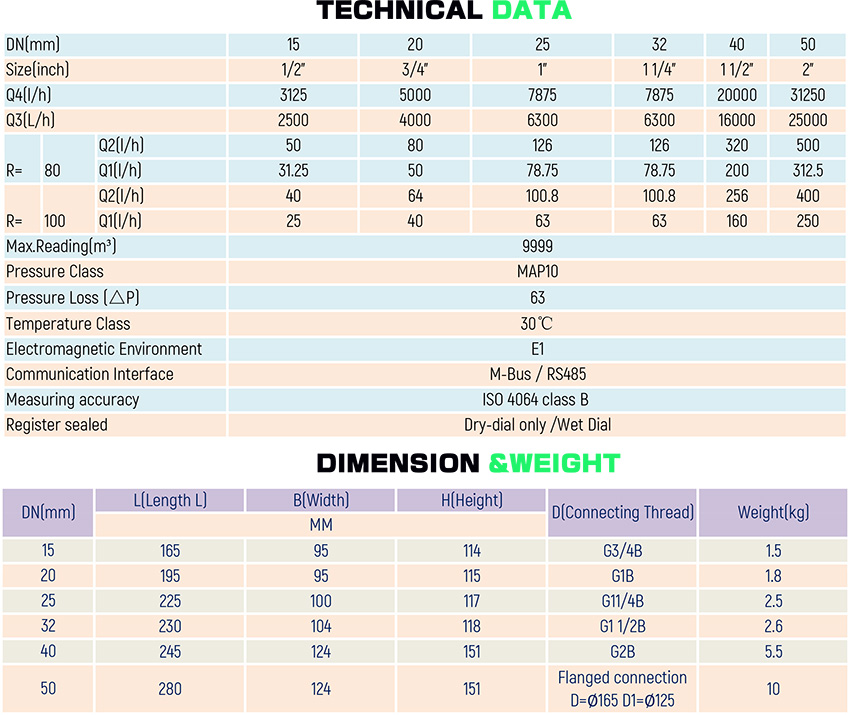

Technical data
