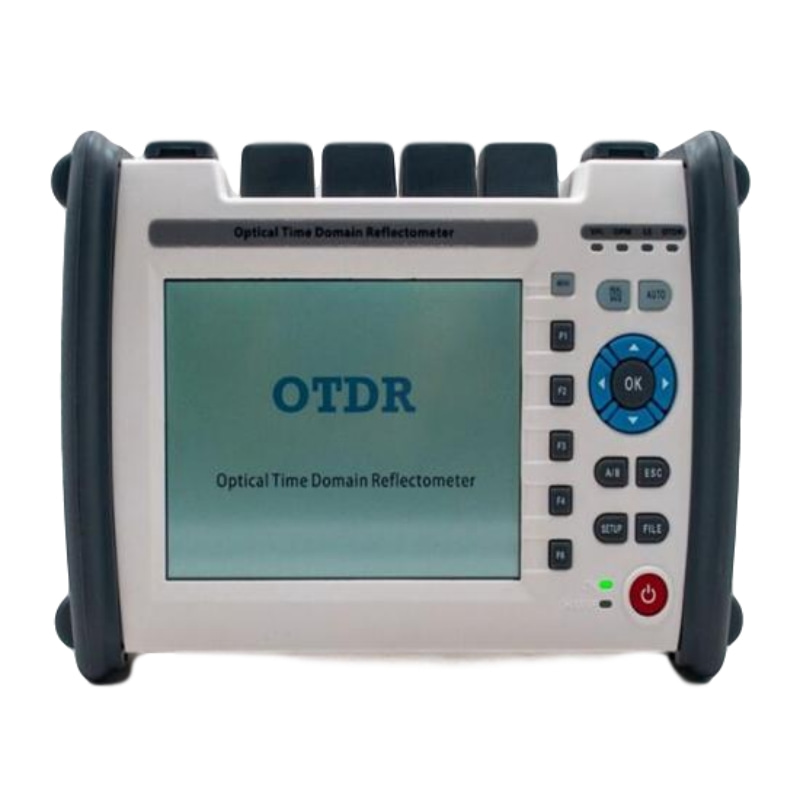

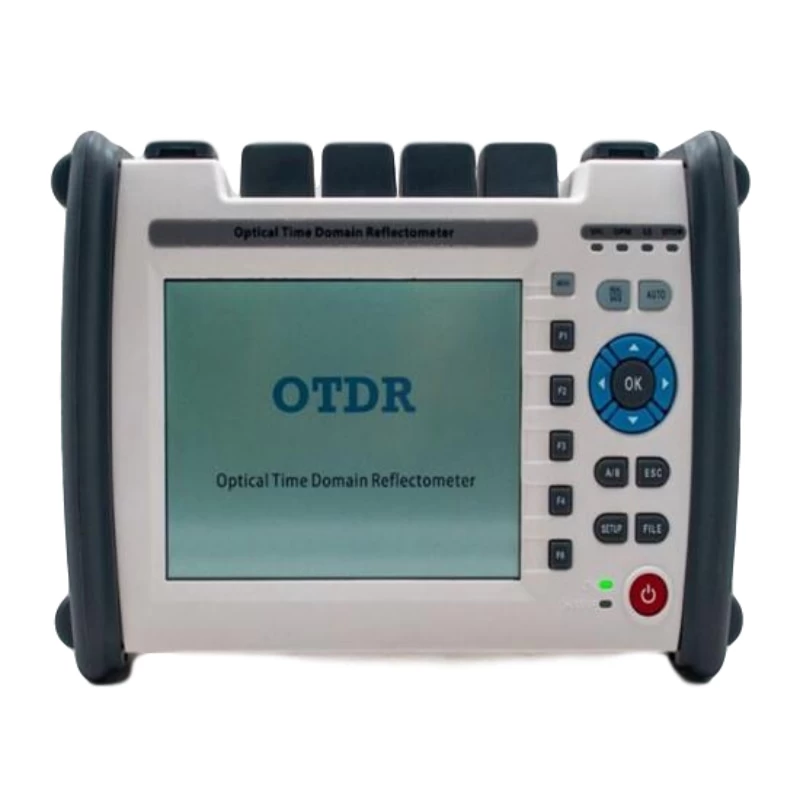

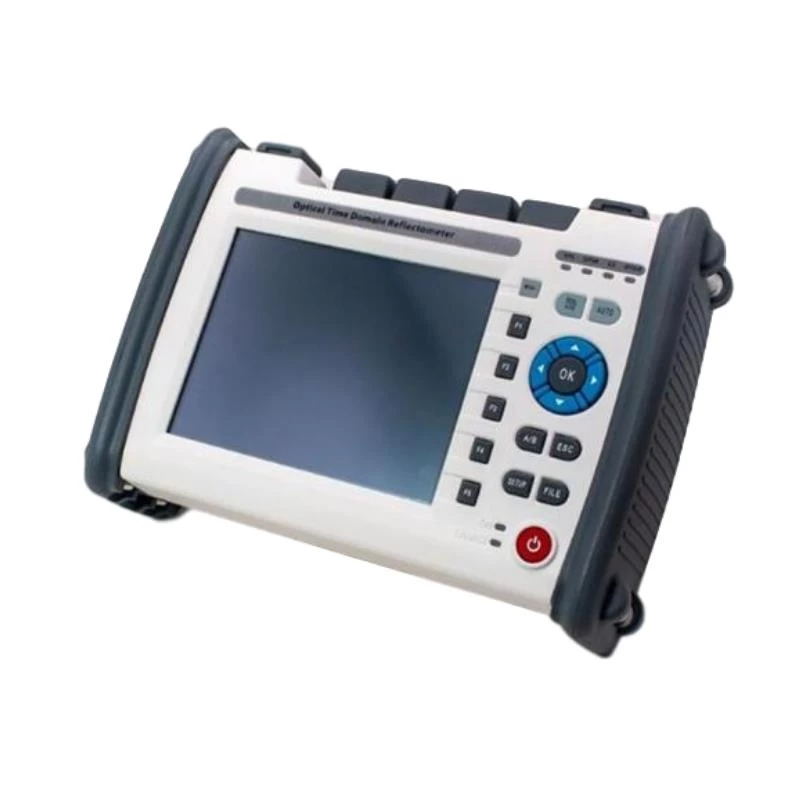

Multi-language PON OTDR Fiber Tester

Combined multi-dynamic range and wavelengths

Support English/ Chinese input, adopts friendly input interface.



Introduction

S2100 Series Optical Fiber Comprehensive Tester is high cost performance choiceTouch-sensitive and solid physical button work together for perfect user experience. It is widely used in the maintenance, construction and monitoring of cable line.


Features

  •  Hand-held and portable
  •  High cost performance

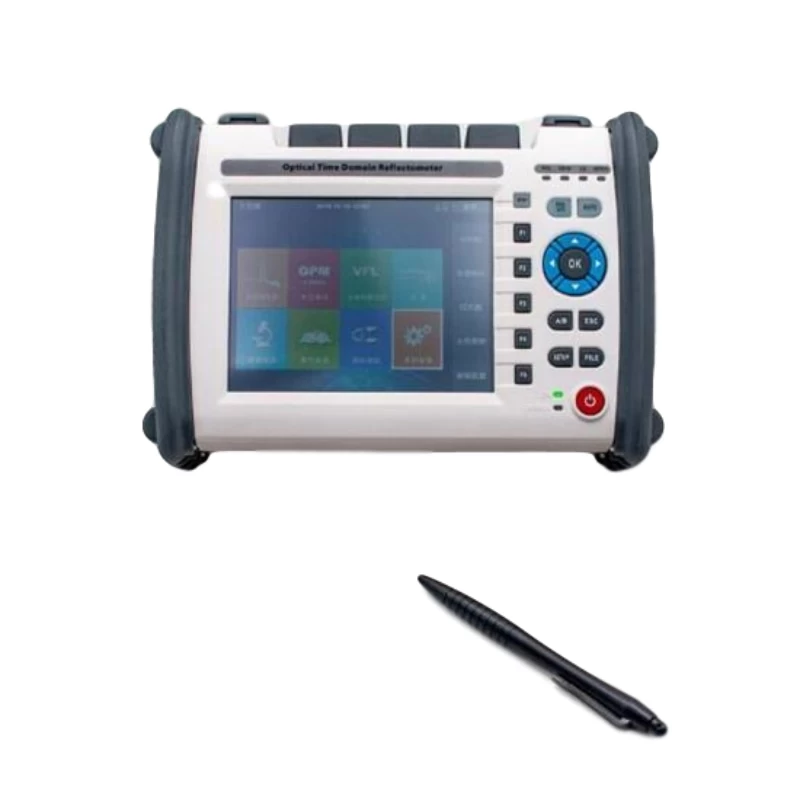

  •  5.6-inch HD touch screen
  •  Simple interface and one-button testing
  •  Long working hours
  •  Support multi-languages


Application

  • 1. CATV network testing
  • 2. Access network testing
  • 3. LAN/WAN network testing
  • 4. Metro network testing
  • 5. Lab and Factory testing
  • 6. Real-time troubleshooting


Easy testing with S2100 series Optical Fiber Comprehensive Tester:

With its lightweight design and user friendly dimension, S2100 series Optical Fiber Comprehensive Tester is perfect for the outside plant environment and can be easily operated with one hand.

S2100 series Optical Fiber Comprehensive Tester ensures accurate and complete fiber evaluation while the testing requires only one key to start, allowing anyone to proceed error-free testing. Its ease of use, low price, high resolution and compact size make it be a qualified tester in installation, operation and maintenance of optical networks, and also save you a lot of money and time.


Ideal for short fiber application:

It is hard to find a high cost effective OTDR to test short fibers. Normal Fault Locators in short spans lack the resolution while common OTDR are too large, expensive and complicated.

S2100 from Seikofire meets this need by providing all features and performances required for installation and maintenance of short fibers in a compact and mini handheld test set. S2100 represents an unmatched level of value and ease of use, but doesn’t compromise performance.


Module

Module

wavelength(nm)

Dynamic Range(dB)

Event/Attenuation Dead Zonem

S2100-S-A28

1310/1550

28/26

0.8/4

S2100-S-A32

1310/1550

32/30

0.8/4

S2100S-A35

1310/1550

35/33

0.8/4

S2100-S-A37

1310/1550

37/35

0.8/4

S2100-S-B26

1625

26

0.8/4

S2100-S-B32

1625

32

0.8/4

S2100-S-C26

1650

26

0.8/4

S2100-S-C32

1650

32

0.8/4

S2100-S-AB35

1310/1550/1625

35/33/32

0.8/4

S2100-S-AC35

1310/1550/1650

35/33/32

0.8/4

S2100-M26

850/1300

20/26

1.2/5

S2100-SM28

1310/1550/850/1300

28/26/20/26

SM0.8/4 MM1.2/5

S2100-SM35

1310/1550/850/1300

35/32/20/26

SM0.8/4 MM1.2/5



Specifications

Display

5.6-inch TFT-LCD (touch screen)

Battery

7.4V/2500mAh X 2 lithium battery (with air traffic certification),

Continuously test: 8 hours (back light off),

Charging time: 3 hours

Data Storage

100,000 groups of curves

Interface

USB A Type×1, Micro-USB×1

Working Temp

-10℃~+50℃

Storage Temp

-20℃~+70℃

Humidity

≤95% (non-condensation)

Dimension

215×155×68mm / 1.1kg (battery included)

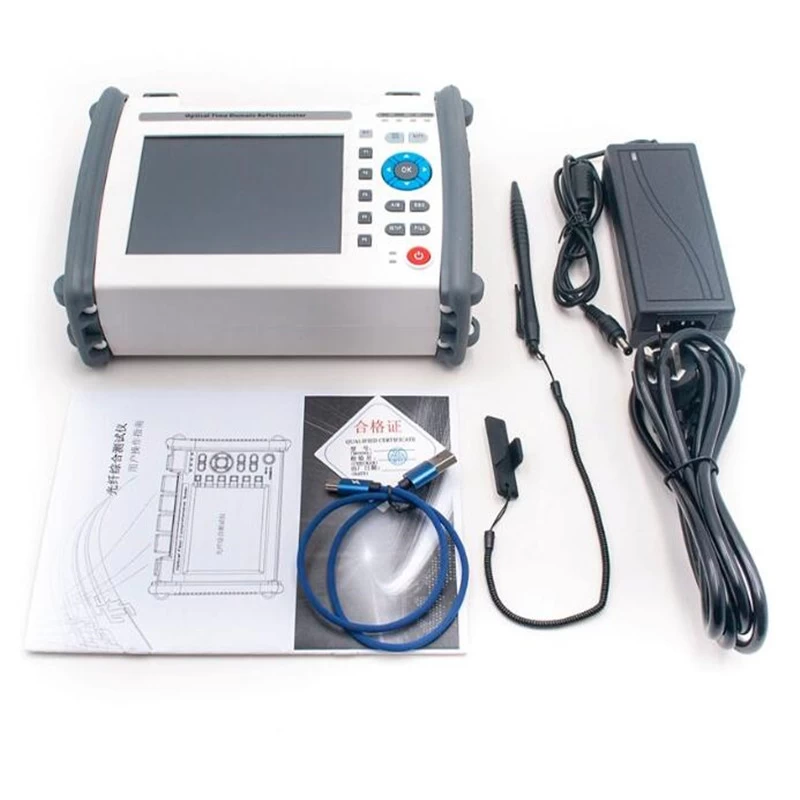

Accessories

Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, carrying case, wrist belt
