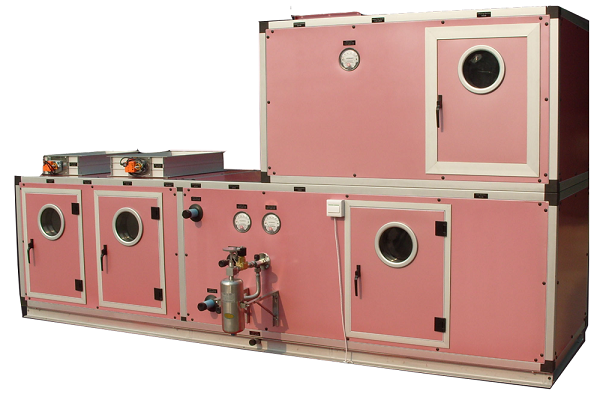

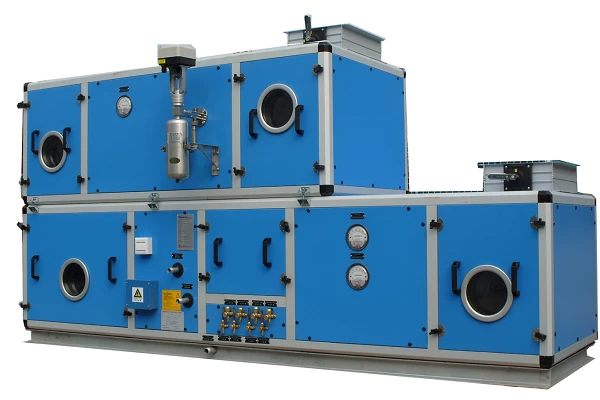

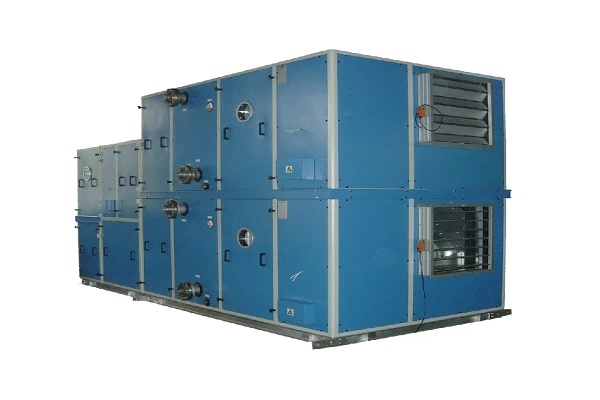

Multifunction Central Station Air Handling Unit
Refrigerating capacity: 25-169 (kw) kw
Product categories
Constant temperature dehumidification combined air-conditioning unit
Anti-corrosion type combined air-conditioning unit
Combined roof air conditioning unit
Large air conditioning unit
Direct expansion combined air-conditioning unit

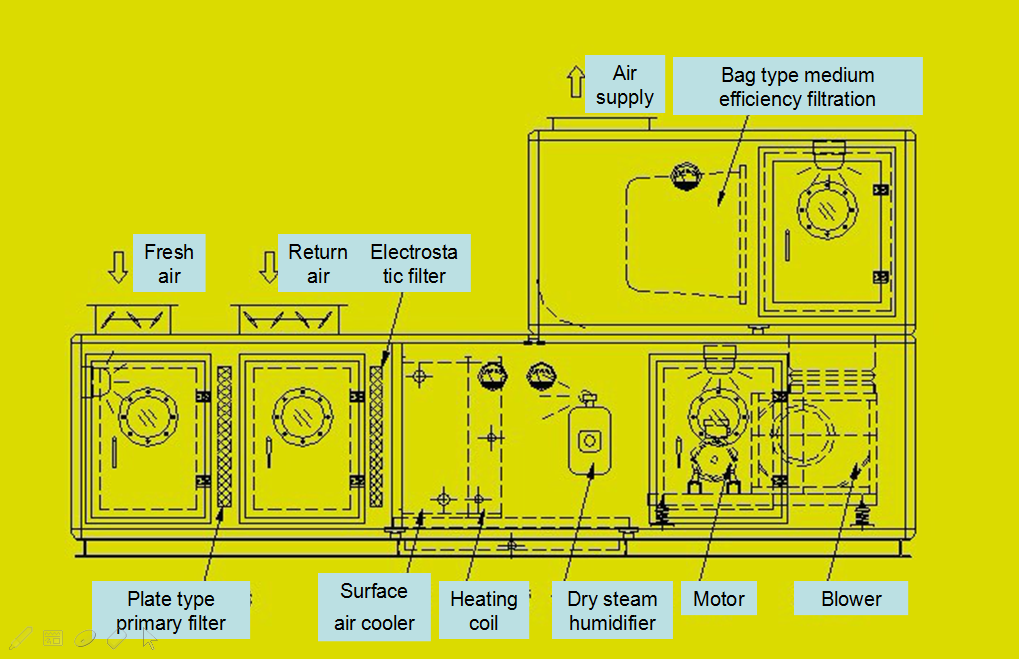

AHU drawing:

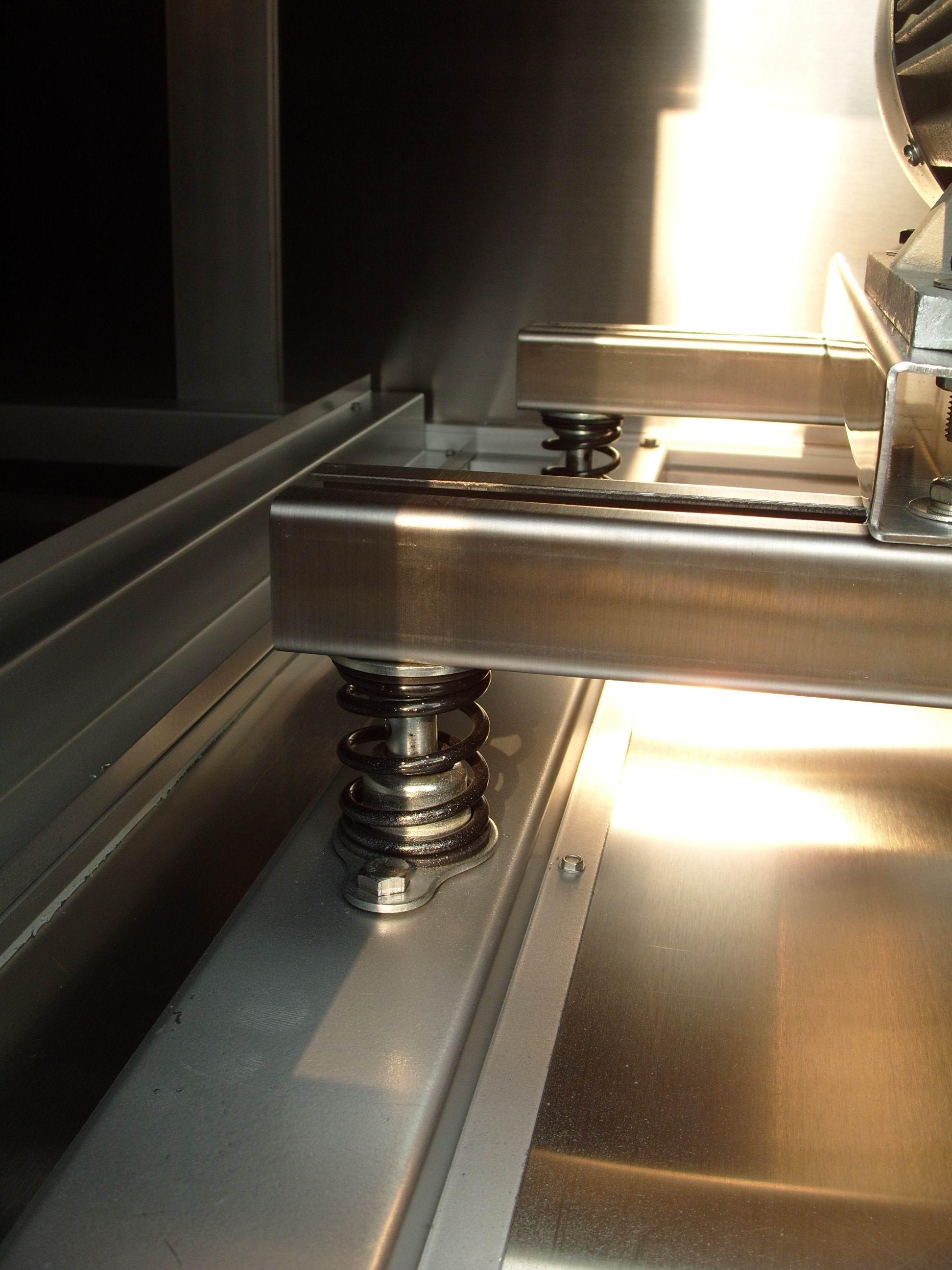

1.Eliminate the vibration effects of the fan assembly on the unit.
2.A vibration damping device is provided between the base and the wind frame for vibration isolation
3.Effectively reduce the vibration of the unit

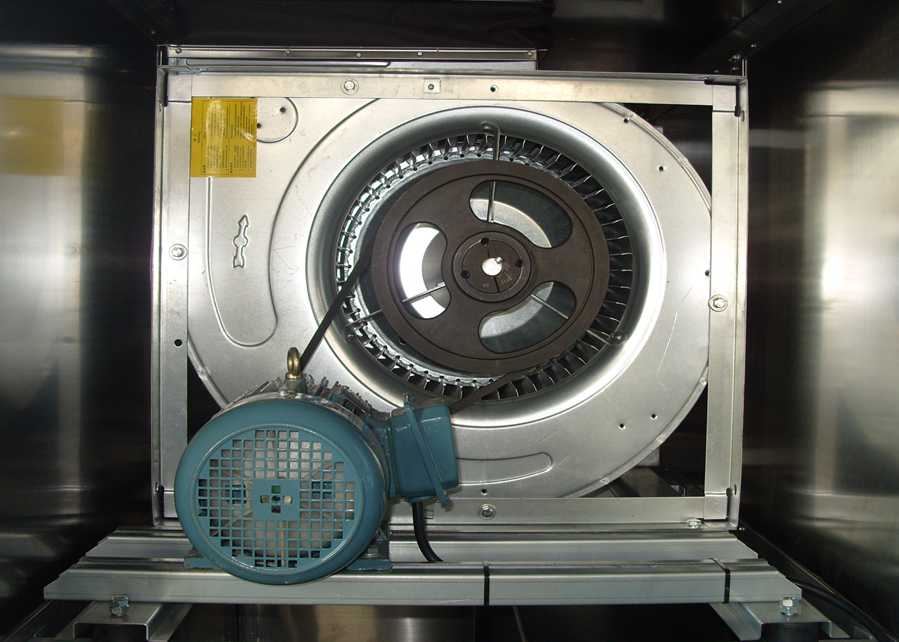

Sweden Fan Rotor:
Features:
1. Air handling capacity scope: 3000 m3/h ---60000m3/h Cooling capacity scope: 18.6kw---467.3kw,
2. Good looking and clean surface, light weight, excellent heat and low noise, high strength.
3. Double 25mm and 50mm Skin Panel, outer plate is made of high quality steel sheet, while inner plate is made of zinc coated steel sheet. In the middle is high pressure foamed hard polyurethane as insulation
4. Fans and motors are from leading manufacturer.
5. Using advance software selection to have coil performance.
6. Filter sections of Aluminum pre-filter filter, medium filter, bag type filter HC filter are available upon application requirement;
7. High efficiency Aluminum fin copper chilled, Direct Expansion Coil, with drain pan, Hot water and electric step heating; Steam and Electrode type Humidifier are variable;
8. Energy saving Heat Wheel Recovery section are available;
9. Forward, Backward inclined and Aero Foil Fans are available for specific fan application; Fan assembly framework with adjustable motor base for proper fan belt tension adjustment; Spring isolator for Fan Assembly Frame is special non defective type for protection of vigorous transportation;
10. Low leakage air dampers for fresh air, return air and exhaust air adjustment;
11. BA control factory installed as option for saving installation time and labor cost;
12. Air Handling Unit strength is found in most industrial application upon special design and long time experience.
